Torque
Wrenches
Basic Part
Number
TG61
MIL-C-81511 Series I and III

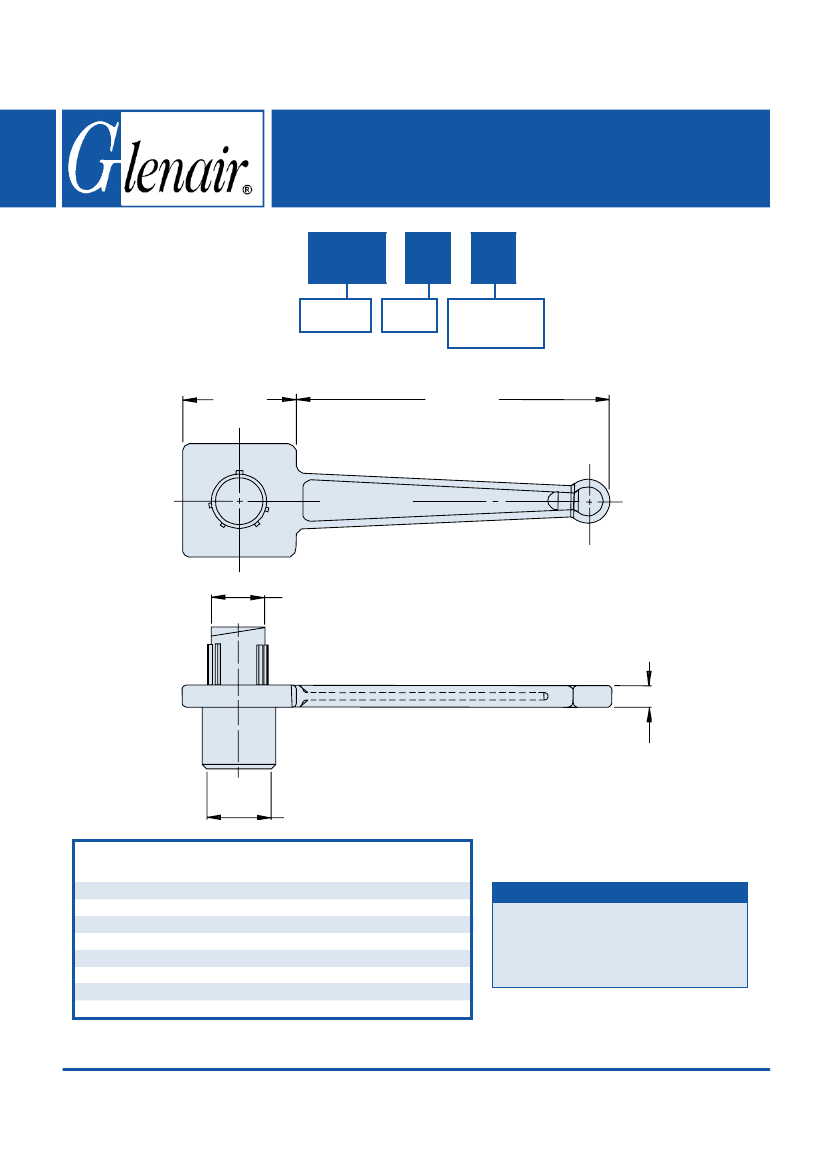

Connector Wrench
TG48
-
20
Shell
Size
1
Polarization
1, 2, 3, 4, 5, 6
(Omit for Normal)
A Sq.
5.625
(142.9)
Approx.
GLENAIR, INC.
B
.375 (9.5)
Approx
C
Shell
Size
08
10
14
16
18
20
22
24
A Dim.
± .062 (1.6)
1.250 (31.8)
1.250 (31.8)
2.000 (50.8)
2.000 (50.8)
2.000 (50.8)
2.000 (50.8)
2.750 (69.9)
2.750 (69.9)
B Dia.
Ref.
.378 (9.6)
.503 (12.8)
.751 (19.1)
.877 (22.3)
1.001 (25.4)
1.126 (28.6)
1.251 (31.8)
1.376 (35.0)
C Dia.
Ref.
.407 (10.3)
.532 (13.5)
.782 (19.9)
.908 (23.1)
1.032 (26.2)
1.157 (29.4)
1.282 (32.6)
1.407 (35.7)
APPLICATION NOTES
1. Metric dimensions (mm) are indicated in
parentheses.
2. Material: Aluminum alloy with electroless
nickel finish.
