for MIL-DTL-38999 Series III Type
Shell Size
09
11
13
15
17
19
21
23
25
2.000 (50.8) Max
Insert Arrangement
Per MIL-DTL-38999 Series III
MIL-STD-1560
Contact Termination
P
- Pin on Plug Side
S
- Socket on Plug Side
Connector Series
233
-
D38999 Series III Type
Connector Type
103
-
Hermetic
Bulkhead Feed-Thru
.890
(22.6)
Max
.125
(3.2)
233
-
103
-
H9 P 11
-
35 P N
-
01
Shell Style
H9
- Jam Nut Mount Plug/
Receptacle Gender Changer
Connector Material and Finish
Z1
- CRES, Passivated
ZL
- CRES, Nickel Finish
Alternate Positions:
A, B, C, D, E
(N = Normal)
Panel Accomodation
01
- .0625″ (Min) .125″ (Max)
02
- .0625″ (Min) .250″ (Max)
03
- .0625″ (Min) .500″ (Max)
A Thread
F Thread
Panel
Accomodation
.520/.500 (13.2/12.7)
to rear of red full-mate
indicator band
Insert Arrangements per
MIL-DTL-38999 Series III
MIL-STD-1560
TABLE I: CONNECTOR DIMENSIONS
SHELL
SIZE
9
11
13
15
17
19
21
23
25
A THREAD
0.1 P-0.3L-TS-2
.6250
.7500
.8750
1.0000
1.1875
1.2500
1.3750
1.5000
1.6250
B
DIM
.945(24.0)
1.063(27.0)
1.260(32.0)
1.417(36.0)
1.457(37.0)
1.614(41.0)
1.811(46.0)
1.968(50.0)
2.017(51.2)
C DIM
MAX
1.090(27.7)
1.280(32.5)
1.400(35.6)
1.530(38.9)
1.660(42.2)
1.840(46.7)
1.970(50.5)
2.090(53.1)
2.210(56.1)
D
DIA
.698(17.7)
.822(20.9)
1.010(27.6)
1.135(28.8)
1.260(32.0)
1.385(35.2)
1.510(38.4)
1.635(41.5)
1.760(44.7)
E
DIM
.322(8.9)
.385(9.8)
.479(12.3)
.541(13.7)
.604(15.3)
.635(16.1)
.698(17.7)
.760(19.3)
.822(20.9)
F THREAD
x1-6g-0.100R
M17
M20
M25
M28
M32
M35
M38
M41
M44
E
D Dia
B
C
Recommended
Panel Cut-Out
APPLICATION NOTES
1.
2.
3.
Power to a given contact on one end will result in power to contact directly
opposite, regardless of identification letter.
Hermeticity = less than 1 x 10
-4
cc/sec at one atmosphere. Not for use in liquid
atmosphere.
Material/finish:
Shell, nut – CRES/passivated, carbon steel/fused tin or CRES/nickel per QQ-N-290.
4.
Contacts – Gold Plated. Pin: alloy 52; Skt.: copper alloy
Insulator – fused vitreous glass/N.A.
Seals – fluorosilicone rubber/N.A.
Metric dimensions (mm) are indicated in parentheses.
© 2008 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-13
Bulkhead
Feed-Thrus

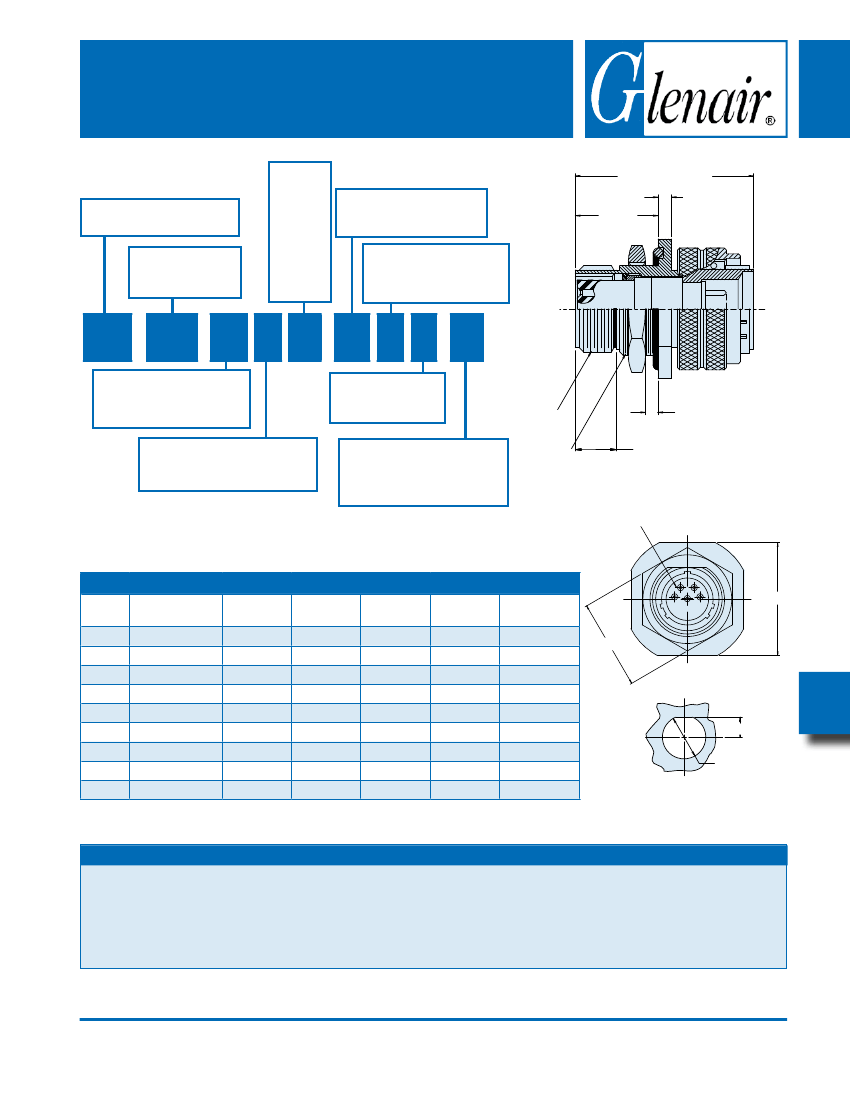

233-103-H9
Jam Nut Mount Hermetic
Plug/Receptacle Bulkhead Feed-Thru
