KUINTEL386DX25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> KUINTEL386DX25

KUINTEL386DX25: DescriptionMicroprocessor, 32-Bit, 25MHz, CMOS, PQFP132, PLASTIC, QFP-132; CategoryThe embedded processor and controller Microcontrollers and processors; File Size292KB，13 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

KUINTEL386DX25 Overview

Microprocessor, 32-Bit, 25MHz, CMOS, PQFP132, PLASTIC, QFP-132

KUINTEL386DX25 Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	QFP
package instruction	BQFP,
Contacts	132
Reach Compliance Code	compliant
ECCN code	3A001.A.3
Other features	DYNAMIC DATA BUS SIZING; EMULATION HARDWARE; BARREL SHIFTER; NUMERIC COPROCESSOR INTERFACE
Address bus width	32
bit size	32
boundary scan	NO
maximum clock frequency	50 MHz
External data bus width	32
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G132
length	24.13 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	132
On-chip data RAM width
Maximum operating temperature	100 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	BQFP
Package shape	SQUARE
Package form	FLATPACK, BUMPER
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.32 mm
speed	25 MHz
Maximum slew rate	320 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	QUAD
width	24.13 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

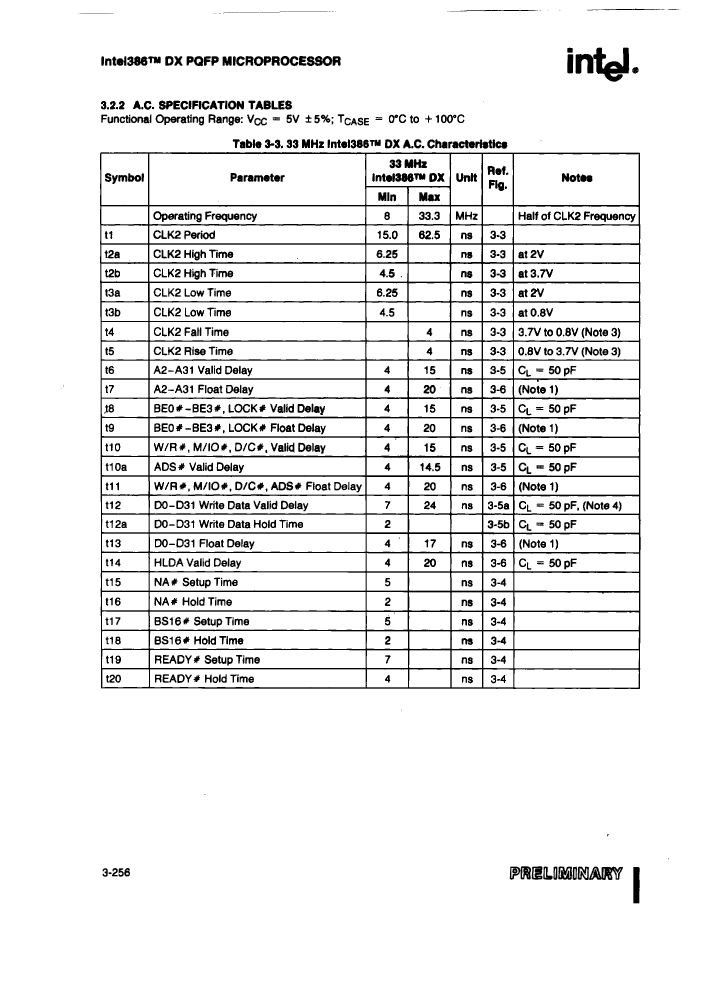

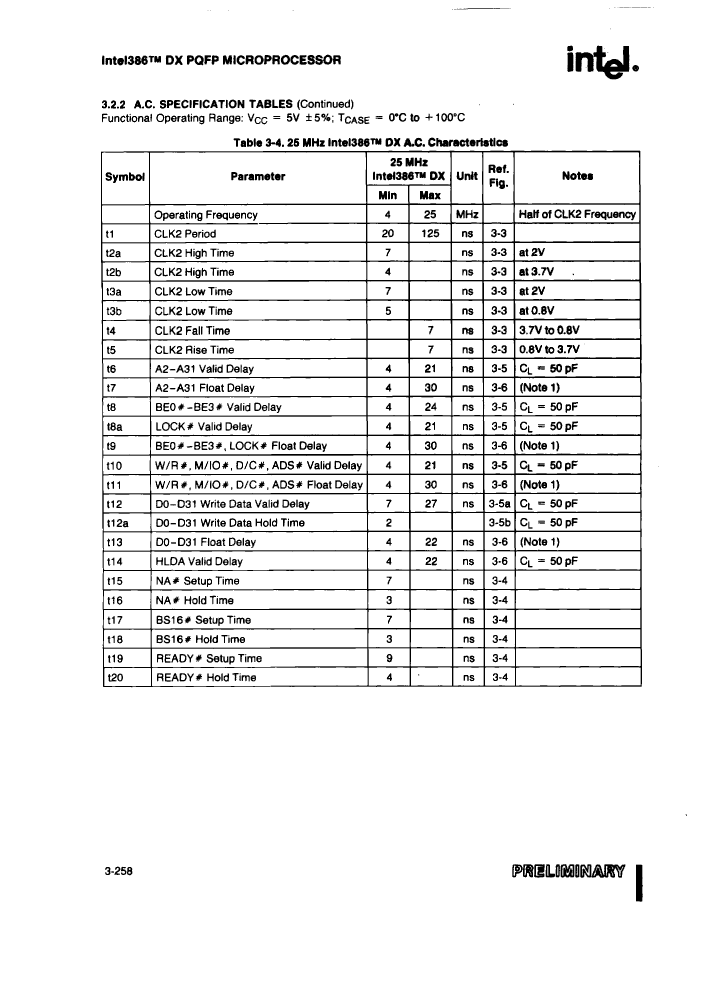

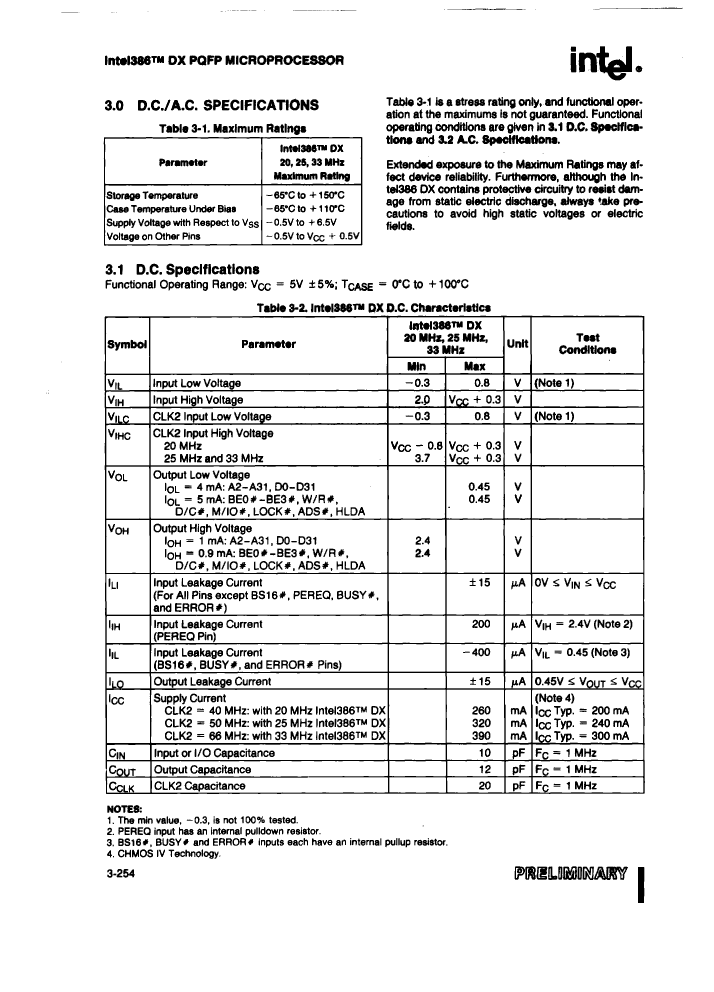

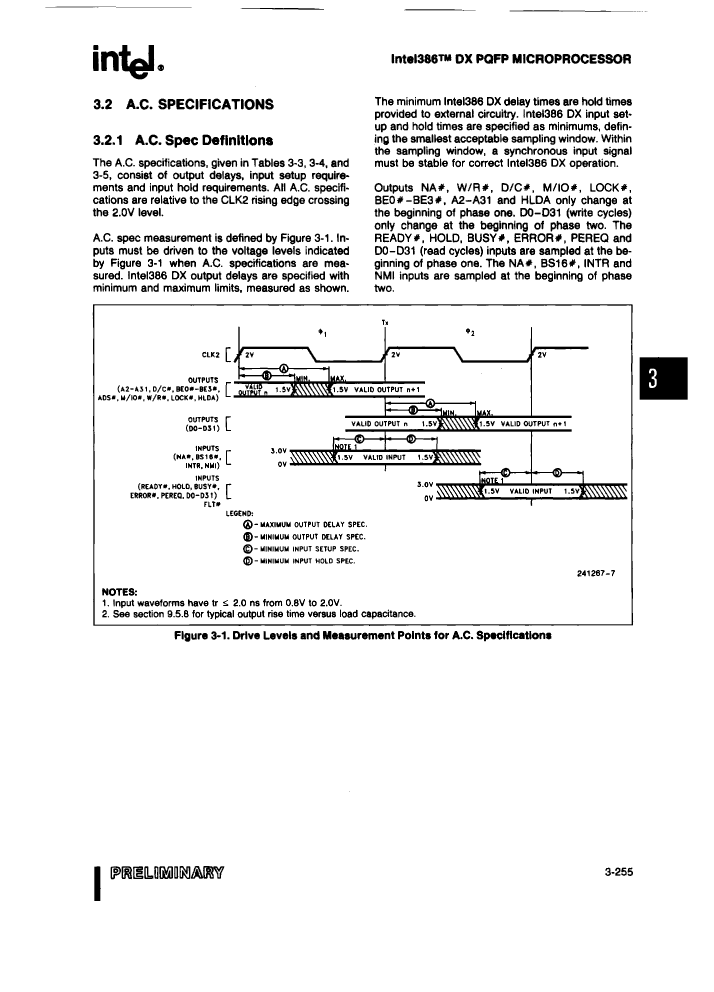

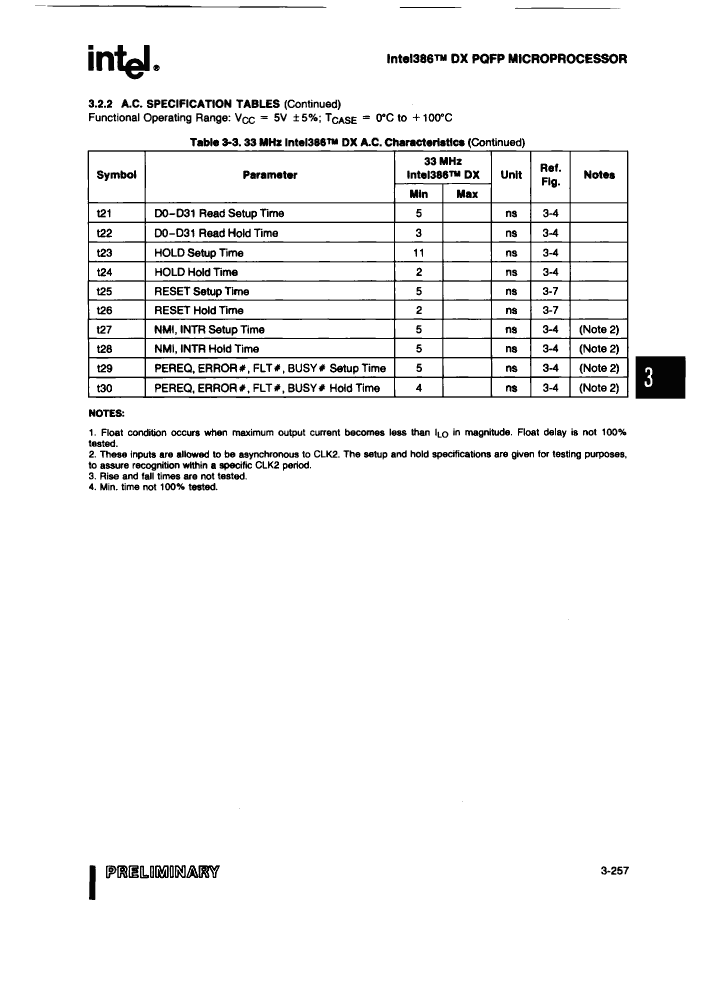

Preview

Download Datasheet

View All

KUINTEL386DX25 Related Products

	KUINTEL386DX25	KUINTEL386DX33	KDINTEL386DX33	KDINTEL386DX20	KUINTEL386DX20	KDINTEL386DX25
Description	Microprocessor, 32-Bit, 25MHz, CMOS, PQFP132, PLASTIC, QFP-132	Microprocessor, 32-Bit, 33MHz, CMOS, PQFP132, PLASTIC, QFP-132	Microprocessor, 32-Bit, 33MHz, CMOS, PQFP132, PLASTIC, QFP-132	Microprocessor, 32-Bit, 20MHz, CMOS, PQFP132, PLASTIC, QFP-132	Microprocessor, 32-Bit, 20MHz, CMOS, PQFP132, PLASTIC, QFP-132	Microprocessor, 32-Bit, 25MHz, CMOS, PQFP132, PLASTIC, QFP-132
Maker	Intel	Intel	Intel	Intel	Intel	Intel
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	BQFP,	BQFP,	BQFP,	BQFP,	BQFP,	BQFP,
Contacts	132	132	132	132	132	132
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	3A001.A.3	3A001.A.3	3A001.A.3	3A991.A.2	3A991.A.2	3A001.A.3
Other features	DYNAMIC DATA BUS SIZING; EMULATION HARDWARE; BARREL SHIFTER; NUMERIC COPROCESSOR INTERFACE	DYNAMIC DATA BUS SIZING; EMULATION HARDWARE; BARREL SHIFTER; NUMERIC COPROCESSOR INTERFACE	DYNAMIC DATA BUS SIZING; EMULATION HARDWARE; BARREL SHIFTER; NUMERIC COPROCESSOR INTERFACE	DYNAMIC DATA BUS SIZING; EMULATION HARDWARE; BARREL SHIFTER; NUMERIC COPROCESSOR INTERFACE	DYNAMIC DATA BUS SIZING; EMULATION HARDWARE; BARREL SHIFTER; NUMERIC COPROCESSOR INTERFACE	DYNAMIC DATA BUS SIZING; EMULATION HARDWARE; BARREL SHIFTER; NUMERIC COPROCESSOR INTERFACE
Address bus width	32	32	32	32	32	32
bit size	32	32	32	32	32	32
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	50 MHz	66.67 MHz	66.67 MHz	40 MHz	40 MHz	50 MHz
External data bus width	32	32	32	32	32	32
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQFP-G132	S-PQFP-G132	S-PQFP-G132	S-PQFP-G132	S-PQFP-G132	S-PQFP-G132
length	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm
low power mode	NO	NO	NO	NO	NO	NO
Number of external interrupt devices	2	2	2	2	2	2
Number of terminals	132	132	132	132	132	132
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	BQFP	BQFP	BQFP	BQFP	BQFP	BQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER	FLATPACK, BUMPER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.32 mm	4.32 mm	4.32 mm	4.32 mm	4.32 mm	4.32 mm
speed	25 MHz	33 MHz	33 MHz	20 MHz	20 MHz	25 MHz
Maximum slew rate	320 mA	390 mA	390 mA	260 mA	260 mA	320 mA
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm	24.13 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
