BK/C519-500MAS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK/C519-500MAS

BK/C519-500MAS: DescriptionTIME DELAY BLOW ELECTRIC FUSE, 0.5A, 250VAC, 35A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size181KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric View All

BK/C519-500MAS Overview

TIME DELAY BLOW ELECTRIC FUSE, 0.5A, 250VAC, 35A (IR), INLINE/HOLDER

BK/C519-500MAS Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	unknown
Fusing characteristics	TIME DELAY
body height	15 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	1 J
Manufacturer's serial number	C519
Installation features	INLINE/HOLDER
method of packing	BOX
physical size	5.2mm x 15mm
Rated breaking capacity	35 A
Rated current	0.5 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	NICKEL
Terminal shape	END CAP

Preview

Download Datasheet

View All

5mm x 15mm Fuses

C519 Series, Time Delay, Glass Tube

Description

• Time delay

• 5mm x 15mm physical size

• Glass tube, nickel-plated brass endcap construction

• Optional sleeve is flexible flouropolymer

(U.L. flammability rating VW-1).

• UL Listed product meets standard UL 248-14

ELECTRICAL CHARACTERISTICS

Rated Current

Amp Rating

Opening Time

135%

60 minutes max.

125mA - 250mA

3 seconds min.

200%

120 seconds max.

100%

4 hours min.

470mA

30 minutes max.

350mA

600mA

90 seconds max.

2 seconds max.

500 milliseconds max.

135%

60 minutes max.

375mA - 5A

3 seconds min.

200%

120 seconds max.

RoHS

2002/95/EC

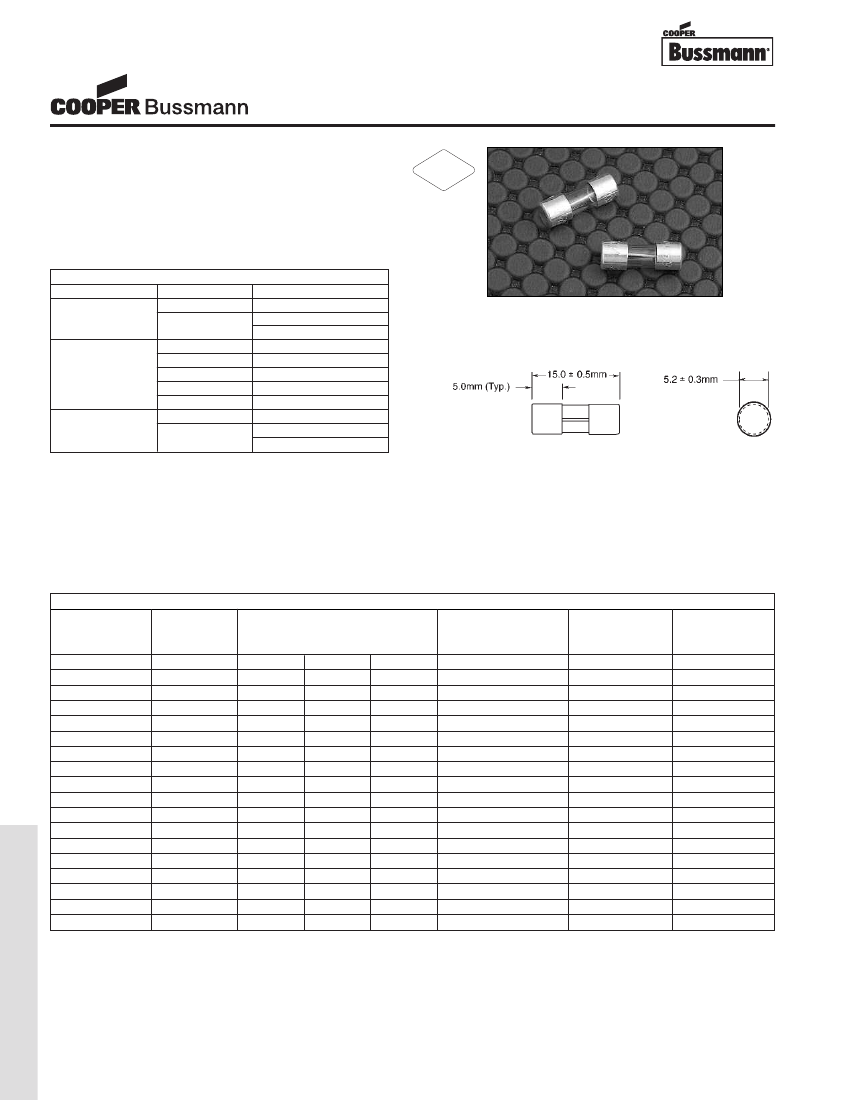

Dimensions

Drawing Not to Scale

Agency Information

• UL Listed Card: C519 125mA-250mA and 375mA-3A

(Guide JDYX, File E19180)

• UL Recognized Card: C519 350mA, and 3.5A-7A

(Guide JDYX2, File E19180)

• CSA Certification Card: C519 125mA-250mA and

375mA-3A (Class 1422-01, LR65063)

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. C519-3-R)

SPECIFICATIONS

Product Code

C519-125mA

C519-250mA

C519-350mA

C519-375mA

C519-500mA

C519-600mA

C519-750mA

C519-1A

C519-1.25A

C519-1.5A

C519-1.6A

C519-2A

C519-2.25A

C519-2.5A

C519-3A

C519-3.5A

C519-4A

C519-5A

Voltage

Rating

250V

125V

Interrupting Rating

at Rated Voltage

600V

250V

125V

35A

10,000A

35A

10,000A

25A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

400A

Typical DC Cold

Resistance*

(ohms)

4.960

1.440

0.870

0.674

0.453

0.288

0.185

0.130

0.113

0.085

0.076

0.055

0.050

0.041

0.030

0.022

0.018

0.016

Typical

Melting I

t†

0.039

0.18

0.9

1.1

2.7

6.4

7.6

145

230

Typical

Voltage

Drop (mV)‡

1200

630

520

490

410

350

300

250

220

200

190

180

150

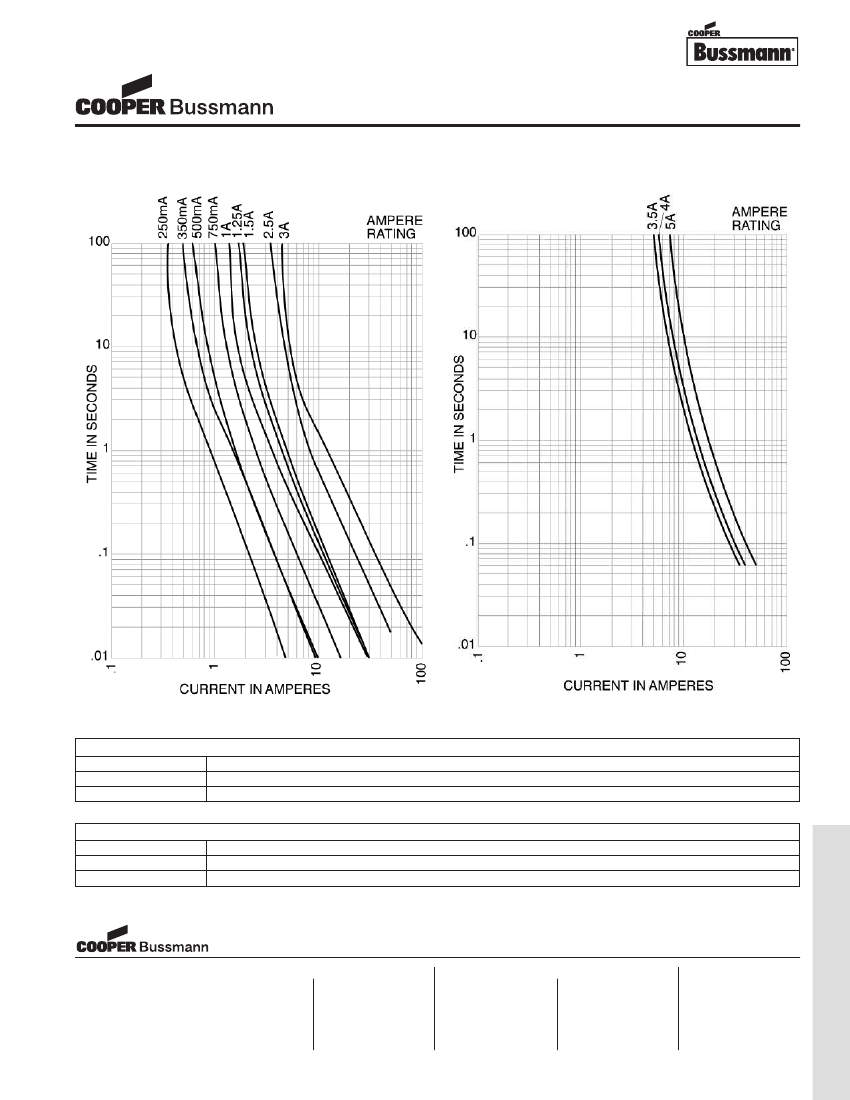

Traditional Ferrule Fuses - Ferrule Type

* DC Cold Resistance (Measured at <10% of rated current)

† Typical Melting I

t (A

Sec) (Typical I

t at 10 times rated current)

‡ Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)
