BK/C520-3.5A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK/C520-3.5A

BK/C520-3.5A: DescriptionFuse,; CategoryCircuit protection Circuit protection; File Size67KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric View All

BK/C520-3.5A Overview

Fuse,

BK/C520-3.5A Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	compliant

Preview

Download Datasheet

View All

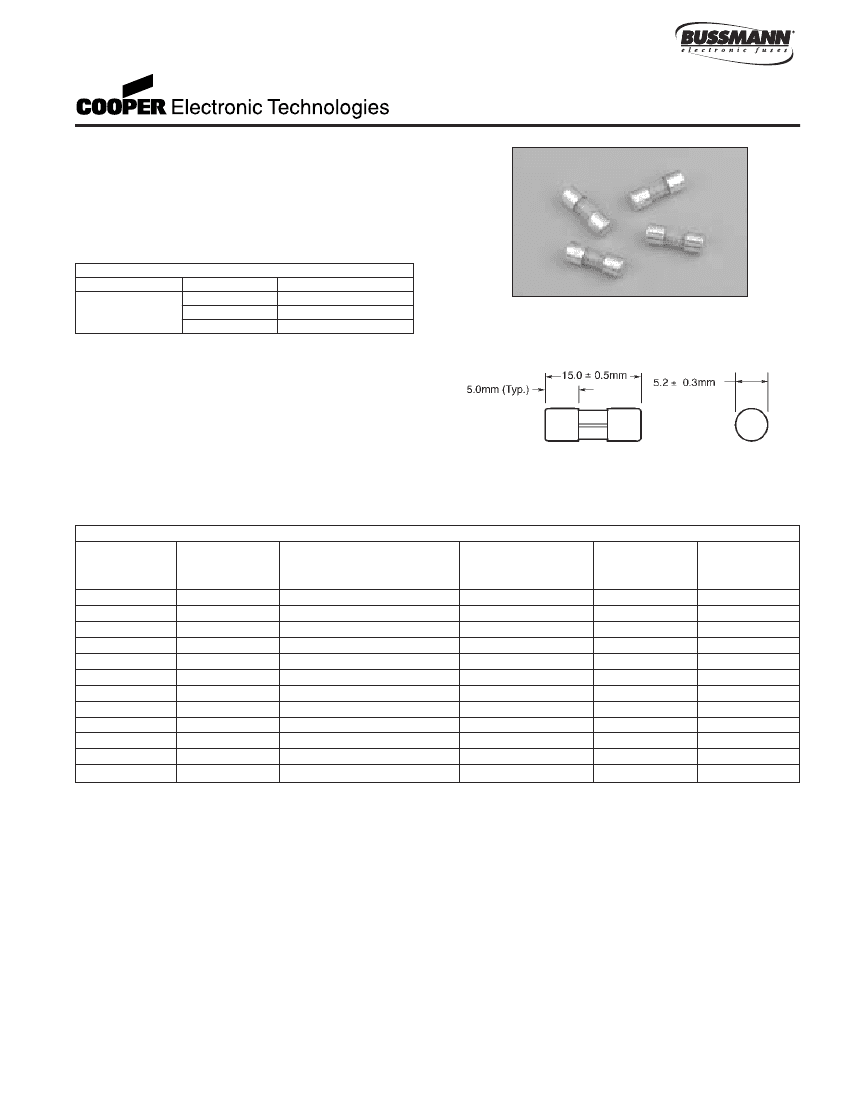

5mm x 15mm Fuses

C520 Series, Fast Acting, Glass Tube

Description

• Fast acting

• 5mm x 15mm physical size

• Glass tube, nickel-plated brass endcap construction

• Optional sleeve is flexible flouropolymer

(U.L. flammability rating VW-1).

• UL Listed product meets standard UL 248-14

ELECTRICAL CHARACTERISTICS

Rated Current

Amp Rating

Opening Time

100%

None

100mA - 5A

135%

1 hours max.

200%

2 seconds max.

Dimensions

Drawing Not to Scale

Approvals

• UL Listed Card: C520 100mA-5A

(Guide JDYX, File E75865)

• CSA Certification Card: 100mA-5A

(Class 1422-01, LR65063)

Ordering

• Specify product code, option code and packaging code

SPECIFICATIONS

Product Code

C520-100mA

C520-125mA

C520-250mA

C520-375mA

C520-500mA

C520-750mA

C520-2A

C520-2.5A

C520-3A

C520-3.5A

C520-4A

C520-5A

Voltage

Rating

250V

Interrupting Rating

at Rated Voltage

35A

100A

200A

Typical DC Cold

Resistance*

(ohms)

0.245

0.166

0.638

0.284

0.186

0.101

0.071

0.054

0.043

0.031

0.024

0.019

Maximum

Melting I

t†

0.0010

0.0022

0.016

0.053

0.13

0.37

2.3

4.1

6.8

11.0

13.0

Typical

Voltage

Drop (mV)‡

3100

2800

2200

1500

1300

1000

190

180

160

140

130

* DC Cold Resistance (Measured at <10% of rated current)

† Maximum Melting I

t (A

Sec) (maximum I

t at 10 times rated current)

‡ Maximum Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)
