DG129BP datasheet, PDF - EEWORLD Datasheet

DG129BP: DescriptionDPST, 2 Func, BIPolar, CDIP14,; CategoryAnalog mixed-signal IC The signal circuit; File Size333KB，7 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

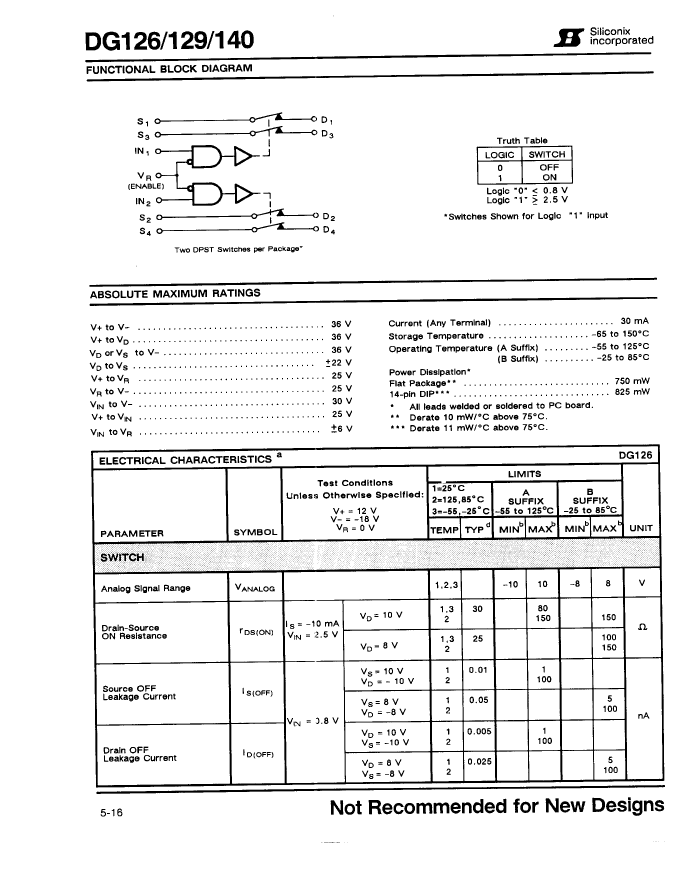

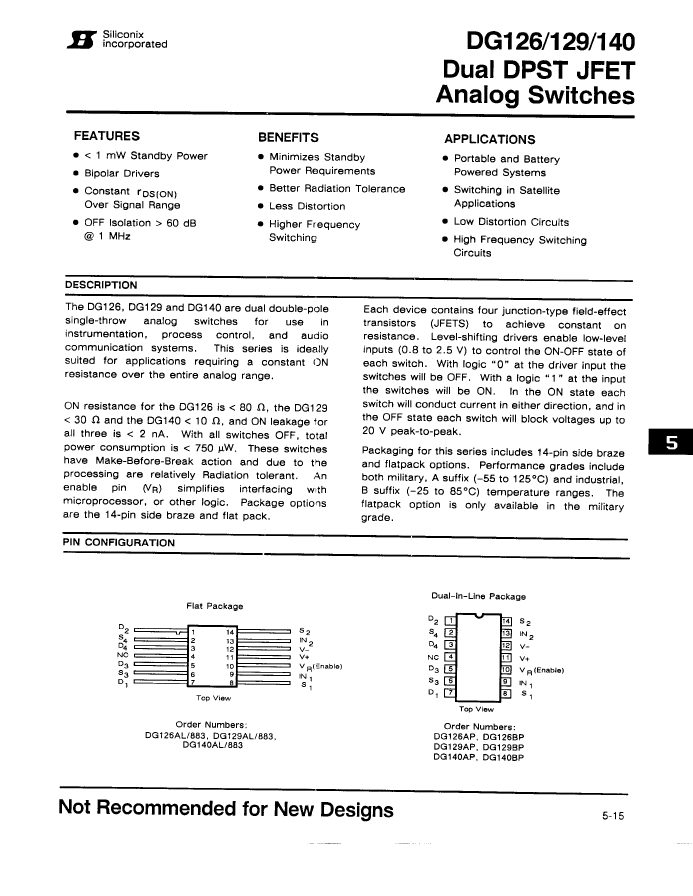

DG129BP Overview

DPST, 2 Func, BIPolar, CDIP14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DPST
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
normal position	NO
Number of functions	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
Maximum connection time	1000 ns
switch	MAKE-BEFORE-BREAK
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

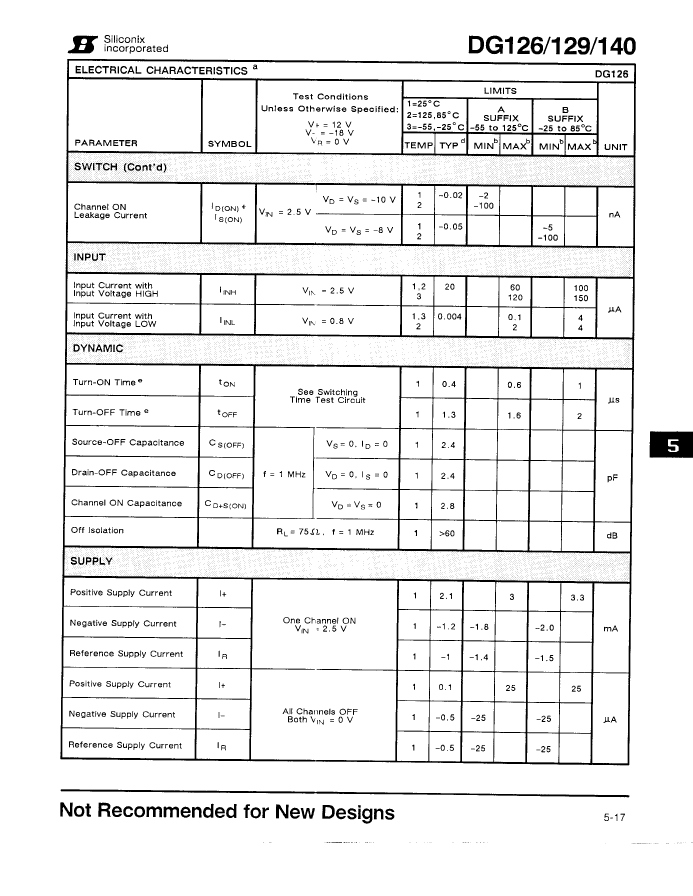

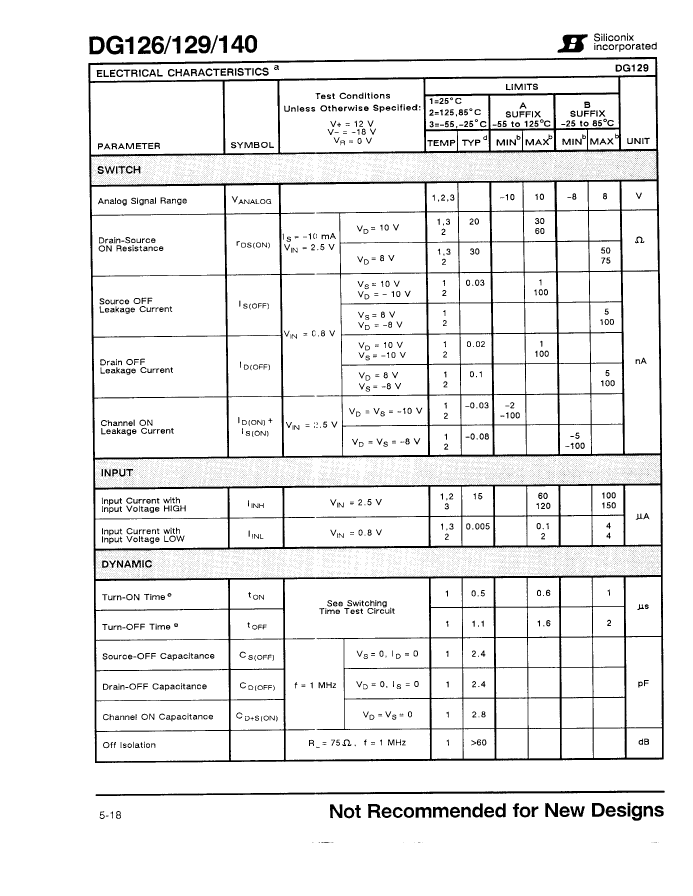

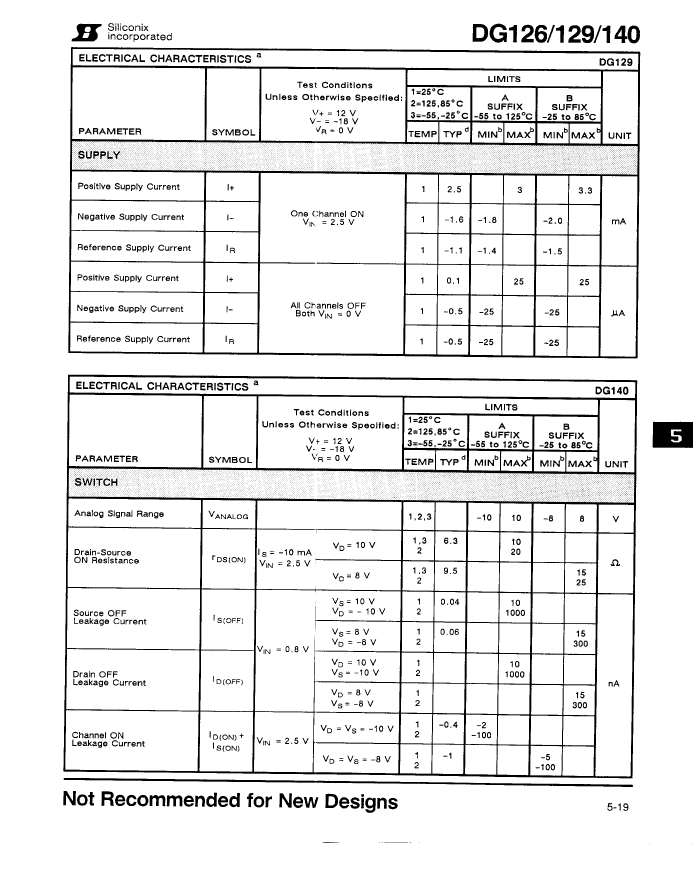

	DG129BP	DG126AL/883	DG126AP	DG126BP	DG140BP
Description	DPST, 2 Func, BIPolar, CDIP14,	DPST, 2 Func, BIPolar, CDFP14	Multiplexers/Switches	Multiplexers/Switches	DPST, 2 Func, CDIP14
package instruction	DIP, DIP14,.3	DFP, FL14,.3	,	,	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Is it Rohs certified?	incompatible	incompatible	-	-	incompatible
Analog Integrated Circuits - Other Types	DPST	DPST	-	-	DPST
JESD-30 code	R-XDIP-T14	R-XDFP-F14	-	-	R-XDIP-T14
JESD-609 code	e0	e0	-	-	e0
normal position	NO	NO	-	-	NO
Number of functions	2	2	-	-	2
Number of terminals	14	14	-	-	14
Maximum operating temperature	85 °C	125 °C	-	-	85 °C
Minimum operating temperature	-20 °C	-55 °C	-	-	-20 °C
output	SEPARATE OUTPUT	SEPARATE OUTPUT	-	-	SEPARATE OUTPUT
Package body material	CERAMIC	CERAMIC	-	-	CERAMIC
encapsulated code	DIP	DFP	-	-	DIP
Encapsulate equivalent code	DIP14,.3	FL14,.3	-	-	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
Package form	IN-LINE	FLATPACK	-	-	IN-LINE
Certification status	Not Qualified	Not Qualified	-	-	Not Qualified
surface mount	NO	YES	-	-	NO
Maximum connection time	1000 ns	600 ns	-	-	1500 ns
switch	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	-	-	MAKE-BEFORE-BREAK
Temperature level	OTHER	MILITARY	-	-	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	-	-	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	-	-	2.54 mm
Terminal location	DUAL	DUAL	-	-	DUAL
Base Number Matches	-	1	1	1	-
