Datasheet> All Categories > Discrete semiconductor> diode> BAV74-TP

BAV74-TP: DescriptionRectifier Diode, 2 Element, 0.2A, 50V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor diode; File Size309KB，3 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric Compare View All

BAV74-TP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAV74-TP	-	-	View	Buy Now

BAV74-TP Overview

Rectifier Diode, 2 Element, 0.2A, 50V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC PACKAGE-3

BAV74-TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.225 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.004 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

BAV74

Features

•

Fast Switching Speed

For General Purpose Switching Applications

Surface Mount Package

Ideally Suited for Automatic Insertion

Lead Free Finish/Rohs Compliant ("P"Suffix designates

RoH SCompliant. See ordering information)

Halogen

free available upon request by adding suffix "-HF"

Marking:JA

High Conductance

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

225mW 50

Volt Dual

Switching Diode

SOT-23

Maximum Ratings

•

Operating Temperature: -55°C to +150°C

Storage Temperature: -55°C to +150°C

Maximum Thermal Resistance;

556

C/W

Junction To Ambient

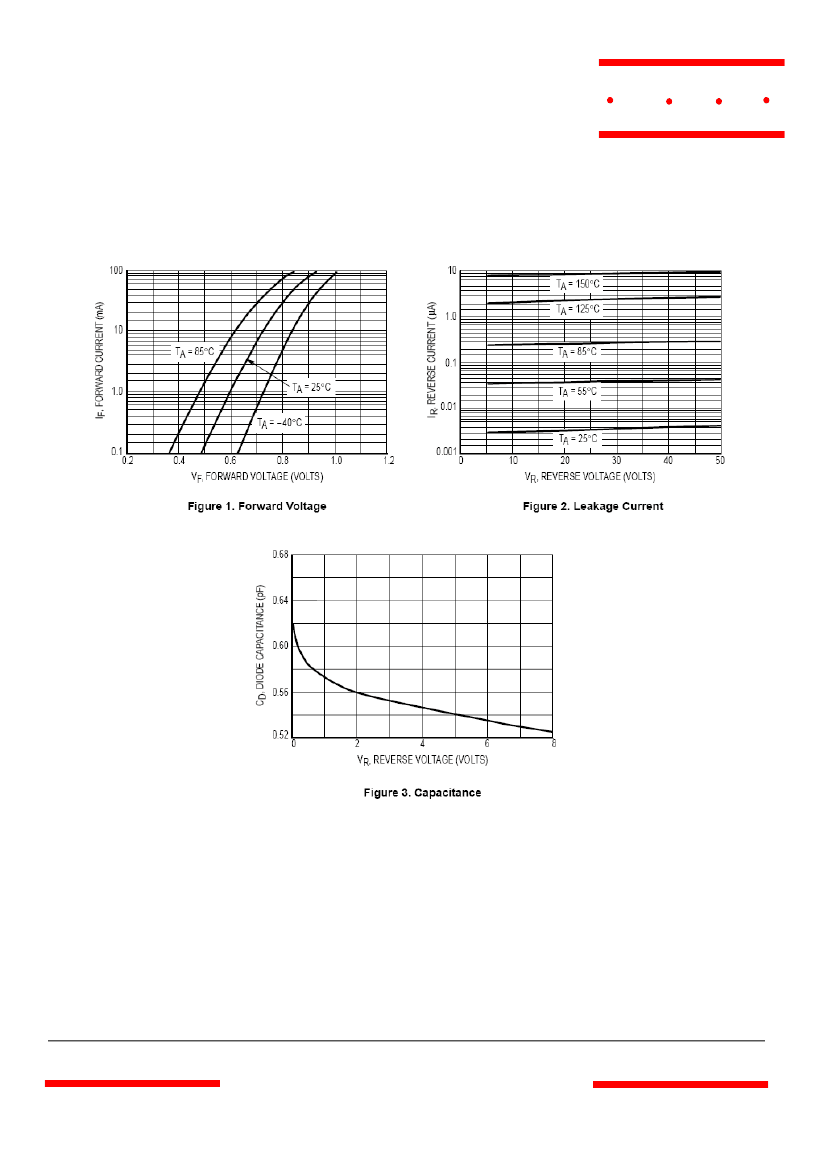

Electrical Characteristics @ 25°C Unless Otherwise Specified

Reverse Voltage

Average Rectified

Output Current

Power Dissipation

Maximum

Instantaneous

Forward Voltage

Reverse

voltage

leakage current

Typical Junction

Capacitance

Reverse Recovery

Time

50V

200mA

225mW

0.1µA

2 pF

4nS

= 100mA;

=50Volts

Measured at

1.0MHz, V

=0V

=10mA

0.1xI

=100Ω

DIM

DIMENSIONS

INCHES

MIN

.110

.083

.047

.035

.070

.018

.0005

.035

.003

.015

MIN

2.80

2.10

1.20

.89

1.78

.45

.013

.89

.085

.37

MAX

.120

.104

.055

.041

.081

.024

.0039

.044

.007

.020

MAX

3.04

2.64

1.40

1.03

2.05

.60

.100

1.12

.180

.51

NOTE

Suggested Solder

Pad Layout

.031

.800

.035

.900

.079

2.000

inches

.037

.950

.037

.950

Revision:

www.mccsemi.com

1 of 3

2013/01/01
