BRUS310W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BRUS310W

BRUS310W: DescriptionBridge Rectifier Diode, 1 Phase, 30A, 100V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size72KB，2 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

BRUS310W Overview

Bridge Rectifier Diode, 1 Phase, 30A, 100V V(RRM), Silicon,

BRUS310W Parametric

Parameter Name	Attribute value
Maker	EDI [Electronic devices inc.]
package instruction	S-PUFM-W4
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.8 V
JESD-30 code	S-PUFM-W4
Maximum non-repetitive peak forward current	250 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	30 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	WIRE
Terminal location	UPPER

Preview

Download Datasheet

View All

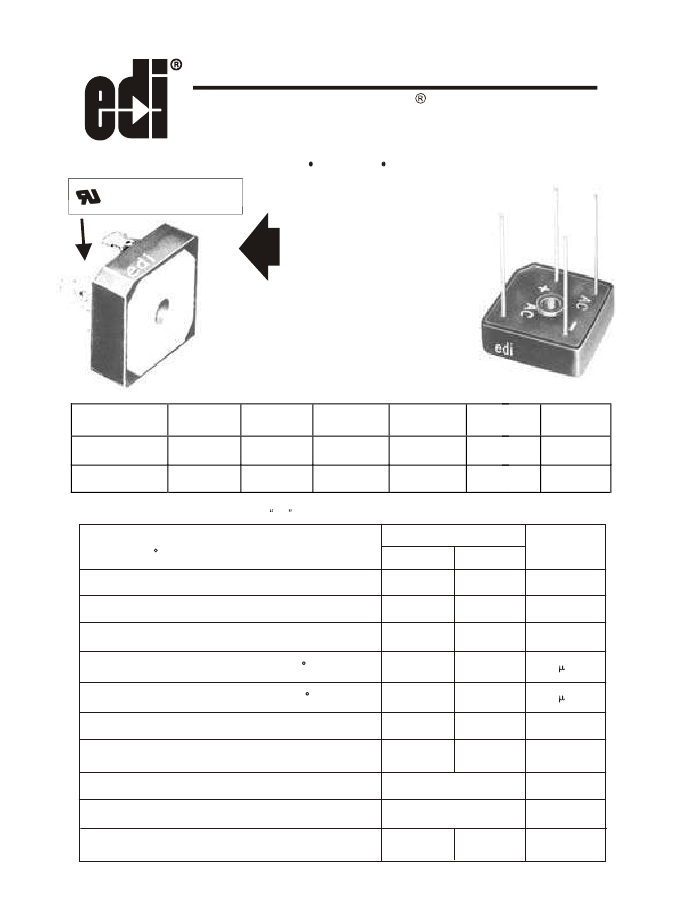

BRUS3 &4

MINIBRIDGE

50 ns. ULTRA-FAST RECOVERY

30 to35 AMPERES

SINGLE-PHASE, FULL-WAVE BRIDGES

HEAT SINK CHASSIS P.C. BOARD MOUNTING

This mark indicates recognition

under the component program of

Underwriters Laboratories, inc.

INTEGRALLY MOLDED

HEAT SINKS

PROVIDE VERY LOW

THERMAL RESISTANCE

WIRE LEADS

BRUS3W& 4W

BRUS3 &4

QUICK-CONNECT TERMINALS

SERIES

BRUS3 SERIES

BRUS4 SERIES

50V

BRUS305

BRUS405

100V

BRUS310

BRUS410

200V

BRUS320

BRUS420

400V

BRUS340

BRUS440

500V

BRUS350

BRUS450

600V

BRUS360

BRUS460

FOR WIRE LEADS ADD SUFFIX W TO SERIES NUMBER, FOR EXAMPLE, BRUS305W

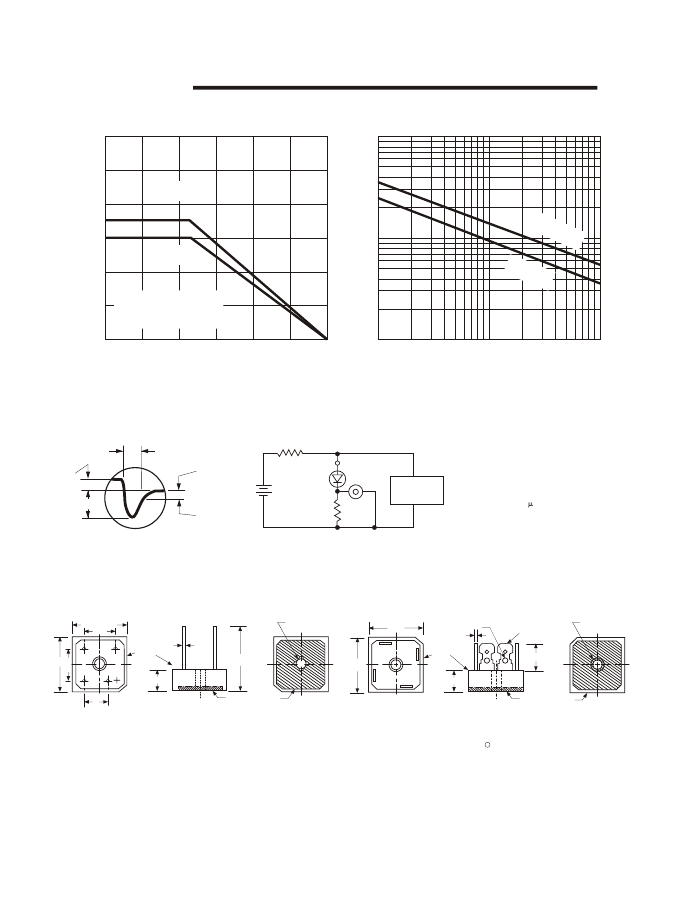

ELECTRICAL CHARACTERISTICS PER LEG

(at T

=25 C Unless Otherwise Specified)

Average Output Current.lo @ 60 C (Fig.1)

Max.Forward Voltage Drop, V

=12A pk

Max.Forward Voltage Drop, V

=2ADC

Max.DC Reverse Current @ PRV,and 25

, I

Max.DC Reverse Current @ PRV,and 100

Max.Reverse Recovery Time,T

(Fig.3)

Max.Peak Surge Current, l

FSM

(8.3ms) (Fig.2)

Storage Temperature Range, T

STG

Ambient Operating Temperature Range,T

SERIES DESIGNATION

BRUS3

1.75

1.2

100

250

BRUS4

1.5

1.2

100

320

UNITS

Amps

Volts

Nanosec.

Amps

-55 to+150

1.25 typ.

1.5 typ.

Thermal Resistance (Total Bridge), R0 j-c

C/W

BRUS310W Related Products

	BRUS310W	BRUS360	BRUS360W	BRUS420W
Description	Bridge Rectifier Diode, 1 Phase, 30A, 100V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 30A, 600V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 30A, 600V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 35A, 200V V(RRM), Silicon,
package instruction	S-PUFM-W4	S-PUFM-D4	S-PUFM-W4	S-PUFM-W4
Reach Compliance Code	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.8 V	1.8 V	1.8 V	1.5 V
JESD-30 code	S-PUFM-W4	S-PUFM-D4	S-PUFM-W4	S-PUFM-W4
Maximum non-repetitive peak forward current	250 A	250 A	250 A	320 A
Number of components	4	4	4	4
Phase	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	30 A	30 A	30 A	35 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	600 V	600 V	200 V
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	SOLDER LUG	WIRE	WIRE
Terminal location	UPPER	UPPER	UPPER	UPPER
