MS27467T9B35S: DescriptionMIL Series Connector, 6 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size181KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric Compare View All

MS27467T9B35S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS27467T9B35S	-	-	View	Buy Now

MS27467T9B35S Overview

MIL Series Connector, 6 Contact(s), Aluminum Alloy, Female, Crimp Terminal, Plug,

MS27467T9B35S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Aero-Electric Connector
Reach Compliance Code	not_compliant
Other features	STANDARD: MIL-DTL-38999, EMI AND RFI SHIELDED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact part number	M39029/56-348
Contact size	22D
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	9
Termination type	CRIMP
Total number of contacts	6

Preview

Download Datasheet

View All

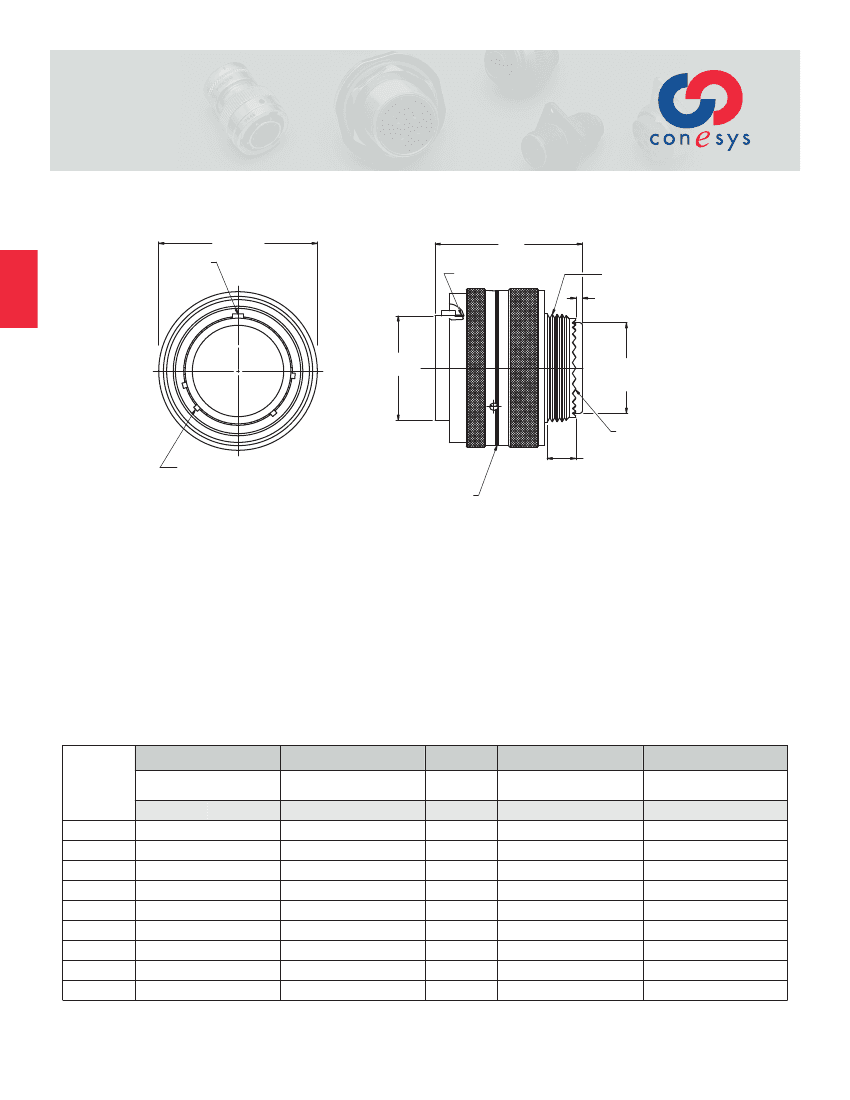

MS27467

RFI Grounding Plug

AE167

MIL–DTL–

38999 S I

Page 4

Page 13

Pages 17–19

Page 3

Pages 15, 16

Page 11

Shell

Size

Bayonet Coupling, Crimp Removable, Rear Release, Scoop-Proof

MAX.

COUPLING NUT

MASTER KEY

RFI STRIP

1.294

(32.87)

MAX

ACCESSORY THREAD

.060(1.52) GROMMET

MAX

EXTENSION

MIN

MAX

GROMMET

No. OF TEETH

4 MINOR KEYS

BLUE COLOR BAND

.219(5.56) MIN

FULL THREAD

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

Minimum

inch

.417

.545

.657

.782

.907

1.012

1.137

1.262

1.387

10.59

13.84

16.69

19.86

23.04

25.70

28.88

32.05

35.23

inch

.299

.427

.541

.666

.791

.897

1.022

1.147

1.272

Maximum

7.59

10.85

13.74

16.92

20.09

22.78

25.96

29.13

32.31

No. of

Teeth

Accessory Thread

Class 2A

inch

7/16-28UNEF

9/16-24UNEF

11/16-24UNEF

13/16-20UNEF

15/16-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

.859

.984

1.156

1.281

1.406

1.516

1.641

1.766

1.891

Maximum

21.82

24.99

29.36

32.54

35.71

38.51

41.68

44.86

48.03

www.conesys.com

– 10 –

sales

aero-electric.com
