PD7-40-70A: DescriptionSplitter And Combiner, 50MHz Min, 90MHz Max, 1dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size214KB，2 Pages; ManufacturerCrane Co.; Environmental Compliance

Download Datasheet Parametric Compare View All

PD7-40-70A Overview

Splitter And Combiner, 50MHz Min, 90MHz Max, 1dB Insertion Loss-Max,

PD7-40-70A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crane Co.
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY
Characteristic impedance	75 Ω
structure	COAXIAL
Maximum input power (CW)	34.77 dBm
Maximum insertion loss	1 dB
Maximum operating frequency	90 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	SPLITTER AND COMBINER
Maximum voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

PD7 Series

0 , 75 ohm POWER DIVIDERS / COMBINERS

50 to 90 MHz / 2, 4 & 8-Way / Excellent Phase and Amplitude Balance / High Output Port Isolation

PRINCIPAL SPECIFICATIONS

Model

Number

PD7-20-70A

PD7-40-70A

PD7-80-70A

Frequency Quantity

Range,

of

MHz

Outputs

50 - 90

2

4

8

Isolation,

dB,

Max.

25

Insertion

Loss,

dB, Max.

0.5 dB

1.0 dB

1.5 dB

Amplitude Phase

Balance, Balance,

dB, Max.

Max.

0.25

0.50

0.75

2°

3°

4°

VSWR

In/Out

Max.

1.3:1

Weight

oz.(g)

2.5 (70)

3.5 (100)

8.0 (228)

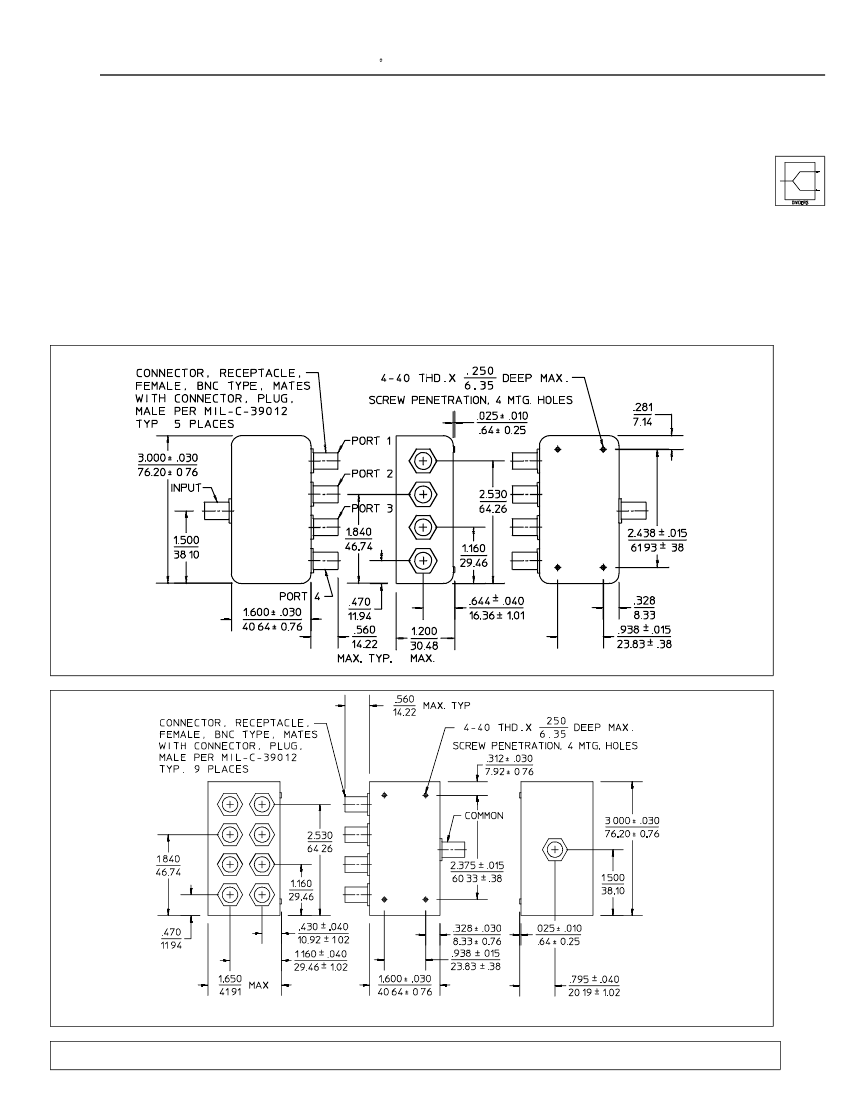

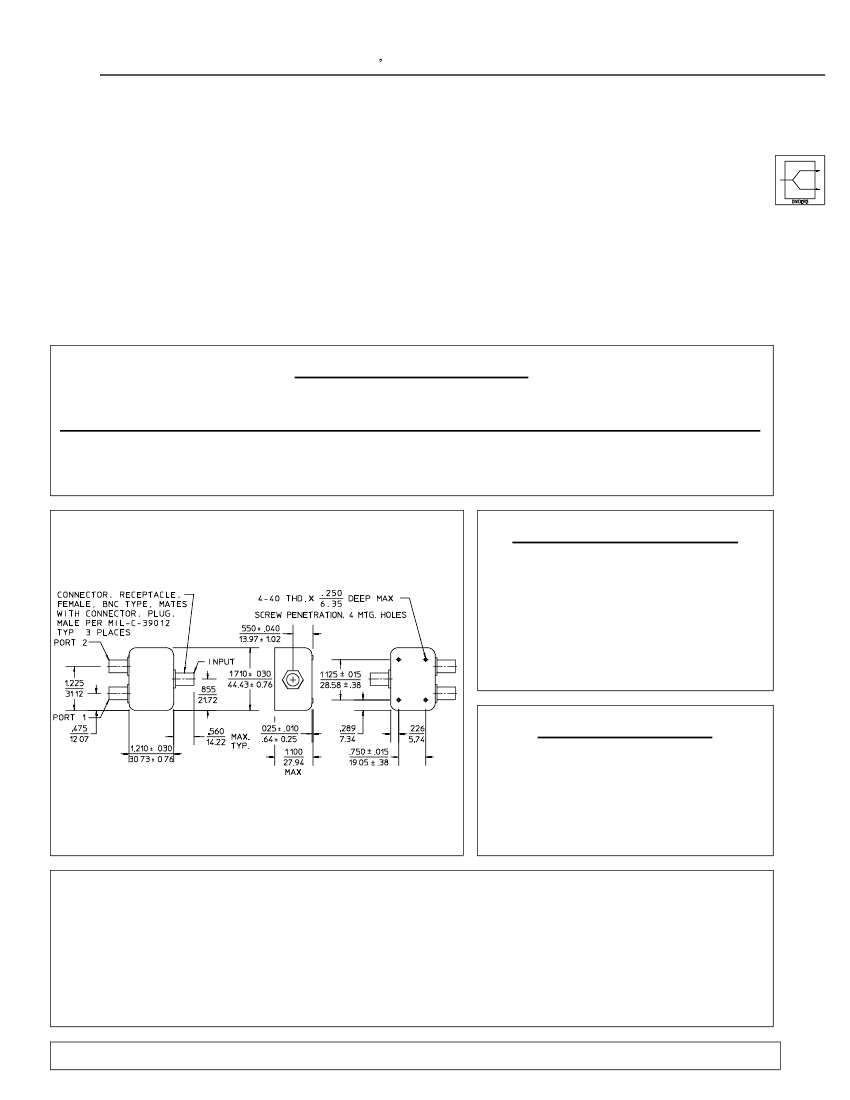

PD7-20-70A Package Outline

GENERAL SPECIFICATIONS

Impedance:

CW Input Power:

75

Ω

nom.

3 W max.

(When used as divider with 1.2:1 VSWR

out

)

Internal Load Dissipation: 250 mW max.

BNC Female Connectors:50

Ω

type

(To meet interface requirements of MIL-C-39012)

Operating Temp:

-- 55° to +85°C

AVAILABLE OPTIONS

True 75

Ω

BNC Connectors

Special Frequency Bands

N-Way where N

≤

16

Other Packages (

PC, Flatpack, TO-5, SMA)

Precision Balance

NOTES: 1. Tolerance on 3 place decimals

±

0.020(0.51) except as noted.

2. Dimensions in inches over millimeters.

General Notes:

1. The PD7 series covers 50 to 90 MHz with a broadband, lumped element design to minimize the baseband

amplitude and phase ripple.

2. These units are suitable applications in voice, data or television communication systems.

3. The PD7 series includes catalog standard, in-phase two, four and eight-way power dividers. In addition, up to

16-way units are available in custom units.

16Feb96

For further information contact

MERRIMAC / 41 Fairfield Pl., West Caldwell, NJ, 07006 / 973-575-1300 / FAX 973-575-0531
