The S510067 consists of an input Linear AGC amplifier and a
video/AGC amplifier. The amplifiers are designed to interface
directly with saw filters and A/D converters The AGC is delayed
between the two blocks for optimal NF and IM3 performance
across the full AGC range. The final stage is capable of
providing 2 V
PP
into a 500Ω load. The part is offered in the
QFN28 & 20 TSSOP package and is RoHS compliant.
APPLICATIONS
Digital Terrestrial Tuners Digital TV Sets.
Digital Radios Digital Set top boxes.
ELECTRICAL CHARACTERISTICS
SYMBOLS
RF
IN
RF Flatness
Rfin
G
MAX
V
AGC
AGC
IM3
IF
OUT
Gain
NF
NF
G
INPUT
G
VIDEO
PARAMETERS AND CONDITIONS
RF Performance
(T
A
= 25°C, V
DD
= 3.3 V, unless otherwise specified)
UNITS
MHz
dB
dBmV
dB
V
dB
dBc
V
PP
dB
dB
dB
dB
dB
V
mA
MIN
10
TYP
43.75
0.5
22
72
54
55
1.2
13.5
30
39
47
3.3
100
2
2/1
32
MAX
100
25
3
RF Input Frequency Range
Gain flaness
RF input power range
Maximum Gain*
AGC Voltage
AGC Dynamic Range V
AGC
= 0 to 3 V
Third Order Intermodulation, 1 V
PP
Differential Output, 1K ohm load
IF Output Level, Differential Output, 1K ohm load
Change vs NF increase ratio
Noise Figure, V
AGC
= 3 V
Noise Figure, V
AGC
= 0 V
Input Video Amp Gain, V
AGC
= 3 V
Video Amp Gain, V
AGC
= 3 V
0
50
1
DC Performance
V
DD
Supply Voltage
I
DD
Supply Current
*
Includes saw filter loss.
125
ABSOLUTE MAXIMUM RATINGS
(T
C
= 25°C unless otherwise noted)
SYMBOLS
V
DD
(GND)
T
OP
T
STG
PARAMETERS
Supply Voltage (GND)
Operating Temperature
Storage Temperature
Junction Temperature
Thermal Resistance (Ø ja)
UNITS
V
°C
°C
°C
°C/W
RATINGS
-0.3 to +3.6
-40 to +85
-65 to +150
+150
34
Note:
1. Operation in excess of any one of these parameters may
result in permanent damage.
Performance tests and ratings for Sirenza Microdevices products were performed internally by Sirenza and measured using specific computer systems and/or components and reflect the approximate
performance of the products as measured by those tests. Any difference in circuit implementation, test software, or test equipment may affect actual performance. The information provided herein is
believed to be reliable at press time and Sirenza Microdevices assumes no responsibility for the use of this information. All such use shall be entirely at the users own risk. Prices and specifications for
Sirenza Microdevices products are subject to change without notice. Buyers should consult Sirenza Microdevices standard terms and conditions of sale for Sirenzas limited warranty with regard to its
products. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. Sirenza Microdevices does not authorize or warrant any product for use in life-
support devices and/or systems.
303 S. Technology Court, Broomfield, CO 80021
303-327-3030
1
www.sirenza.com
EDS-104217 REV.G
11/7/2005
S510067
PIN ASSIGNMENTS
GND VIDEO
AMP OUT 2
AMP OUT 1
VIDEO IN 2
VIDEO IN 1
GND
GND
GC 1
VDD RF
RF IN 1
RF IN 2
V AGC
GND RF
GND
VDD
VDD
VDD VID
1
2
3
4
5
6
7
8
9
10
20
19
18
GC 2
GND
AMP OUT 2
AMP OUT 1
GND
VID IN 2
VID IN 1
GND VID
VID OUT 1
VID OUT 2
28
27
26
25
24
23
22
GND
1
21
GND
GC 2
2
20
VID OUT 2
S510065*-20Z
(TSSOP-20)
17
16
15
14
13
12
11
GC 1
3
S510065*-55Z
( QFN-28 )
19
VID OUT 1
GND
4
18
VDD VID
GND
5
17
VDD
VDD RF
6
16
VDD
GND
GND RF 7
15
8
9
10
11
12
13
14
V AGC
GND
GND
RF IN 1
*The tape and reels will be marked as S510067. The part is tested to the specification in this document.
PIN FUNCTIONS
TSSOP-20
PIN NO.
7,16,19
20
1
2
6
3
4
5
8
9
10
12
11
13
14
15
17
18
QFN-28
PIN NO.
1, 4, 5, 10,
12,13,14, 15
21, 25, 26
2
3
6
7
8
9
11
16
17
18
19
20
22
23
24
27
28
PIN NAME
GND
DESCRIPTION
Ground pins. Connect to the ground plane with shortest possible length to minimize inductance.
303 S. Technology Court, Broomfield, CO 80021
RF IN 2
NC
Float do not connect.
NC
Float do not connect.
VDD RF
INPUT AMP Supply, +3.3 V.
GND RFINPUT AMP Ground. See GND.
RF IN1
RF AMP Positive Input. Input impedance, 1K ohms single ended. SEE APPLICATION PAGE 4.
RF IN2
RF AMP Negative Input. SEE APPLICATION PAGE 4.
AGC
Automatic Gain Control, Min Gain @ AGC = 0 V, Max Gain @ AGC = 3.0 V.
VDD
Supply Voltage, +3.3 V.
VDD
Supply Voltage, +3.3 V.
VDD VID
VIDEO AMP Input Stage Supply, +3.3 V.
VID OUT1
VIDEO AMP Negative Output. This pin and VID OUT2 form a 1K ohm output impedance.
Open Drain - See Application Page 4.
VID OUT2
VIDEO AMP Positive Output. See VID OUT1.
GND VID
VIDEO AMP Ground. See GND.
VID IN1 VIDEO AMP Negative Input.
VID IN2 VIDEO AMP Positive Input.
AMP OUT1
INPUT AMP Positive Output. Open Drain . See Application Page 4.
AMP OUT2
INPUT AMP Negative Output. Open Drain .See Application Page 4.
GND
GND
303-327-3030
2
www.sirenza.com
EDS-104217 REV.G
11/7/2005
S510067
TYPICAL PERFORMANCE CURVES
OUTPUT SPECTRUM
10
Z
L =
1 K
Ω
0
-10
70
80
GAIN vs. AGC
=/ .
60
Output (dBm)
-20
-30
-40
-50
-60
-70
0
50
100
150
200
250
300
50
Gain (dB)
40
30
20
10
0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (MHz)
AGC (V)
IM3 vs. AGC
70
ZL=1K
OUTPUT FLATNESS
10
IM3 1Vp-p
IM3 2Vp-p
60
50
5
0
IM3 (dBc)
40
P
OUT
(dB)
0
0.5
1
1.5
2
2.5
3
-5
-10
-15
-20
30
20
10
-25
-30
40
41
42
43
44
45
46
47
48
0
AGC (V)
Frequency (MHz)
IDD vs. VDD
0.16
0.14
0.12
30.0
NOISE FIGURE vs. AGC
25.0
ZL=1K
Noise Figure (dB)
20.0
0.1
I
DD
(A)
0.08
0.06
0.04
0.02
0
0
0.5
1
1.5
2
2.5
3
3.5
4
15.0
10.0
5.0
RF=110MHz
0.0
0.00
0.50
1.00
1.50
2.00
2.50
3.00
V
DD
(V)
AGC (V)
303 S. Technology Court, Broomfield, CO 80021
303-327-3030
3
www.sirenza.com
EDS-104217 REV.G
11/7/2005
S510067

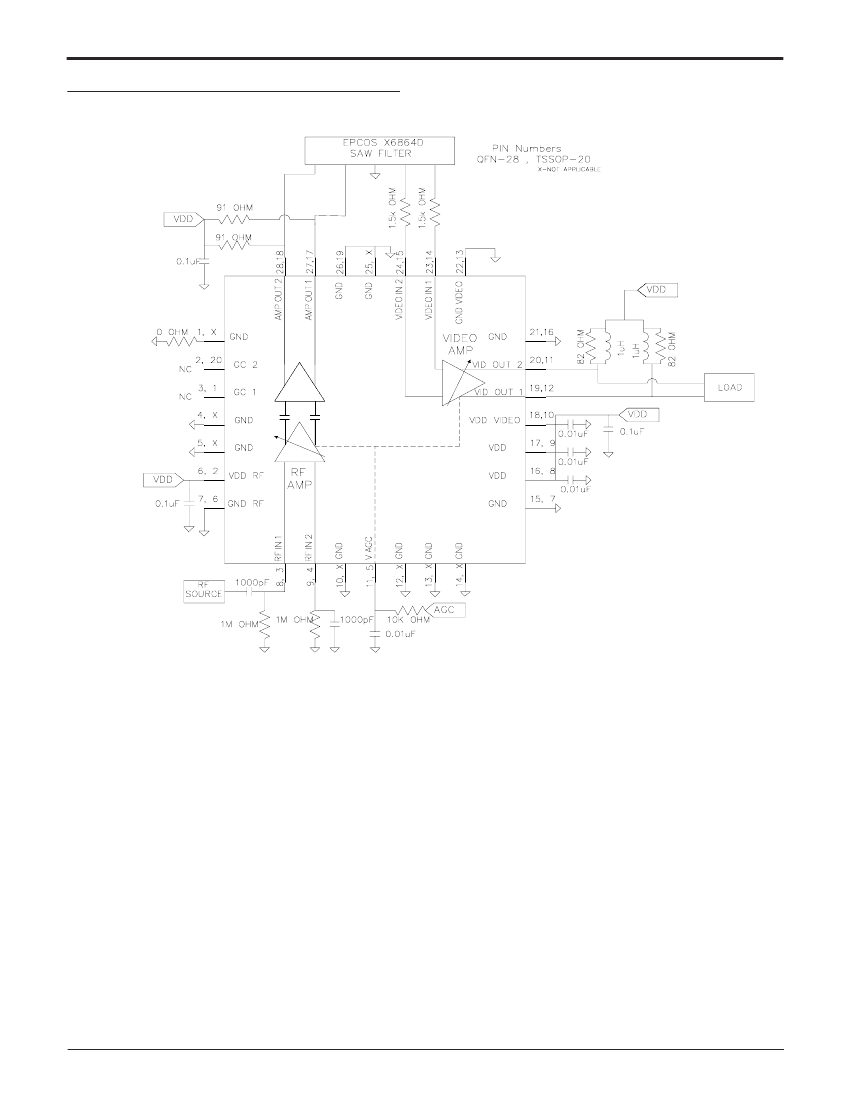

TYPICAL APPLICATION CIRCUIT
Input Amplifier
This amplifier provides a maximum gain of 39 dB. The gain
is controlled by applying a DC voltage (from 0 to 3 V) to the AGC
pin, providing 27 dB of range. The output stage current can
be set between 10 mA (R = 20) and 30 mA (R = 0) by
connecting an external resistor from pin 1 to ground.
Video Amplifier
This amplifier provides a maximum gain of 47 dB. The gain
is controlled by applying a DC voltage (from 0 to 3 V) to the AGC
pin, providing 27 dB of range. The outputs of the video amp
are both open drain and require pull-up inductors to V
DD.
Up
to 2 V
PP
can be delivered into a 500
Ω
load.
The input amplifier and video amplifier are controlled by a
single AGC so the overall dynamic range is the sum of the
input amplifier range and the video amplifier range.
303 S. Technology Court, Broomfield, CO 80021
303-327-3030
4
www.sirenza.com
EDS-104217 REV.G
11/7/2005
S510067
PACKAGE INFORMATION QFN-28
(Units in mm)
1.
2.
3.
Dimensions and tolerances conform to ASME Y14.5-1994.
All dimensions are in millimeters. All angles are in degrees.
The exposed thermal pad is also an electrical ground .
