Part Number

Search

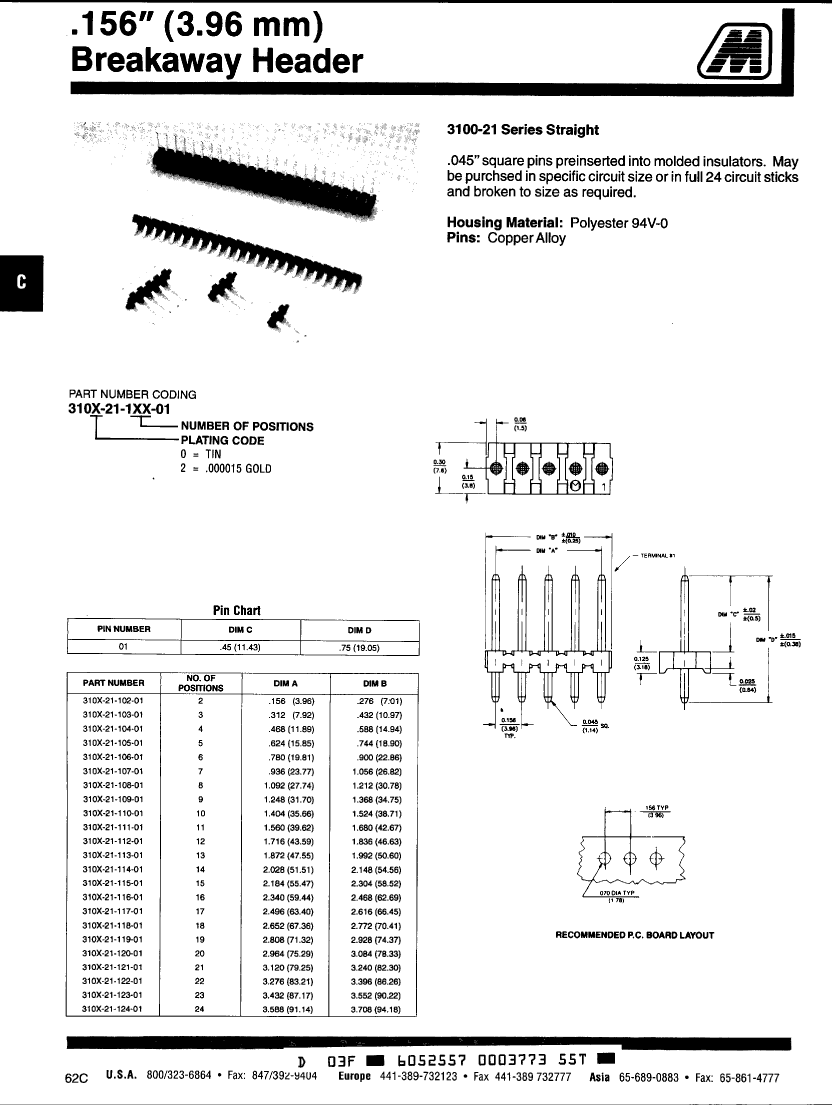

3100-21-107-01

Description
Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size281KB,3 Pages
ManufacturerMethode Electronics Inc.
Download Datasheet Parametric View All

3100-21-107-01 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle

3100-21-107-01 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
Other featuresBREAKAWAY TYPE
body width0.3 inch
subject depth0.125 inch
body length1.056 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage200VAC V
maximum insertion force2.78 N
insulator materialPOLYESTER
Manufacturer's serial number310
Plug contact pitch0.156 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.175 inch
Terminal pitch3.9624 mm
Termination typeSOLDER
Total number of contacts7
Evacuation force-minimum value.556 N
Base Number Matches1
