DSB534HA-FREQ-OUT1 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> DSB534HA-FREQ-OUT1

DSB534HA-FREQ-OUT1: DescriptionSine Output Oscillator, 12.6MHz Min, 20MHz Max; CategoryPassive components oscillator; File Size48KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/

Download Datasheet Parametric View All

DSB534HA-FREQ-OUT1 Overview

Sine Output Oscillator, 12.6MHz Min, 20MHz Max

DSB534HA-FREQ-OUT1 Parametric

Parameter Name	Attribute value
Maker	Daishinku Corp.
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
Manufacturer's serial number	DSB534HA
Installation features	SURFACE MOUNT
Maximum operating frequency	20 MHz
Minimum operating frequency	12.6 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Oscillator type	SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	5mm x 3.2mm x 1.5mm
Nominal supply voltage	3 V
surface mount	YES

Preview

Download Datasheet

View All

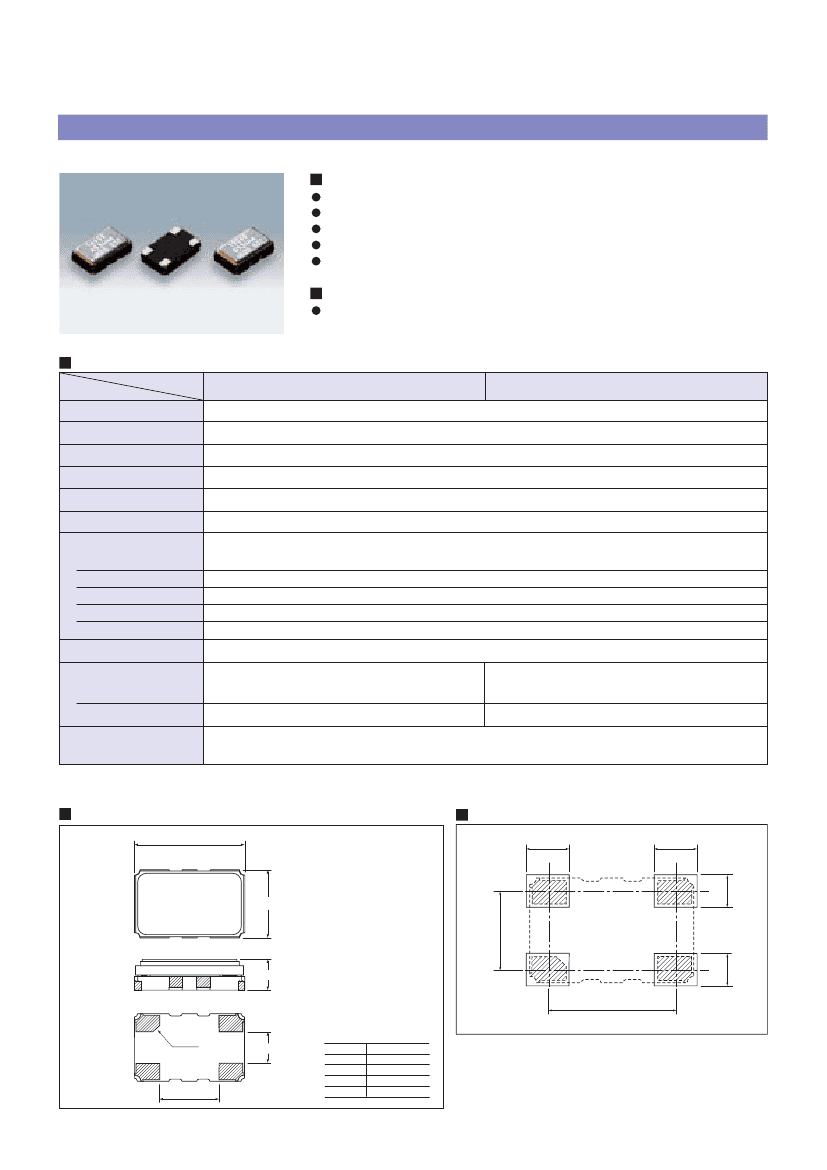

SMD Type (VC-) TCXO

DSA534HA, DSB534HA

Features

Miniature SMD, (VC-)TCXO

（0.024cc）

Light weight.

（0.08g）

Achieved highest reliability with IC based circuit.

Achieved low phase noise.

Good for two time reflow soldering.

Applications

For mobile phones, other mobile equipments and mobile systems.

PDC, GSM, PCN, PCS, PHS, etc.

Generic Specification

Type

Item

DSA534HA(VC-TCXO)

12.6MHz ∼ 20MHz

DSB534HA(TCXO)

Output Frequency Range

Standard Frequency

Supply Voltage

Current Consumption

Output Level

Output Load

Frequency Stability

Frequency Tolerance

Temperature Shift

Supply Voltage Shift

Load Shift

Aging Characteristics

Start up Time

Frequency Control

Control Characteristics

Extreme Characteristics

of Frequency Shift

12.6/ 12.8/ 13/ 14.4/ 14.85/ 16.8/ 19.2/ 19.68/ 19.8 MHz

+3.0 V (+2.6 to +3.3V available)

＋1.5mA max. (F＜15MHz) / ＋1.7mA max. (F≧15MHz)

0.8 Vp-p min.

10kΩ//10 pF

±1.5 ×10

-6

(After 2 reflows)

±2.5 ×10

-6

/ −30∼+85℃

±0.2×10

-6

(+3.0V±0.3V)

±0.2×10

-6

/ (10kΩ//10 pF)±10%

±1.0 ×10

-6

/ year

3.0 msec. max.

±9∼±15×10

-6

/ Vcont = ＋1.5V±1.0V

Positive

−

Phase Noise

Packing Unit : 4000pcs./reel

−130dBc

Hz（Offset 1kHz・F＜15MHz）

−125dBc

Hz（Offset 1kHz・F≧15MHz）

Consult our sales representative for other specifications or special specifications.

Dimensions

[mm]

5.0±0.15

Recommended Land Pattern

1.3

[mm]

Marking

3.2±0.15

3.4

1.0

3.9

Pin Connections

Pin No.

Connection

Vcont/GND

GND

Output

Vcc

1.5max.

C0.3

1.6

2.8

1.0

Recommended Resources

LAS6351 typical application circuit diagram

Circuit diagram of MA1576Y charge pump driving two sets of LEDs

AC detection automatic watering controller circuit

Automatic reversible control power supply circuit diagram

555 gas stove fire sound and light alarm circuit
