SPN7221 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SPN7221

SPN7221: Description20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size198KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

SPN7221 Overview

20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN

SPN7221 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	27 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	20 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Cross Reference Guide

PN7221 / SPN7221*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

20.0 - 200.0 MHz

28.5 dB Typical

27.0 dB Min

2.0 dB Typical

3.0 dB Max

18.5 dBm Typical

15.0 dBm Min

33.0 dBm Typical

38.0 dBm Typical

1.5/2.0 Input Typ/Max

1.4/2.0 Output Typ/Max

-31.5 dB Typical

-30.0 dB Min

15.0 Volts

29.0 mA

-55.0 - 85.0 °C

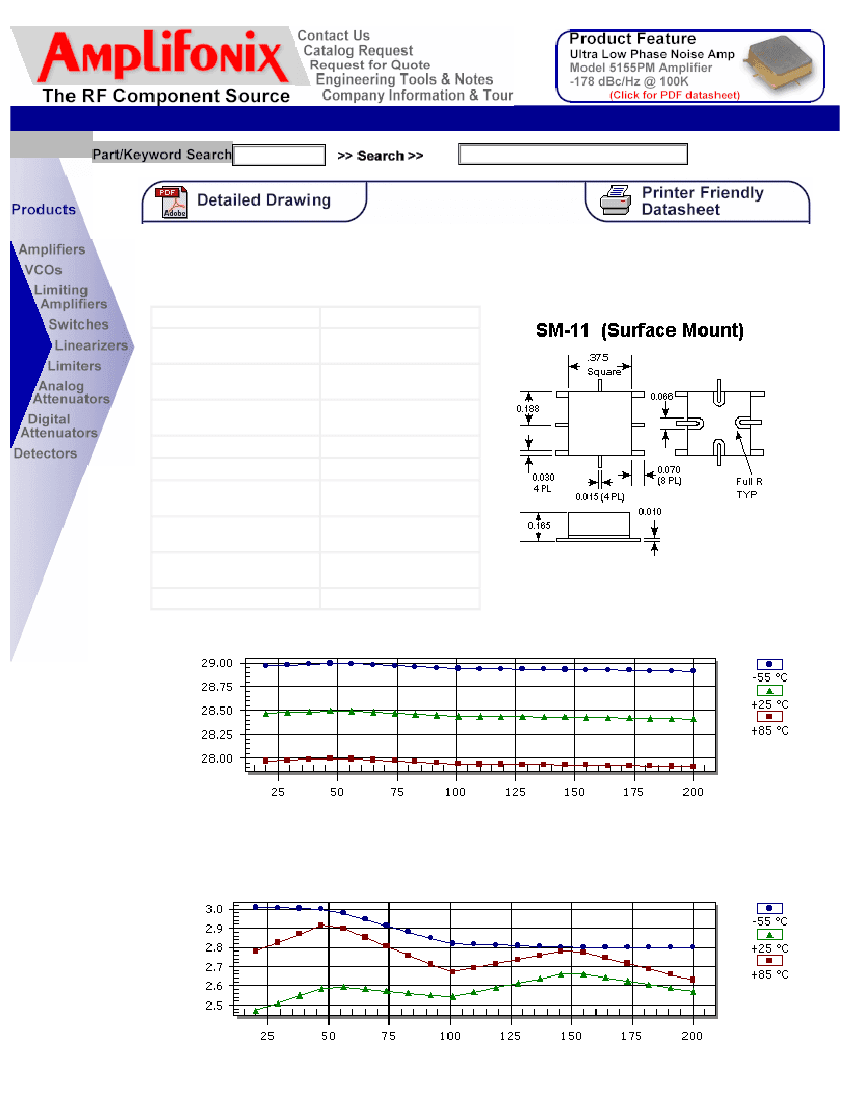

Package Drawing

Gain

Frequency (MHz)

Noise Figure

SPN7221 Related Products

	SPN7221	PN7221
Description	20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN	20 MHz - 200 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT
Gain	27 dB	27 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	200 MHz	200 MHz
Minimum operating frequency	20 MHz	20 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
