PN9106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PN9106

PN9106: Description5 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size198KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

PN9106 Overview

5 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN

PN9106 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	10.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Cross Reference Guide

PN9106 / SPN9106*

* Part number for additional environmental screening.

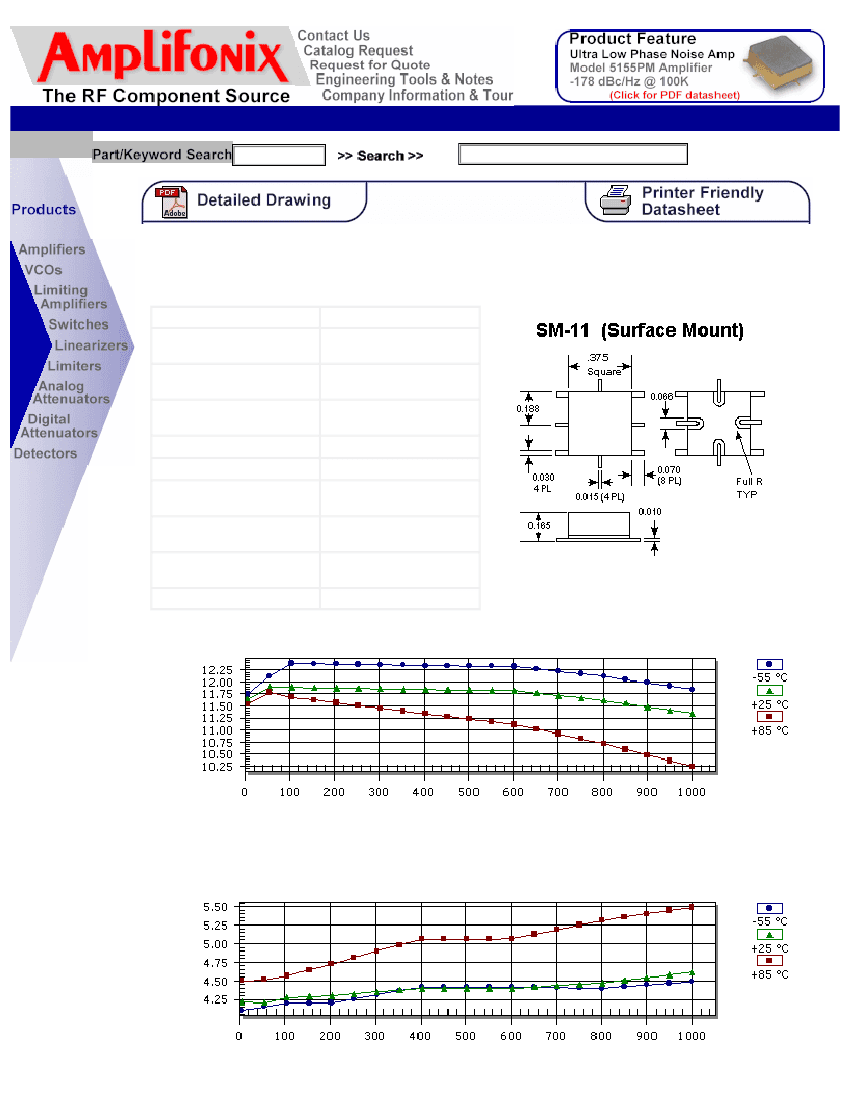

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

5.0 - 1000.0 MHz

12.0 dB Typical

10.5 dB Min

4.8 dB Typical

6.0 dB Max

19.0 dBm Typical

16.0 dBm Min

27.0 dBm Typical

32.0 dBm Typical

1.8/2.0 Input Typ/Max

1.5/2.0 Output Typ/Max

-14.5 dB Typical

-13.5 dB Min

15.0 Volts

70.0 mA

-55.0 - 85.0 °C

Package Drawing

Gain

Frequency (MHz)

Noise Figure

PN9106 Related Products

	PN9106	SPN9106
Description	5 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN	5 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT
Gain	10.5 dB	10.5 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	1000 MHz	1000 MHz
Minimum operating frequency	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
