PN9121 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> PN9121

PN9121: Description10 MHz - 1500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size199KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

PN9121 Overview

10 MHz - 1500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN

PN9121 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	13.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Cross Reference Guide

PN9121 / SPN9121*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 1500.0 MHz

15.0 dB Typical

13.5 dB Min

4.0 dB Typical

5.0 dB Max

13.5 dBm Typical

12.0 dBm Min

26.0 dBm Typical

34.0 dBm Typical

1.8/2.0 Input Typ/Max

1.8/2.0 Output Typ/Max

-16.0 dB Typical

-15.0 dB Min

15.0 Volts

34.0 mA

-55.0 - 85.0 °C

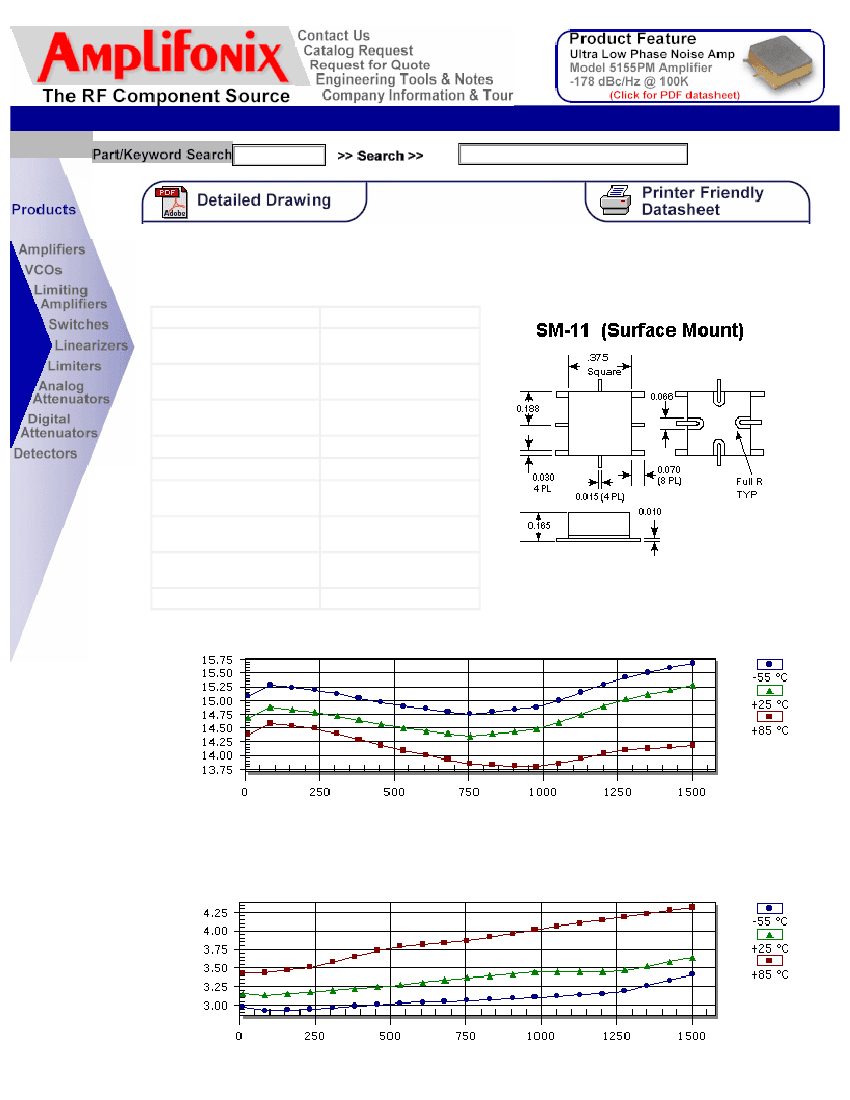

Package Drawing

Gain

Frequency (MHz)

Noise Figure

PN9121 Related Products

	PN9121	SPN9121
Description	10 MHz - 1500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN	10 MHz - 1500 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-11, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT
Gain	13.5 dB	13.5 dB
Maximum input power (CW)	13 dBm	13 dBm
Maximum operating frequency	1500 MHz	1500 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
