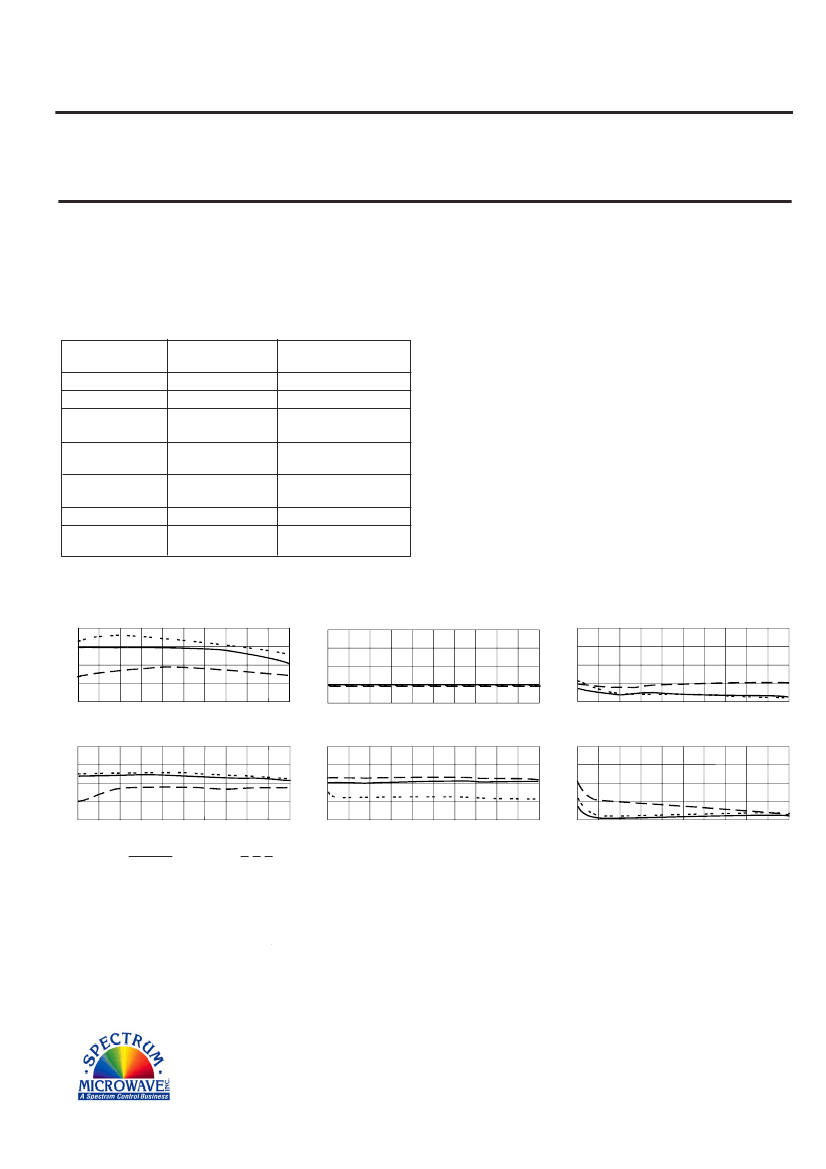

RF AMPLIFIER
MODEL
TM3016
Features
!
!
!
!
Low Noise Figure: <2.3 Typical
High Gain: 29 dB Typical
Operating Temp. -55 ºC to + 85 ºC
Environmental Screening Available
Available as:
TM3016, 4 Pin TO-8 (T4)
TN3016, 4 Pin Surface Mount (SM3)
FP3016, 4 Pin Flatpack (FP4)
BX3016, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 º C
Second Order Harmonic Intercept Point ....... +40 dBm (Typ.)
Second Order Two Tone Intercept Point ........ +34 dBm (Typ.)
Third Order Two Tone Intercept Point ............ +28 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Noise Figure (dB)
Power
Vdc
mA
TYPICAL
Ta= 25 ºC
10-250 MHz
29
+16
-44
<1.5:1
<1.25:1
<2.3
+15
62
MIN/MAX
Ta = -55 ºC to +85 ºC
10-250 MHz
27 Min.
+14.5
-42 Max.
2.0:1 Max.
2.0:1 Max.
3.0 Max.
+15
65 Max.
Maximum Ratings
Ambient Operating Temperature .............. -55ºC to + 100 ºC
Storage Temperature ............................... -62ºC to + 125 ºC
Case Temperature ................................................. + 125 ºC
DC Voltage ......................................................... + 18 Volts
Continuous RF Input Power ................................... + 7 dBm
Short Term RF Input Power ...... 10 Milliwatts (1 Minute Max.)
Maximum Peak Power .................... 0.1 Watt (3
µsec
Max.)
Note: Care should always be taken to effectively ground the case of each unit.
Typical Performance Data
Gain (dB)
31
30
29
28
27
Start 10 MHz
Stop 250 MHz
Reverse Isolation (dB)
0
- 15
- 30
- 45
- 60
Start 10 MHz
Stop 250 MHz
Noise Figure (dB)
4
3
2
Start 10 MHz
Stop 250 MHz
1 dB Comp. (dBm)
18
17
16
15
14
Start 10 MHz
Stop 250 MHz
Input VSWR
2.0
1.5
1.0
Start 10 MHz
Stop 250 MHz
2.0
1.5
1.0
Start 10 MHz
Output VSWR
Stop 250 MHz
Legend
+ 25 ºC
+ 85 ºC - - - - - - -55 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
05/12/04
www.spectrummicrowave.com
Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
