PQ80C03 datasheet, PDF - EEWORLD Datasheet

PQ80C03: DescriptionIC,LAN NODE CONTROLLER,CMOS,DIP,40PIN; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，19 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/

Download Datasheet Parametric Compare View All

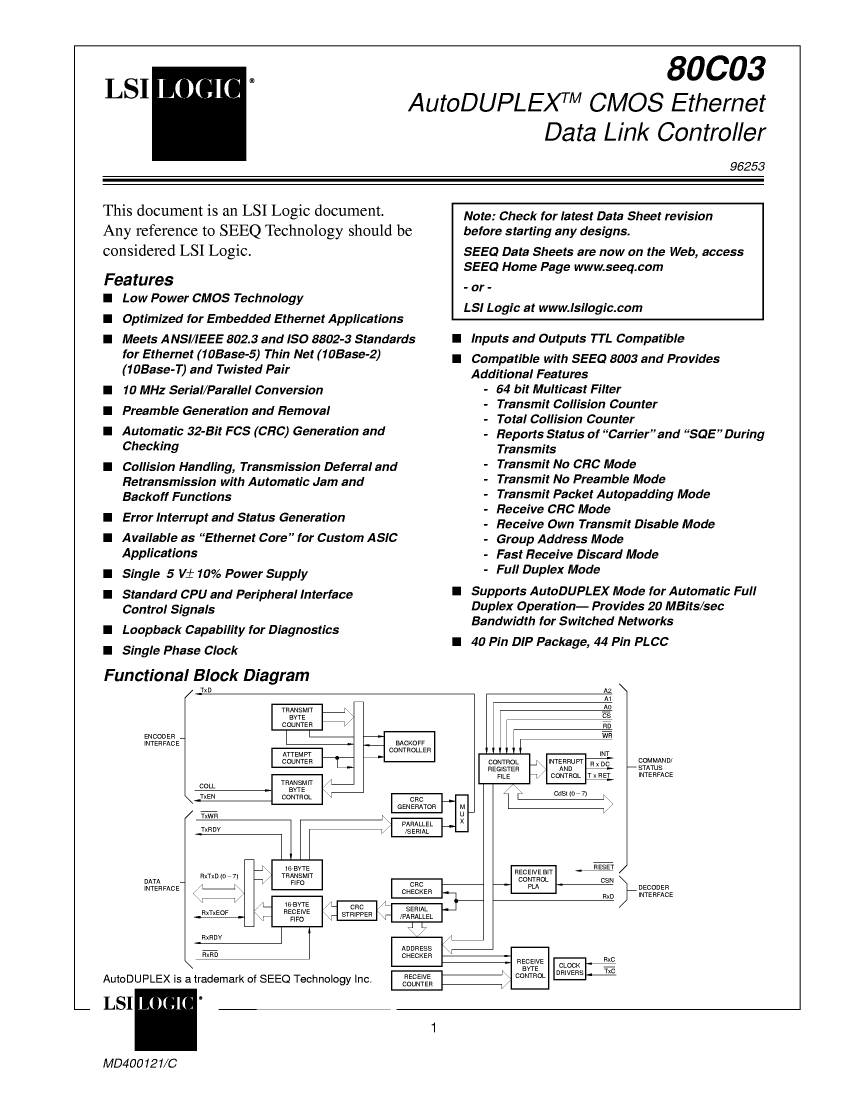

PQ80C03 Overview

IC,LAN NODE CONTROLLER,CMOS,DIP,40PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AVAGO
package instruction	DIP, DIP40,.6
Reach Compliance Code	compliant
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	40 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN

	PQ80C03	NQ80C03
Description	IC,LAN NODE CONTROLLER,CMOS,DIP,40PIN	IC,LAN NODE CONTROLLER,CMOS,LDCC,44PIN
Is it Rohs certified?	incompatible	incompatible
Maker	AVAGO	AVAGO
package instruction	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ
Reach Compliance Code	compliant	compliant
JESD-30 code	R-PDIP-T40	S-XQCC-J44
JESD-609 code	e0	e0
Number of terminals	40	44
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	QCCJ
Encapsulate equivalent code	DIP40,.6	LDCC44,.7SQ
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	40 mA	40 mA
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN
