FM-9038TM2-5AN-LS5.0
IR Receiver Modules for Remote Control Systems
Description
The FM-9038TM2-5AN-LS5.0 is remote control receiver modules.
Pin diode and receiver IC are assembled on one module.
Small-sized, light-weight, and low current consumption.
modules have been achieved by using resin mold.
The demodulated output signal can directly be decoded
by a microprocessor. The main benefit is the reliable
function even in disturbed ambient and the protection
against uncontrolled output pulses.
Features
Supply Voltage Range: 2.7V to 6.5V
TTL and CMOS compatibility
Photo detector and preamplifier in one package.
Internal filter for PCM frequency
Open collector output (built-in Pull-up resistor(40K)
Output active low
Enhanced Immunity against all kinds of disturbance light
No occurrence of disturbance pulses at output pin within nominal conditions.
Short settling time after power On.( below 1msec)
Meet RoHS

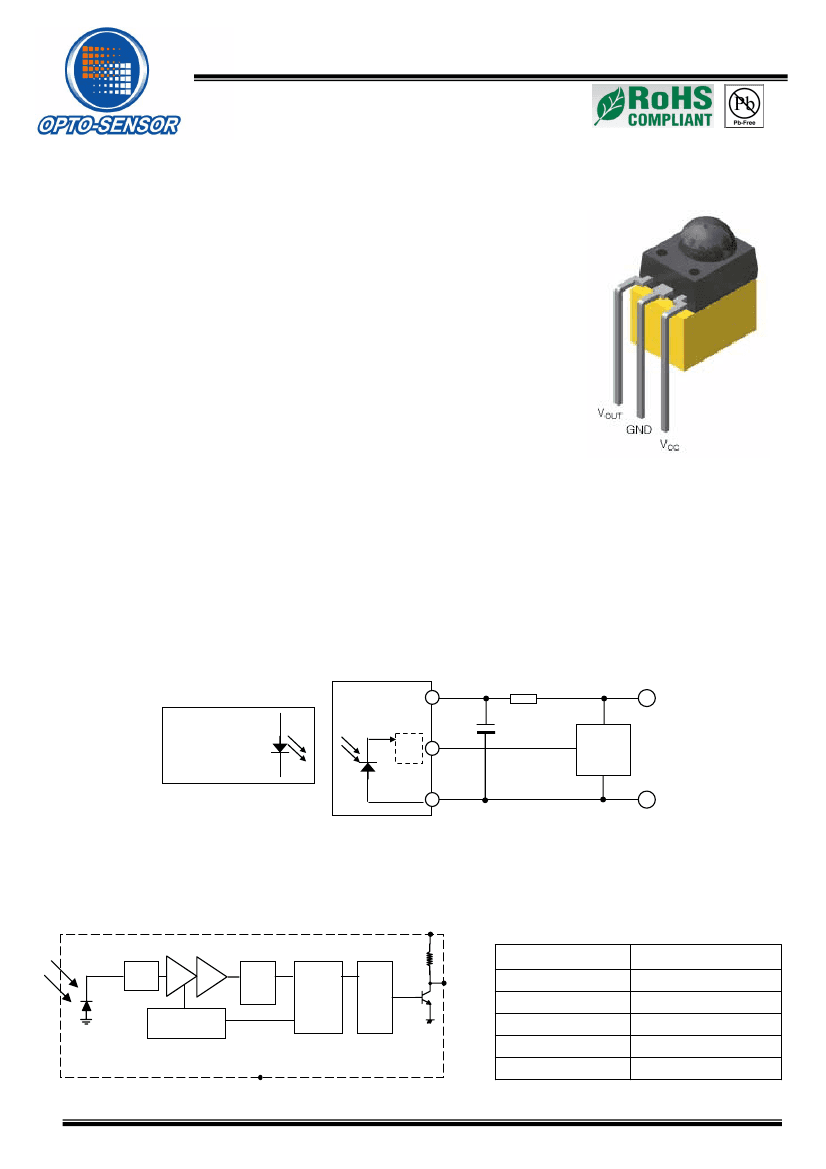

Application Circuit
47~100Ω
IR Receiver Module
V
CC
V
CC
47uf
V
OUT
Transmitter
MCU
R-C filter recommended to suppress power supply disturbances.
R-C filter should be connected closely between V
CC
pin and GND pin.
IC
GND
GND
Block Diagram
AGC
Input
AGC
Control
Post
Amp.
BPF
Wave-
form
Detector
&
ATC
VCC
40㏀
OUT
Ordering Info.
(carrier frequencies)
Type
FM-9032TM2-5AN-LS5.0
FM-9036TM2-5AN-LS5.0
FM-9038TM2-5AN-LS5.0
Carrier Frequency (f
o
)
32.7 K
36.7 K
37.9 K
40.0 K
56.7 K
PIN
Diode
Waveform
Rectifier
GND
FM-9040TM2-5AN-LS5.0
FM-9056TM2-5AN-LS5.0
光電企業有限公司
November 2006 Rev 1.4
FM-9038TM2-5AN-LS5.0

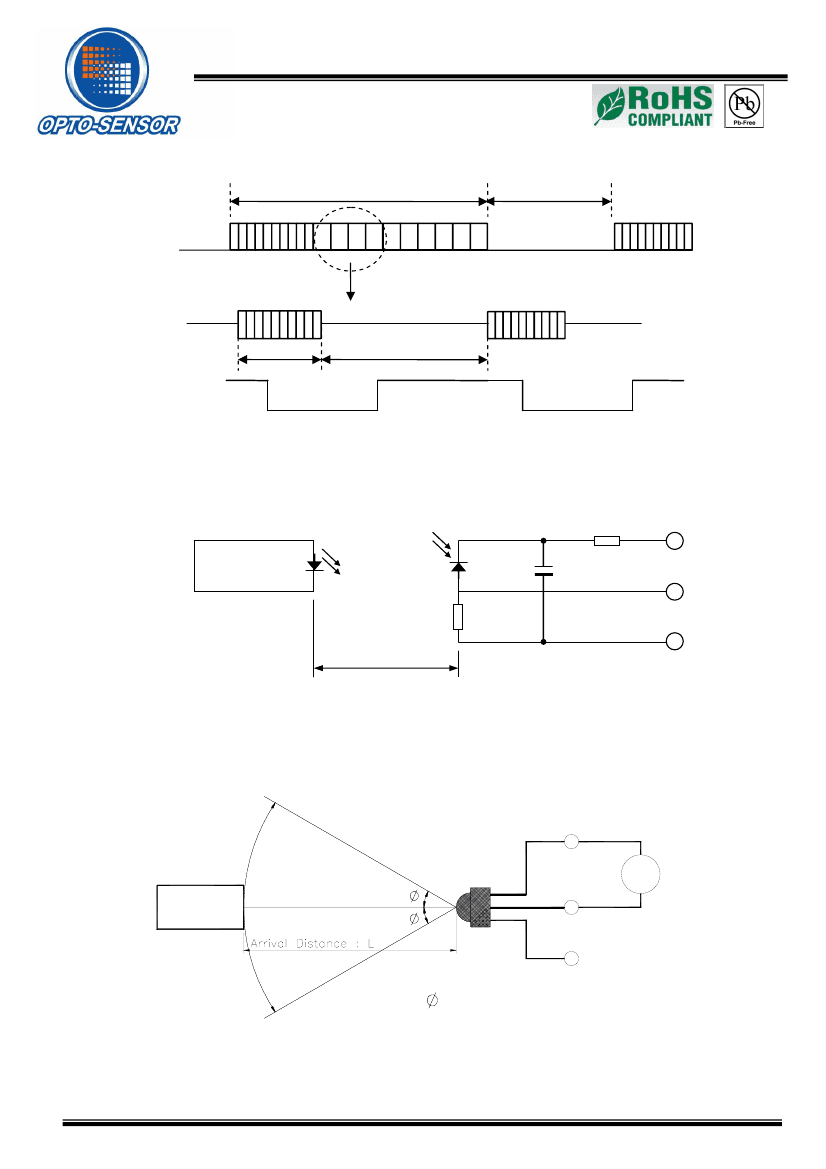

[ Fig.1 ] Data Signal diagram
Data Word
t Pause
enlarge
Carrier Frequency : fo
t Burst
(Output pulse)
t Gap
t Gap : Signal gap time between two burst in pulses of carrier.
Minimum Gap Time
≧
300us
t Burst : Length of a burst in pulses of the carrier frequency.
Minimum Burst
≧
300us
t pause : Data pause between two data words.
Minimum Data PauseTime
≧
20ms
[ Fig.2 ] Transmitter
10K
V
CC
V
OUT
S/Transmitter
PD
100uf
10K
30㎝
GND
※ The specifications shall be satisfied under the following conditions. The standard transmitter
shall be specified of the burst wave form adjusted to V
OUT
200mVp-p upon Po measuring
circuit Standard Transmitter
[ Fig.3 ] Test condition of arrival distance
Vout
osc
Transmitter
GND
Vcc
: Indicates horizontal and
vertical directions
[ Measurement condition for arrival distance ]
☞
Ambient light source : Detecting surface illumination shall be irradiate 200±50Lux
under ordinary white fluorescence lamp without high frequency lighting
光電企業有限公司
November 2006 Rev 1.4
FM-9038TM2-5AN-LS5.0
Electrical/Optical Characteristics

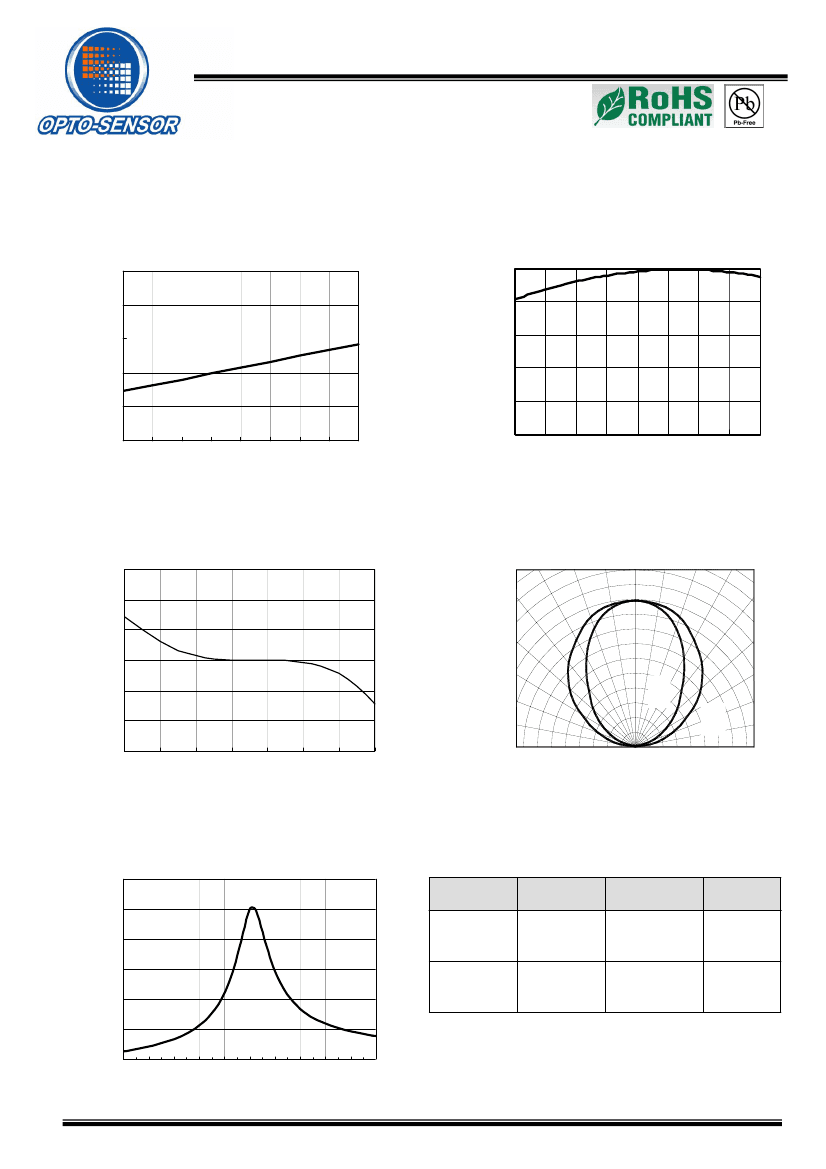

[ Fig.4 ] Supply Current vs. Voltage
2.5
[ Fig.5 ] Sensitivity vs. Supply Voltage
100
Relative Sensitivity(%)
80
60
40
20
0
Supply Current(㎃)
2.0
1.5
1.0
0.5
0.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
Supply Voltage(V)
Supply Voltage(V)
[ Fig.6 ] Output Pulse Width vs. Distance
900
[ Fig.7 ] Directivity (Horizontal/Vertical)
0˚
20˚
40˚
Relative Radiant(˚)
Output Pulse Width(㎲)
800
700
600
500
400
300
0
4
8
12
16
20
24
28
80
60
40 20 0
Relative Sensitivity(%)
100
90
60˚
V
H
80˚
Transmission Distance(m)
[ Fig.8 ] BPF Fc Curve
BPF fc
1.2
ESD Test Results
Parameter
1
Relative responsiv ity
0.8
0.6
0.4
0.2
0
0.5
0.6 0.7
0.8 0.9
1 1.1 1.2 1.3
f/fo Relative Frequency
1.4 1.5
Conditions
C=200㎊
R=0Ω
C=100pf
R=1.5KΩ
Specification
Min
±200V
Results
>±200V
Machine
Model
Human
Body
Model
Min
±2000V
>±2000V
光電企業有限公司
November 2006 Rev 1.4
