Topstek Current Transducer TMQ100A .. TMQ1000A

TMQ100A~1000A

Features

♦

Highly reliable Hall Effect device

♦

Compact and light weight

♦

Fast response time

♦

Excellent linearity of the output voltage over a wide input range

♦

Excellent frequency response (> 50 kHz)

♦

Low power consumption (16 mA nominal)

♦

Capable of measuring both DC and AC, both pulsed and mixed

♦

High isolation voltage between the measuring circuit and the

current-carrying conductor (AC2.5KV)

♦

Extended operating temperature range

♦

Flame-Retardant plastic case and silicone encapsulate, using

UL classified materials, ensures protection against

environmental contaminants and vibration over a wide

temperature and humidity range

Applications

♦

UPS systems

♦

Process control devices

♦

AC and DC servo systems

♦

Motor speed controller

♦

Electrical vehicle controllers

♦

Inverter-controlled welding machines

♦

General and special purpose inverters

♦

Controller for traction equipment e.g. electric trains

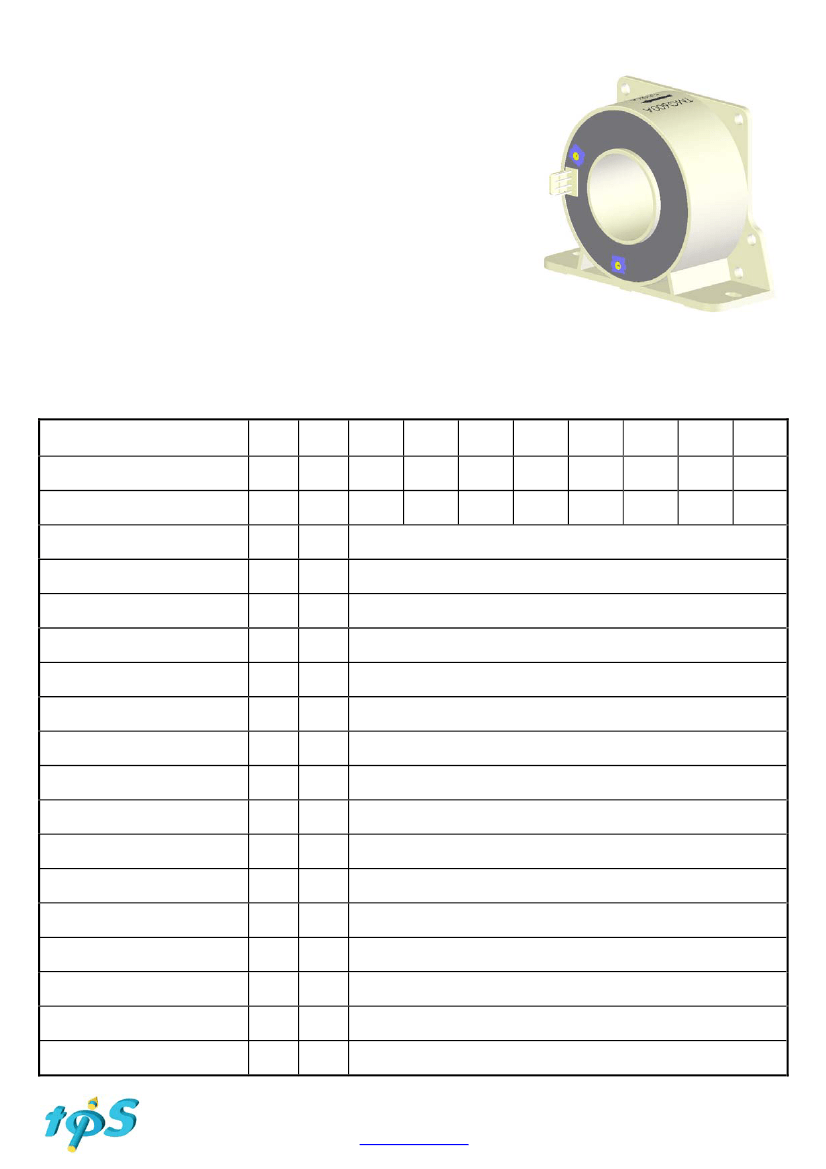

Specifications

Parameter

Nominal Input Current

Linear Range

Nominal Output Voltage

Offset Voltage

Output Resistance

Hysteresis Error

Supply Voltage

Linearity

Consumption Current

Response Time (90%V

)

Frequency bandwidth (-3dB)

Thermal Drift of Output

Thermal Drift of Zero Current Offset

Dielectric Strength

Isolation Resistance @ 1000 VDC

Operating Temperature

Storage Temperature

Mass

Symbol

OUT

Unit

A DC

Ω

μsec

%/°C

mV/°C

MΩ

°C

TMQ

100A

100

±300

TMQ

200A

200

±600

TMQ

300A

300

±900

TMQ

400A

400

±1200

TMQ

500A

500

±1500

TMQ

600A

600

±1800

TMQ

800A

800

±2400

TMQ

1000A

1000

±3000

4 V±1% at If=I

( R

=10kΩ)

Within ±15 mV @ I

=0, T

=25°C

<10Ω

Within ±10 mV @ I

→0

±15V ±5%

Within ±0.5% of I

±16 mA nominal

μsec

max.

/dt = I

μsec

DC to 50kHz

Within ±0.05 %/°C @ I

Within

±1 mV/°C @ I

AC2.5KV X 60 sec

>500 MΩ

-15°C to 80°C

-20°C to 85°C

240 g

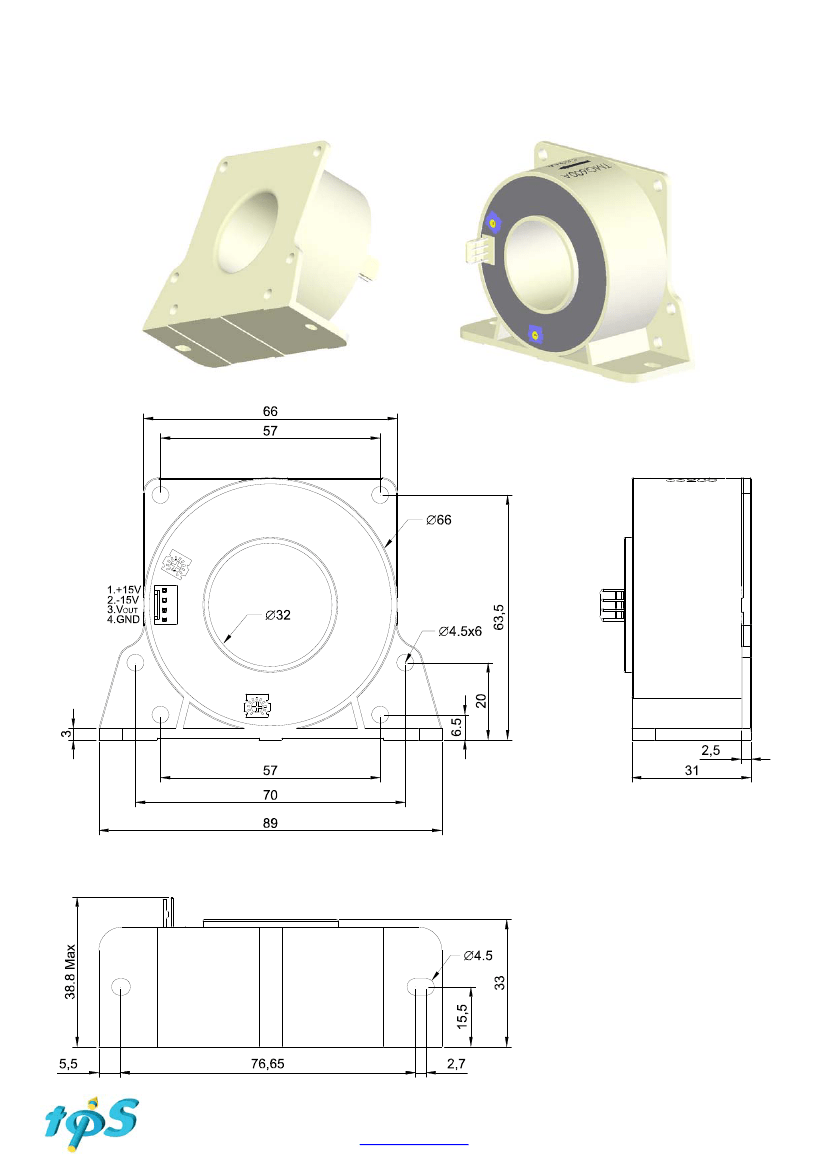

- 92 -

www.topstek.com

TMQ

V080709

7/9/2008
