F68A02P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> F68A02P

F68A02P: DescriptionMicroprocessor, 8-Bit, 1.5MHz, MOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size764KB，24 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

F68A02P Overview

Microprocessor, 8-Bit, 1.5MHz, MOS, PDIP40, PLASTIC, DIP-40

F68A02P Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown

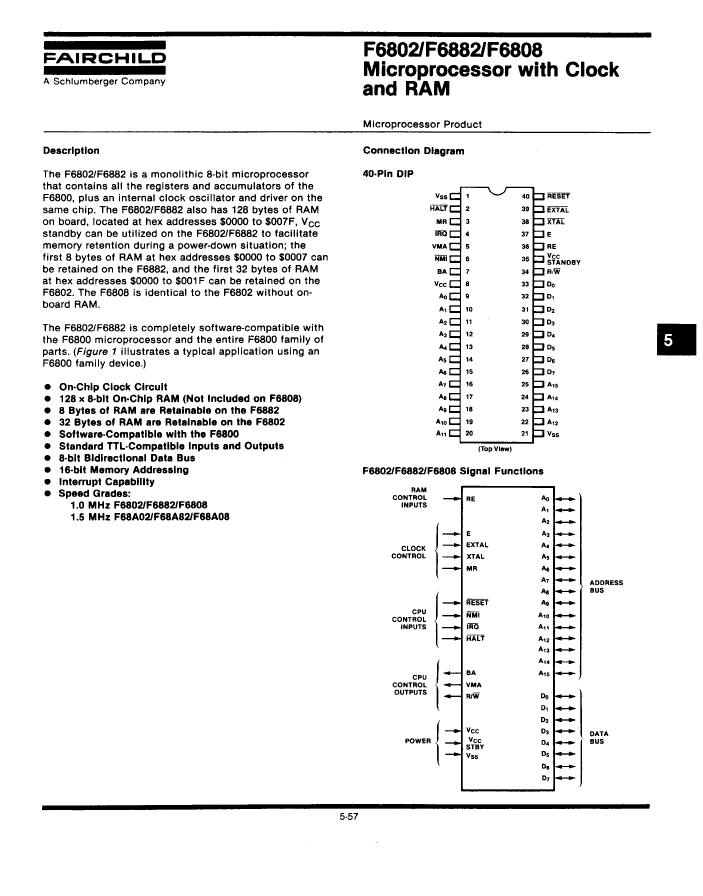

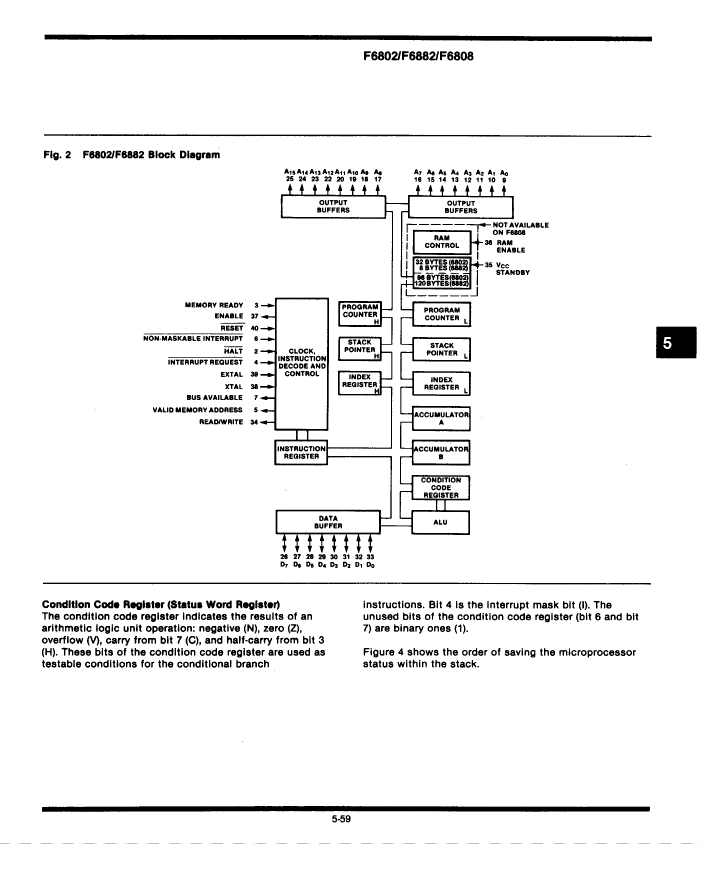

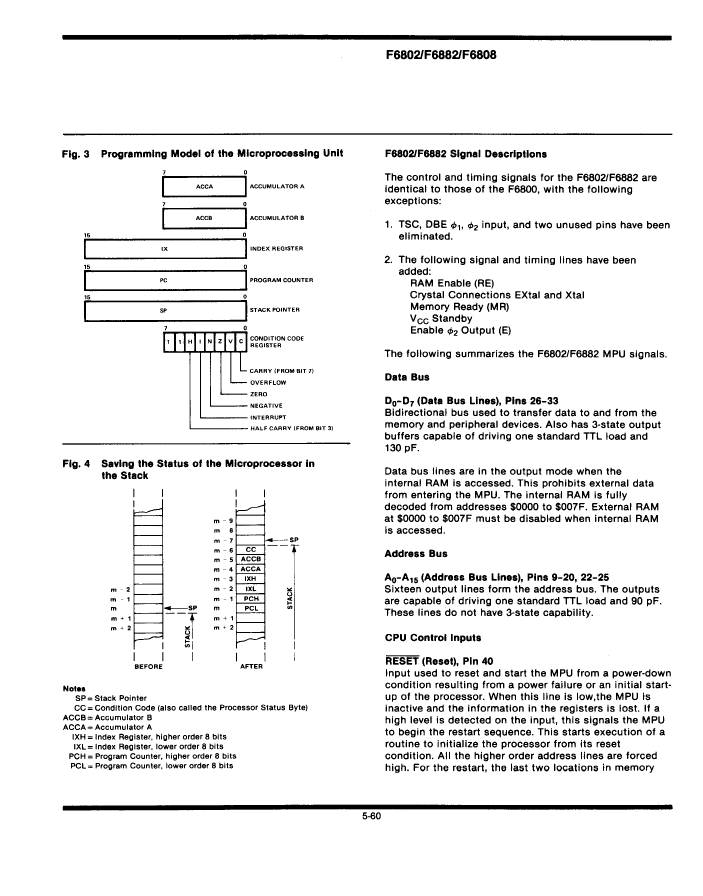

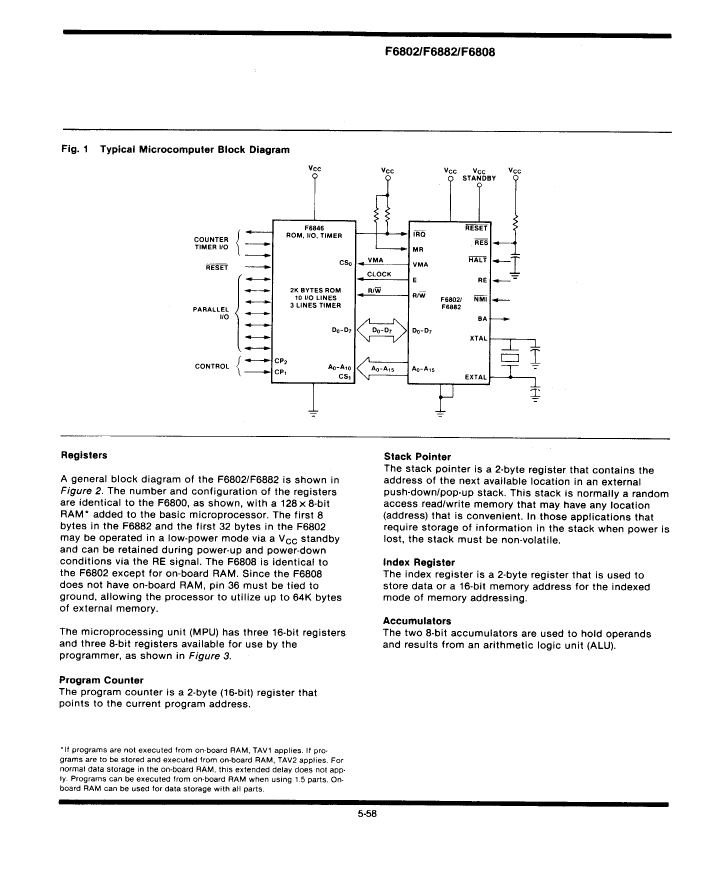

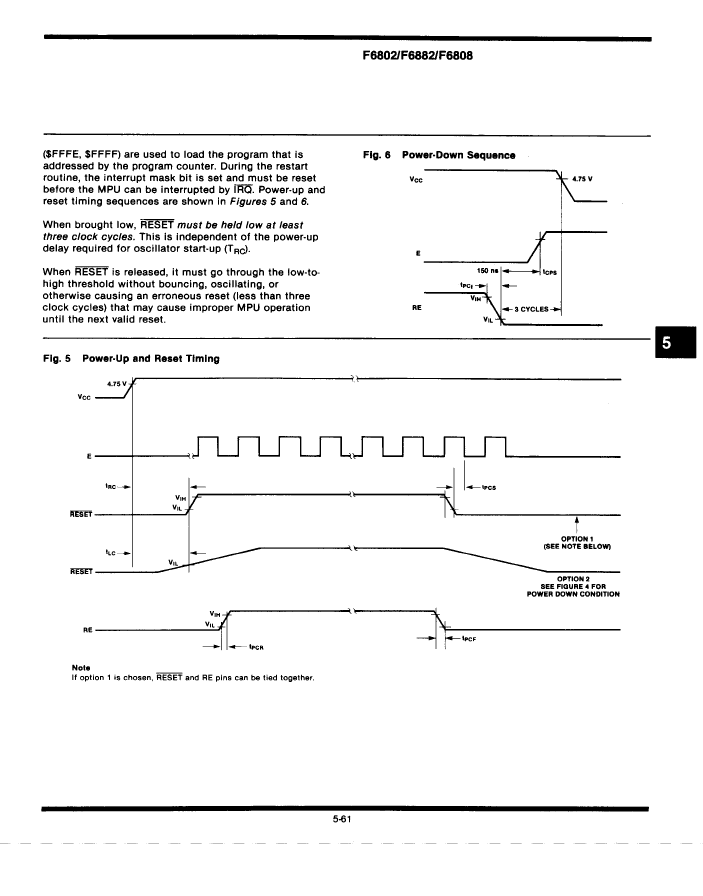

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

F68A02P Related Products

	F68A02P	F6802S	F68A02CP	F68A02CS	F68A02S	F6802P	F6802CS	F6882S	F6882P	F6802CP
Description	Microprocessor, 8-Bit, 1.5MHz, MOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 8-Bit, 1MHz, MOS, CDIP40, CERAMIC, DIP-40	Microprocessor, 8-Bit, 1.5MHz, MOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 8-Bit, 1.5MHz, MOS, CDIP40, CERAMIC, DIP-40	Microprocessor, 8-Bit, 1.5MHz, MOS, CDIP40, CERAMIC, DIP-40	Microprocessor, 8-Bit, 1MHz, MOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 8-Bit, 1MHz, MOS, CDIP40, CERAMIC, DIP-40	Microprocessor, 8-Bit, 1MHz, MOS, CDIP40, CERAMIC, DIP-40	Microprocessor, 8-Bit, 1MHz, MOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 8-Bit, 1MHz, MOS, PDIP40, PLASTIC, DIP-40
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP,	DIP, DIP40,.6	DIP,	DIP,	DIP,	DIP, DIP40,.6	DIP,	DIP, DIP40,.6	DIP, DIP40,.6	DIP,
Contacts	40	40	40	40	40	40	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Address bus width	-	16	16	16	16	16	16	16	16	16
bit size	-	8	8	8	8	8	8	8	8	8
boundary scan	-	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	-	4 MHz	6 MHz	6 MHz	6 MHz	4 MHz	4 MHz	4 MHz	4 MHz	4 MHz
External data bus width	-	8	8	8	8	8	8	8	8	8
Format	-	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	-	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	-	R-GDIP-T40	R-PDIP-T40	R-GDIP-T40	R-GDIP-T40	R-PDIP-T40	R-GDIP-T40	R-GDIP-T40	R-PDIP-T40	R-PDIP-T40
length	-	52.1335 mm	52.07 mm	52.1335 mm	52.1335 mm	52.07 mm	52.1335 mm	52.1335 mm	52.07 mm	52.07 mm
low power mode	-	YES	YES	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	-	2	2	2	2	2	2	2	2	2
Number of terminals	-	40	40	40	40	40	40	40	40	40
On-chip data RAM width	-	8	8	8	8	8	8	8	8	8
Maximum operating temperature	-	70 °C	85 °C	85 °C	70 °C	70 °C	85 °C	70 °C	70 °C	85 °C
Package body material	-	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	-	128	128	128	128	128	128	128	128	128
speed	-	1 MHz	1.5 MHz	1.5 MHz	1.5 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Maximum supply voltage	-	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	-	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	-	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	-	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	-	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	-	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	-	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	-	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
