MSM7514RS datasheet, PDF - EEWORLD Datasheet

MSM7514RS: DescriptionDTMF Signaling Circuit, PDIP42,; CategoryWireless rf/communication Telecom circuit; File Size674KB，20 Pages; ManufacturerLAPIS Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

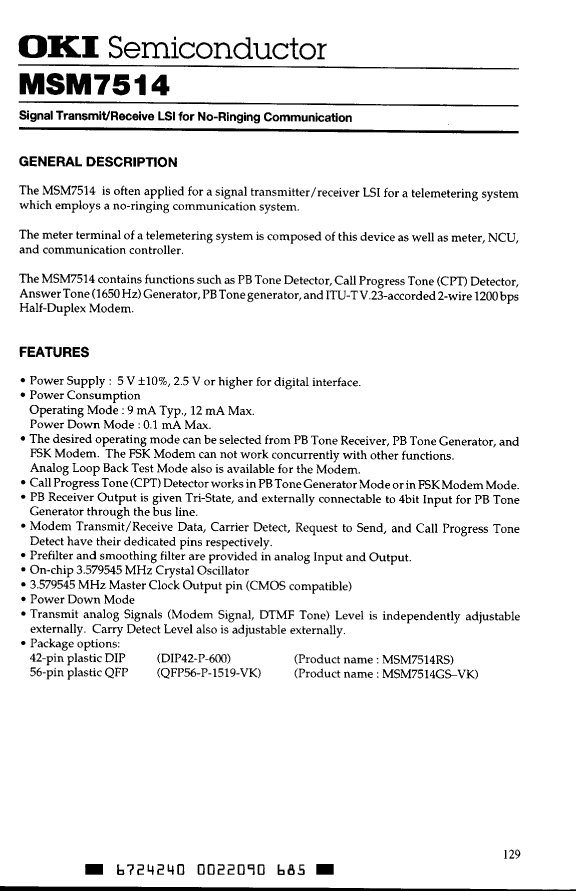

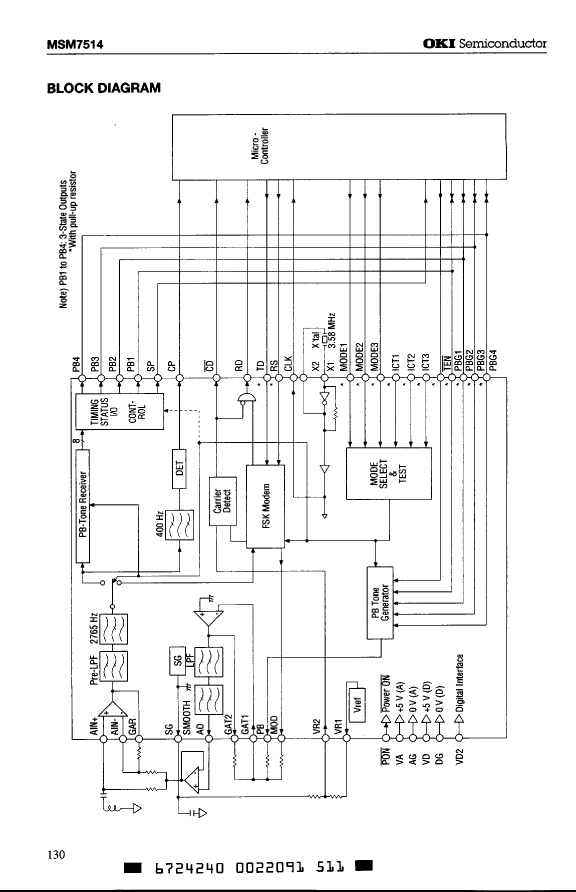

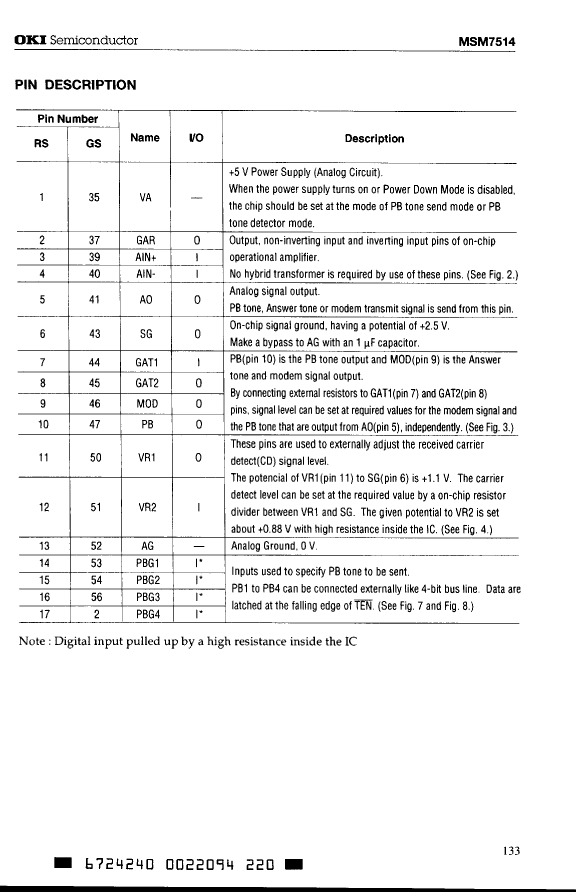

MSM7514RS Overview

DTMF Signaling Circuit, PDIP42,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LAPIS Semiconductor Co., Ltd.
package instruction	DIP, DIP42,.6
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T42
JESD-609 code	e0
Number of terminals	42
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP42,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2.5/5.5,5 V
Certification status	Not Qualified
Maximum slew rate	12 mA
surface mount	NO
Telecom integrated circuit types	DTMF SIGNALING CIRCUIT
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)

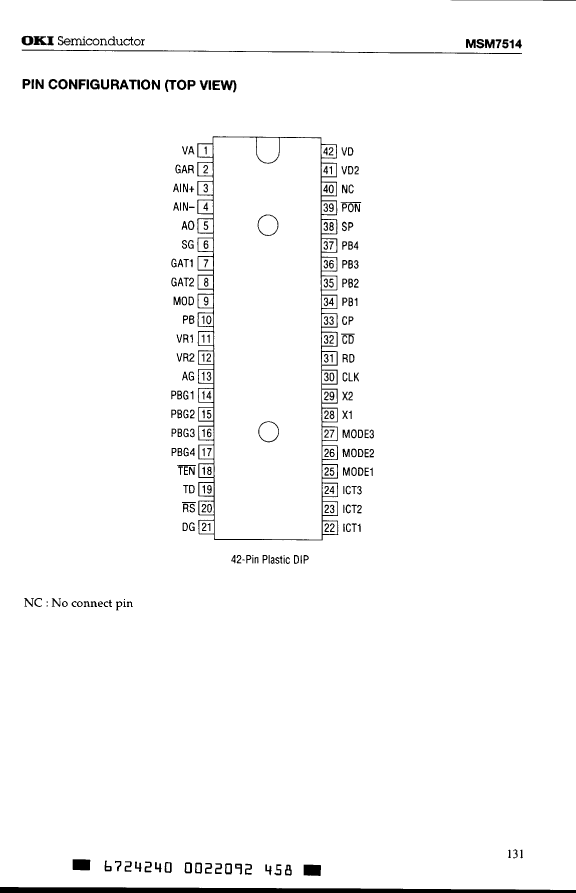

Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

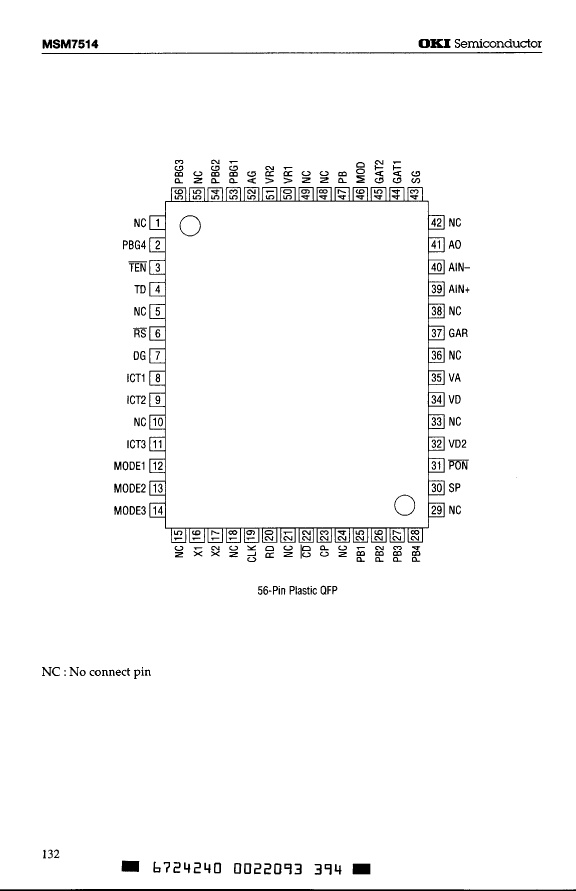

	MSM7514RS	MSM7514GS-VK
Description	DTMF Signaling Circuit, PDIP42,	DTMF Signaling Circuit, PQFP56,
Is it Rohs certified?	incompatible	incompatible
Maker	LAPIS Semiconductor Co., Ltd.	LAPIS Semiconductor Co., Ltd.
package instruction	DIP, DIP42,.6	QFP, QFP56,.8X.94,40
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDIP-T42	R-PQFP-G56
JESD-609 code	e0	e0
Number of terminals	42	56
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QFP
Encapsulate equivalent code	DIP42,.6	QFP56,.8X.94,40
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
power supply	2.5/5.5,5 V	2.5/5.5,5 V
Certification status	Not Qualified	Not Qualified
Maximum slew rate	12 mA	12 mA
surface mount	NO	YES
Telecom integrated circuit types	DTMF SIGNALING CIRCUIT	DTMF SIGNALING CIRCUIT
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1 mm
Terminal location	DUAL	QUAD
