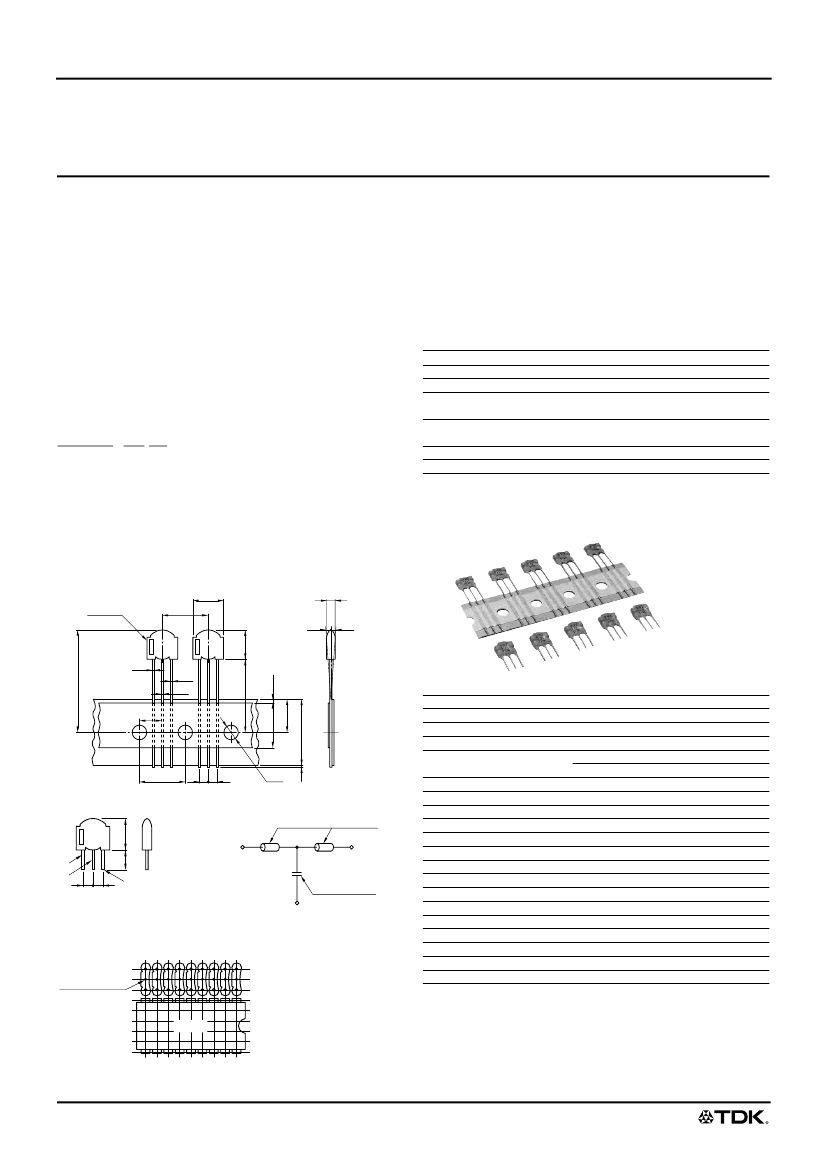

EMC Components
ZJSR Series
3-Terminal Filters for Signal Line and DC Power Line
Lead(Round)
APPLICATIONS
Home electronic equipment, (TVs, VCRs, CD players, DAT play-
ers, electric musical instruments, PCs, etc.), office automation
equipment (computers, terminals, stand-alone word processors,
fax machines, etc.), factory automation equipment (robots, numeri-
cal control devices, process controllers, etc.), automotive electron-
ics (automotive engine control units, etc.)
BASIC CHARACTERISTICS
Series
Rated voltage Edc
Rated current
Withstand voltage Edc
[Between terminal, No.1, 3 to 2]
Insulation resistance
[DC. 50V for 1 min]
DC resistance[Terminal No.1 to 3]
Operating temperature range
ZJSR
50V
5A
125V
10000MΩ min.
0.05Ω max.
–25 to +85°C
FEATURES
• The ZJSR series combine TDK’s high performance ferrite bead
and a chip capacitor. This board mounted EMC filter is used to
prevent microcomputer operational errors and stop noise
generation. Most suitable for use in countering radio noise
generated by digital circuits.
• SIP shape with 2.4mm max. thickness, making possible high
density mounting upon a PCB in a row at DIP pitch.
• When using taped product, possible to mount using automatic
equipment.
• Excellent high frequency bypass performance due to short
earth-side capacitor lead.
PRODUCT IDENTIFICATION
ZJSR5101 - 101 TA
(1)
(2) (3)
(1)Series name
(2)Capacitance 101:100pF
(3)Packaging style TA: Taping
(not needed for specification of bulk products)
SHAPES AND DIMENSIONS
TAPING SPECIFICATIONS
A
1
Marking
P
∆h
A
• This product should not be used under conditions that exceed those
listed above.
• Please note that this product is an EMC filter, so should not be used as a
surge absorber, etc.
T
∆h
ød
2
(W
2
)
H
ød
2
ød
1
(P
1
)
H
1
Dimensions in mm
Series
ZJSR
Component width
8.5max.
A
1
Component height
A
8max.
Component thickness
T
2.4max.
0.5±0.05
Lead wire diameter
ød
1
(round)
0.6±0.05
ød
2
Component pitch
P
12.7±1
Feed hole pitch
12.7±0.3
P
0
6.35±0.4
Feed hole position error
P
1
2.5+0.4, –0.1
Lead pitch
F
1
, F
2
Component alignment
0±2
∆h
Tape width
W
18+1, –0.5
Cover tape width
12±0.3
W
0
9±0.5
Feed hole position error
W
1
(4max.)
Cover tape position
(W
2
)
Component bottom position
H
20±1
Maximum component height
28max.
H
1
4±0.2
Feed hole diameter
0
øD
0.5max.
Lead wire protrusion
l
1
Lead wire length
l
5±1.5
Lead pitch
2.5±0.5
f
1
, f
2
• The tolerance of lead pitch is the dimensions when a lead is released
from tape. Not available for bulk packaging.
W
1
l
1
W
P
0
F
1
F
2
BULK SPECIFICATIONS
8max.
CIRCUIT DIAGRAM
Bead cores
1
3
1
2
f
1
f
2
l
3
2
W
0
øD
0
Chip capacitor
2: Ground terminal
TYPICAL MOUNTING EXAMPLE
2.54mm pitch
ZJSR series
IC LSI
• All specifications are subject to change without notice.
(2/4)
001-01 / 20030823 / e9632_zj.fm
EMC Components
ZJSR Series
3-Terminal Filters for Signal Line and DC Power Line
Lead(Round)

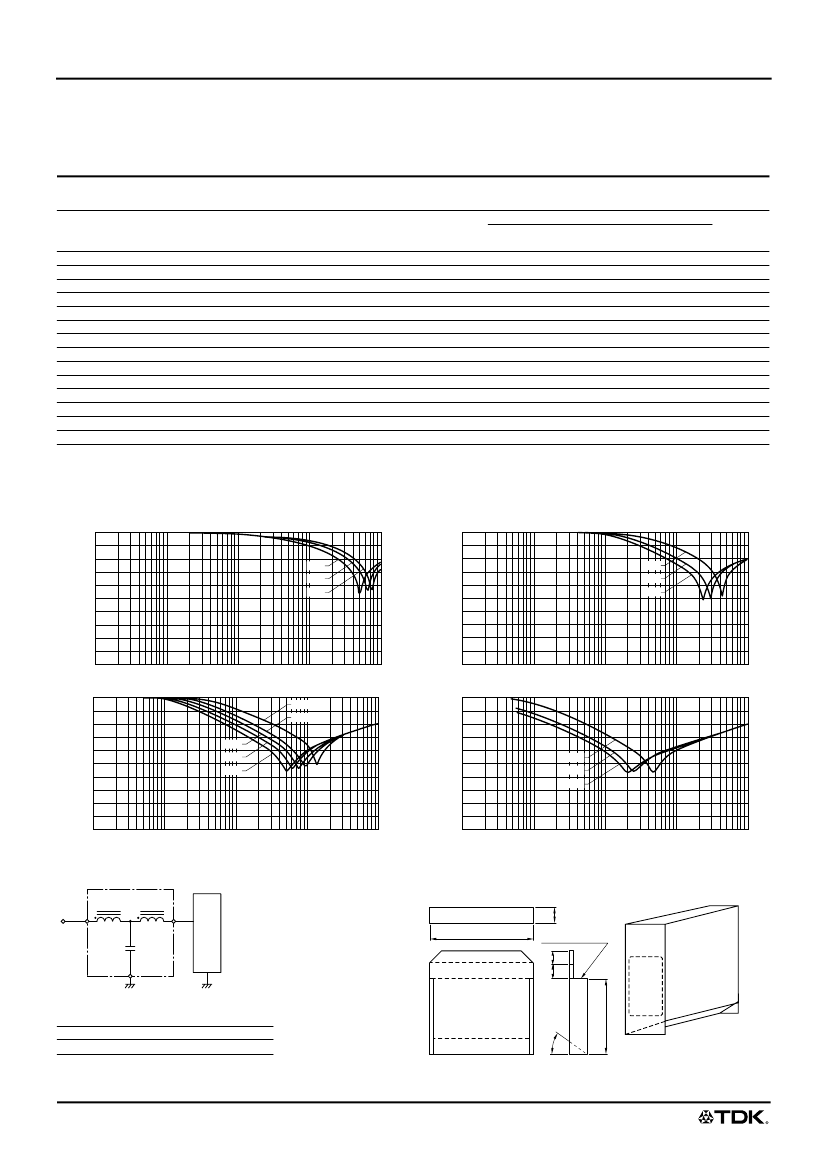

ELECTRICAL CHARACTERISTICS
Part No.
ZJSR5101-330
ZJSR5101-470
ZJSR5101-680
ZJSR5101-101
ZJSR5101-221
ZJSR5101-331
ZJSR5101-102
ZJSR5101-222
ZJSR5101-332
ZJSR5101-472
ZJSR5101-682
ZJSR5101-103
ZJSR5101-223
ZJSR5101-333
Capacitance
(pF)
33
47
68
100
220
330
1000
2200
3300
4700
6800
10000
22000
33000
Tolerance
(%)
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
+80, –20
+80, –20
+80, –20
Maximum
attenuation
(MHz)
700
600
500
400
280
220
140
80
70
60
50
35
27
20
Frequency range (MHz)[normal mode]*
15dB min.
25dB min.
attenuation
attenuation
400 to 800
650 to 800
350 to 800
550 to 700
250 to 800
450 to 600
200 to 800
350 to 500
100 to 800
200 to 350
70 to 800
150 to 300
30 to 800
70 to 200
20 to 800
45 to 200
15 to 800
35 to 200
10 to 800
25 to 200
8 to 800
20 to 200
6 to 800
15 to 200
4 to 800
9 to 200
3 to 800
7 to 200
Marking
330
470
680
101
221
331
102
222
332
472
682
103
223
333
* Operating temperature range: +5 to +35°C
TYPICAL ELECTRICAL CHARACTERISTICS
ATTENUATION vs. FREQUENCY CHARACTERISTICS
Glass epoxy coated double side mounting PCB(t=1.6mm)
0
20
Attenuation (dB)
0
20
Attenuation (dB)
40
60
80
680
470
330
40
60
80
101
221
331
100
0.1
0.3
1
3
10
30
Frequency (MHz)
100
300
1000
100
0.1
0.3
1
3
10
30
Frequency (MHz)
100
300
1000
0
20
Attenuation (dB)
102
222
332
472
682
Attenuation (dB)
0
20
40
60
80
40
60
80
103
223
333
100
0.1
0.3
1
3
10
30
(MHz)
Frequency
100
300
1000
100
0.1
0.3
1
3
10
30
(MHz)
Frequency
100
300
1000
CIRCUIT DIAGRAM
Protective load
1
3
PACKAGING STYLE
(Ammo-pack)
42
INDICATES INTERIOR
CONTENTS OF BOX
334
Sealed opening
40 25
S
LTER
FI FI
MI/R G TYPE
E
IN
TAP
2
2: Ground terminal
PACKAGING STYLE AND QUANTITIES
Packaging style
Taping
Quantity
2000 pieces/reel
EMI/RFI FILTERS
TAPING TYPE
35˚
Dimensions in mm
• All specifications are subject to change without notice.
210
(3/4)
001-01 / 20030823 / e9632_zj.fm
EMC Components
ZJSR Series
3-Terminal Filters for Signal Line and DC Power Line
Lead(Round)

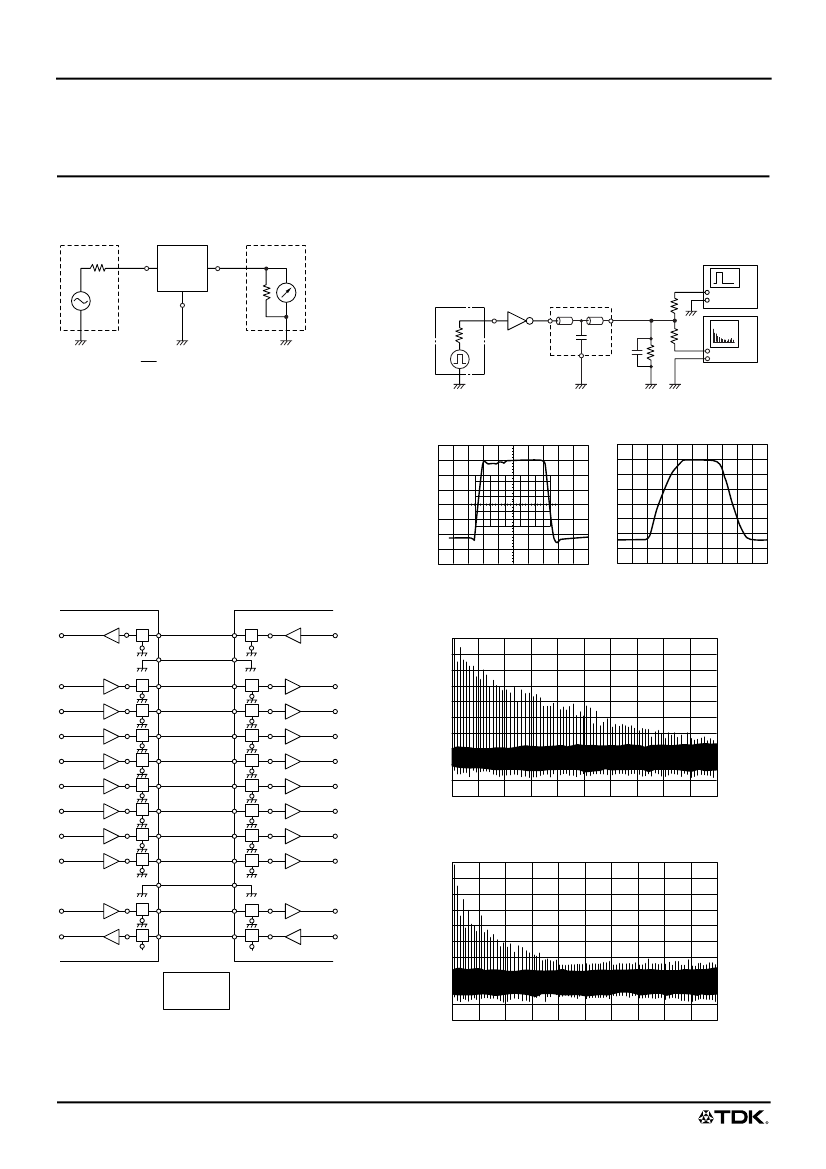

EXAMPLES OF MEASURING NOISE SUPPRESSION EFFECT
(Waveform spectrum)
(1)MEASUREMENT CIRCUIT
Oscilloscope
50Ω
TECHNICAL NOTES
INSERTION ATTENUATION MEASUREMENT METHOD
S.G.
50Ω
1
EMC
filter
2
3
L.M.
Pulse generator
EMC filter
500Ω
Attenuation = log
10
E
2
(dB)
E
1
E
2
: Set EMC filter in the circuit
E
1
: Leave EMC filter in the circuit
50pF
T TL
74AL04S
Spectrum
analyzer
MEASUREMENT TEMPERATURE
+5 to +35°C
TYPICAL APPLICATIONS
An example of radiated noise suppressing circuit by connecting a
PC and a printer.
Computer
ACK
Printer
Output voltage (200mV/DIV.)
Output voltage (200mV/DIV.)
MOUNTING SUBSTRATE FOR MEASUREMENT
Mount on the glass fabric-backed epoxy resin double-sided
through-hole substrate(t=1.6mm)
PULSE WAVEFORM
WITHOUT EMC FILTER
WITH EMC FILTER
Time (10ns/DIV.)
Time (10ns/DIV.)
(2)MEASUREMENT RESULTS
(a)SPECTRUM WITHOUT EMC FILTER
100
GND
80
Amplitude (dBµV)
D
0
D
1
D
2
D
3
D
4
D
5
D
6
60
40
20
0
0
500
Frequency (MHz)
1000
(b)SPECTRUM WITH EMC FILTER
D
7
GND
100
80
Amplitude (dBµV)
STROBE
BUSY
60
40
20
0
0
Interface
500
Frequency (MHz)
1000
• All specifications are subject to change without notice.
(4/4)
001-01 / 20030823 / e9632_zj.fm
EMC Components
ZJSR Series
3-Terminal Filters for Signal Line and DC Power Line
Lead(Round)

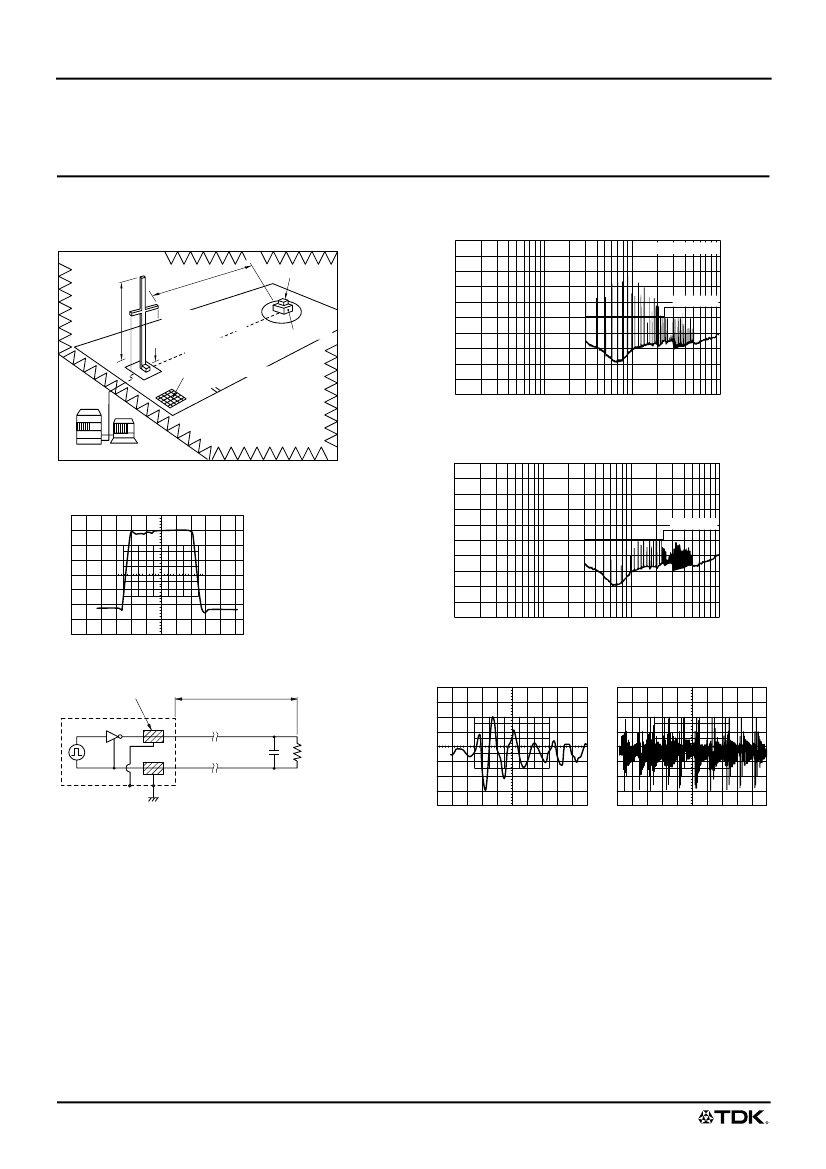

RADIATION LEVEL
(a)WITHOUT EMC FILTER
100
Radiation field intensity (dBµV/m)
AN EXAMPLE OF MEASURING
NOISE SUPPRESSION EFFECT
(Radiation spectrum)
Specimen
under test
TTL74ALS04
3m
80
60
40
20
0
VCCI (3m)
Antenna
height:
1 to 4m
Vertical/horizontal
polarization planes
Antenna height above
ground: 25cm
Nonconductive
stand
Mesh size: less than 30mm
1
3
10
30
100
Frequency (MHz)
300
1000
Anechoic chamber
(FCC filed)
EMC receiver system
(b)WITH EMC FILTER
100
Radiation field intensity(dBµV/m)
80
60
VCCI(3m)
TTL OUTPUT WAVEFORM WITHIN A SHIELDING CASE
Output voltage (200mV/DIV.)
40
20
0
1
3
10
Time (10ns/DIV.)
30
100
Frequency(MHz)
300
1000
MODEL
EMC filter
Shield case
900mm
BICONICAL ANTENNA INDUCED WAVEFORM
Induced voltage (5mV/DIV.)
Induced voltage (5mV/DIV.)
Time (10ns/DIV.)
C
T TL74ALS04
R:500Ω
C:50pF
R
Time (100ns/DIV.)
• All specifications are subject to change without notice.
