MDX-04MD1051B Overview

100 GHz Dense Wavelength Division Multiplexing Optical Add/Drop Module

MDX-04MD1051B Parametric

Parameter Name	Attribute value
Maker	JDS Uniphase Corporation ( VIAVI )
Reach Compliance Code	unknow
channel spacing	100 GHz
Communication standards	GR-1221, ITU-T
Connection Type	LC/PC CONNECTOR
Fiber optic equipment types	WAVELENGTH DIVISION MUX/DEMUX
Maximum insertion loss	3.7 dB
Minimum isolation	25 dB
Maximum operating temperature	70 °C
Minimum operating temperature	-5 °C
Nominal operating wavelength	1563 nm
minimum return loss	40 dB

Preview

Download Datasheet

View All

COMMUNICATIONS MODULES & SUBSYSTEMS

WaveReady

100 GHz Dense Wavelength Division Multiplexing

Optical Add/Drop Module

Key Features

• MUX/DEMUX of one, four, or eight ITU 100 GHz spaced

channels onto a fiber pair

• Add/drop up to eight channels at remote sites

• Upgradeable to 32 channels per fiber

• Low pass-through insertion loss for C-band channels

• Fits into standard LGX™-mounting solutions

• Thermally stable passive optics require no power

Applications

• Improves capacity exhaust in

fiber-constrained situations

• Conserves or reclaims fiber with

DWDM

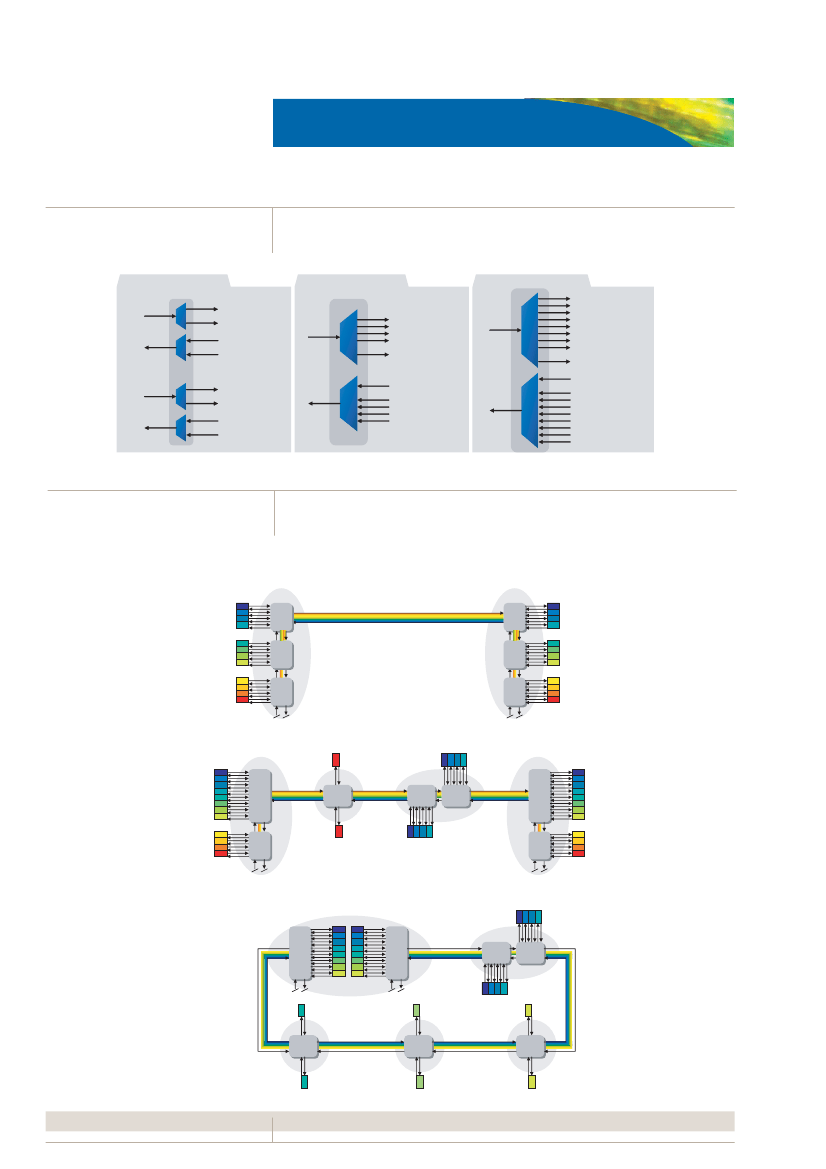

• Supports point-to-point

multichannel

• Supports linear (bus) add/drop and

hub-and-spoke ring architectures

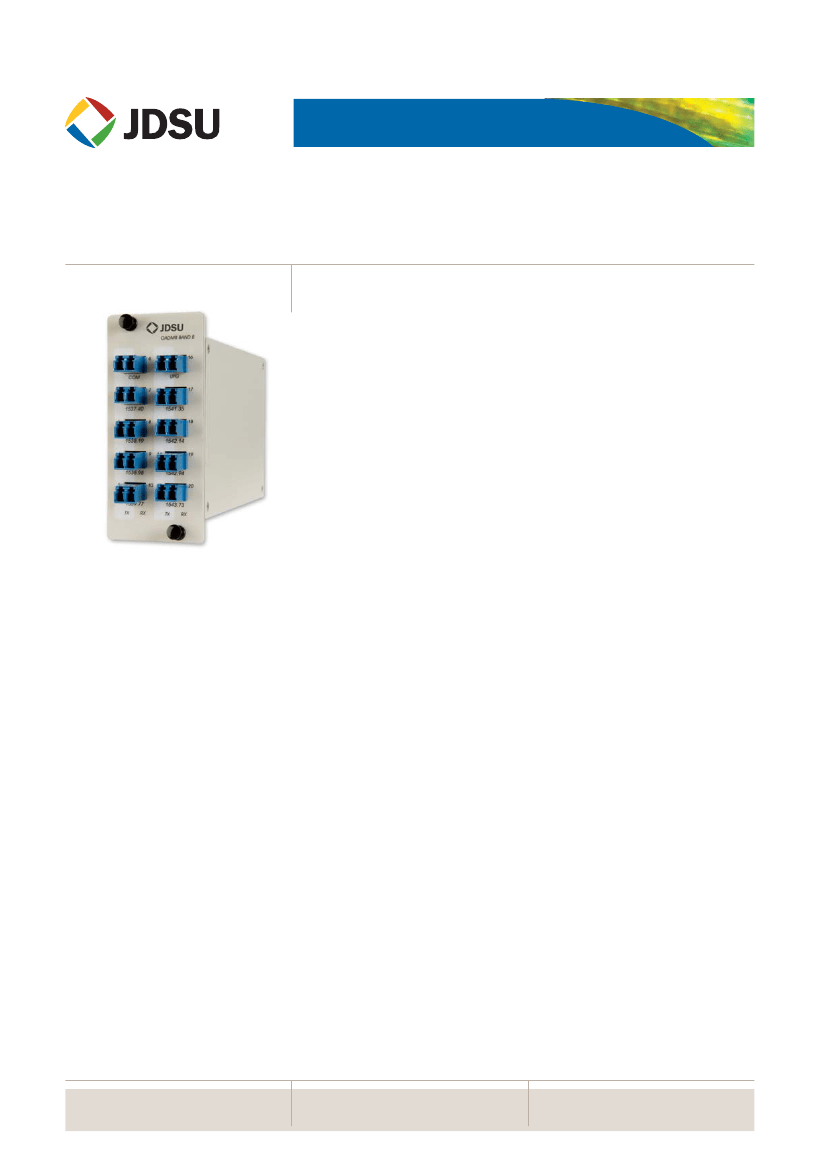

The JDSU WaveReady 100 GHz Optical Add/Drop Modules (OADM) comprise a

family of flexible, low-cost solutions to enable capacity expansion of existing fiber.

Through use of dense wavelength division multiplexing (DWDM) technology, a

single optical fiber can carry up to 32 discrete optical channels.

The 100 GHz DWDM OADM is configurable as both an OADM and a terminal

multiplexer and demultiplexer (MUX/DEMUX) to support a broad range of

architectures ranging from scalable point-to-point links to four-fiber protected

rings. Innovative band upgrade ports allow for in-service pay-as-you-grow

capacity scaling in multiples of one, four, or eight channels, allowing for lowest

first-day cost without limiting growth. Market standard LGX packaging is readily

deployed in existing LGX-compatible frames or can be adapted into the

WaveReady line of shelves.

The 100 GHz OADM is designed to operate with both the WaveReady line of

transponder and optical regenerator solutions and ITU transponder cards of

widely available transmission equipment.

Compliances

• Telcordia GR-1221

• RoHS compliant (exemptions 7b,

8a)

NORTH AMERICA

800 498-JDSU (5378)

WORLDWIDE

+800 5378-JDSU

WEBSITE

www.jdsu.com/test
