ZGL41-100 THRU ZGL41-200A
SURFACE MOUNT GLASS PASSIVATED ZENER
Zener Voltage -
100 to 200 Volts
DO-213AB
Steady State Power -
1.0 Watt
FEATURES
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
For surface mount applications
♦
Glass passivated junction
♦
Low Zener impedance
♦
Low regulation factor
♦
High temperature soldering guaranteed:
250°C/10 seconds at terminals
SOLDERABLE ENDS
1st BAND
D2
D1=
0.105
0.095
(2.67)
(2.41)
0.022 (0.56)
0.018 (0.46)
0.205 (5.2)
0.185(4.7)
1st band denotes type and positive end (cathode)
0
D2 = D1 + 0.008 (0.20)
-
MECHANICAL DATA
Case:
JEDEC DO-213AB molded plastic body over
passivated junction
Terminals:
Solder plated solderable per MIL-STD-750,
Method 2026
Polarity:
Red band denotes Zener diode and positive end
(cathode)
Mounting Position:
Any
Weight:
0.0046 ounce, 0.116 grams
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
OPERATING JUNCTION AND STORAGE TEMPERATURE RANGE: T
J
, T
STG
: -55°C to +150°C
NOMINAL
ZENER
VOLTAGE
at I
ZT
TYPE
(NOTE 1)
(V
Z
)
MAXIMUM ZENER DYNAMIC
IMPEDANCE
TEST
CURRENT
(I
ZT
)
(mA)
Z
ZT
at I
ZT
(Ohms)
Z
ZK
at
(Ohms)
I
ZK
(mA)
MAXIMUM DC REVERSE
LEAKAGE CURRENT
at V
R
(I
R
)
(V
R
)
(µA)
(Volts)
MAXIMUM
MAXIMUM
SURGE
INSTANTANEOUS
CURRENT FORWARD
VOLTAGE
at 200mA
(NOTE 2)
(I
RM
)
(V
F
)
(mAdc)
(VOLTS)
(Volts)
ZGL41-100
ZGL41-110
ZGL41-120
ZGL41-130
ZGL41-140
ZGL41-150
ZGL41-160
ZGL41-170
ZGL41-180
ZGL41-190
ZGL41-200
100
110
120
130
140
150
160
170
180
190
200
3.7
3.4
3.1
2.9
2.7
2.5
2.3
2.2
2.1
2.0
1.9
250
300
380
450
525
600
700
800
900
1050
1200
3100
4000
4500
5000
5500
6000
6500
6750
7000
7500
8000
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
76.0
83.6
91.2
98.8
106.4
114.0
121.6
129.2
136.9
144.4
152.0
10.0
9.1
8.3
7.7
7.1
6.7
6.3
5.9
5.6
5.3
5.0
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
NOTES:
(1) Standard voltage tolerance is ± 10%, Suffix A = ± 5%
(2) Surge current is a non-repetitive, 8.3ms pulse width square wave or
equivalent sine-wave superimposed on I
ZT
per JEDEC Method
(3) Maximum steady state power dissipation is 1.0 watt at T
T
=75°C
8/26/98

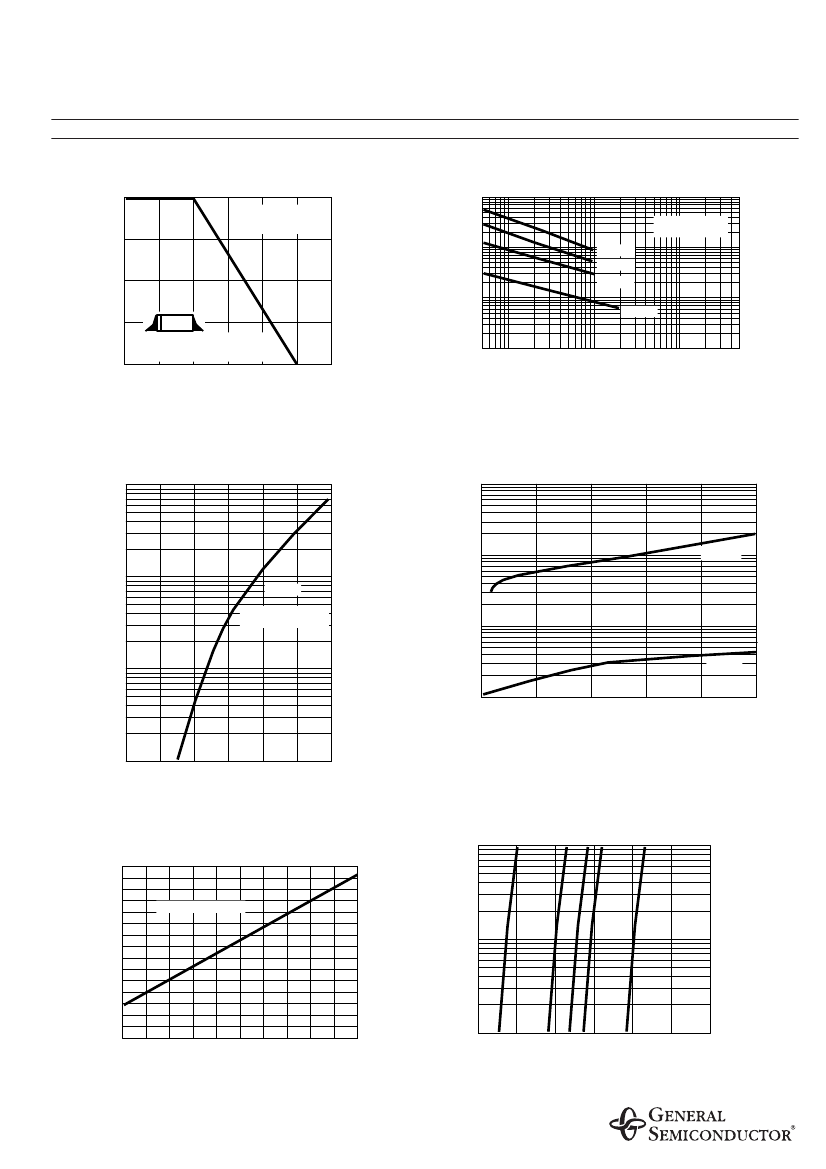

RATINGS AND CHARACTERISTIC CURVES ZGL41-100 THRU ZGL41-200A
FIG. 1 - MAXIMUM CONTINUOUS
POWER DISSIPATION
P
M(AV)
, AVERAGE POWER DISSIPATION,
WATTS
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
FIG. 2 - TYPICAL ZENER IMPEDANCE
Z
Z
, DYNAMIC ZENER IMPEDANCE,
OHMS
1.0
10,000
T
J
=25°C
I
Z
ma +/- 0.1 I
Z
(d
c
)
0.75
1,000
V
Z
=200V
V
Z
=180V
V
Z
=150V
0.5
100
V
Z
=100V
0.25
P.C.B. MOUNTED ON
0.31 X 0.31 0.08” (8 x 8 x 2mm)
COPPER AREAS PADS
0
25
10
0.5
10
100
500
50
75
100
125
150
175
I
ZT,
ZENER TEST CURRENT, mA
TERMINALS TEMPERATURE, °C
FIG. 3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
FIG. 4 - TYPICAL REVERSE CHARACTERISTICS
10
INSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
10
INSTANTANEOUS FORWARD CURRENT,
AMPERES
1
T
J
=100°C
1
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
0.1
0.1
T
J
=25°C
0.01
0
20
40
60
80
100
PERCENT OF RATED ZENER VOLTAGE, %
0.01
0.4
0.6
0.8
1
1.2
1.4
1.6
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
FIG. 6 - TYPICAL ZENER VOLTAGE
FIG. 5 - TYPICAL TEMPERATURE COEFFICIENTS
ØV
Z
, TEMPERATURE COEFFICIENT,
mV/°C
I
ZT
, TEST ZENER CURRENT, mA
10
220
200
180
160
140
120
100
80
100 110 120 130 140 150 160 170 180 190 200
V
Z,
ZENER VOLTAGE, VOLTS
TESTED at RATED I
ZT
1
0.1
100
150
200
250
V
Z
, ZENER VOLTAGE, VOLTS
8/26/98
