PRODUCT DATA SHEET
POWERLINE CARRIER
ISOLATION TRANSFORMERS
P2820
P2821
P2822
P2823
Applications
∗
Powerline Carrier
Features
∗
∗
∗
∗
∗
∗
∗
∗
Lead-free (Pb-free)
RoHS compliant
Reinforced insulation
14.6mm seated height
Vacuum encapsulated
Low distortion
IEC 60950 and UL 60950 certified
UL Recognized Component
DESCRIPTION
The family of transformers P2820, P2821, P2822
and P2823 is specifically designed to provide signal
coupling with safety for Powerline Carrier
applications over four bands from 40kHz to
148.5kHz.
Typically, the devices are driven from low-
impedance sources and are connected to the mains
network using capacitors whose values are chosen
to resonate with the transformer leakage
inductance.
They are particularly suitable for use with tri-state
power amplifiers, e.g. Texas Instruments TLE2301.
The devices are completely lead-free, compliant
with RoHS Directive 2002/95/EC, and suitable for
lead-free and conventional processing.
The devices are certified to IEC 60950 and
UL 60950 for reinforced insulation. They are UL
Recognized Components and are supported by
an IEC CB Test Certificate. Furthermore, the
devices are designed for low distortion and meet
the requirements of EN 50065-1 for conducted
emissions.
ETALDOC 345/10
Page 1 of 6
March 2006
P2820, P2821, P2822, P2823
SPECIFICATIONS
Distortion
Exceed requirements of EN 50065-1 (1991) for
conducted emissions

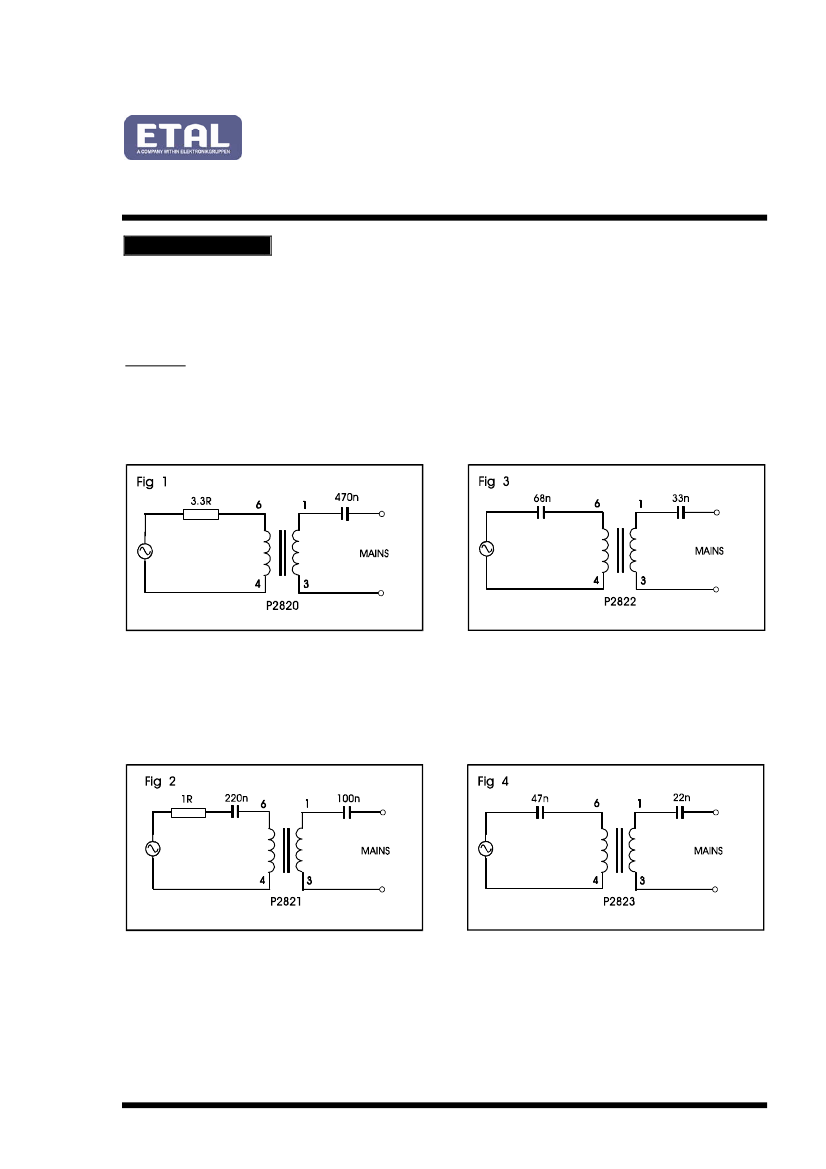

Conditions:
P2820,
Fundamental 40-90kHz into artificial mains
network of EN 50065-1 at 122dBµV and AC
magnetizing current of 40mA rms at 50Hz. Circuit
as Figure 1.
P2822,
Fundamental 125-140kHz into artificial
mains network of EN 50065-1 at 116dBμV and AC
magnetizing current of 3mA rms at 50Hz. Circuit as
Figure 3.
P2821,
Fundamental 95-125kHz into artificial mains
network of EN 50065-1 at 116dBμV and AC
magnetizing current of 10mA rms at 50Hz. Circuit
as Figure 2.
P2823,
Fundamental 140-148.5kHz into artificial
mains network of EN 50065-1 at 116dBμV and AC
magnetizing current of 3mA rms at 50Hz. Circuit as
Figure 4.
ETALDOC 345/10
Page 2 of 6
March 2006
P2820, P2821, P2822, P2823
CONSTRUCTION
e
2

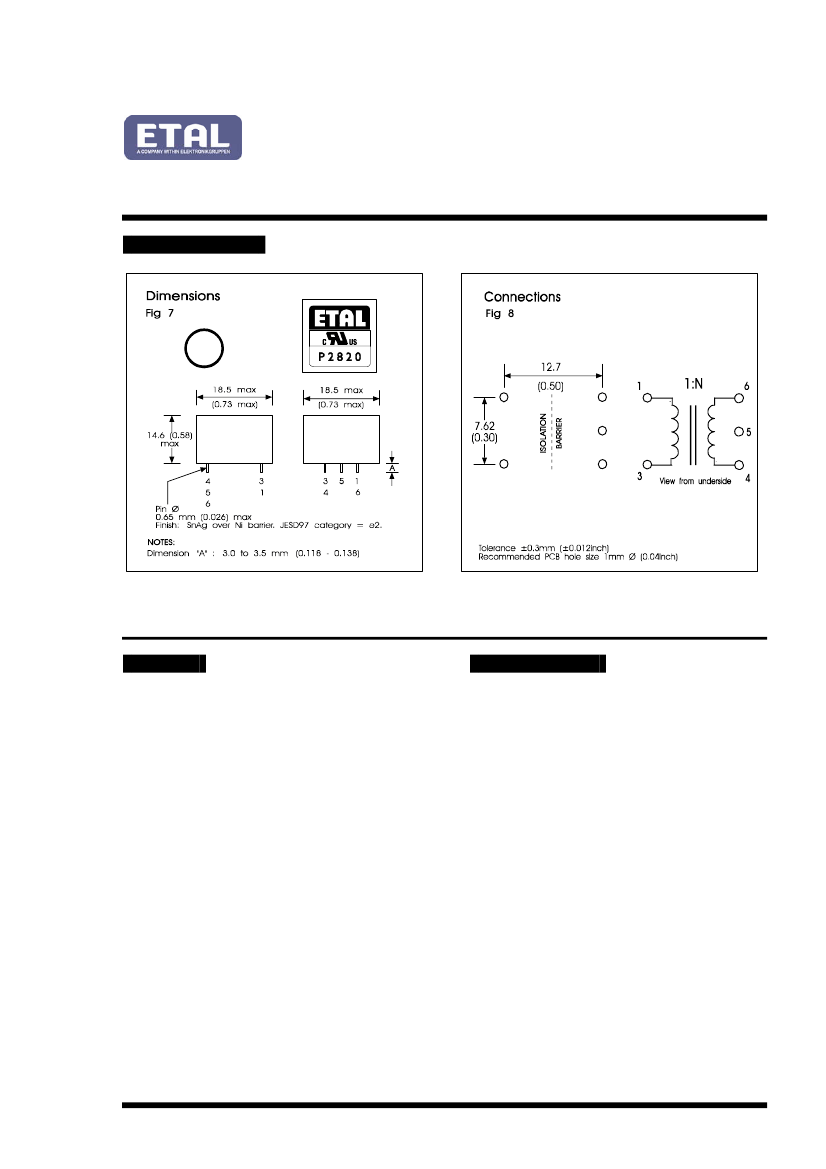

Dimensions shown are in millimetres (inches).
Geometric centres of outline and pad grid coincide within a tolerance circle of 0.3mmØ.
Windings may be used interchangeably a primary or secondary.
SAFETY
Constructed in accordance with IEC 60950-1:2001,
EN 60950-1:2001 and UL 60950-1, first Edition,
reinforced insulation 250Vrms maximum working
voltage, flammability class V-0.
Distance through solid insulation 0.4mm minimum.
Creepage and clearances in circuit are 9mm
minimum where PCB pads do not exceed Ø3mm.
CERTIFICATION
Certified under the IEC CB scheme (Certificate
DK-9431) to IEC 60950-1:2001, sub-clauses 1.5,
1.5.1, 1.5.2, 1.7, 1.7.1, 2, 2.9, 2.9.1, 2.9.2, 2.9.3,
2.10, 2.10.1, 2.10.2, 2.10.3, 2.10.3.1, 2.10.3.3,
2.10.4, 2.10.5, 2.10.5.1, 2.10.5.4, 4, 4.7, 4.7.1, 4.7.3,
4.7.3.1, 4.7.3.4, 5, 5.2, 5.2.1, and 5.2.2 for a
maximum working voltage of 250Vrms, nominal
mains supply voltage not exceeding 250Vrms and a
maximum operating temperature of 85ºC in
Pollution Degree 2 environments, reinforced
insulation, including national differences for
Denmark, Finland, Germany, Norway, Sweden,
Switzerland, USA, Canada and UK.
Recognized under the Component Recognition
Program of Underwriters Laboratories Inc. to US and
Canadian
requirements
CAN/CSA
C22.2
No. 60950-1-03/UL60950-1, First Edition, based on
IEC 60950-1, First Edition, maximum working
voltage 250Vrms, Pollution Degree 2, reinforced
insulation.
UL File number E203175.
Additionally, Profec Technologies certifies all
transformers as providing voltage isolation of
3.88kVrms, 5.5kV DC minimum. All shipments are
supported by a certificate of conformity to current
applicable safety standards.
ETALDOC 345/10
Page 5 of 6
March 2006
