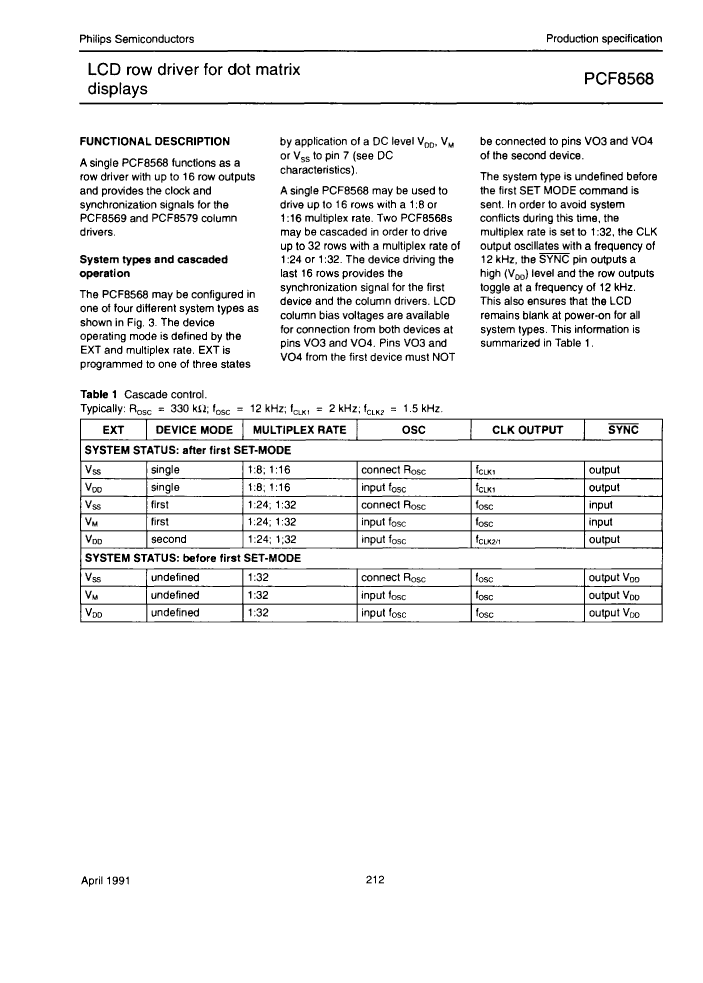

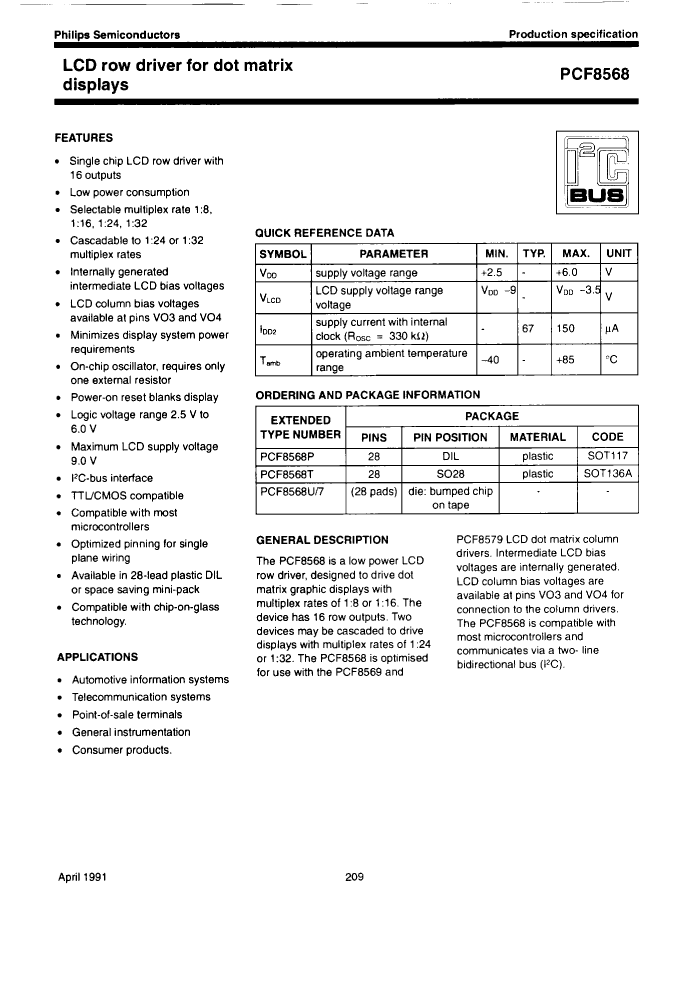

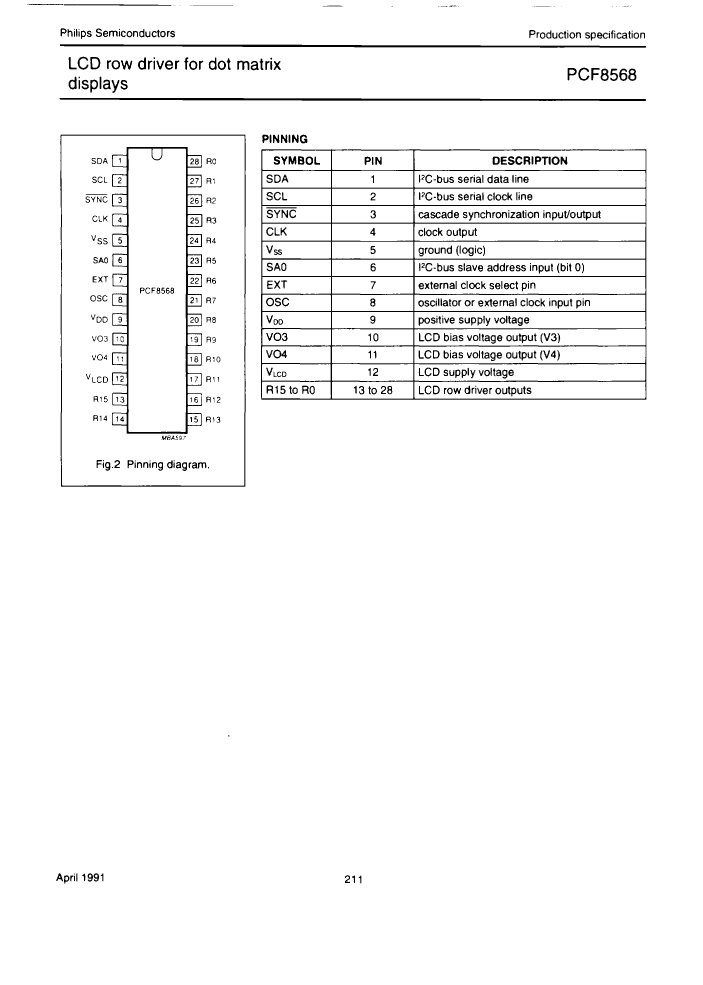

Preview

PCF8568U/7: DescriptionIC LIQUID CRYSTAL DISPLAY DRIVER, UUC28, Display Driver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size537KB，23 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

PCF8568U/7 Overview

IC LIQUID CRYSTAL DISPLAY DRIVER, UUC28, Display Driver

PCF8568U/7 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	DIE,
Reach Compliance Code	unknown
ECCN code	EAR99
data entry mode	SERIAL
display mode	DOT MATRIX
Input properties	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	X-XUUC-N28
Multiplex display function	NO
Number of functions	1
Number of segments	16
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	TOTEM-POLE
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum slew rate	0.15 mA
Maximum supply voltage	6 V
Minimum supply voltage	2.5 V
Nominal supply voltage	5 V
Supply voltage 1-max	2.5 V
Mains voltage 1-minute	-6.5 V
Supply voltage1-Nom	1.5 V
surface mount	YES
technology	MOS
Temperature level	INDUSTRIAL
Terminal form	NO LEAD
Terminal location	UPPER
minfmax	0.1 MHz

Preview

Download Datasheet

View All

PCF8568U/7 Related Products

	PCF8568U/7	PCF8568P	PCF8568T
Description	IC LIQUID CRYSTAL DISPLAY DRIVER, UUC28, Display Driver	IC LIQUID CRYSTAL DISPLAY DRIVER, PDIP28, Display Driver	IC LIQUID CRYSTAL DISPLAY DRIVER, PDSO28, Display Driver
Maker	NXP	NXP	NXP
package instruction	DIE,	DIP,	SOP,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
data entry mode	SERIAL	SERIAL	SERIAL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX
Input properties	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	X-XUUC-N28	R-PDIP-T28	R-PDSO-G28
Multiplex display function	NO	NO	NO
Number of functions	1	1	1
Number of segments	16	16	16
Number of terminals	28	28	28
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Output characteristics	TOTEM-POLE	TOTEM-POLE	TOTEM-POLE
Package body material	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIE	DIP	SOP
Package shape	UNSPECIFIED	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	0.15 mA	0.15 mA	0.15 mA
Maximum supply voltage	6 V	6 V	6 V
Minimum supply voltage	2.5 V	2.5 V	2.5 V
Nominal supply voltage	5 V	5 V	5 V
Supply voltage 1-max	2.5 V	2.5 V	2.5 V
Mains voltage 1-minute	-6.5 V	-6.5 V	-6.5 V
Supply voltage1-Nom	1.5 V	1.5 V	1.5 V
surface mount	YES	NO	YES
technology	MOS	MOS	MOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	NO LEAD	THROUGH-HOLE	GULL WING
Terminal location	UPPER	DUAL	DUAL
minfmax	0.1 MHz	0.1 MHz	0.1 MHz
Maximum seat height	-	5.1 mm	2.65 mm
Terminal pitch	-	2.54 mm	1.27 mm
width	-	15.24 mm	7.5 mm
