DPDD16MX8RLAY5-DP-XX1020 datasheet, PDF

Datasheet> All Categories > storage> storage> DPDD16MX8RLAY5-DP-XX1020

DPDD16MX8RLAY5-DP-XX1020: DescriptionSynchronous DRAM, 16MX8, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66; Categorystorage storage; File Size64KB，2 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

DPDD16MX8RLAY5-DP-XX1020 Overview

Synchronous DRAM, 16MX8, CMOS, PDSO66, STACK, LEADLESS, MODULE, TSOP-66

DPDD16MX8RLAY5-DP-XX1020 Parametric

Parameter Name	Attribute value
Maker	B&B Electronics Manufacturing Company
Parts packaging code	TSOP
package instruction	ATSOP,
Contacts	66
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FOUR BANK PAGE BURST
Other features	AUTO/SELF REFRESH
Spare memory width	4
JESD-30 code	R-PDSO-G66
length	22.3266 mm
memory density	134217728 bit
Memory IC Type	SYNCHRONOUS DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	66
word count	16777216 words
character code	16000000
Operating mode	SYNCHRONOUS
organize	16MX8
Package body material	PLASTIC/EPOXY
encapsulated code	ATSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, PIGGYBACK, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	2.6162 mm
self refresh	YES
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL

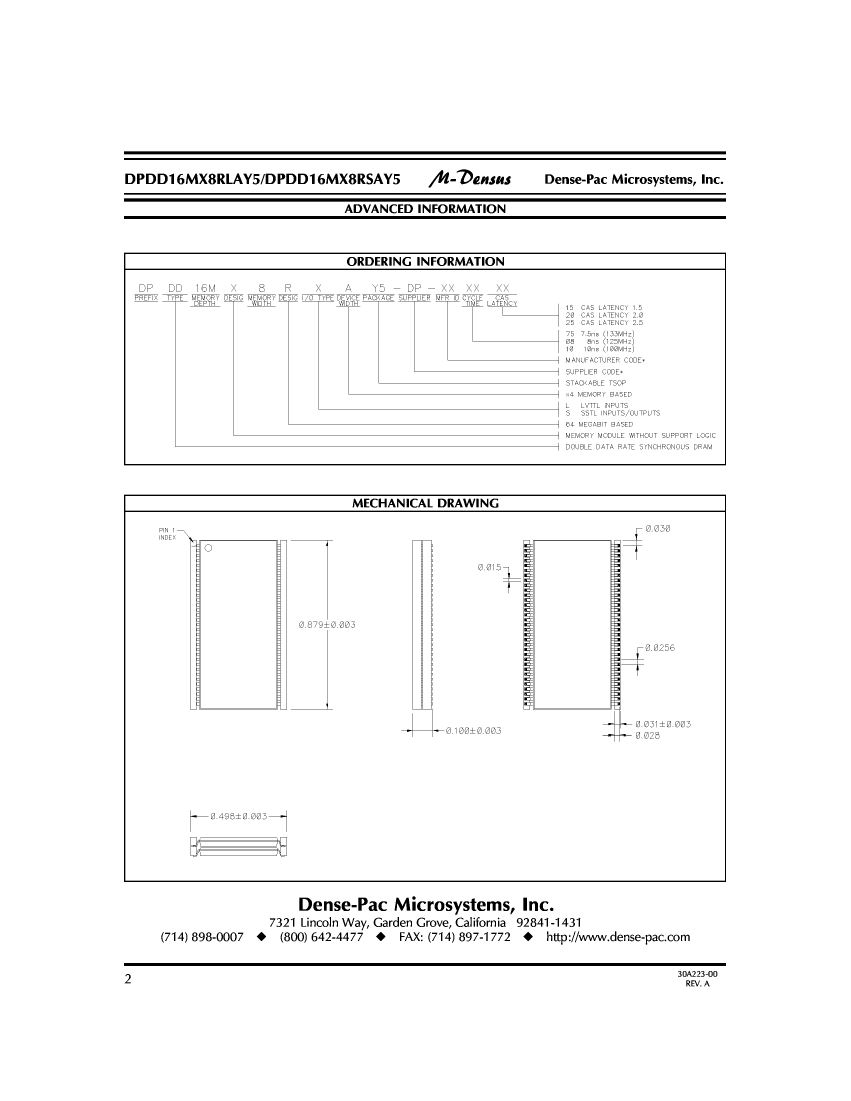

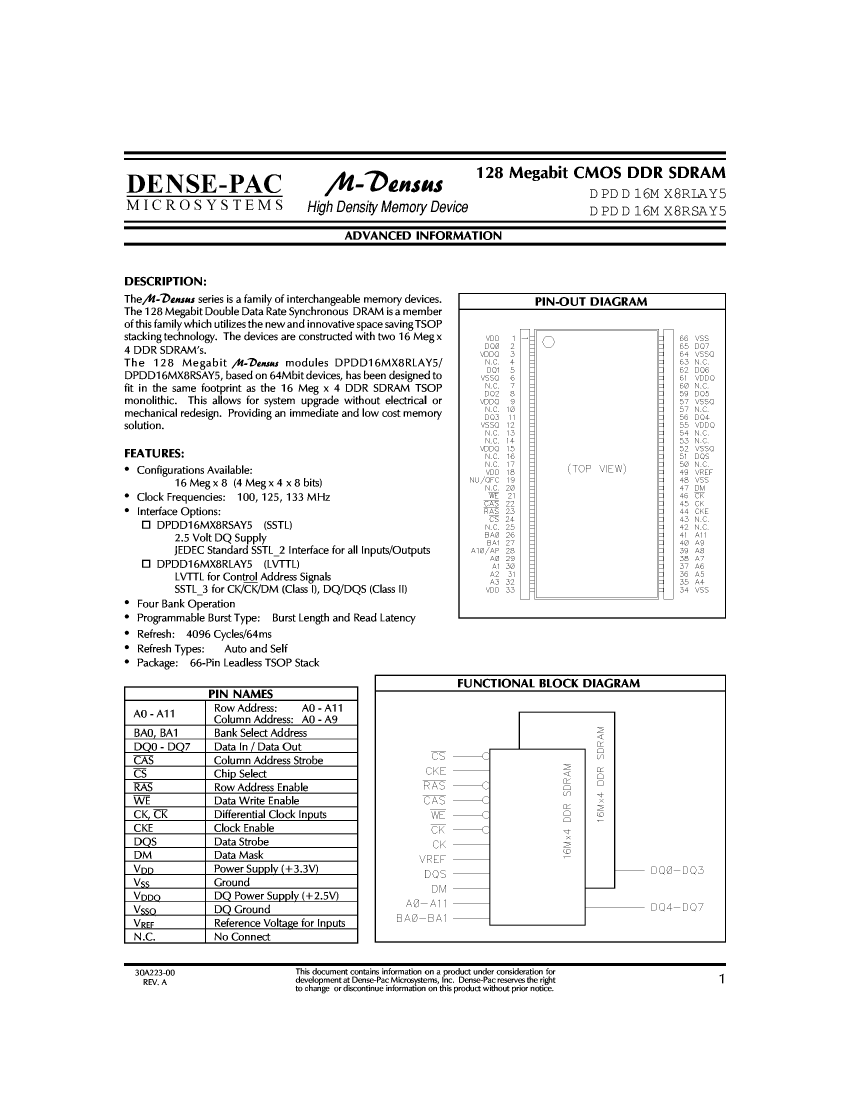

Preview
