AT27C2048-70JCT/R datasheet, PDF

Datasheet> All Categories > storage> storage> AT27C2048-70JCT/R

AT27C2048-70JCT/R: DescriptionOTP ROM, 128KX16, 70ns, CMOS, PQCC44, PLASTIC, LCC-44; Categorystorage storage; File Size219KB，8 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

AT27C2048-70JCT/R Overview

OTP ROM, 128KX16, 70ns, CMOS, PQCC44, PLASTIC, LCC-44

AT27C2048-70JCT/R Parametric

Parameter Name	Attribute value
Maker	Atmel (Microchip)
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	70 ns
JESD-30 code	S-PQCC-J44
length	16.5862 mm
memory density	2097152 bit
Memory IC Type	OTP ROM
memory width	16
Number of functions	1
Number of terminals	44
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm

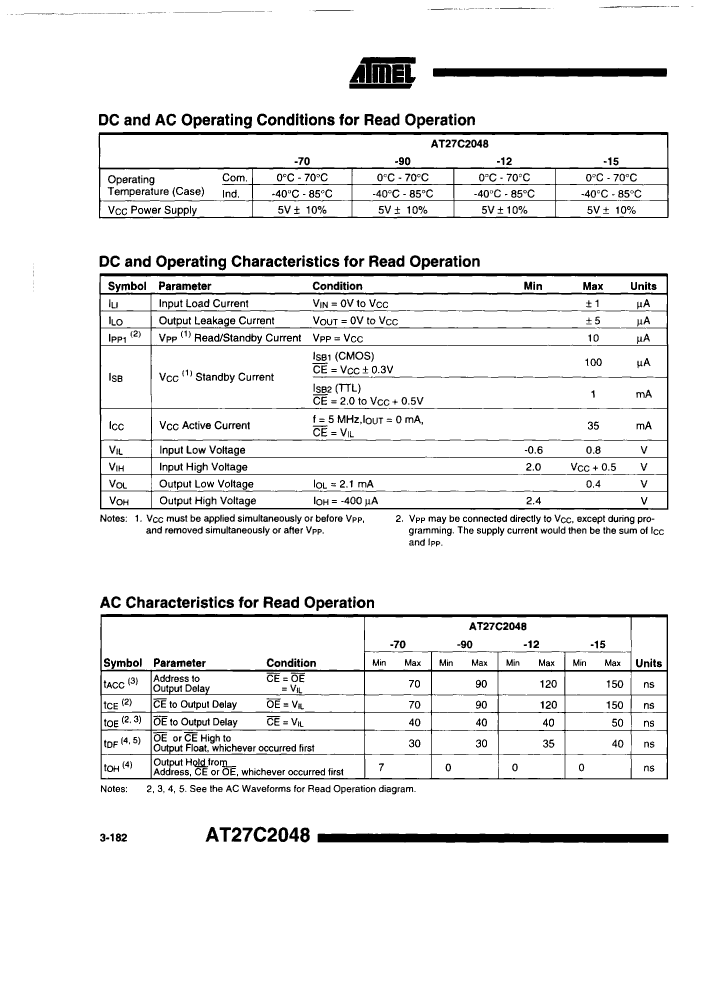

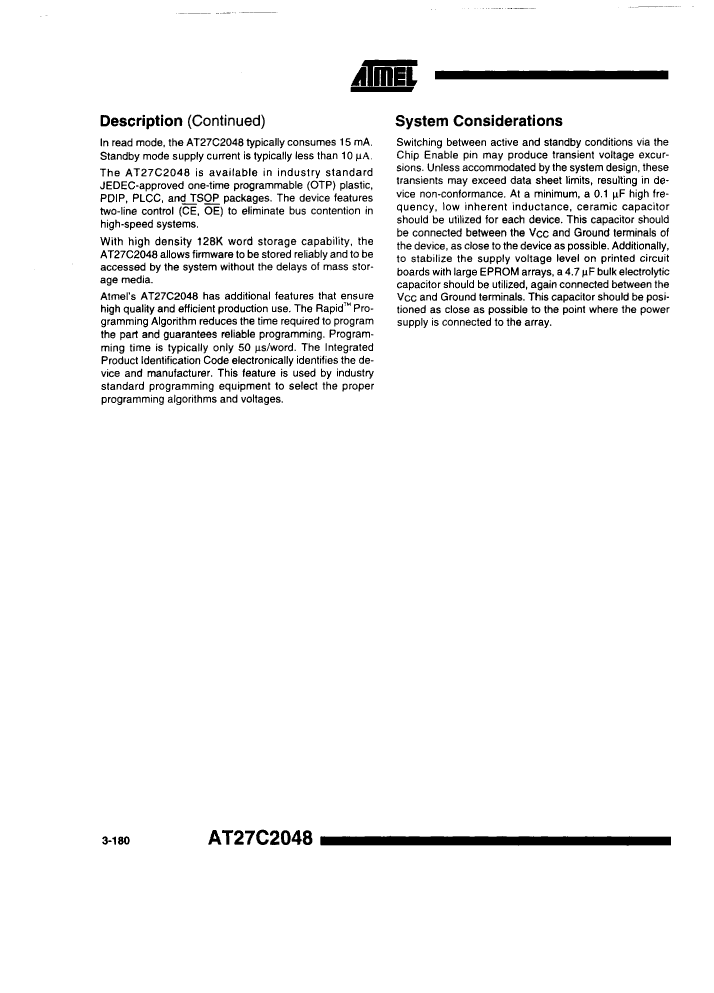

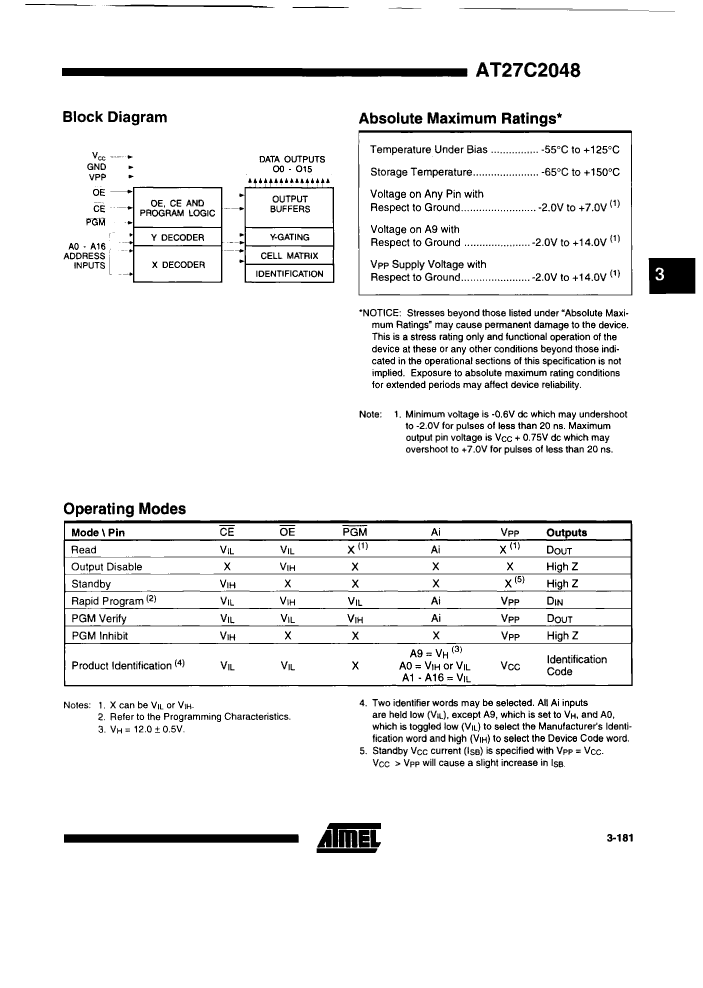

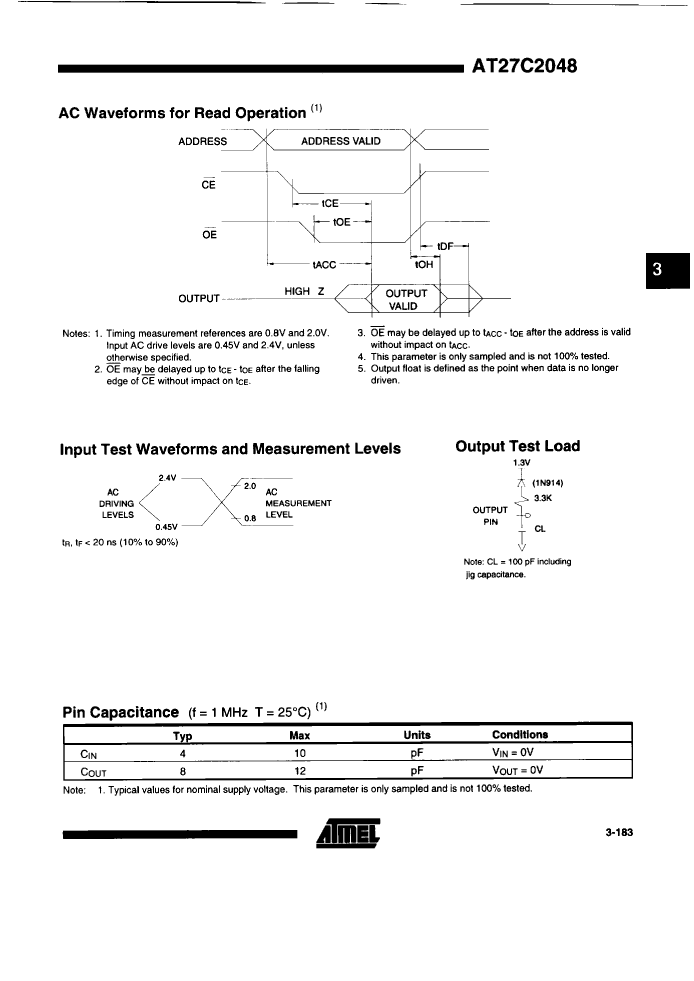

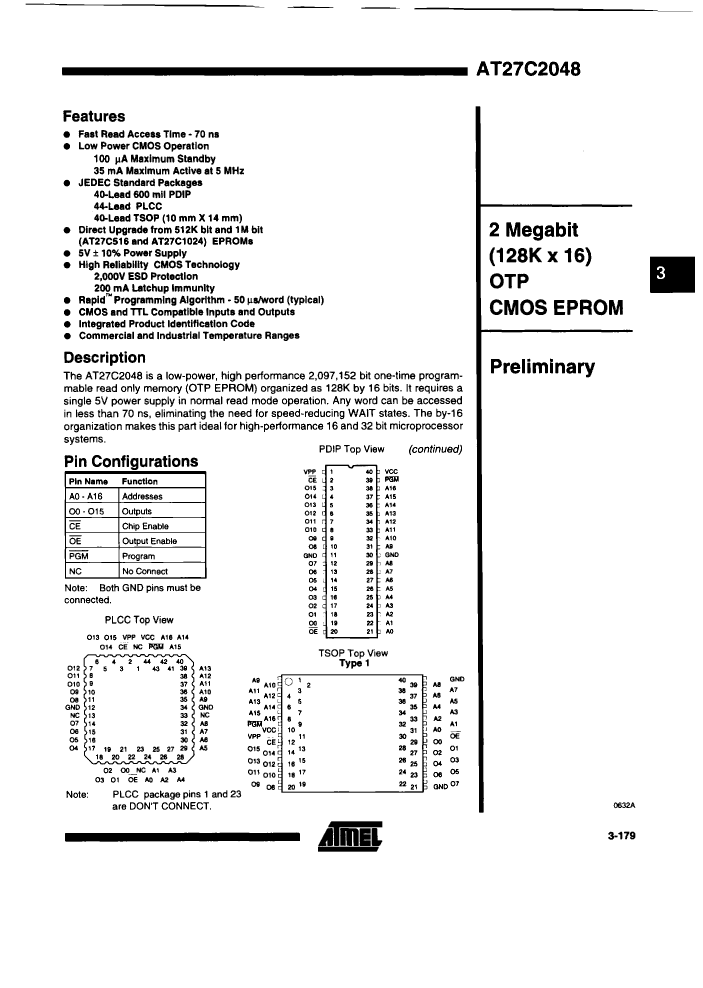

Preview

Download Datasheet

View All

AT27C2048-70JCT/R Related Products

	AT27C2048-70JCT/R	AT27C2048-90JIT/R	AT27C2048-90JCT/R	AT27C2048-70JIT/R	AT27C2048-12JCT/R	AT27C2048-12JIT/R	AT27C2048-15JIT/R	AT27C2048-15JCT/R
Description	OTP ROM, 128KX16, 70ns, CMOS, PQCC44, PLASTIC, LCC-44	OTP ROM, 128KX16, 90ns, CMOS, PQCC44, PLASTIC, LCC-44	OTP ROM, 128KX16, 90ns, CMOS, PQCC44, PLASTIC, LCC-44	OTP ROM, 128KX16, 70ns, CMOS, PQCC44, PLASTIC, LCC-44	OTP ROM, 128KX16, 120ns, CMOS, PQCC44, PLASTIC, LCC-44	OTP ROM, 128KX16, 120ns, CMOS, PQCC44, PLASTIC, LCC-44	OTP ROM, 128KX16, 150ns, CMOS, PQCC44, PLASTIC, LCC-44	OTP ROM, 128KX16, 150ns, CMOS, PQCC44, PLASTIC, LCC-44
Parts packaging code	LCC	LCC	LCC	LCC	LCC	LCC	LCC	LCC
package instruction	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,	QCCJ,
Contacts	44	44	44	44	44	44	44	44
Reach Compliance Code	unknown	not_compliant	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	70 ns	90 ns	90 ns	70 ns	120 ns	120 ns	150 ns	150 ns
JESD-30 code	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44	S-PQCC-J44
length	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM	OTP ROM
memory width	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	44	44	44	44	44	44	44	44
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	85 °C	70 °C	85 °C	70 °C	85 °C	85 °C	70 °C
organize	128KX16	128KX16	128KX16	128KX16	128KX16	128KX16	128KX16	128KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm	16.5862 mm
Maker	Atmel (Microchip)	-	-	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
