PA0033T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> PA0033T

PA0033T: DescriptionSMPS Transformer, 30W; CategoryPower management transformer; File Size87KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

PA0033T Overview

SMPS Transformer, 30W

PA0033T Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO, TURNS RATIO: 12:3
high	7.37 mm
Maximum input voltage	75 V
Minimum input voltage	36 V
length	19.56 mm
Manufacturer's serial number	PA0033
Installation features	SURFACE MOUNT
Number of primary windings	1
Number of secondary windings	2
Maximum operating frequency	750 kHz
Minimum operating frequency	200 kHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output voltage 1	48 V
Output voltage 2	5 V
method of packing	TAPE & REEL
physical size	L19.56XB18.03XH7.37 (mm)
rated power	30 W
Primary inductance	200 µH
surface mount	YES
Transformer type	SMPS TRANSFORMER
width	18.03 mm

Preview

Download Datasheet

View All

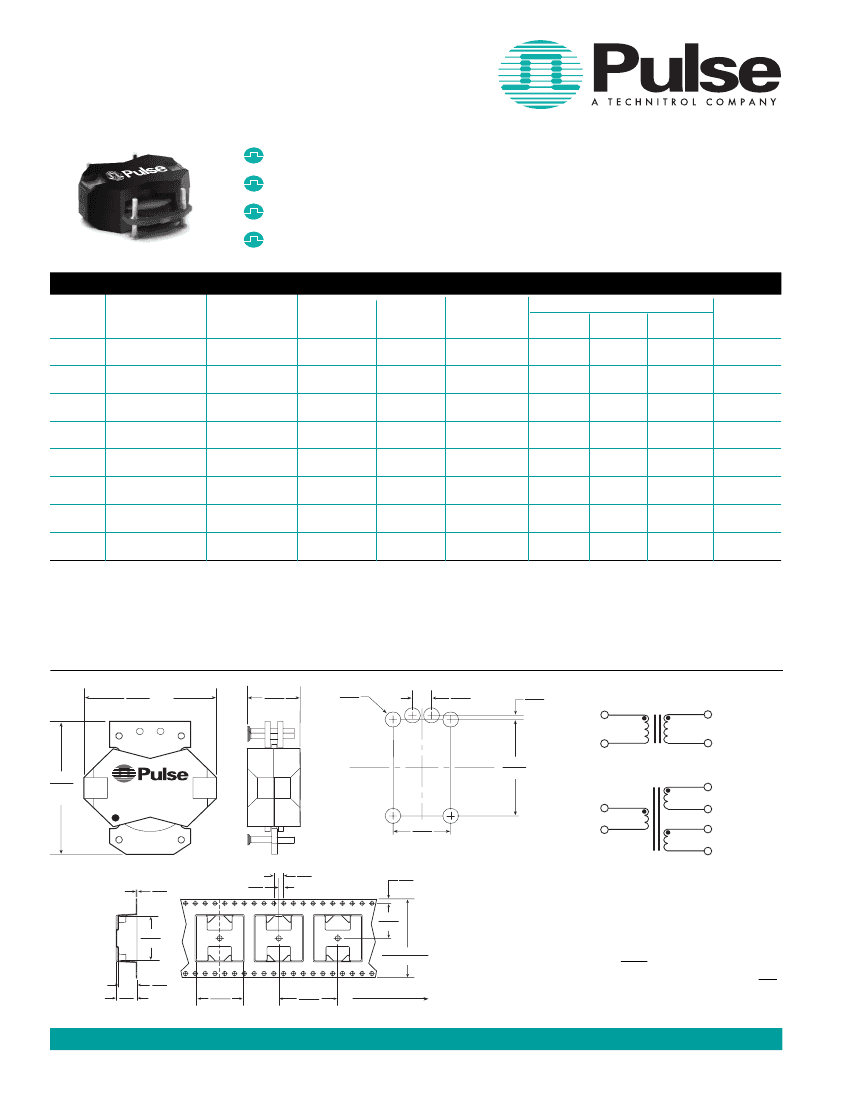

HIGH FREQUENCY PLANAR

TRANSFORMERS

PA003X Series (up to 30W)

Power Rating:

up to 30W

Height:

7.4mm Max

Footprint:

19.6mm x 18.0mm Max

Frequency Range:

200kHz to 750kHz

Electrical Specifications @ 25°C — Operating Temperature -40°C to 125°C

Part

Number

PA0030

PA0031

PA0032

PA0033

PA0034

PA0035

PA0036

PA0037

Power

Rating

30 W

24v to 3.3v/8A

30 W

48v to 3.3v/8A

30 W

24v to 5.0v/6A

30 W

48v to 5.0v/6A

30 W

24v to 12v/2.5A

30 W

48v to 12.0v/2.5A

30 W

24v to 15v/2.0A

30 W

48v to 15v/2.0A

Turns Ratio

(Pri:Sec)

6:2

12:2

6:3

12:3

6:6

12:8

6:8

12:8

Primary

Secondary

Isolation

1500 Vdc

Operational

1500 Vdc

Operational

1500 Vdc

Operational

1500 Vdc

Operational

1500 Vdc

Operational

1500 Vdc

Operational

1500 Vdc

Operational

1500 Vdc

Operational

Primary

Inductance

(µH MIN)

200

Leakage

Inductance

(µH MAX)

0.85

1.7

0.27

0.925

0.27

0.98

0.195

0.98

DCR

(mΩ MAX)

Primary

Secondary

Aux.

210

N/A

2.7

3.5

10*

Maximum

Height

(mm)

7.4

DCR rating for indicated parts is for both windings tied in series.

NOTES:

1. Other turns ratios may be available. Contact Pulse Applications Engineering for more information.

2. The secondary windings on

PA0032

and

PA0033

can be connected in series for a 6T secondary if required.

3. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number, (i.e. PA0037T).

Mechanical

.710 MAX

18,03

3A 4A

.290

7,37

MAX

Ø.090

2,29

3a 4a

.110

2,79

.570

14,48

Date Code

Country of Origin

Schematics

.025

0,64

PA0030/31/34/35/36/37

.770

19,56

MAX

PA003X

.157

4,00

.330

8,38

PA0032/33

SUGGESTED PAD LAYOUT - (PA0032/33)

.079

2,00

.069

1,75

.560

14,20

1.260

± .012

32,00

± 0,30

USER DIRECTION

OF FEED

.020

0,51

.722

18,34

TAPE & REEL LAYOUT

.325

8,26

.295

7,49

.760

19,30

.945

24,00

Weight

. . . . . . . . . . . . . .4.5 grams

Tape & Reel

. . . . . . . . . . . .250/reel

Tray

. . . . . . . . . . . . . . . . . . .90/tray

Dimensions:

Inches

Unless otherwise specified, all tolerances are ± .010

0,25

US 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Taiwan 886 2 2698 0228

•

Hong Kong 852 2788 6588

•

http://www.pulseeng.com

PC500.C (3/03)
