DPS1MX32MW-20C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> DPS1MX32MW-20C

DPS1MX32MW-20C: DescriptionSRAM Module, 1MX32, 20ns, CMOS, PSMA72, PLASTIC, SIMM-72; Categorystorage storage; File Size406KB，6 Pages; ManufacturerForce Technologies Ltd.

Download Datasheet Parametric Compare View All

DPS1MX32MW-20C Overview

SRAM Module, 1MX32, 20ns, CMOS, PSMA72, PLASTIC, SIMM-72

DPS1MX32MW-20C Parametric

Parameter Name	Attribute value
Maker	Force Technologies Ltd.
package instruction	SIMM,
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	20 ns
Other features	WD-MAX
JESD-30 code	R-PSMA-N72
length	107.95 mm
memory density	33554432 bit
Memory IC Type	SRAM MODULE
memory width	32
Number of functions	1
Number of terminals	72
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX32
Package body material	PLASTIC/EPOXY
encapsulated code	SIMM
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Maximum seat height	17.018 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE
width	8.89 mm

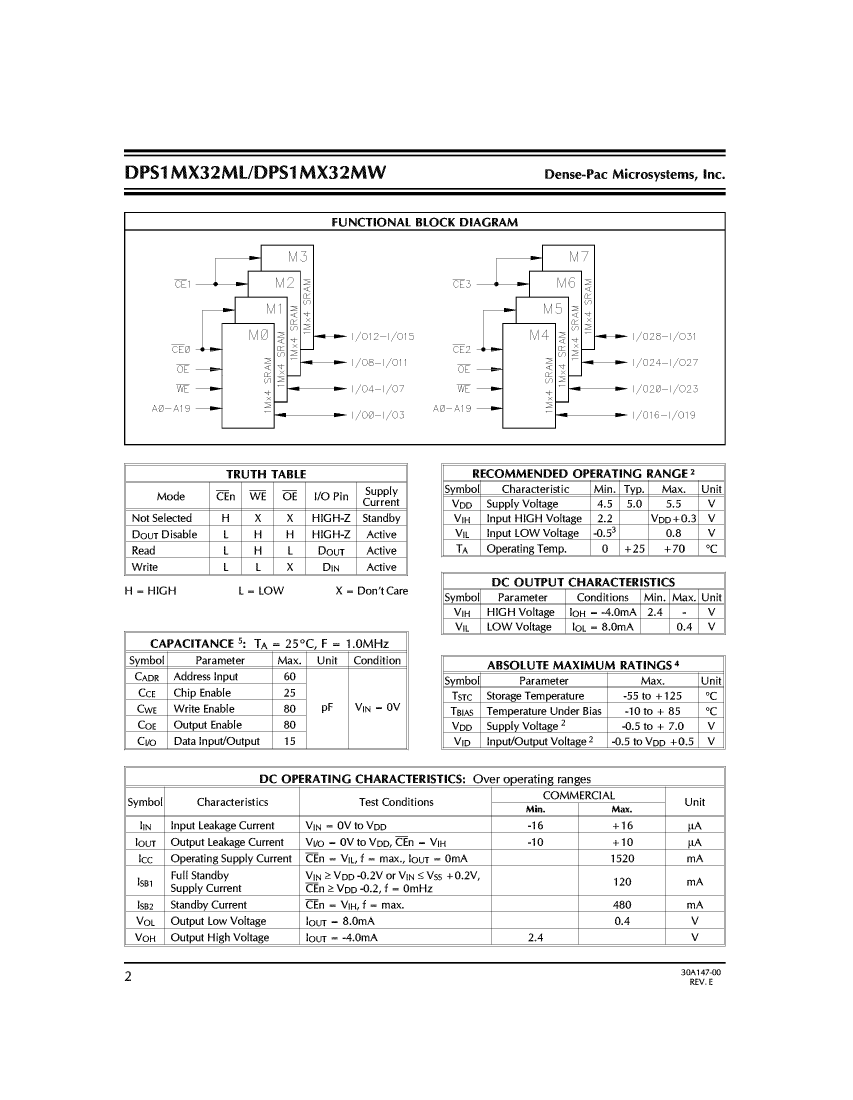

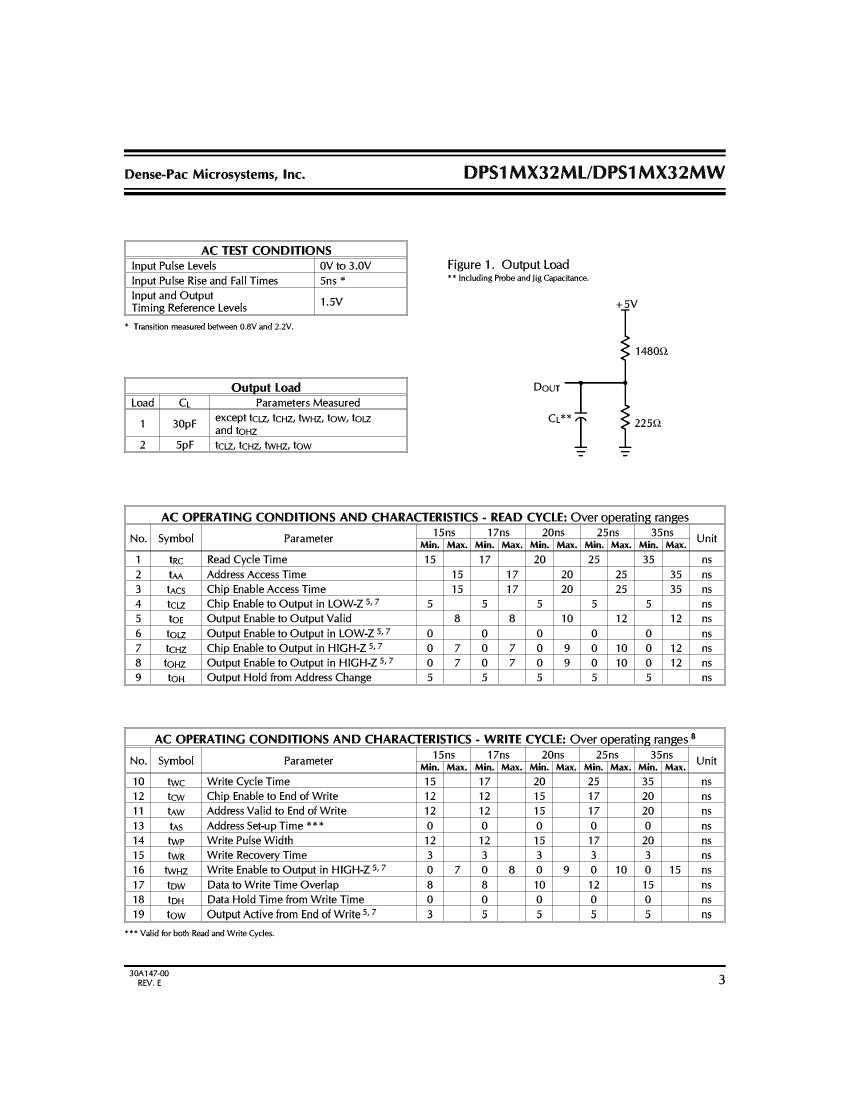

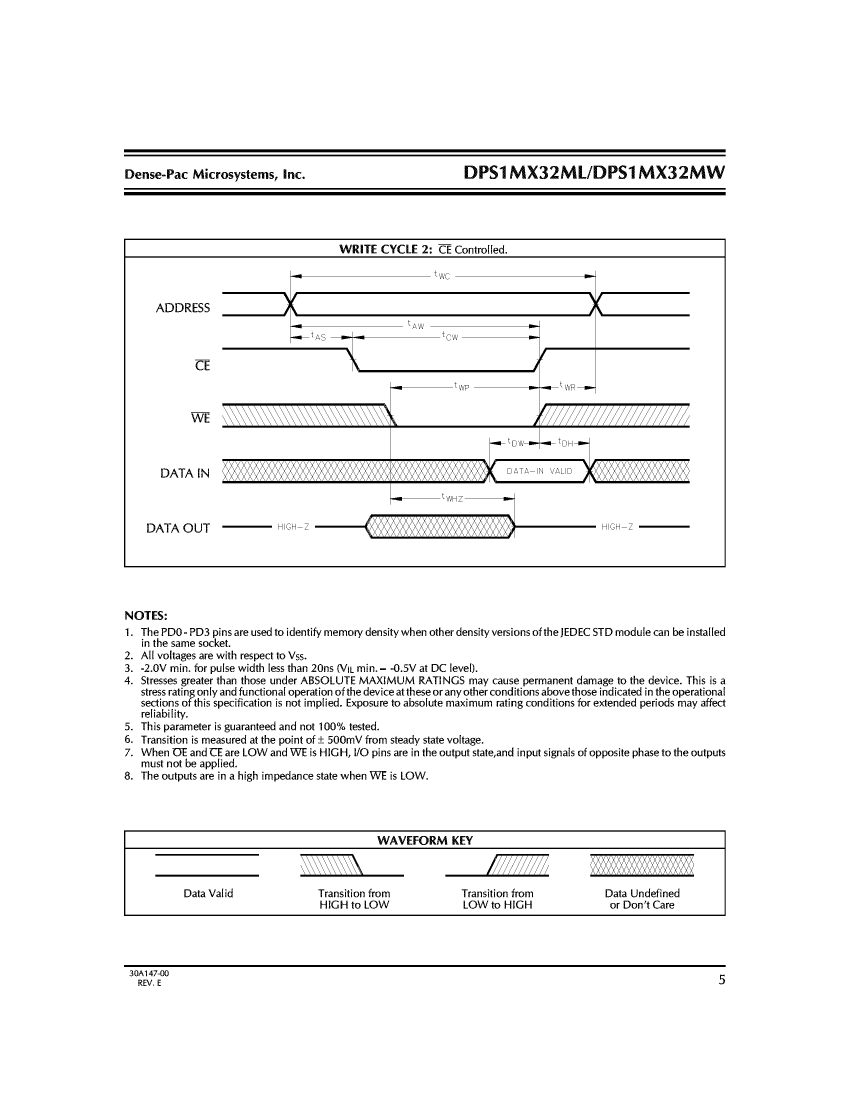

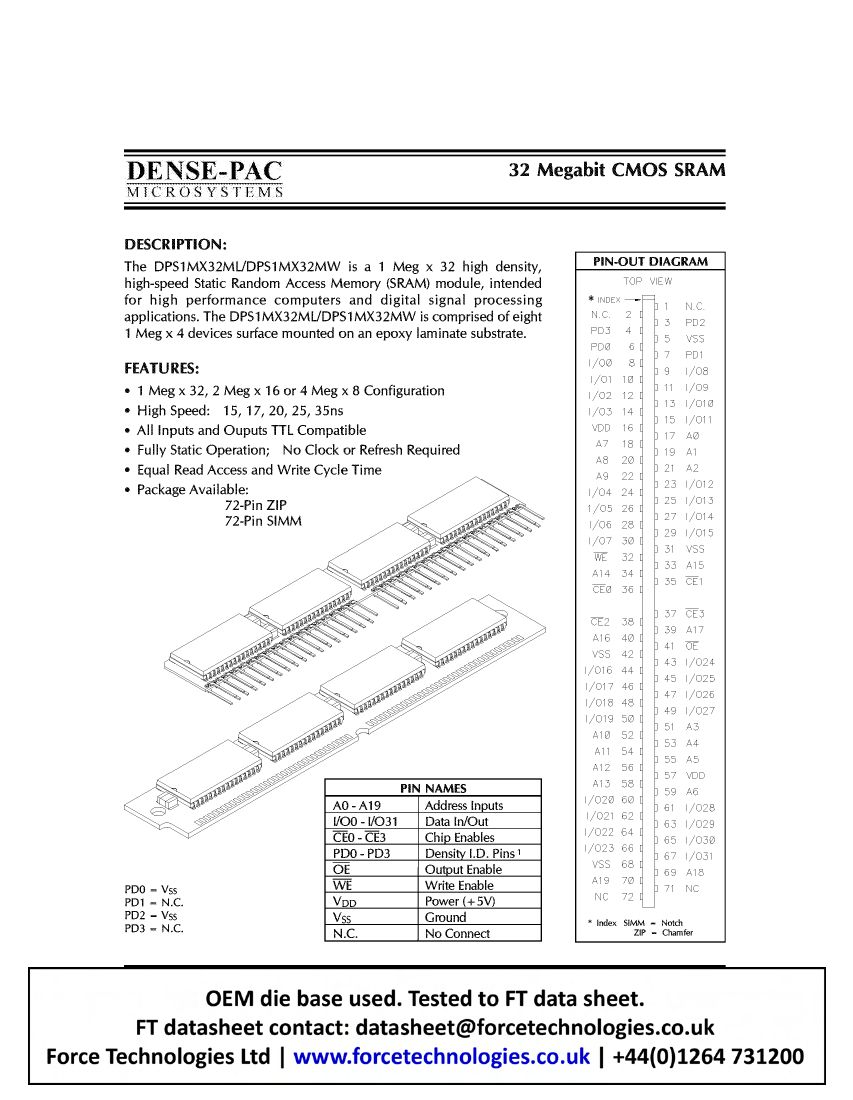

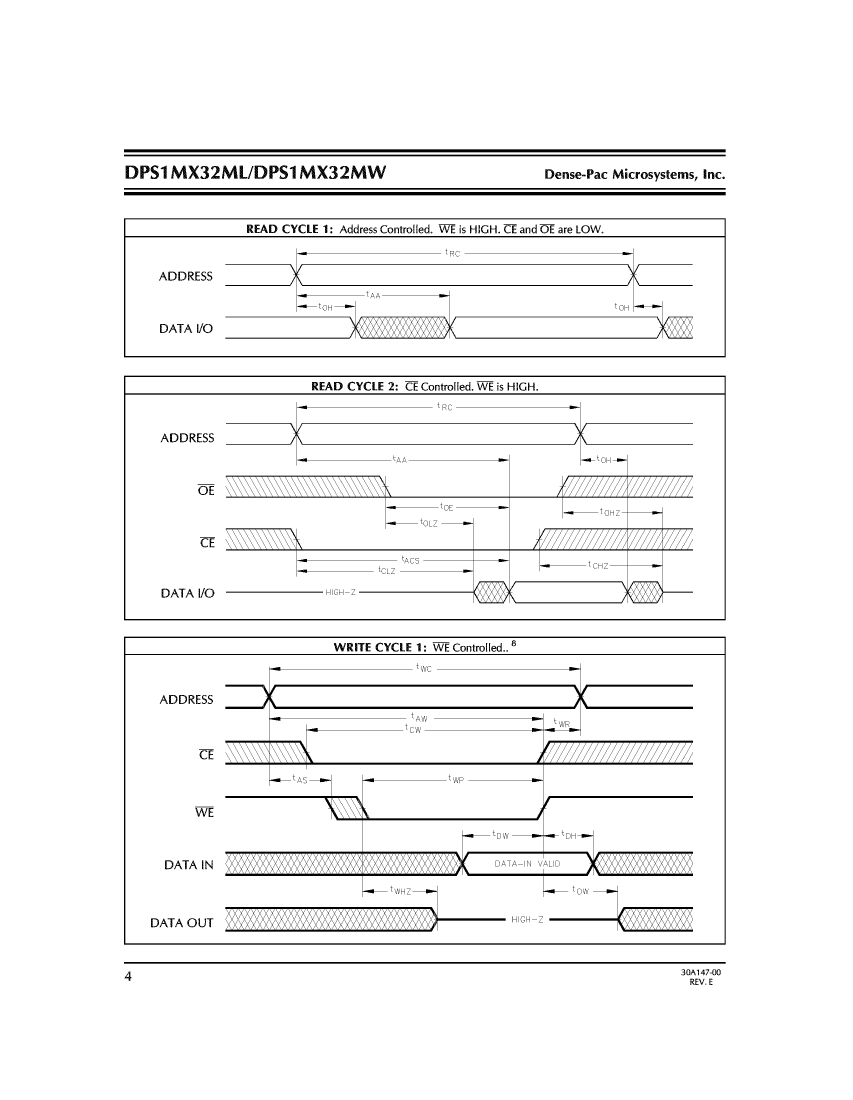

Preview

Download Datasheet

View All

DPS1MX32MW-20C Related Products

	DPS1MX32MW-20C	DPS1MX32ML-35C	DPS1MX32ML-15C	DPS1MX32ML-17C	DPS1MX32MW-15C	DPS1MX32MW-17C	DPS1MX32MW-25C	DPS1MX32MW-35C
Description	SRAM Module, 1MX32, 20ns, CMOS, PSMA72, PLASTIC, SIMM-72	SRAM Module, 1MX32, 35ns, CMOS, PZMA72, PLASTIC, ZIP-72	SRAM Module, 1MX32, 15ns, CMOS, PZMA72, PLASTIC, ZIP-72	SRAM Module, 1MX32, 17ns, CMOS, PZMA72, PLASTIC, ZIP-72	SRAM Module, 1MX32, 15ns, CMOS, PSMA72, PLASTIC, SIMM-72	SRAM Module, 1MX32, 17ns, CMOS, PSMA72, PLASTIC, SIMM-72	SRAM Module, 1MX32, 25ns, CMOS, PSMA72, PLASTIC, SIMM-72	SRAM Module, 1MX32, 25ns, CMOS, PSMA72, PLASTIC, SIMM-72
package instruction	SIMM,	DIMM,	DIMM,	DIMM,	SIMM,	SIMM,	SIMM,	SIMM,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	20 ns	35 ns	15 ns	17 ns	15 ns	17 ns	25 ns	25 ns
Other features	WD-MAX	WD-MAX; SEATED HT-CALCULATED	WD-MAX; SEATED HT-CALCULATED	WD-MAX; SEATED HT-CALCULATED	WD-MAX	WD-MAX	WD-MAX	WD-MAX
JESD-30 code	R-PSMA-N72	R-PZMA-T72	R-PZMA-T72	R-PZMA-T72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72
length	107.95 mm	97.79 mm	97.79 mm	97.79 mm	107.95 mm	107.95 mm	107.95 mm	107.95 mm
memory density	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	32	32	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72	72	72
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX32	1MX32	1MX32	1MX32	1MX32	1MX32	1MX32	1MX32
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIMM	DIMM	DIMM	DIMM	SIMM	SIMM	SIMM	SIMM
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Maximum seat height	17.018 mm	13.97 mm	13.97 mm	13.97 mm	17.018 mm	17.018 mm	17.018 mm	17.018 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	ZIG-ZAG	ZIG-ZAG	ZIG-ZAG	SINGLE	SINGLE	SINGLE	SINGLE
width	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm	8.89 mm
Maker	Force Technologies Ltd.	Force Technologies Ltd.	-	Force Technologies Ltd.	Force Technologies Ltd.	Force Technologies Ltd.	Force Technologies Ltd.	Force Technologies Ltd.
