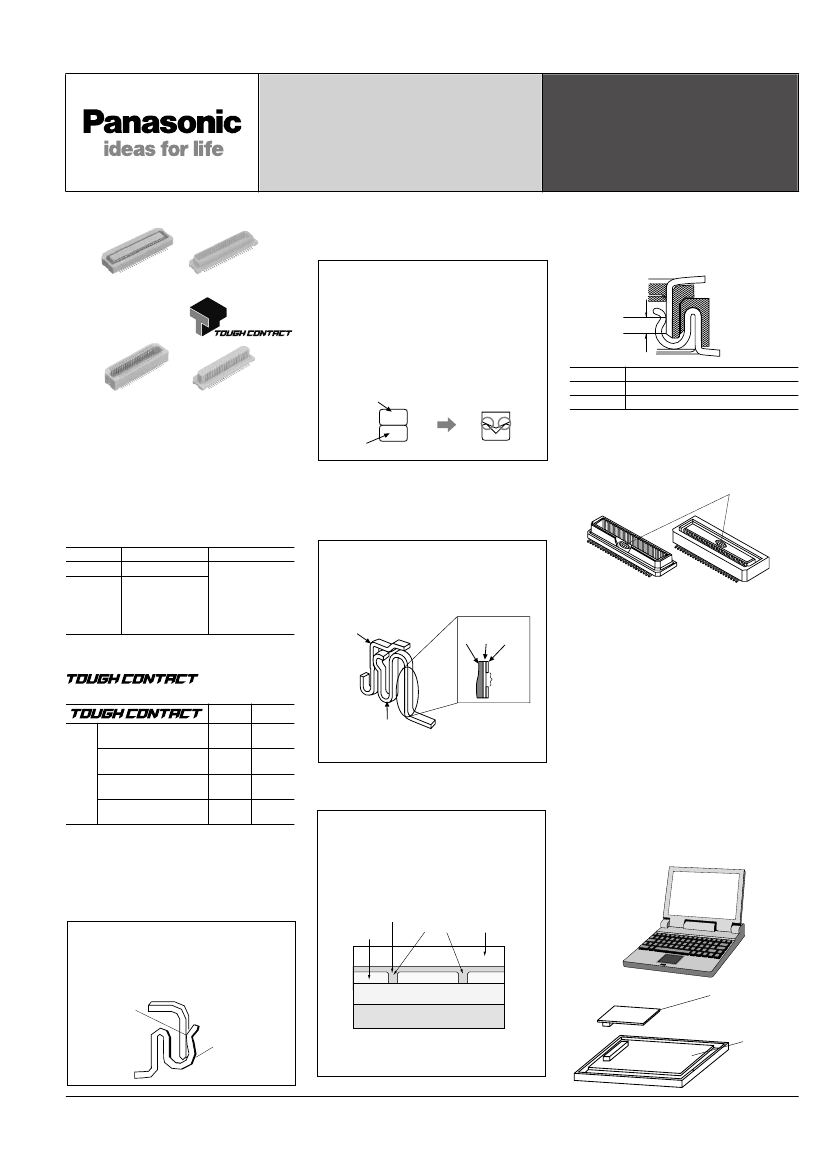

AXK(5(S)/6(S))
NARROW-PITCH
CONNECTORS FOR
BOARD-TO-BOARD
CONNECTION
• P5K
2) V notch construction used for excellent
resistance against foreign matters.
(P5KS: Available from Nov. 2005)
Socket
Header
NARROW PITCH
(0.5mm) CONNECTORS
P5 SERIES — P5K, P5KS —
3. Even with the low profile, the
effective mating length has been
extended to ensure that there is some
latitude in the mating.
With long effective
mating lengths, even
if the connection is
not perfect, the
electrical connection
is more than enough
for normal operations.
G
What is V notch construction?
By using the edge for the contacting part
and increasing contact pressure per unit
area, the effectiveness in removing flux
and contaminants is increased compared
to its predecessor. This is also effective in
preventing the trapping of contaminants.
[Cross section of contacting part]
Without notch
Socket side contact cross section
With V notch
• P5KS
Effective mating length
Socket
Header
Type
P5K
P5KS
Effective mating length
0.75 mm
1.0 mm
Note) The external appearance and PC board pattern
differs for the P5K and P5KS series.
Header side contact cross section
FEATURES
1. The product lineup consists of
3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm,
5.0 mm, 5.5 mm, 6.0 mm, 6.5 mm,
7.0 mm, 8.0 mm, and 9.0 mm.
Type
P5K
Mated height
3 mm, 3.5 mm
4 mm, 4.5 mm,
5 mm, 5.5 mm,
6 mm, 6.5 mm,
7 mm, 8 mm,
9 mm
Notes
The external
appearance and
PC board pattern
differs for the P5K
and P5KS series.
3) Use of Ni barrier construction is
standard. Highly effective against solder
creeping.
(P5KS: Available from Nov. 2005)
G
What is Ni barrier construction?
By providing an exposed nickel part on the
gold (Au) plated contact, solder creeping is
prevented despite the ultra low profile.
[Contact]
Header side contact
Ni barrier
Cu
Ni
Au
4. Automatic mounting
1) Suction area for suction-type
automatic mounting machines is
employed.
Suction face
P5K Header
P5K Socket
P5KS
2. Strong resistance to adverse
environments! Utilizes
construction
for high contact reliability.
P5K
4 constructions
Bellows contact
construction
V notch construction
Ni barrier construction
Porosity treatment
Note: P5KS will support V notch and Ni barrier from
November, 2005, and will have TOUGH
CONTACT construction.
—
—
Note)
Note)
P5KS
Socket side contact
Exposed
Ni part
Cross section of
socket side contact
5. Compliance with RoHS’ Directive
Environmentally friendly, the connectors’
comply with Europe’s RoHS’ Directive.
Cadmium, lead, mercury, hexavalent,
chromium, PBB and PBDE are not used.
APPLICATIONS
1. Mobile phones, PHS, mobile info-
communications terminals, and other
small portable devices
2. The 160-contacts connector:
This connector is particularly suited to
the motherboard, CPU board, and other
multi-pin expansion boards on notebook
PCs and other info-communications
applications.
Note: Construction makes solder creeping difficult
because header side is formed at the same time.
4) Porosity treatment applied for
improved resistance against corrosion.
What is porosity treatment?
This treatment consists of coating the
surface with a very thin film to seal pinholes
in the gold plating. This porosity treatment
technology ensures the same contact
reliability for thin gold plating as that of thick
gold plating.
Porosity treatment film
Au plating
Pinholes
Surrounding gas
1) Contacts are highly resistant to shock
caused by dropping and employ our
original bellows contact construction.
• What is meant by “bellows type” contact?
Rather than two broken-out surfaces, the contact is
formed by the surfaces of two rolled plates. This
helps the contact hold up better to repeated
insertions and removals, while at the same time
achieving highly reliable contact.
The roll surfaces
are in contact
with each other,
providing high
contact reliability.
Since the contact is
formed by bending
thin plate, it has a
spring-like quality.
This construction
helps make it resist-
ant to dropping and
twisting.
Ni plating
Base material
CPU boards and
other multi-pin
expansion boards.
Mother board
G
Improvement in insertion/removal durability
G
Improvement in resistance to corrosion
G
Improvement in contact reliability for digital signals
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
AXK(5(S)/6(S))
TABLE OF PRODUCT TYPES
Socket
P5K
Product name
Mated
height
P5K
Header
Socket
P5KS
Header
P5KS
5.0mm
5.5mm
6.0mm
6.5mm
7.0mm
8.0mm
9.0mm
3.0mm
3.5mm
4.0mm
4.5mm
✩
✩
✩
✩
✩
✩
✩
✩
✩
20
✩
✩
22
✩
✩
✩
✩
24
✩
✩
✩
✩
✩
✩
✩
✩
✩
30
✩
✩
✩
✩
34
✩
36
✩
✩
✩
✩
✩
✩
✩
✩
✩
40
✩
✩
✩
✩
✩
✩
✩
✩
✩
✩
✩
50
✩
✩
✩
✩
✩
✩
✩
✩
✩
✩
✩
60
✩
✩
✩
✩
✩
✩
✩
✩
✩
✩
✩
70
✩
✩
✩
✩
✩
✩
✩
✩
✩
✩
✩
80
✩
✩
✩
✩
✩
✩
✩
✩
✩
✩
✩
100
✩
✩
✩
✩
120
✩
✩
✩
130
✩
✩
160
Notes: 1. The standard type comes without positioning bosses. (Positioning bosses come standard on types with
4.0 mm and 4.5 mm mated height with 120 and 160 contacts, and 6.5 mm mated height with 130 contacts.)
Connectors with positioning boss are available for on-demand production.
2. Please consult us for products which have no
✩
mark.
Number of contacts
ORDERING INFORMATION
1. P5K (3.0 mm and 3.5 mm)
AXK
5: Narrow Pitch Connector P5K Socket
6: Narrow Pitch Connector P5K Header
Number of contacts (2 digits)
Mated height
<Socket>
1: For mated height 3.0 mm and 3.5 mm
<Header>
2: For mated height 3.5 mm
3: For mated height 3.0 mm
Functions
3: With positioning bosses
4: Without positioning bosses
Surface treatment (Contact portion / Terminal portion)
5: Ni plating on base, Au plating on surface / Ni plating on base, Au plating on surface
Packing
J: 1,500 pieces embossed tape and paper reel
×
2
P: 1,000 pieces embossed tape and paper reel
×
2
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
AXK(5(S)/6(S))
2. P5KS (4.0 mm, 4.5 mm, 5.0 mm, 5.5 mm, 6.0 mm, 6.5 mm, 7.0 mm, 8.0 mm and 9.0 mm)
AXK
5S: Narrow Pitch Connector P5KS Socket
6S: Narrow Pitch Connector P5KS Header
Number of contacts (2 digits)
Mated height
<Socket>
0: For mated height 4.0 mm, 5.0 mm and 6.0 mm
2: For mated height 4.5 mm, 5.5 mm and 6.5 mm
3: For mated height 7.0 mm, 8.0 mm and 9.0 mm
<Header>
4: For mated height 4.0 mm, 4.5 mm and 7.0 mm
5: For mated height 5.0 mm, 5.5 mm and 8.0 mm
6: For mated height 6.0 mm, 6.5 mm and 9.0 mm
Functions
3: With positioning boss and direction for protection from reverse mating
4: Without positioning boss/with direction for protection from reverse mating
7: With positioning boss/without direction for protection from reverse mating
8: Without positioning boss and direction for protection from reverse mating
Surface treatment (Contact portion / Terminal portion)
0: Ni plating on base, Au plating on surface / Ni plating on base, Au plating on surface
(Previous model: Ni plating on base, SnPb plating on surface of terminal portion)
5: Ni plating on base, Au plating on surface / Ni plating on base, Au plating on surface
7: Ni plating on base, Au plating on surface / Ni plating on base, Au plating on surface
(for Ni barrier product available from Nov. 2005)
Contact portion
<Socket>
Nil: Without V notch product
Y: V notch type product (chamfered on both sides) (Available from Nov. 2005)
<Header>
Nil: Without V notch product
Y: V notch type product (Available from Nov. 2005)
Packing
G: 1,500 pieces embossed tape and plastic reel
×
2
Socket: Mated heights 4.0 mm, 4.5 mm, 5.0 mm, 5.5 mm, 6.0 mm, 6.5 mm
Header: Mated heights 4.0 mm, 4.5 mm, 7.0 mm
1,000 pieces plastic reel
×
2
Socket: Mated heights 7.0 mm, 8.0 mm, 9.0 mm
Header: Mated heights 5.0 mm, 5.5 mm, 6.0 mm, 6.5 mm, 8.0 mm, 9.0 mm
J: 1,500 pieces embossed tape and paper reel
×
2
P: 1,000 pieces embossed tape and paper reel
×
2
Notes: 1. Models with mating directionality to prevent reverse insertion have over 100 contacts. Models without mating directionality to prevent
reverse insertion have less than 100 contacts.
2. The plating on the solder terminal portion has changed from SnPb to Au plating from the production lot of December, 2002,
in order to eliminate lead.
3. Only “J” and “P” are supported as packaging specifications for models without Ni barrier. The packaging specification for Ni barrier
models is “G” only.
Models possible for “J” are as follows:
Sockets: Mated heights 4.0 mm, 4.5 mm, 5.0 mm, 5.5 mm, 6.0 mm, and 6.5 mm
Headers: Mated heights 4.0 mm, 4.5 mm, and 7.0 mm
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
AXK(5(S)/6(S))
PRODUCT TYPES
1. P5K
Product
name
Mated
height
No. of
contacts
20
22
30
40
3.0 mm
50
60
70
80
100
P5K
120
20
22
30
40
3.5 mm
50
60
70
80
100
120
Part No.
Socket
AXK520145J
AXK522145J
AXK530145J
AXK540145J
AXK550145J
AXK560145J
AXK570145J
AXK580145J
AXK500145J
AXK5A2145J
AXK520145J
AXK522145J
AXK530145J
AXK540145J
AXK550145J
AXK560145J
AXK570145J
AXK580145J
AXK500145J
AXK5A2145J
Header
AXK620345J
AXK622345J
AXK630345J
AXK640345J
AXK650345J
AXK660345J
AXK670345J
AXK680345J
AXK600345J
AXK6A2345J
AXK620245J
AXK622245J
AXK630245J
AXK640245J
AXK650245J
AXK660245J
AXK670245J
AXK680245J
AXK600245J
AXK6A2245J
1,500 pieces
Note 1)
3,000 pieces
Note 1)
Packing
Inner carton (1 reel)
Outer carton
Notes) 1. For the protection of our environment, orders of J: Inner carton (1 reel) 1,500 pcs. units are recommended to reduce packaging materials.
In addition, orders of P: Inner carton (1 reel) 1,000 pcs. units with embossed tape packaging are also available; to order change the suffix “J” to the suffix “P.”
2. Regarding ordering units: During production: Please make orders in 1 reel units.
Samples for mounting confirmation: Available in units of 50 pieces. Please consult us. (See “Regarding sample orders to confirm proper mounting” on page 13.)
Samples: Small lot orders are possible. Change the suffix “J” to the suffix “P”.
3. The standard type comes without positioning bosses.
Connectors with positioning bosses are available on-demand production. For P5K type of 8th digit of the part no. changes from 4 to 3.
e.g. Mated height 3.0 mm, 20 contacts for sockets: AXK520135P
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
AXK(5(S)/6(S))
2. P5KS
Part No.
Socket
Product
name
Mated
height
No. of
contacts
Without V notch
and Ni barrier
product
(Paper reel)
AXK5S20045*
AXK5S24045*
AXK5S30045*
AXK5S40045*
AXK5S50045*
AXK5S60045*
AXK5S70045*
AXK5S80045*
AXK5S00045*
AXK5SA2075*
AXK5SA6075*
AXK5S20245*
AXK5S24245*
AXK5S30245*
AXK5S36245*
AXK5S40245*
AXK5S50245*
AXK5S60245*
AXK5S70245*
AXK5S80245*
AXK5S00245*
AXK5SA2275*
AXK5SA6275*
AXK5S20045*
AXK5S30045*
AXK5S34045*
AXK5S40045*
AXK5S50045*
AXK5S60045*
AXK5S70045*
AXK5S80045*
AXK5S00045*
(Paper reel)
(Recommendation)
AXK5S20047YG
(From Nov. 2005)
AXK5S24047YG
(From Nov. 2005)
AXK5S30047YG
(From Nov. 2005)
AXK5S40047YG
(From Nov. 2005)
AXK5S50047YG
(From Nov. 2005)
AXK5S60047YG
(From Nov. 2005)
AXK5S70047YG
(From Nov. 2005)
AXK5S80047YG
(From Nov. 2005)
AXK5S00047YG
(From Nov. 2005)
AXK5SA2077YG
(From Nov. 2005)
AXK5SA6077YG
(From Nov. 2005)
AXK5S20247YG
(From Nov. 2005)
AXK5S24247YG
(From Nov. 2005)
AXK5S30247YG
(From Nov. 2005)
AXK5S36247YG
(From Nov. 2005)
AXK5S40247YG
(From Nov. 2005)
AXK5S50247YG
(From Nov. 2005)
AXK5S60247YG
(From Nov. 2005)
AXK5S70247YG
(From Nov. 2005)
AXK5S80247YG
(From Nov. 2005)
AXK5S00247YG
(From Nov. 2005)
AXK5SA2277YG
(From Nov. 2005)
AXK5SA6277YG
(From Nov. 2005)
AXK5S20047YG
(From Nov. 2005)
AXK5S30047YG
(From Nov. 2005)
AXK5S34047YG
(From Nov. 2005)
AXK5S40047YG
(From Nov. 2005)
AXK5S50047YG
(From Nov. 2005)
AXK5S60047YG
(From Nov. 2005)
AXK5S70047YG
(From Nov. 2005)
AXK5S80047YG
(From Nov. 2005)
AXK5S00047YG
(From Nov. 2005)
Header
Without V notch
and Ni barrier
product
(Paper reel)
AXK6S20445*
AXK6S24445*
AXK6S30445*
AXK6S40445*
AXK6S50445*
AXK6S60445*
AXK6S70445*
AXK6S80445*
AXK6S00445*
AXK6SA2475*
AXK6SA6475*
AXK6S20445*
AXK6S24445*
AXK6S30445*
AXK6S36445*
AXK6S40445*
AXK6S50445*
AXK6S60445*
AXK6S70445*
AXK6S80445*
AXK6S00445*
AXK6SA2475*
AXK6SA6475*
AXK6S20545P
AXK6S30545P
AXK6S34545P
AXK6S40545P
AXK6S50545P
AXK6S60545P
AXK6S70545P
AXK6S80545P
AXK6S00545P
(Paper reel)
(Recommendation)
AXK6S20447YG
(From Nov. 2005)
AXK6S24447YG
(From Nov. 2005)
AXK6S30447YG
(From Nov. 2005)
AXK6S40447YG
(From Nov. 2005)
AXK6S50447YG
(From Nov. 2005)
AXK6S60447YG
(From Nov. 2005)
AXK6S70447YG
(From Nov. 2005)
AXK6S80447YG
(From Nov. 2005)
AXK6S00447YG
(From Nov. 2005)
AXK6SA2477YG
(From Nov. 2005)
AXK6SA6477YG
(From Nov. 2005)
AXK6S20447YG
(From Nov. 2005)
AXK6S24447YG
(From Nov. 2005)
AXK6S30447YG
(From Nov. 2005)
AXK6S36447YG
(From Nov. 2005)
AXK6S40447YG
(From Nov. 2005)
AXK6S50447YG
(From Nov. 2005)
AXK6S60447YG
(From Nov. 2005)
AXK6S70447YG
(From Nov. 2005)
AXK6S80447YG
(From Nov. 2005)
AXK6S00447YG
(From Nov. 2005)
AXK6SA2477YG
(From Nov. 2005)
AXK6SA6477YG
(From Nov. 2005)
AXK6S20547YG
(From Nov. 2005)
AXK6S30547YG
(From Nov. 2005)
AXK6S34547YG
(From Nov. 2005)
AXK6S40547YG
(From Nov. 2005)
AXK6S50547YG
(From Nov. 2005)
AXK6S60547YG
(From Nov. 2005)
AXK6S70547YG
(From Nov. 2005)
AXK6S80547YG
(From Nov. 2005)
AXK6S00547YG
(From Nov. 2005)
Note 2)
“Asterisk” mark on
end of part No.;
J: 1,500 pieces
P: 1,000 pieces
Note 2)
“Asterisk” mark on
end of part No.;
J: 3,000 pieces
P: 2,000 pieces
Note 2)
“Asterisk” mark on
end of part No.;
J: 1,500 pieces
P: 1,000 pieces
“G” mark on end of
part No.;
1,500 pieces
Note 2)
“Asterisk” mark on
end of part No.;
J: 3,000 pieces
P: 2,000 pieces
“G” mark on end of
part No.;
3,000 pieces
Inner carton (1 reel)
Outer carton
Packing
20
24
30
40
50
4.0 mm
60
70
80
100
120
160
20
24
30
36
40
P5KS
50
4.5 mm
60
70
80
100
120
160
20
30
34
40
5.0 mm
50
60
70
80
100
“G” mark on end of
“G” mark on end of
part No.;
part No.;
Socket: 1,500 pieces Socket: 3,000 pieces
Header: 1,000 pieces Header: 2,000 pieces
All Rights Reserved © COPYRIGHT Matsushita Electric Works, Ltd.
京公网安备 11010802033920号
EEWORLD
