HYM72V16M656BTU6-8 datasheet, PDF

Datasheet> All Categories > storage> storage> HYM72V16M656BTU6-8

HYM72V16M656BTU6-8: DescriptionSynchronous DRAM Module, 16MX64, 6ns, CMOS, SODIMM-144; Categorystorage storage; File Size226KB，14 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

HYM72V16M656BTU6-8 Overview

Synchronous DRAM Module, 16MX64, 6ns, CMOS, SODIMM-144

HYM72V16M656BTU6-8 Parametric

Parameter Name	Attribute value
Maker	SK Hynix
Parts packaging code	MODULE
package instruction	,
Contacts	144
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	SINGLE BANK PAGE BURST
Maximum access time	6 ns
Other features	AUTO/SELF REFRESH
JESD-30 code	R-XDMA-N144
memory density	1073741824 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE
memory width	64
Number of functions	1
Number of ports	1
Number of terminals	144
word count	16777216 words
character code	16000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16MX64
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
self refresh	YES
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	DUAL

Preview

Download Datasheet

View All

16Mx64 bits

PC100 SDRAM SO DIMM

based on 16Mx16 SDRAM with LVTTL, 4 banks & 8K Refresh

HYM72V16M656BTU6 Series

DESCRIPTION

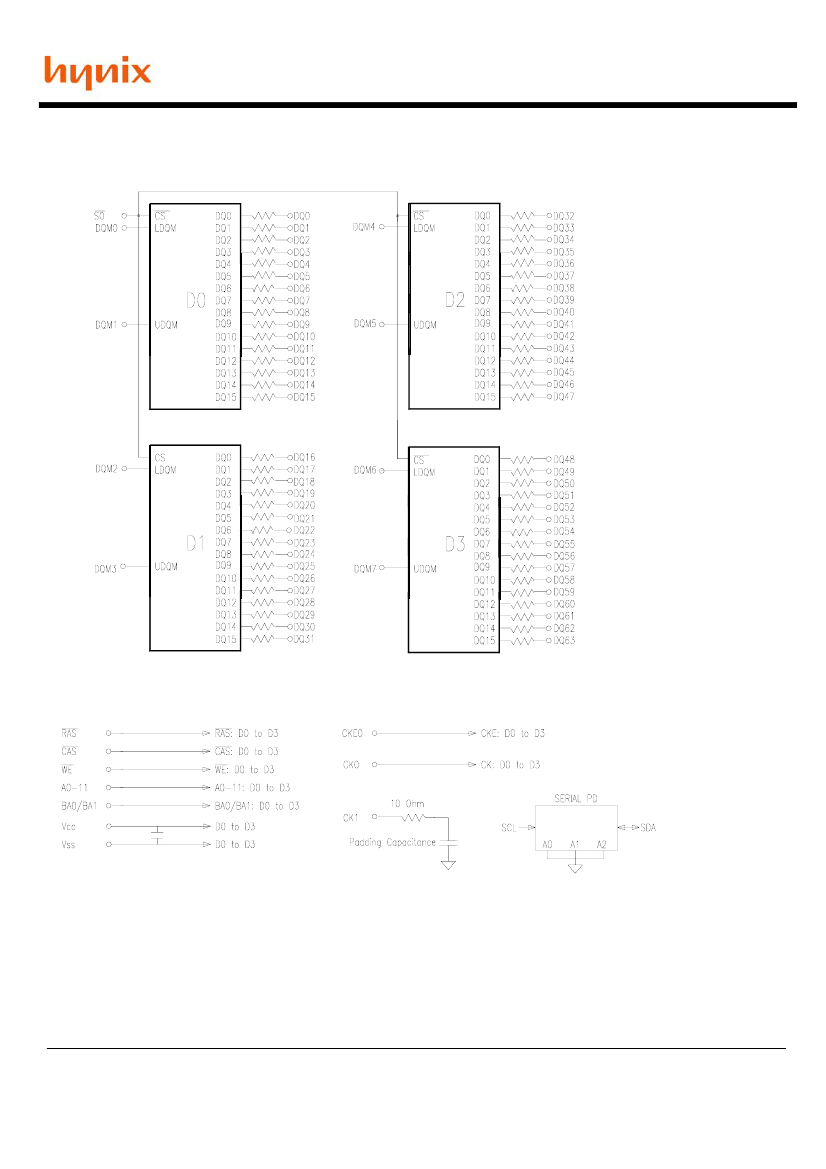

The HYM72V16M656BTU6 Series are 8Mx64bits Synchronous DRAM Modules. The modules are composed of four 16Mx16bits

CMOS Synchronous DRAMs in 400mil 54pin TSOP-II package, one 2Kbit EEPROM in 8pin TSSOP package on a 144pin glass-epoxy

printed circuit board. Two 0.33uF and one 0.1uF decoupling capacitors per each SDRAM are mounted on the PCB.

The HYM72V16M656BTU6 Series are Dual In-line Memory Modules suitable for easy interchange and addition of 128Mbytes mem-

ory. The HYM72V16M656BTU6 Series are fully synchronous operation referenced to the positive edge of the clock . All inputs and

outputs are synchronized with the rising edge of the clock input. The data paths are internally pipelined to achieve very high bandwidth.

FEATURES

•

PC100MHz support

144pin SDRAM Micro SO DIMM

Serial Presence Detect with EEPROM

1.18” (30.00mm) Height PCB with double sided com-

ponents

Single 3.3±0.3V power supply

- 1, 2, 4 or 8 or Full page for Sequential Burst

•

All device pins are compatible with LVTTL interface

- 1, 2, 4 or 8 for Interleave Burst

Data mask function by DQM

•

Programmable CAS Latency ; 2, 3 Clocks

•

SDRAM internal banks : four banks

Module bank : one physical bank

Auto refresh and self refresh

8192 refresh cycles / 64ms

Programmable Burst Length and Burst Type

ORDERING INFORMATION

Part No.

HYM72V16M656TU6-8

HYM72V16M656TU6-P

HYM72V16M656TU6-S

HYM72V16M656TU6-8

HYM72V16M656TU6-P

HYM72V16M656TU6-S

Clock

Frequency

125MHz

100MHz

125MHz

100MHz

Internal

Bank

Ref.

Power

SDRAM

Package

Plating

Normal

4 Banks

Low Power

TSOP-II

Gold

This document is a general product description and is subject to change without notice. Hynix Semiconductor does not assume any responsibility for use

of circuits described. No patent licenses are implied.

Rev. 0.1/Apr. 02
