NJ88C30MP datasheet, PDF - EEWORLD Datasheet

NJ88C30MP: DescriptionPLL Frequency Synthesizer, CMOS, PDSO14,; CategoryAnalog mixed-signal IC The signal circuit; File Size137KB，5 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric Compare View All

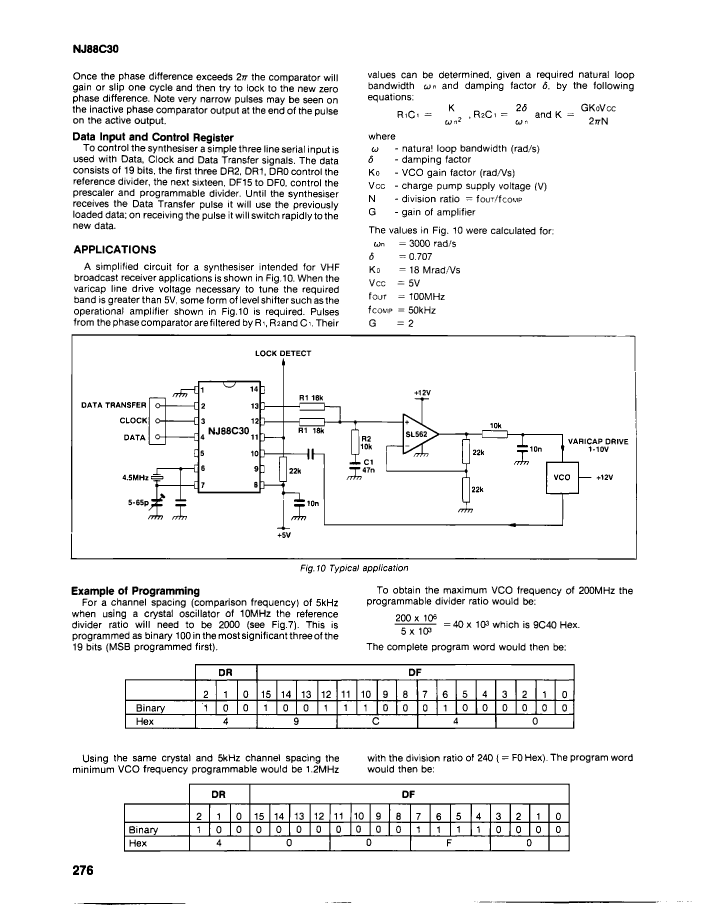

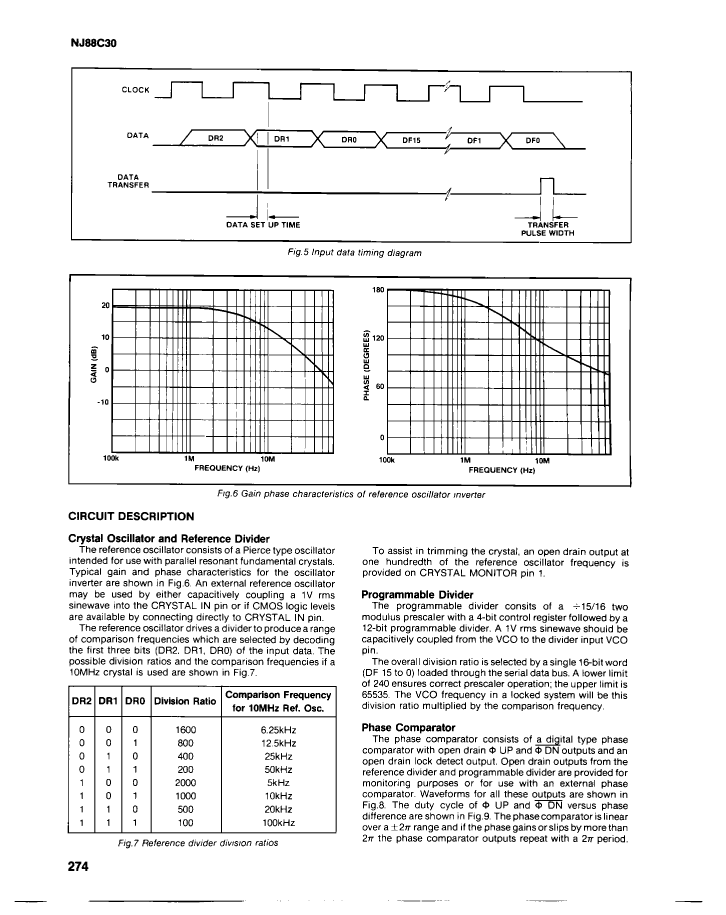

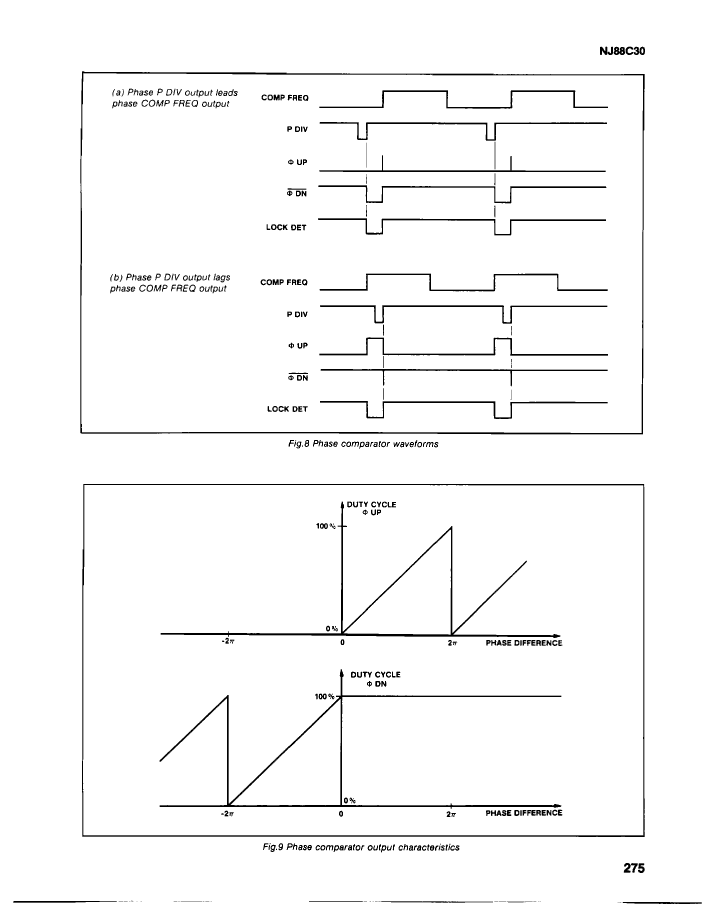

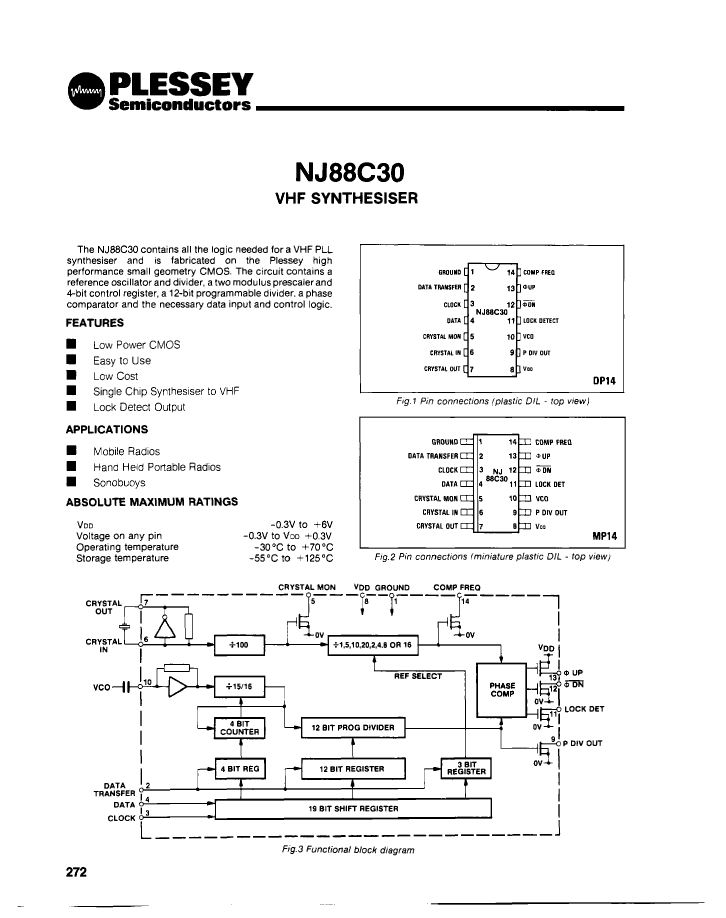

NJ88C30MP Overview

PLL Frequency Synthesizer, CMOS, PDSO14,

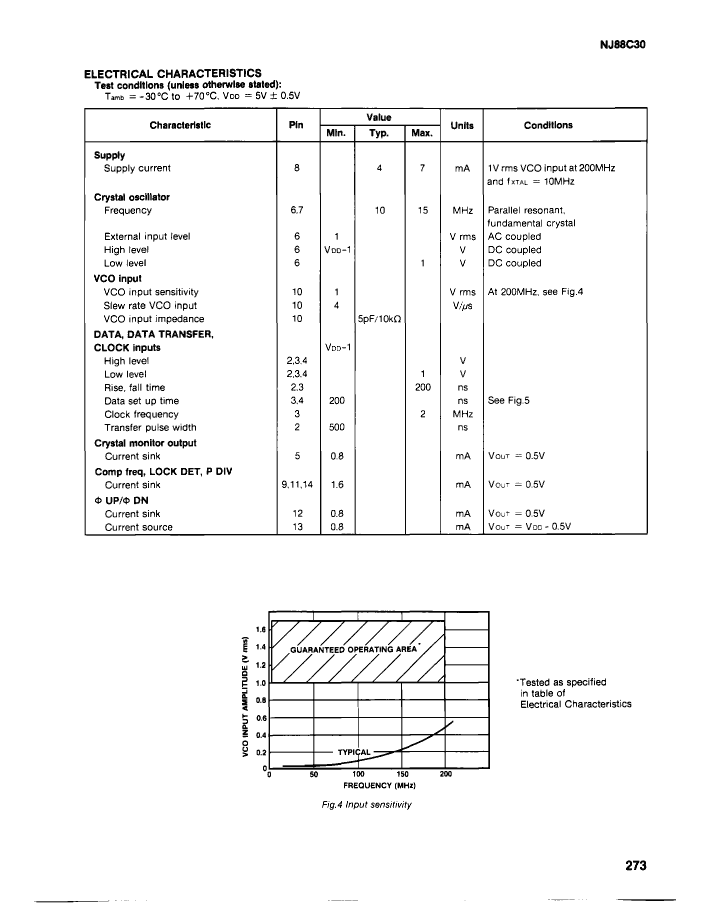

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Dynex
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknown
Other features	4-BIT AUXILIARY INPUT COUNTER; SELECTABLE 15/16 PRESCALER
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum supply current (Isup)	7 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

	NJ88C30MP	NJ88C30DP
Description	PLL Frequency Synthesizer, CMOS, PDSO14,	PLL Frequency Synthesizer, CMOS, PDIP14,
Is it Rohs certified?	incompatible	incompatible
Maker	Dynex	Dynex
package instruction	SOP, SOP14,.25	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown
Other features	4-BIT AUXILIARY INPUT COUNTER; SELECTABLE 15/16 PRESCALER	4-BIT AUXILIARY INPUT COUNTER; SELECTABLE 15/16 PRESCALER
Analog Integrated Circuits - Other Types	PLL FREQUENCY SYNTHESIZER	PLL FREQUENCY SYNTHESIZER
JESD-30 code	R-PDSO-G14	R-PDIP-T14
JESD-609 code	e0	e0
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP14,.25	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	7 mA	7 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
