BYW85 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYW85

BYW85: DescriptionRectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 800V V(RRM), Silicon, GLASS PACKAGE-2; CategoryDiscrete semiconductor diode; File Size76KB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric View All

BYW85 Overview

Rectifier Diode, Avalanche, 1 Phase, 1 Element, 3A, 800V V(RRM), Silicon, GLASS PACKAGE-2

BYW85 Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
package instruction	GLASS PACKAGE-2
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	E-LALF-W2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	GLASS
Package shape	ELLIPTICAL
Package form	LONG FORM
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	1 µA
Maximum reverse recovery time	2 µs
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

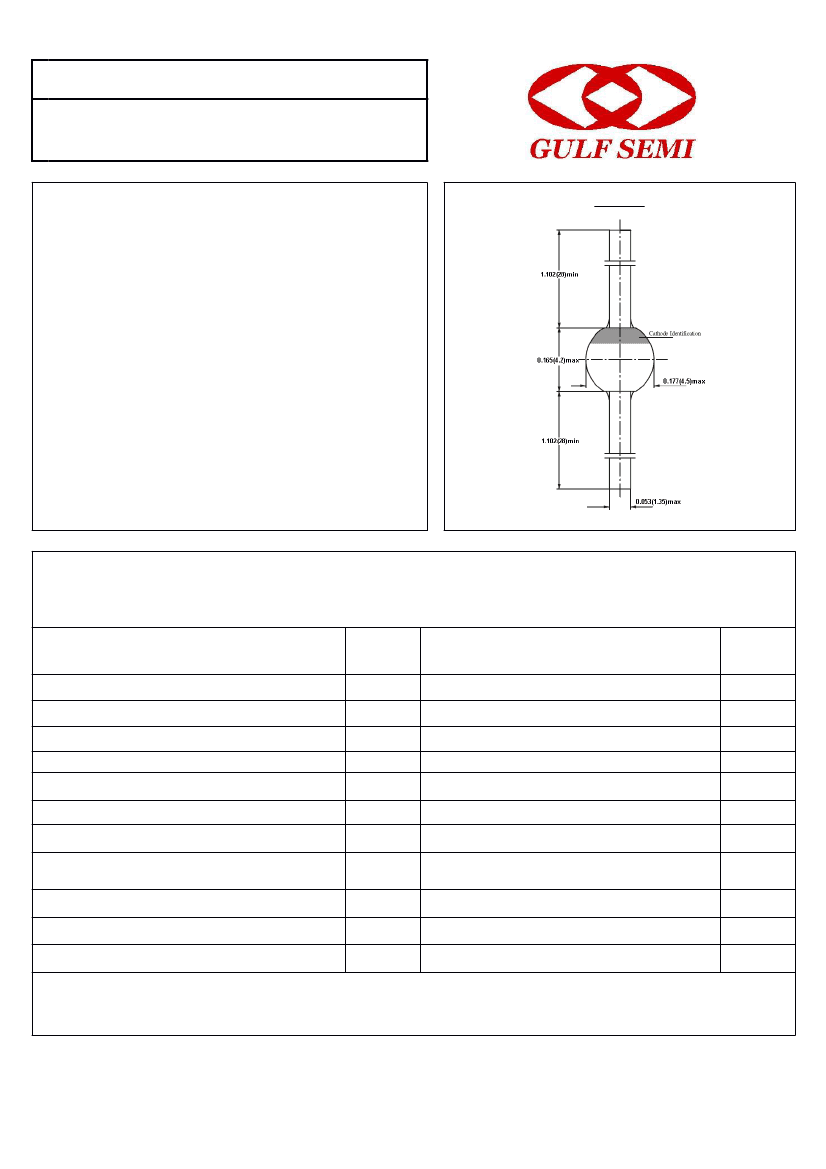

BYW85

SINTERED GLASS JUNCTION

GENERAL AVALANCHE RECTIFIER

VOLTAGE：800V

：

CURRENT: 3.0A

FEATURE

Glass passivated junction

Controlled avalanche characteristics

Low reverse current

High surge current loading

SOD-64

MECHANICAL DATA

Case: SOD-64 sintered glass case

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Polarity: color band denotes cathode end

Mounting position: any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified Current

Peak Forward Surge Current at Tp=10ms half

sinewave

Maximum Forward Voltage at Forward Current 3A

Non-repetitive peak reverse avalanche energy at

(BR)R

=1A

Maximum DC Reverse Current

at rated DC blocking voltage

Typical Reverse Recovery Time

Typical Thermal Resistance

Ta =25

°C

Ta =100

°C

(Note 1)

(Note 2)

BYW85

800

560

800

3.0

100

1.00

1.0

10.0

2.0

-65 to +175

units

µA

µS

°C

RRM

RMS

FAV

FSM

Trr

th(ja)

Tstg, Tj

Storage and Operating Junction Temperature

Note:

1. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

2. I =10mm,T

= constant

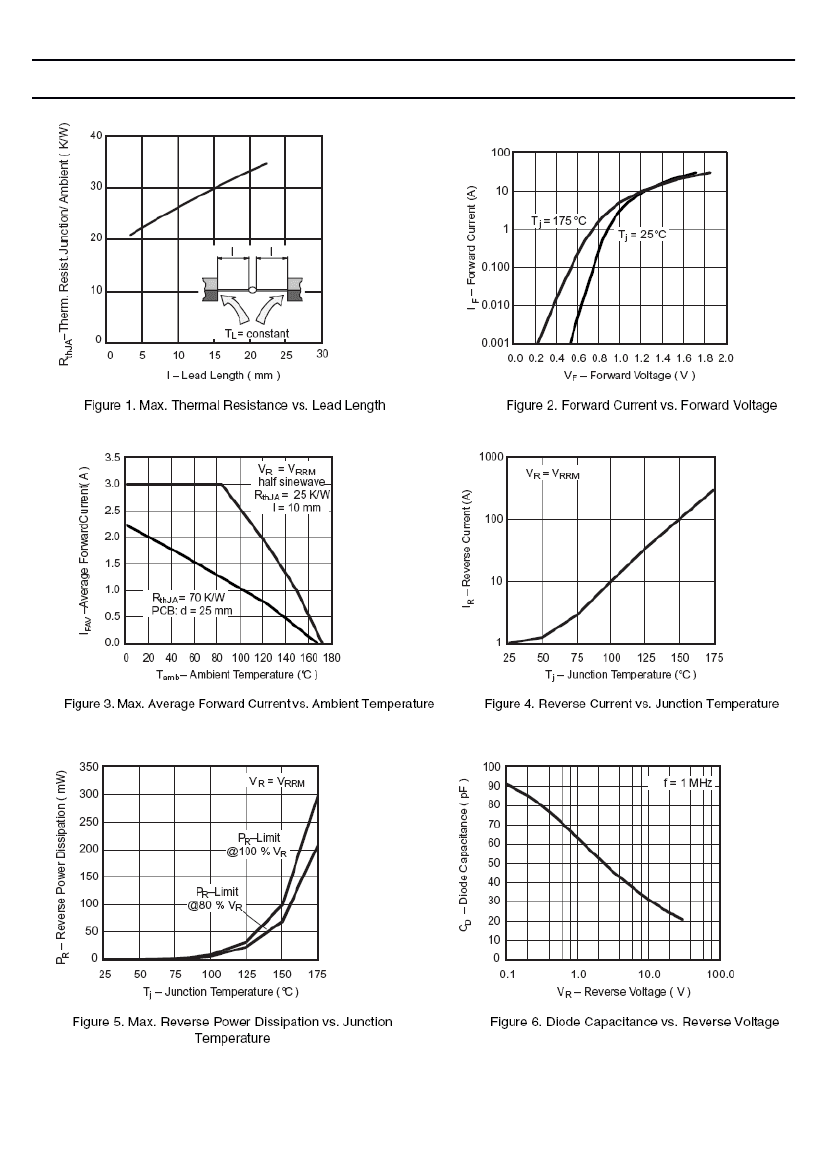

Rev.A1

www.gulfsemi.com
