Connectors for control signals
NR-series
Product description
Multi-pole shielded circular connec-
tors. Design according to DIN 43651,
all-metal construction, used for con-
trol and measurement systems.
• Connection of shielded cables with
PG-cable gland, efficient shielding
ensures transmission free of elec-
tromagnetic and parasitic interfe-
rence form the PG-cable gland to
the machine
• For situations susceptible to inter-
ference and safety-related applica-
tions
• Suitable for use under extreme
mechanical stress
Basic data
Number of poles: 6 + PE, 11 + PE
Operating voltage: 25 V AC; 50 V DC
Operating current:
10 A (6-pole), 5 A (11-pole)
IEC 60947-5-2
Contact material/surface:
CuZn silver-plated
Protection class: IP 65
Type of connection: crimp / solder
Connection cross-section: max.
1,5 mm
2
(6-pole), 0,5 mm
2
(11-pole)
Ambient temperature: -25 ... +90°C
Contacts are to be ordered separate-
ly, see chapter: Contacts, crimping
systems, accessories
Type
Pg 13,5
Number
of poles
6 + PE
Description
Suitable for
Order no.

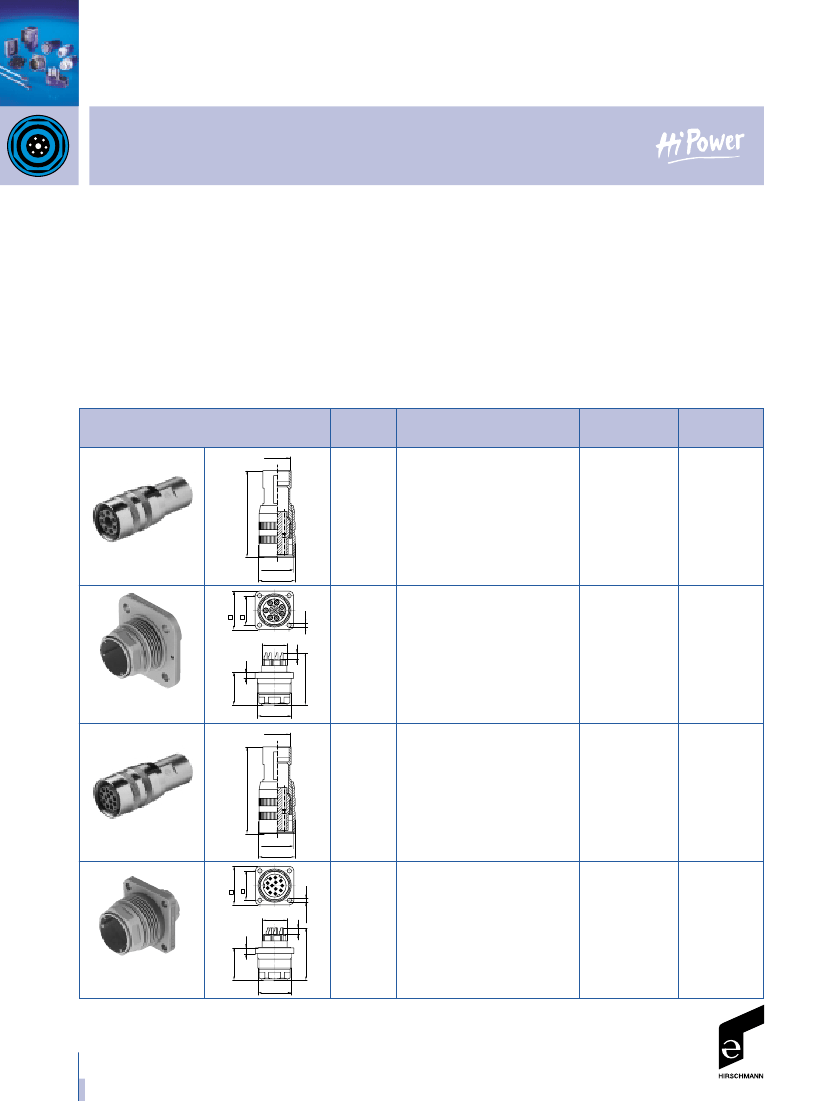

Cable socket, straight
Type of connection: crimp
N6R BM FA S
(EMV-PG-
cable gland is
to be ordered
933 711-001
≈
69
Contacts: RBC 162
M26 x 1,5
N6R EFS
30
23
separately!)
6 + PE
Surface-mounted connector
with flange
N6R EF S
933 710-001
Ø 28
Ø 19,4
3,4
4,5
Type of connection: solder
≈
36
N6R BM FAS
≈
30
M26 x 1,5
Pg 13,5
5
11 + PE
Cable socket, straight
Type of connection: crimp
N11R BM FA S
933 700-001
(EMV-PG-
cable gland is
to be ordered
≈
69
Contacts: RBC 162/1
M26 x 1,5
N11R EFS
30
23
separately!)
11 + PE
Surface-mounted connector
with flange
N11R EF S
933 699-001
Ø 28
Ø 19,4
3,4
4,5
Type of connection: solder
N11R BM FAS
≈
30
M26 x 1,5
Contacts and accessories can be found in chapter: Contacts, crimping systems, accessories
34
Industrial connectors
≈
36
5
Connectors for control signals
NR-series
Type
Number
of poles
–
Description
Suitable for
Order no.

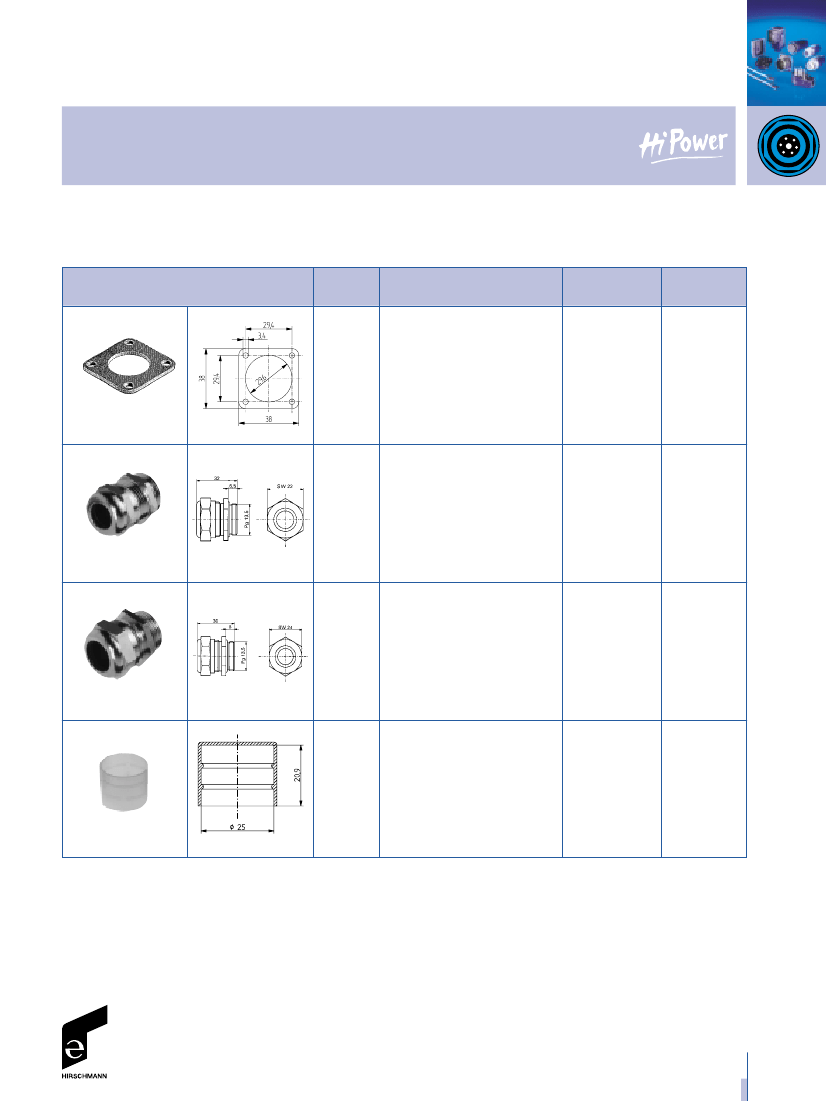

Conductive flat gasket
N6R BM FA S,
N11R BM FA S
734 633-001
N6R-40
–
EMV-PG-cable gland
for lead diameter 6 - 12 mm
N6R EF S
N11R EF S
734 605-001
N6R-41
–
EMV-PG-cable gland
for lead diameter
12 - 15 mm
N6R EF S,
N11R EF S
734 606-001
N6R-42
–
Protective cover for
surface-mounted connector
N6R BM FA S,
N11R BM FA S
734 582-001
SHK 4
Contacts and accessories can be found in chapter: Contacts, crimping systems, accessories
Industrial connectors
35
Connectors for control signals
NR-series
Product description
Multi-pole circular connectors accor-
ding to DIN 43651.
• Robust design
• Casing out of impact-proof, unbrea-
kable plastic, glass-fibre reinforced
• Splash-proof, protection class IP 65
(DIN 40050)
• Vibration-proof connection due to
central screw or screw bushing
• Strain relief due to claw cage in the
PG-cable gland
• Colour of product: grey
Basic data
Number of poles: 6 + PE, 11 + PE
Operating voltage:
250 V AC / DC (6-pole)
60 V AC / DC (11-pole)
Operating current: 10 A (6-pole),
5 A (11-pole)
Contact material/surface:
CuZn silver-plated
Protection class: IP 65
Type of connection:
crimp / screw / solder
Connection cross-section: max.
1,5 mm
2
(6-pole), 0,5 mm
2
(11-pole)
Outer cable diameter: 7- 9 mm
(6-pole), 8 -10 mm (11-pole)
Ambient temperature: -30 ... +90°C
Contacts are to be ordered separate-
ly, see chapter: Contacts, crimping
systems, accessories
Type
Number Description
of poles
6 + PE

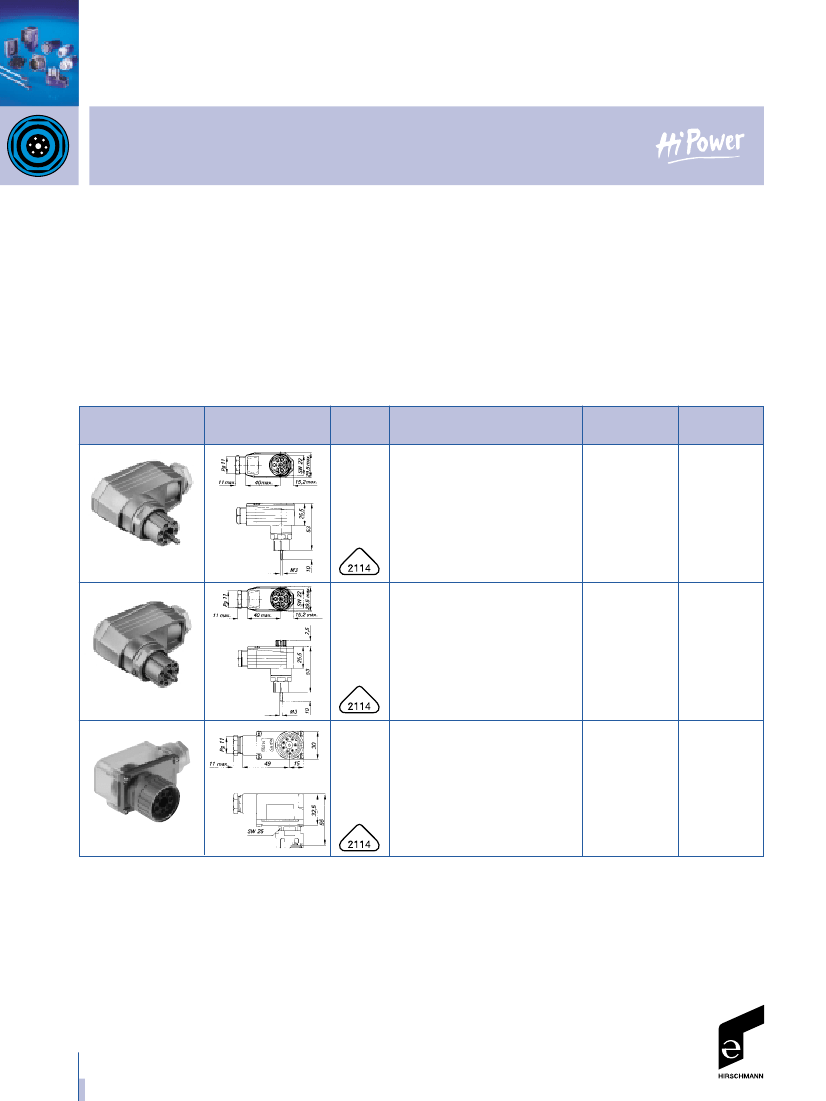

Cable socket, angled
Type of connection: crimp
Contacts: RBC 162
Suitable for
Order no.
N6R AM,
N6R AM...,
N6R BM...,
N6R DM
931 435-106
N6R FF
6 + PE
Cable socket, angled
with knurled screw
Type of connection: crimp
Contacts: RBC 162
N6R FF R
6 + PE
Cable socket, angled,
transparent cap,
for installation of the
LED insert
N6R FF S11
Type of connection: screw
2
N6R AM,
N6R AM...,
N6R BM...,
N6R DM
932 194-112
N6R AM,
N6R AM...,
N6R BM...,
N6R DM
931 553-106
1) In accordance with the repl. docs. issued by the German PTT, No. 64.5060.678.00
2) (Socket clamp connection); LED insert type N6R 3 LED 24 or N6R 3 LED 24DB - order separately
Contacts and accessories can be found in chapter: Contacts, crimping systems, accessories
36
Industrial connectors
Connectors for control signals
NR-series
Type
Number Description
of poles
–
gelb
Suitable for
Order no.

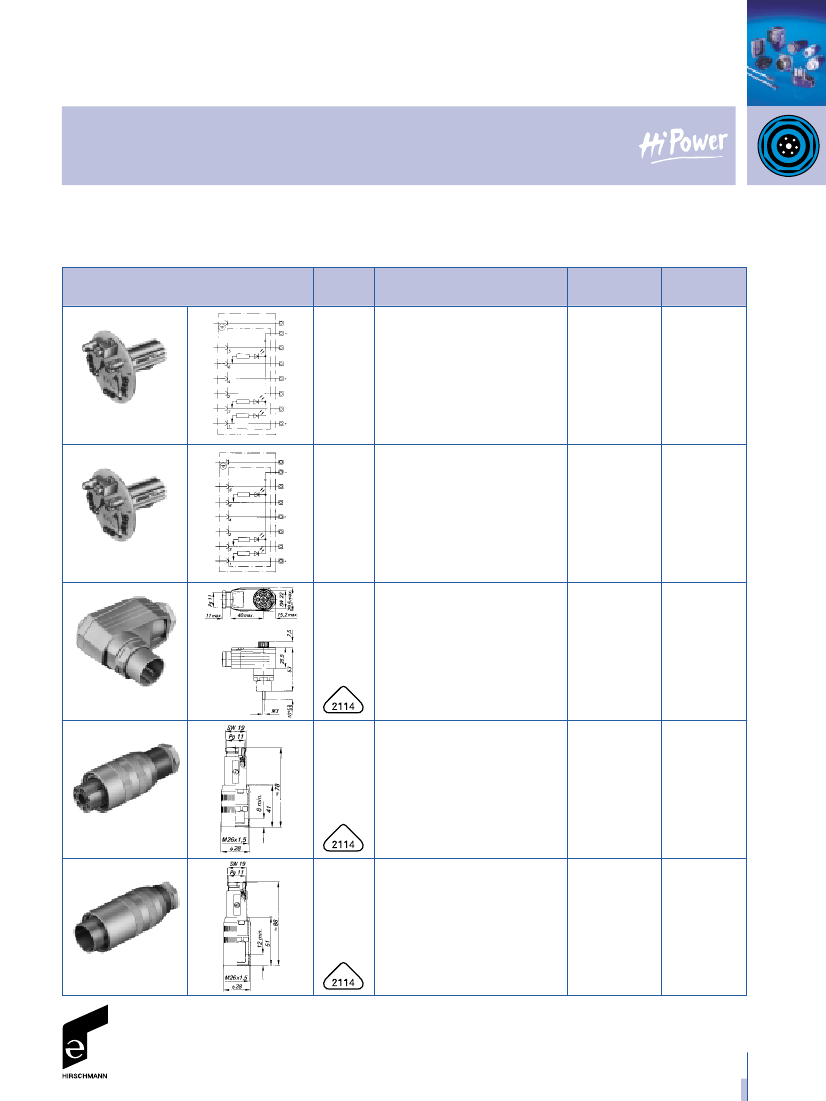

LED insert with 3 LEDs
(green, red, yellow),
Operating voltage DC 24 V
N6R FF S 11
831 411-001
rot
grün
Type of connection: plug in
N6R 3 LED 24
–
rot
LED insert with 3 LEDs
(green, yellow, red),
Operating voltage DC 24 V
N6R FF S 11
831 618-001
gelb
grün
Type of connection: plug in
N6R 3 LED 24 DB
6 + PE
Cable connector, angled
with knurled screw,
Type of connection: crimp
Contacts: RSC 162
N6R FM R
6 + PE
Cable socket, straight
Type of connection: crimp
Contacts: RBC 162
N6R AM,
N6R AM...,
N6R BM...,
N6R DM
N6R EF
6 + PE
Cable connector, straight
Type of connection: crimp
Contacts: RSC 162
N6R AF,
N6R AF 5,
N6R BFE
931 776-001
931 720-001
N6R AF,
N6R AF 5,
N6R BF...
931 727-106
N6R EM
Contacts and accessories can be found in chapter: Contacts, crimping systems, accessories
Industrial connectors
37
Connectors for control signals
NR-series
Type
Number Description
of poles
6 + PE
SW 27
Suitable for
Order no.

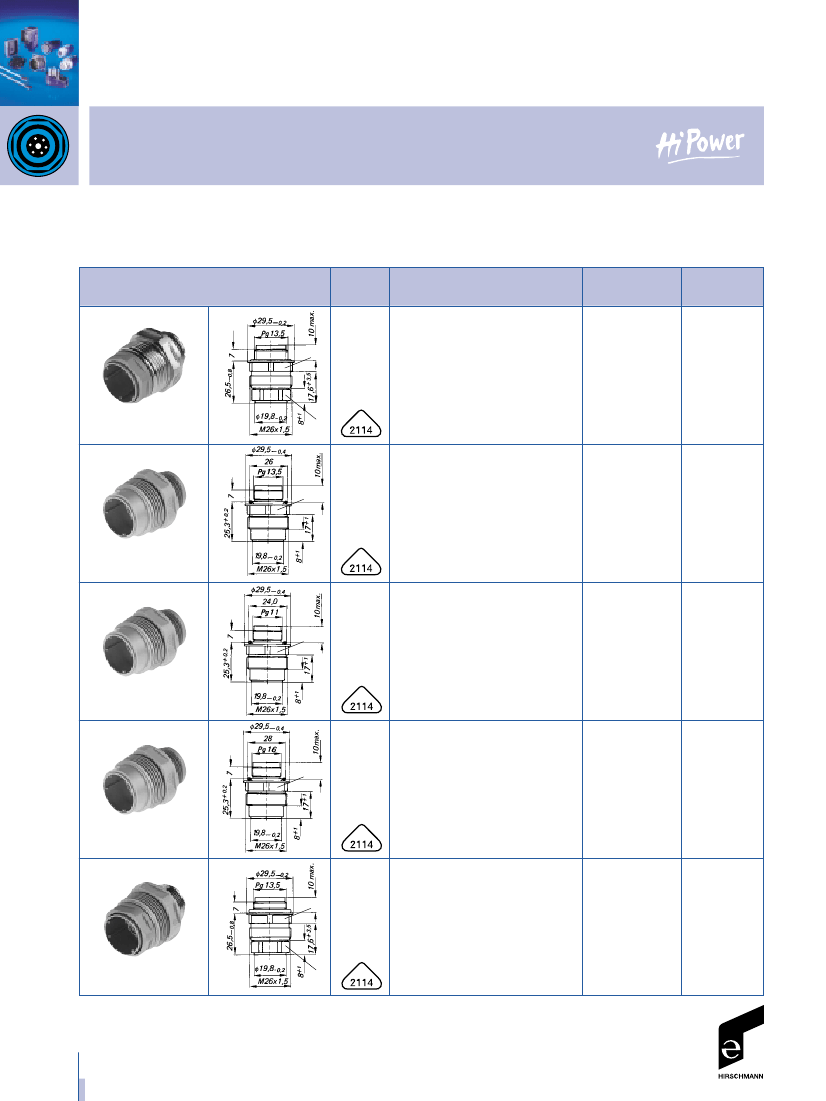

Panel-mounted connector
with metal screw-in
casing, PG 13,5
Type of connection: crimp
N6R FF,
N6R FFR,
N6R EF
931 434-001
SW 22
N6R AM
6 + PE
SW 27
Contacts: RSC 162
Panel-mounted connector with
contact bearer in the casing
(monoblock design), PG 13,5
Type of connection: crimp
N6R FF,
N6R FFR,
N6R EF
931 592-001
N6R AM 2
6 + PE
SW 27
Contacts: RSC 162
Panel-mounted connector with
contact bearer in the casing
(monoblock design), PG 11
Type of connection: crimp
N6R FF,
N6R FFR,
N6R EF
N6R EF
931 592-002
N6R AM 3
6 + PE
SW 27
Contacts: RSC 162
Panel-mounted connector with
contact bearer in the casing
(monoblock design), PG 16
Type of connection: crimp
N6R FF,
N6R FFR,
N6R EF
931 592-003
N6R AM 4
6 + PE
SW 27
Contacts: RSC 162
Panel-mounted connector with
metal screw-in insert in the ca-
sing (metal segment), PG 13,5
Type of connection: crimp
SW 22
N6R FF,
N6R FFR,
N6R EF
931 773-001
N6R AM 5
Contacts: RSC 162
Contacts and accessories can be found in chapter: Contacts, crimping systems, accessories
38
Industrial connectors
