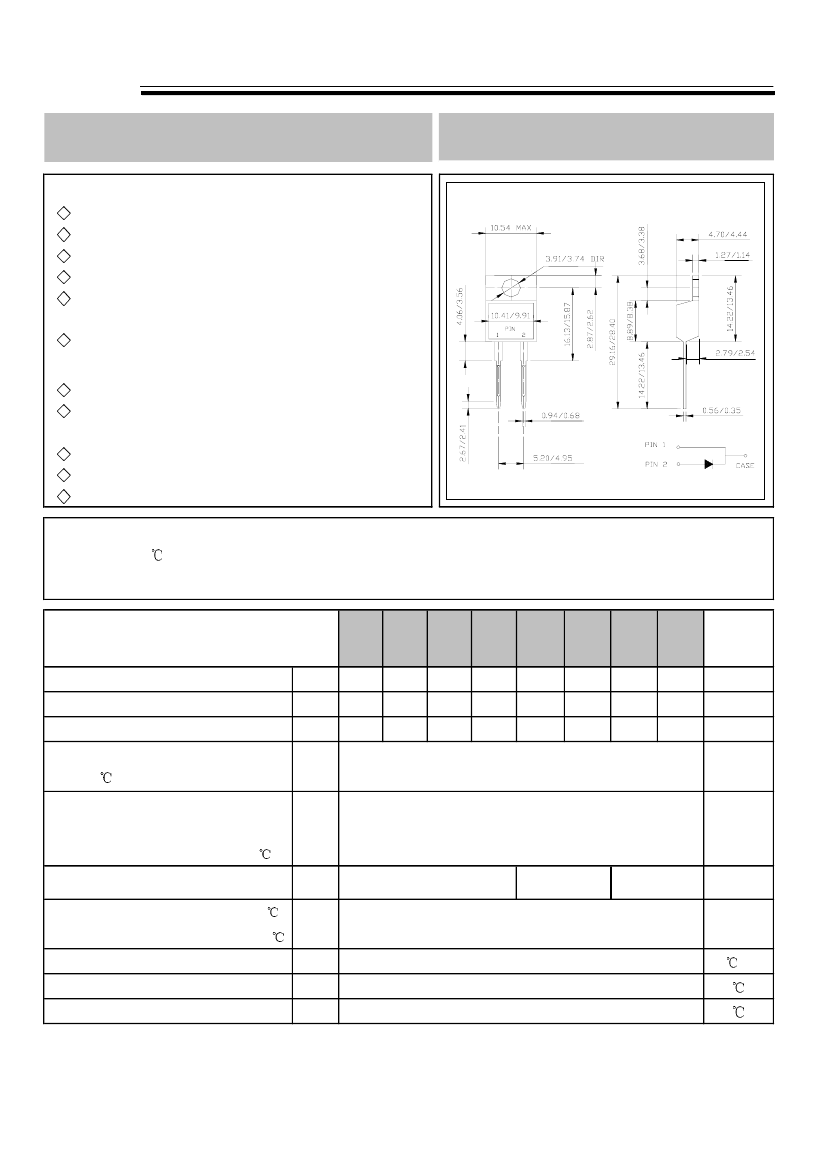

SBL1030 - - - SBL10100
VOLTAGE RANGE:
30
---
100
V
CURRENT:
10
A
SCHOTTKY BARRIER RECTIFIER
Metal-Semiconductor junction with guard ring
Epitaxial construction
Low forward voltage drop,low switching losses
High surge capability
For use in low voltage,high frequency inverters free
xxxx
wheeling,and polarity protection applications
The plastic material carries U/L recognition 94V-0
TO-220AC
MECHANICAL DATA
Case:JEDEC TO-220AC,molded plastic
Terminals: Leads solderable per
MIL- STD-750,Method 2026
Polarity: As marked
Weight: 0.064 ounces,1.81 gram
Mounting position: Any
mm
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
ambient temperature unless otherwise specified.
Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.
SBL
SBL SBL SBL
1030 1035 1040 1045
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forw ard rectified current
T
C
=110
Peak forw ard surge current
8.3ms single half-sine-w ave
superimposed on rated load T
J
=125
Maximum instantaneous forw ard voltage
@ 10 A
Maximum reverse current
@T
C
=25
SBL
1050
50
35
50
SBL SBL SBL
1060 1080 10100
60
42
60
80
56
80
100
70
100
UNITS
V
V
V
A
V
RRM
V
RMS
V
DC
I
F(AV)
30
21
30
35
25
35
40
28
40
45
32
45
10
I
FSM
V
F
I
R
R
θ
JC
T
J
T
STG
250
A
0.60
1.0
50
5.0
0.75
0.85
V
mA
/W
at rated DC blocking voltage @T
C
=100
Typical thermal resistance
(Note1)
Operating junction temperature range
Storage temperature range
Note: 1. Thermal resistance junction to case.
-55--- + 150
-55--- + 150
www.galaxycn.com
Document Number 0267038
BL
GALAXY ELECTRICAL
1
.
RATINGS AND CHARACTERISTIC CURVES
FIG.1 -- PEAK FORWARD SURGE CURRENT
AVERAGE FORWARD OUTPUT CURRENT,
AMPERES
PEAK FORWARD SURGE CURRENT,
SBL1030 - - - SBL10100
FIG.2 -- FORWARD DERATING CURVE
250
1
0
200
8
AMPERES
8.3ms Single Half Sine Wave
T
J
=125
6
150
4
100
2
50
0
25
50
75
100
125
150
0
1
10
100
NUMBER OF CYCLES AT 60H
Z
CASE
TEMPERATURE,
FIG.3 -- TYPICAL FORWARD CHARACTERISTIC
FIG.4 -- TYPICAL REVERSE CHARACTERISTIC
INSTANTANEOUS FORWARD CURRENT,
AMPERES
INSTANTANEOUS REVERSE CURRENT,
MILLIAMPERES
10
Tc=100
1.0
2
0
0
1
0
0
SBL1030-SBL1045
SBL1080-SBL10100
10
SBL1050-SBL1060
T
C
=25
0.1
T
J
= 2 5
P u ls e w id t h = 3 0 0
1 % D u t y C y c le
s
1
.
2
.
4
.
6
.
8
1.0
1 .
2
1 .
4
1 .
6
1 .
8
2.0
2.2
.01
0
20
40
60
80
100
120
140
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
PERCENT OF RATED PEAK REVERSE VOLTAGE,%
www.galaxycn.com
Document Number 0267038
BL
GALAXY ELECTRICAL
