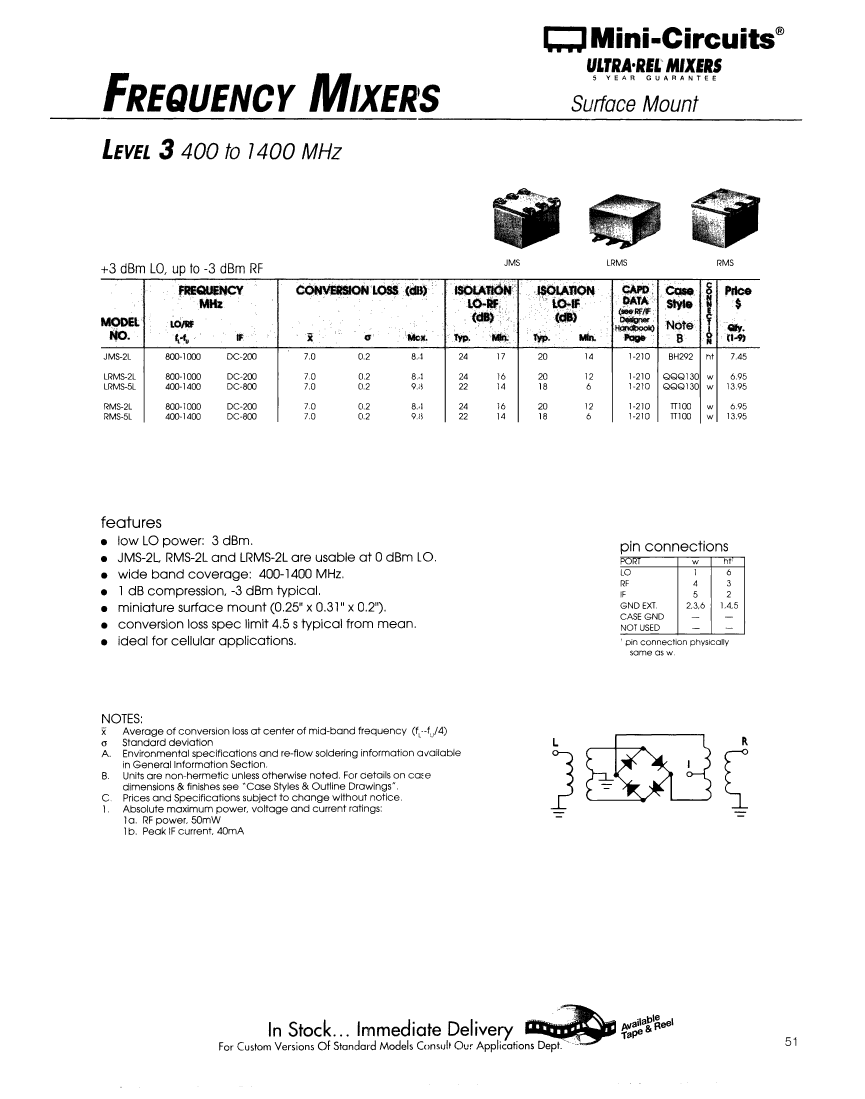

LRMS-2L-TR+: DescriptionDouble Balanced Mixer, 800MHz Min, 1000MHz Max, 8.4dB Conversion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size66KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LRMS-2L-TR+ Overview

Double Balanced Mixer, 800MHz Min, 1000MHz Max, 8.4dB Conversion Loss-Max

LRMS-2L-TR+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
structure	MODULE
Maximum frequency conversion loss	8.4 dB
Maximum input power (CW)	-3 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	800 MHz
RF/Microwave Device Types	DOUBLE BALANCED

Preview

Download Datasheet

View All

LRMS-2L-TR+ Related Products

	LRMS-2L-TR+	RMS-5L-TR+	RMS-5L-TR	LRMS-5L-TR+	LRMS-5L-TR	RMS-2L-TR+	RMS-2L-TR	LRMS-2L-TR
Description	Double Balanced Mixer, 800MHz Min, 1000MHz Max, 8.4dB Conversion Loss-Max	Double Balanced Mixer, 400MHz Min, 1400MHz Max, 9.8dB Conversion Loss-Max,	Double Balanced Mixer, 400MHz Min, 1400MHz Max, 9.8dB Conversion Loss-Max,	Double Balanced Mixer, 400MHz Min, 1400MHz Max, 9.8dB Conversion Loss-Max	Double Balanced Mixer, 400MHz Min, 1400MHz Max, 9.8dB Conversion Loss-Max	Double Balanced Mixer, 800MHz Min, 1000MHz Max, 8.4dB Conversion Loss-Max	Double Balanced Mixer, 800MHz Min, 1000MHz Max, 8.4dB Conversion Loss-Max	Double Balanced Mixer, 800MHz Min, 1000MHz Max, 8.4dB Conversion Loss-Max
Is it lead-free?	Lead free	Lead free	Contains lead	Lead free	Contains lead	Lead free	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	incompatible	conform to	incompatible	conform to	incompatible	incompatible
Maker	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits	Mini-Circuits
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
structure	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Maximum frequency conversion loss	8.4 dB	9.8 dB	9.8 dB	9.8 dB	9.8 dB	8.4 dB	8.4 dB	8.4 dB
Maximum input power (CW)	-3 dBm	-3 dBm	-3 dBm	-3 dBm	-3 dBm	-3 dBm	-3 dBm	-3 dBm
Maximum operating frequency	1000 MHz	1400 MHz	1400 MHz	1400 MHz	1400 MHz	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	800 MHz	400 MHz	400 MHz	400 MHz	400 MHz	800 MHz	800 MHz	800 MHz
RF/Microwave Device Types	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED	DOUBLE BALANCED
JESD-609 code	-	e4	e0	-	e0	e4	e0	e0
Terminal surface	-	Silver/Palladium/Platinum (Ag/Pd/Pt)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Silver/Palladium/Platinum (Ag/Pd/Pt)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
