AT29C257-15DC datasheet, PDF - EEWORLD Datasheet

AT29C257-15DC: DescriptionFlash, 32KX8, 150ns, CDIP32, 0.600 INCH, CERDIP-32; Categorystorage storage; File Size353KB，12 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric View All

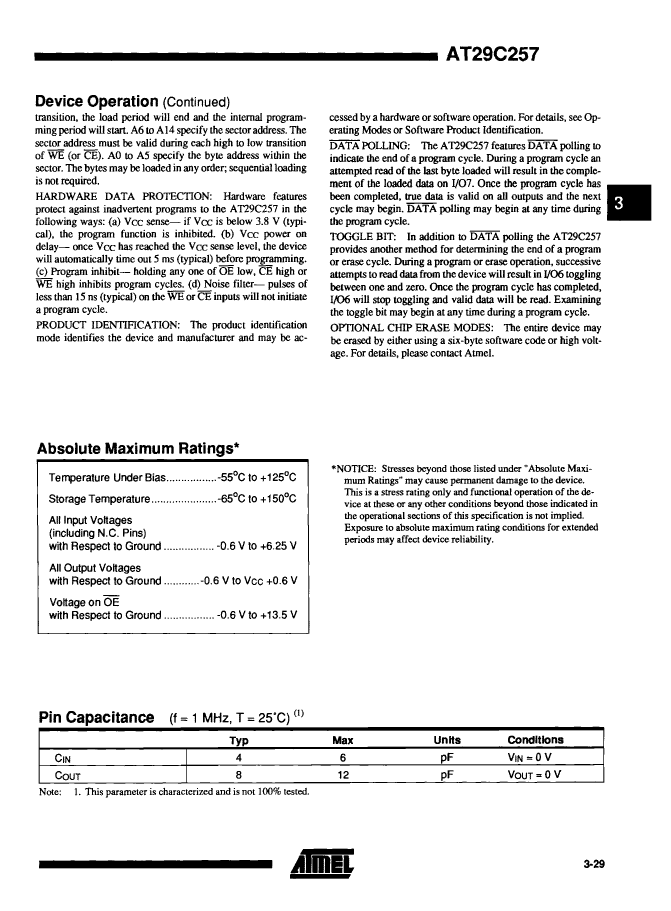

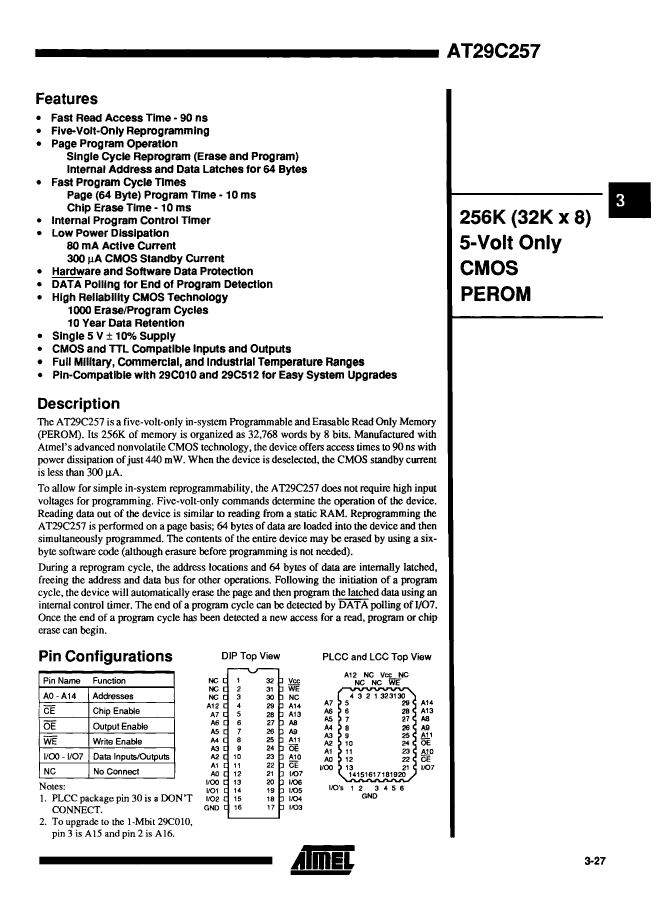

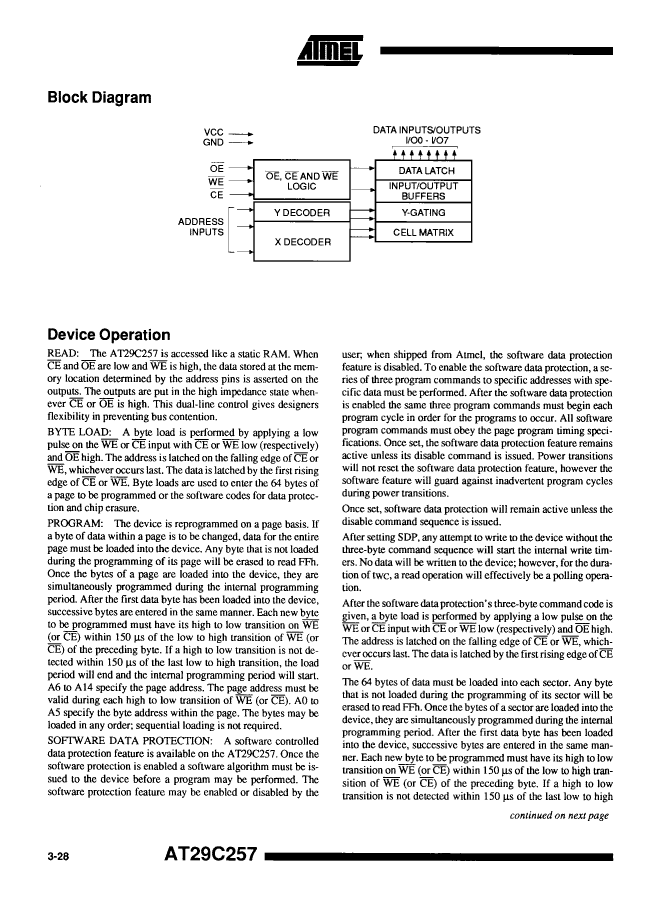

AT29C257-15DC Overview

Flash, 32KX8, 150ns, CDIP32, 0.600 INCH, CERDIP-32

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	DIP
package instruction	DIP, DIP32,.6
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99

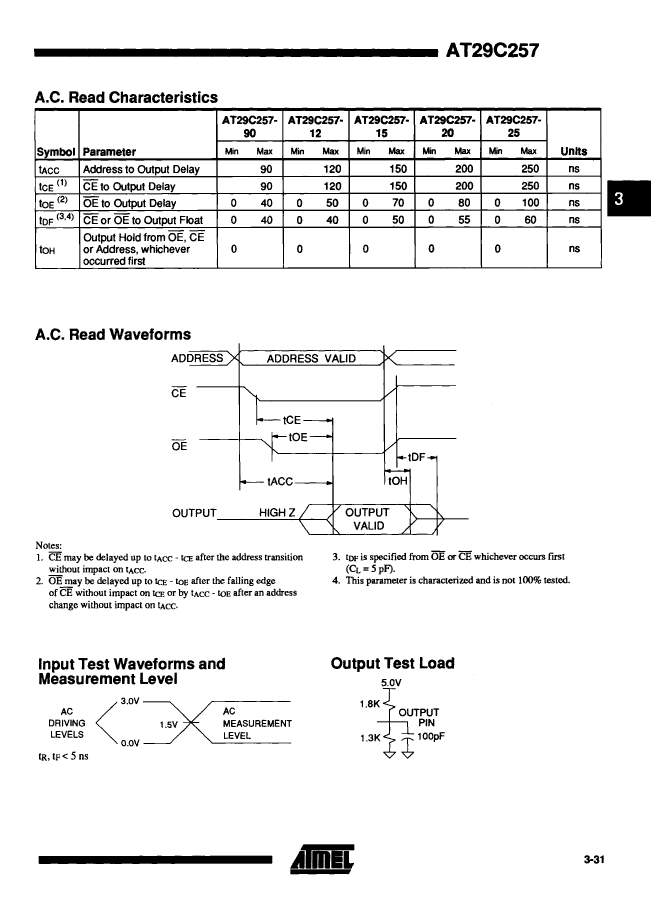

Maximum access time	150 ns
Other features	BULK ERASE;PAGE WRITE;AUTOMATIC WRITE
command user interface	NO
Data polling	YES
JESD-30 code	R-GDIP-T32
JESD-609 code	e0
length	42.2 mm
memory density	262144 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	32
word count	32768 words
character code	32000

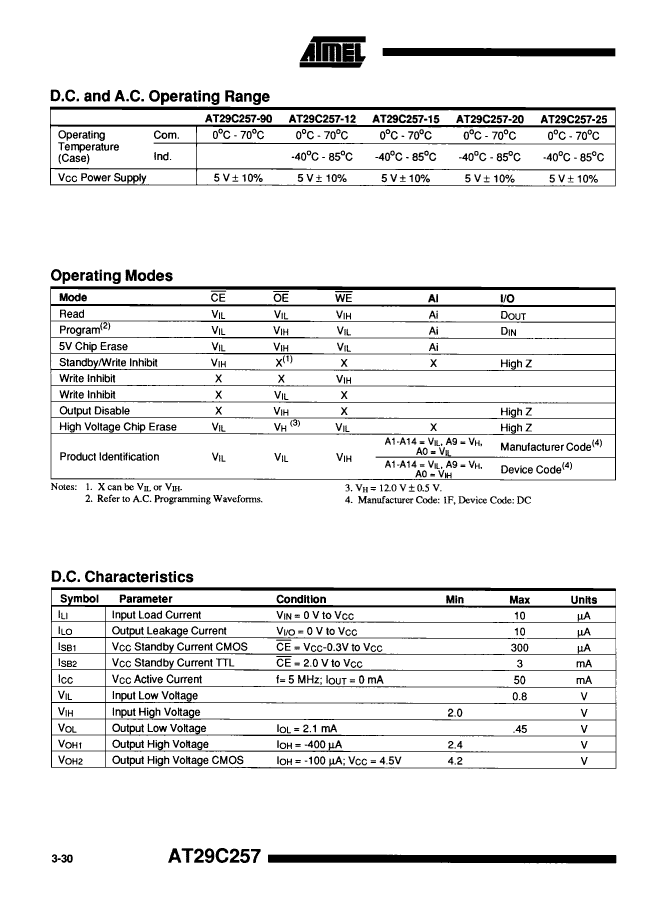

Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX8
Output characteristics	3-STATE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
page size	64 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	5.72 mm
Maximum standby current	0.0003 A
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	YES
type	NOR TYPE
width	15.24 mm
