OM6524STT datasheet, PDF - EEWORLD Datasheet

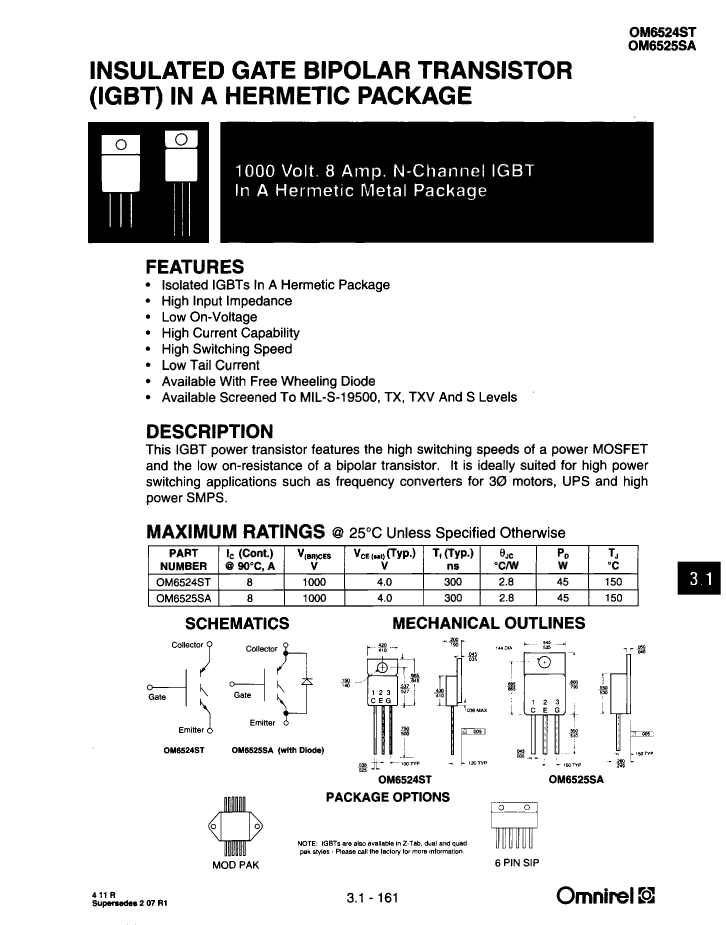

OM6524STT: DescriptionInsulated Gate Bipolar Transistor, 8A I(C), 1000V V(BR)CES, N-Channel, TO-257AA, HERMETIC SEALED, METAL PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size78KB，2 Pages; ManufacturerOmnirel Corp.

Download Datasheet Parametric Compare View All

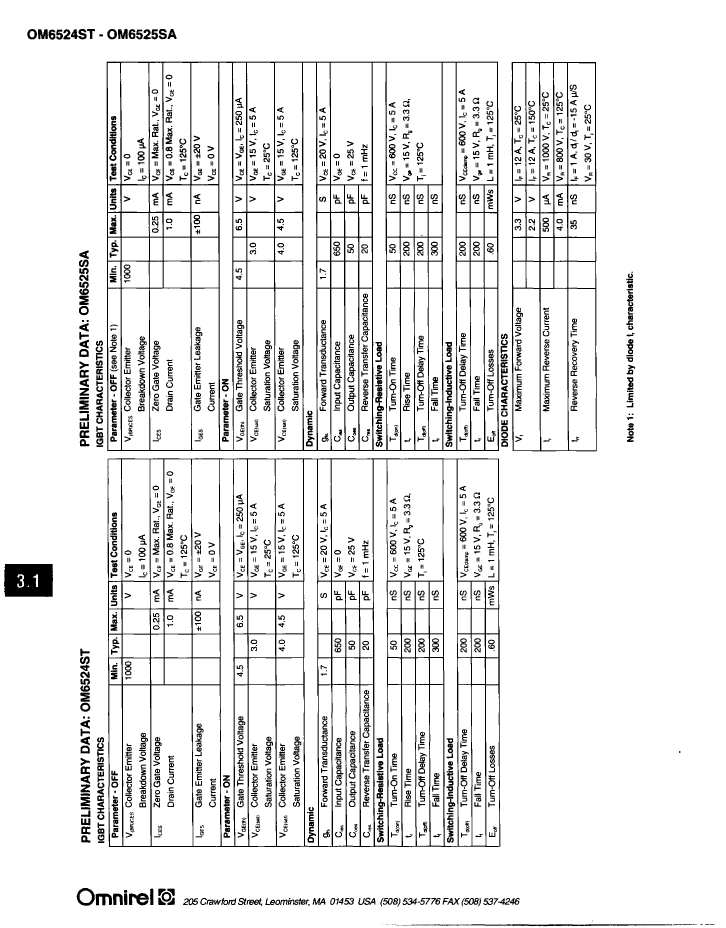

OM6524STT Overview

Insulated Gate Bipolar Transistor, 8A I(C), 1000V V(BR)CES, N-Channel, TO-257AA, HERMETIC SEALED, METAL PACKAGE-3

Parameter Name	Attribute value
Maker	Omnirel Corp.
package instruction	HERMETIC SEALED, METAL PACKAGE-3
Reach Compliance Code	unknown
Other features	HIGH SPEED
Maximum collector current (IC)	8 A
Collector-emitter maximum voltage	1000 V
Configuration	SINGLE
JEDEC-95 code	TO-257AA
JESD-30 code	R-MSFM-P3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
transistor applications	POWER CONTROL
Transistor component materials	SILICON
Nominal off time (toff)	200 ns
Nominal on time (ton)	50 ns

	OM6524STT	2SB1100	OM6525SAV	OM6524STV
Description	Insulated Gate Bipolar Transistor, 8A I(C), 1000V V(BR)CES, N-Channel, TO-257AA, HERMETIC SEALED, METAL PACKAGE-3	isc Silicon PNP Darlington Power Transistor	Insulated Gate Bipolar Transistor, 8A I(C), 1000V V(BR)CES, N-Channel, TO-254AA, HERMETIC SEALED, METAL PACKAGE-3	Insulated Gate Bipolar Transistor, 8A I(C), 1000V V(BR)CES, N-Channel, TO-257AA, HERMETIC SEALED, METAL PACKAGE-3
Maker	Omnirel Corp.	-	Omnirel Corp.	Omnirel Corp.
package instruction	HERMETIC SEALED, METAL PACKAGE-3	-	HERMETIC SEALED, METAL PACKAGE-3	HERMETIC SEALED, METAL PACKAGE-3
Reach Compliance Code	unknown	-	unknown	unknown
Other features	HIGH SPEED	-	HIGH SPEED	HIGH SPEED
Maximum collector current (IC)	8 A	-	8 A	8 A
Collector-emitter maximum voltage	1000 V	-	1000 V	1000 V
Configuration	SINGLE	-	SINGLE WITH BUILT-IN DIODE	SINGLE
JEDEC-95 code	TO-257AA	-	TO-254AA	TO-257AA
JESD-30 code	R-MSFM-P3	-	S-MSFM-P3	R-MSFM-P3
Number of components	1	-	1	1
Number of terminals	3	-	3	3
Package body material	METAL	-	METAL	METAL
Package shape	RECTANGULAR	-	SQUARE	RECTANGULAR
Package form	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	N-CHANNEL	-	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	-	Not Qualified	Not Qualified
surface mount	NO	-	NO	NO
Terminal form	PIN/PEG	-	PIN/PEG	PIN/PEG
Terminal location	SINGLE	-	SINGLE	SINGLE
transistor applications	POWER CONTROL	-	POWER CONTROL	POWER CONTROL
Transistor component materials	SILICON	-	SILICON	SILICON
Nominal off time (toff)	200 ns	-	200 ns	200 ns
Nominal on time (ton)	50 ns	-	50 ns	50 ns
