OM60L60SBT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> OM60L60SBT

Preview

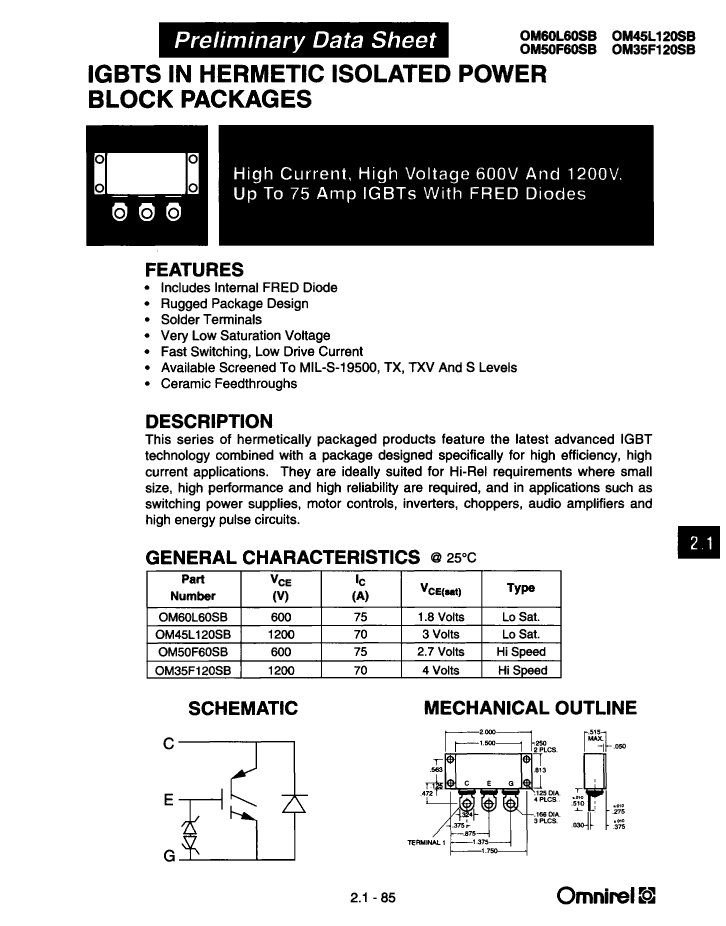

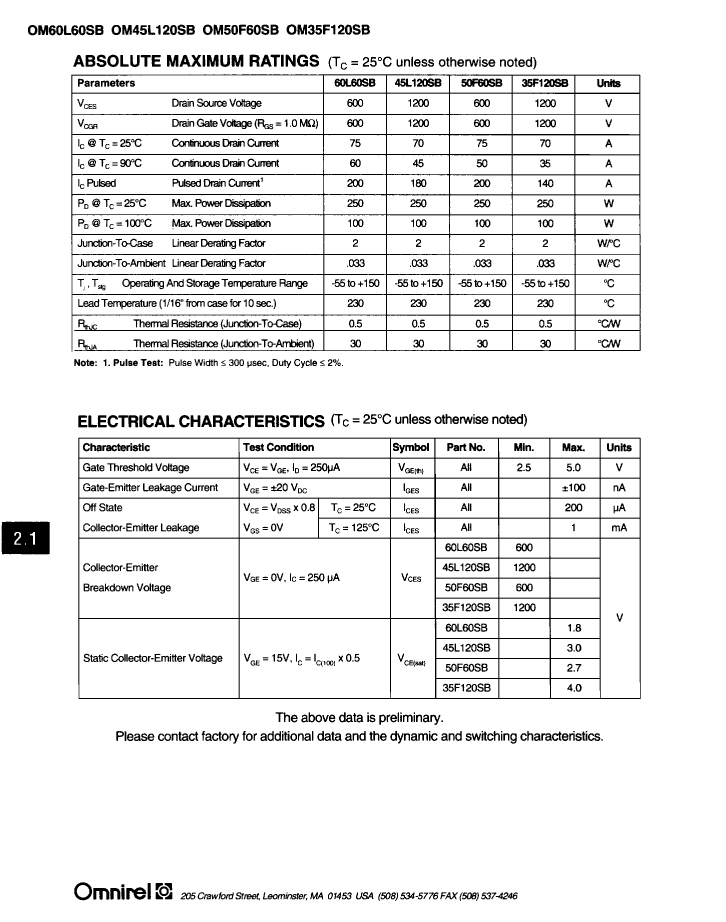

OM60L60SBT: DescriptionInsulated Gate Bipolar Transistor, 75A I(C), 600V V(BR)CES, N-Channel, HERMETIC SEALED PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size65KB，2 Pages; ManufacturerOmnirel Corp.

Download Datasheet Parametric Compare View All

OM60L60SBT Overview

Insulated Gate Bipolar Transistor, 75A I(C), 600V V(BR)CES, N-Channel, HERMETIC SEALED PACKAGE-3

OM60L60SBT Parametric

Parameter Name	Attribute value
Maker	Omnirel Corp.
package instruction	HERMETIC SEALED PACKAGE-3
Reach Compliance Code	unknown
Other features	FAST, HIGH RELIABILITY
Shell connection	ISOLATED
Maximum collector current (IC)	75 A
Collector-emitter maximum voltage	600 V
Configuration	SINGLE WITH BUILT-IN DIODE
JESD-30 code	R-MSFM-D3
Number of components	1
Number of terminals	3
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	SINGLE
transistor applications	POWER CONTROL
Transistor component materials	SILICON

Preview

Download Datasheet

View All

OM60L60SBT Related Products

	OM60L60SBT	OM45L120SBV	OM45L120SBT	OM60L60SBV	OM35F120SBV	OM35F120SBT	OM50F60SBT	2SC2717M
Description	Insulated Gate Bipolar Transistor, 75A I(C), 600V V(BR)CES, N-Channel, HERMETIC SEALED PACKAGE-3	Insulated Gate Bipolar Transistor, 70A I(C), 1200V V(BR)CES, N-Channel, HERMETIC SEALED PACKAGE-3	Insulated Gate Bipolar Transistor, 70A I(C), 1200V V(BR)CES, N-Channel, HERMETIC SEALED PACKAGE-3	Insulated Gate Bipolar Transistor, 75A I(C), 600V V(BR)CES, N-Channel, HERMETIC SEALED PACKAGE-3	Insulated Gate Bipolar Transistor, 70A I(C), 1200V V(BR)CES, N-Channel, HERMETIC SEALED PACKAGE-3	Insulated Gate Bipolar Transistor, 70A I(C), 1200V V(BR)CES, N-Channel, HERMETIC SEALED PACKAGE-3	Insulated Gate Bipolar Transistor, 75A I(C), 600V V(BR)CES, N-Channel, HERMETIC SEALED PACKAGE-3	Silicon NPN transistor in a SOT-23 Plastic Package
Maker	Omnirel Corp.	-	-	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.	-
package instruction	HERMETIC SEALED PACKAGE-3	HERMETIC SEALED PACKAGE-3	HERMETIC SEALED PACKAGE-3	HERMETIC SEALED PACKAGE-3	HERMETIC SEALED PACKAGE-3	HERMETIC SEALED PACKAGE-3	HERMETIC SEALED PACKAGE-3	-
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	-
Other features	FAST, HIGH RELIABILITY	FAST, HIGH RELIABILITY	FAST, HIGH RELIABILITY	FAST, HIGH RELIABILITY	FAST, HIGH RELIABILITY, HIGH SPEED	FAST, HIGH RELIABILITY, HIGH SPEED	FAST, HIGH RELIABILITY, HIGH SPEED	-
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	-
Maximum collector current (IC)	75 A	70 A	70 A	75 A	70 A	70 A	75 A	-
Collector-emitter maximum voltage	600 V	1200 V	1200 V	600 V	1200 V	1200 V	600 V	-
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	-
JESD-30 code	R-MSFM-D3	R-MSFM-D3	R-MSFM-D3	R-MSFM-D3	R-MSFM-D3	R-MSFM-D3	R-MSFM-D3	-
Number of components	1	1	1	1	1	1	1	-
Number of terminals	3	3	3	3	3	3	3	-
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	N-CHANNEL	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
surface mount	NO	NO	NO	NO	NO	NO	NO	-
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	-
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
transistor applications	POWER CONTROL	POWER CONTROL	POWER CONTROL	POWER CONTROL	POWER CONTROL	POWER CONTROL	POWER CONTROL	-
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	-
