CD74ACT08E datasheet, PDF - EEWORLD Datasheet

CD74ACT08E: DescriptionAND Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP14,; Categorylogic logic; File Size115KB，4 Pages; ManufacturerGE Solid State

Download Datasheet Parametric View All

CD74ACT08E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CD74ACT08E	-	-	View	Buy Now

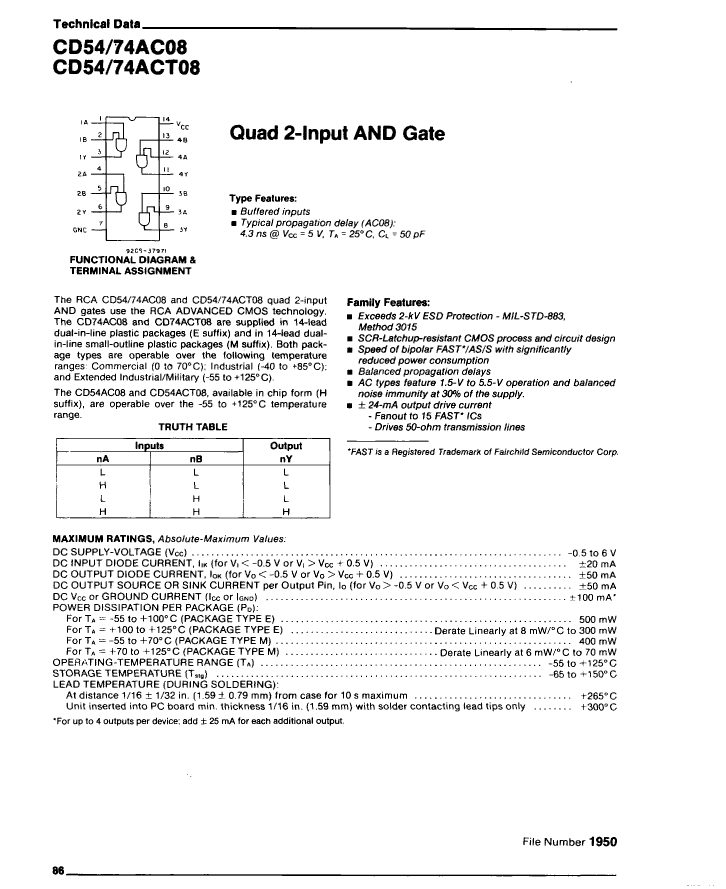

AND Gate, ACT Series, 4-Func, 2-Input, CMOS, PDIP14,

Parameter Name	Attribute value
Maker	GE Solid State
package instruction	,
Reach Compliance Code	unknown
series	ACT
JESD-30 code	R-PDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE

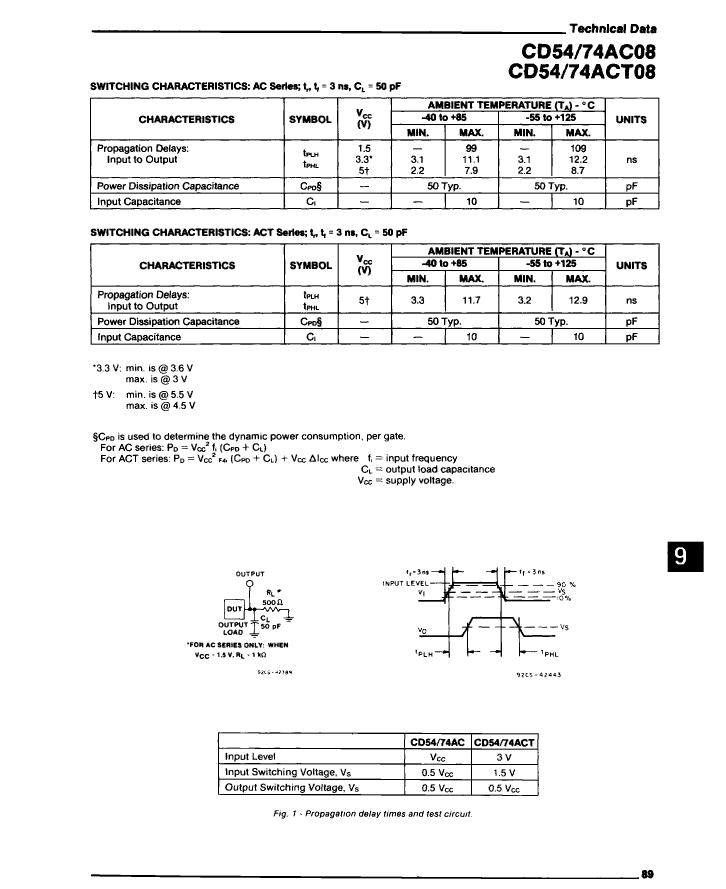

propagation delay (tpd)	12.9 ns
Certification status	Not Qualified

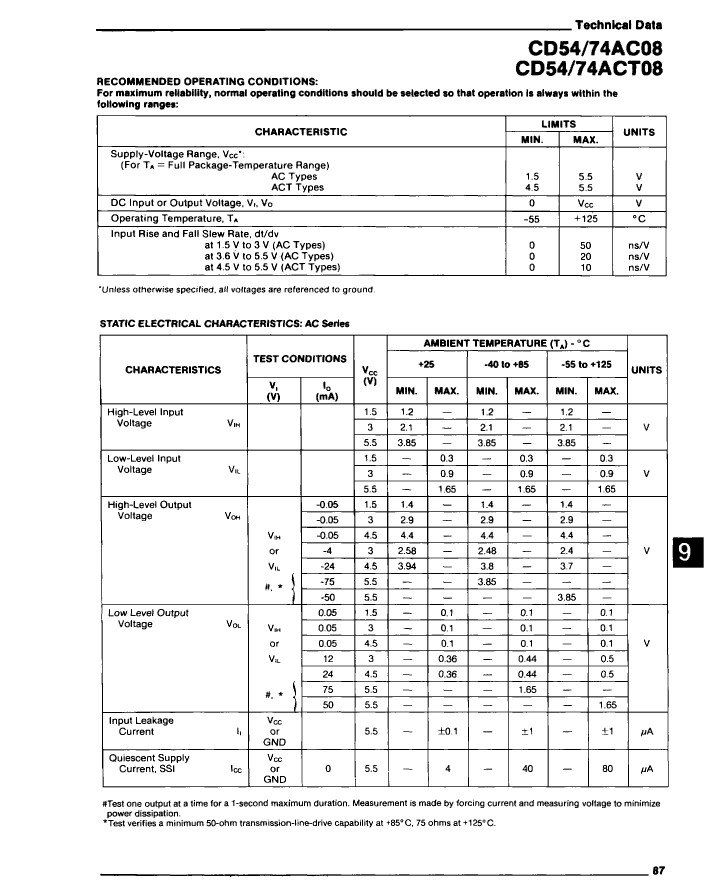

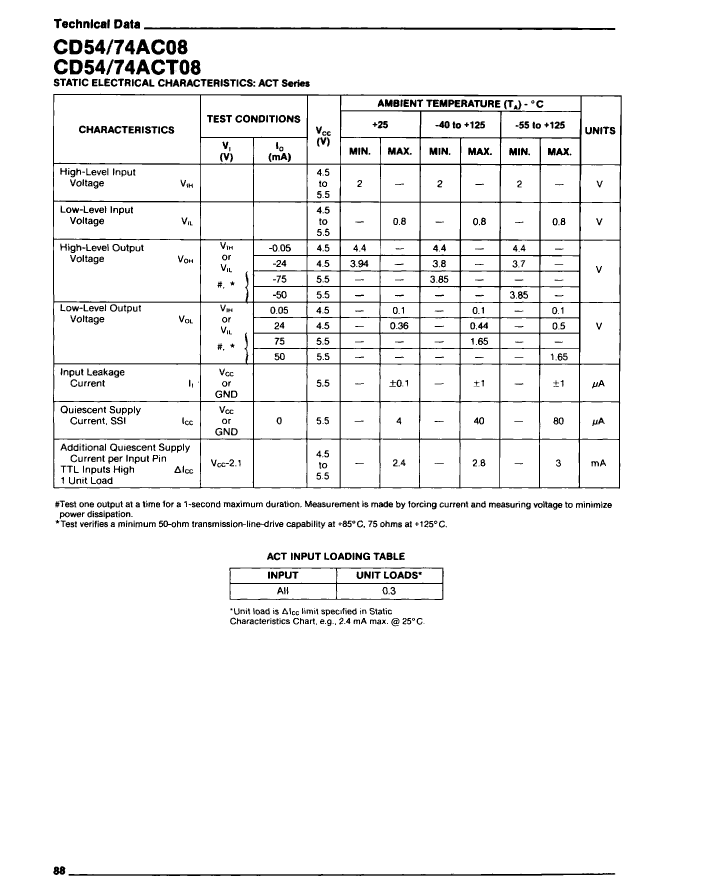

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
