SMD POWER INDUCTORS
1. PART NO. EXPRESSION :
SDC0604 SERIES
SDC0604-101MF
(a)
(b)
(c) (d)(e)
(a) Series code
(b) Dimension code
(c) Inductance code : 101 = 100uH
(d) Tolerance code : M = ±20%
(e) F : Lead Free

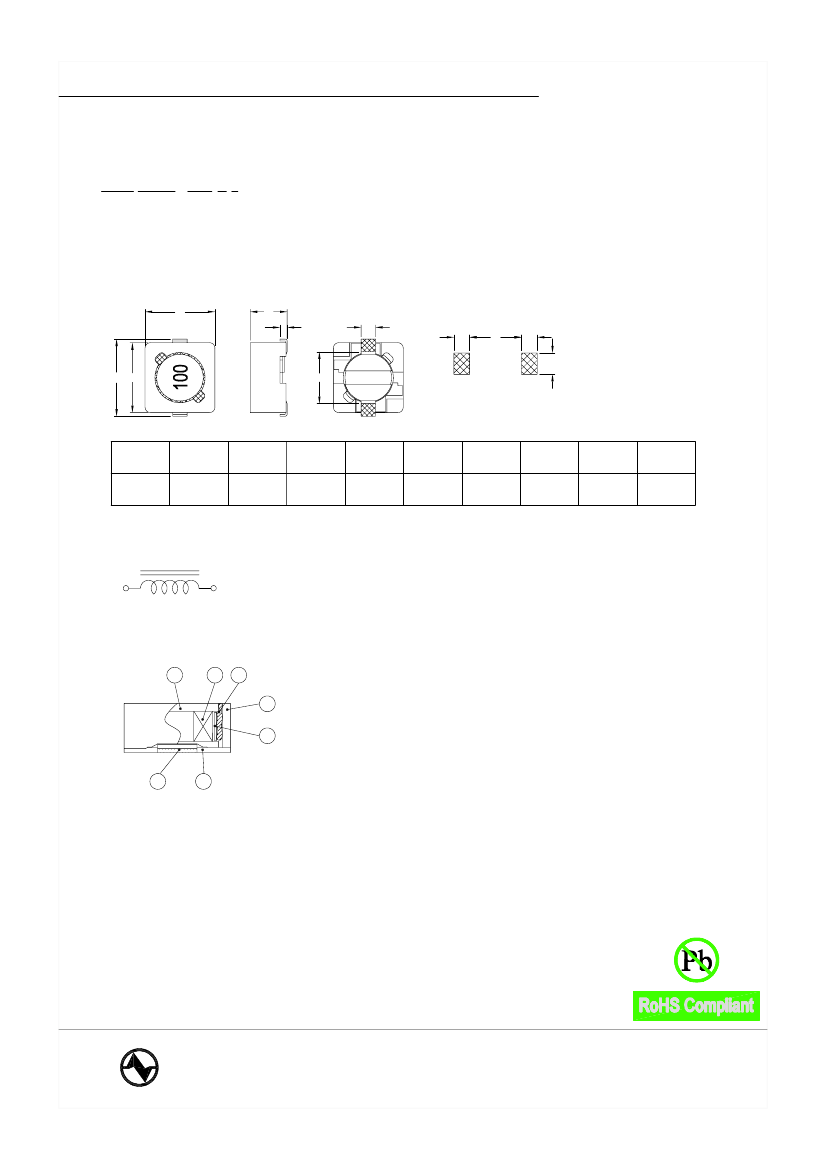

2. CONFIGURATION & DIMENSIONS :
A
E
C
D
I
G
I
H
B'
B
F
PCB Pattern
Unit:m/m
A
B
B'
C
D
1.50 Ref.
E
0.60 Ref.
F
4.60 Ref.
G
4.6 Ref.
H
1.9 Ref.
I
1.4 Ref.
6.20±0.30 5.90±0.30 6.60±0.30 5.00 Max.
3. SCHEMATIC :
4. MATERIALS :
a
d
g
b
e
(a) Core : DR Ferrite Core
(b) Core : RI Ferrite Core
(c) Base : LCP
(d) Wire : Enamelled Copper Wire
(e) Tape : Mylar Tape
f
c
(f) Terminal : Tinned Copper Plate
(g) Adhesive : Epoxy
5. GENERAL SPECIFICATION :
a) Temp. rise : 40°C Max.
b) Rated current : Base on temp. rise & L/L0A = 25% Max.
c) Operating temp. : -20°C to +80°C
NOTE : Specifications subject to change without notice. Please check our website for latest information.
05.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
SMD POWER INDUCTORS
6. ELECTRICAL CHARACTERISTICS :
Part No.
SDC0604-100MF
SDC0604-120MF
SDC0604-150MF
SDC0604-180MF
SDC0604-220MF
SDC0604-270MF
SDC0604-330MF
SDC0604-390MF
SDC0604-470MF
SDC0604-560MF
SDC0604-680MF
SDC0604-820MF
SDC0604-101MF
SDC0604-121MF
SDC0604-151MF
SDC0604-181MF
SDC0604-221MF
SDC0604-271MF
SDC0604-331MF
SDC0604-391MF
SDC0604-471MF
SDC0604-561MF
SDC0604-681MF
SDC0604-821MF
SDC0604-102MF
Inductance
( µH )
10 ±20%
12 ±20%
15 ±20%
18 ±20%
22 ±20%
27 ±20%
33 ±20%
39 ±20%
47 ±20%
56 ±20%
68 ±20%
82 ±20%
100 ±20%
120 ±20%
150 ±20%
180 ±20%
220 ±20%
270 ±20%
330 ±20%
390 ±20%
470 ±20%
560 ±20%
680 ±20%
820 ±20%
1000 ±20%
Test
Frequency
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
SDC0604 SERIES
RDC
( )
Max.
0.12
0.13
0.18
0.24
0.27
0.30
0.33
0.37
0.52
0.56
0.63
0.71
1.03
1.15
1.68
1.87
2.08
2.37
2.67
2.94
3.93
5.43
7.32
8.24
9.26
IDC
(A)
Max.
1.35
1.22
1.11
1.02
0.91
0.82
0.74
0.69
0.62
0.58
0.51
0.46
0.42
0.38
0.35
0.32
0.29
0.26
0.23
0.22
0.20
0.18
0.17
0.15
0.14
NOTE : Specifications subject to change without notice. Please check our website for latest information.
05.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
SMD POWER INDUCTORS

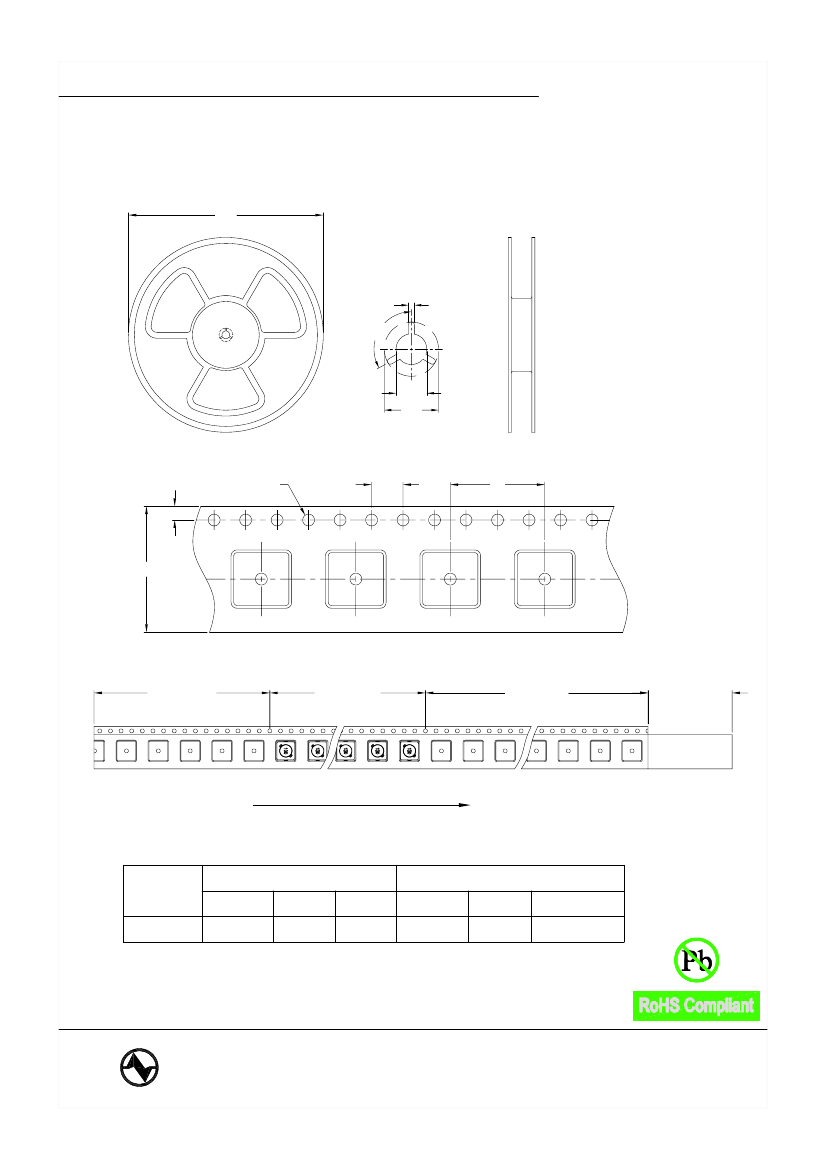

7. PACKAGING INFORMATION : ( Unit : mm )
7-1. Reel & Tape Dimension
330
SDC0604 SERIES
2.5±0.5
12
0°
13±1
23±1
1.50
+0.10
-0.00
4±0.1
12
Tape trailer
160mm Min.
1.75±0.1
16
Components
Tape leader
388mm Min.
Cover tape
250mm Min.
Direction of feed
7-2. Quantity & G.W. per package
INNER : REEL
SERIES
SDC0604
Q'TY (PCS)
1000
G.W. (Kg)
0.85
STYLE
13-16
OUTER : CARTON
Q'TY (PCS)
16000
G.W. (Kg)
18
SIZE (cm)
36 x 36 x 40
NOTE : Specifications subject to change without notice. Please check our website for latest information.
05.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
SMD POWER INDUCTORS
SDC0604 SERIES
7-3. Tearing Off Force
F
165° to 180°
Top cover tape
The force for tearing off cover tape is 10 to 60 grams
in the arrow direction.
Base tape
NOTE : Specifications subject to change without notice. Please check our website for latest information.
05.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
