SDC0703-470MF: DescriptionSMD POWER INDUCTORS; File Size209KB，4 Pages; ManufacturerSUPERWORLD; Websitehttp://www.superworld.com.sg/

Download Datasheet View All

SDC0703-470MF Overview

SMD POWER INDUCTORS

Preview

Download Datasheet

View All

SMD POWER INDUCTORS

1. PART NO. EXPRESSION :

SDC0703 SERIES

SDC0703-101MF

(a)

(b)

(a) Series code

(b) Dimension code

(d) Tolerance code : M = ±20%

(e) F : Lead Free

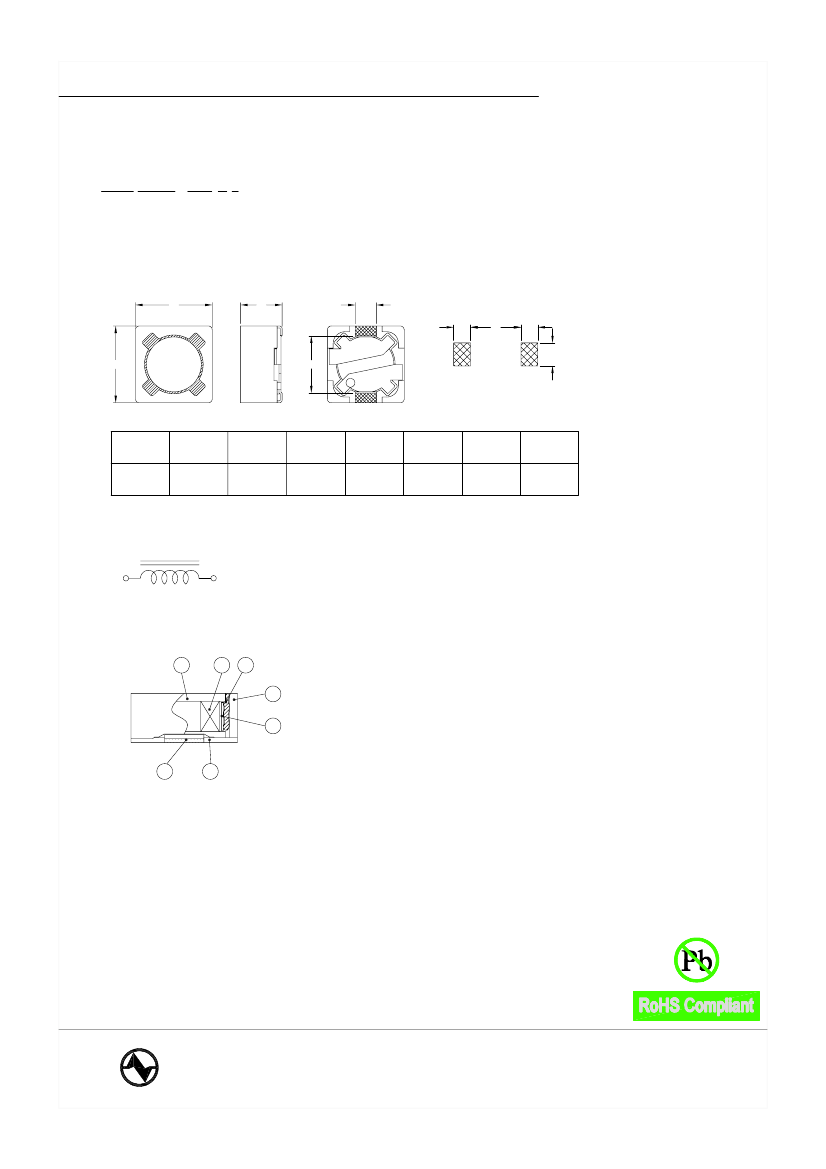

2. CONFIGURATION & DIMENSIONS :

101

PCB Pattern

Unit:m/m

1.80 Ref.

5.00 Ref.

4.8 Ref.

2.2 Ref.

1.6 Ref.

7.30±0.20 7.30±0.20 3.40 Max.

3. SCHEMATIC :

4. MATERIALS :

(a) Core : DR Ferrite Core

(b) Core : RI Ferrite Core

(d) Wire : Enamelled Copper Wire

(e) Tape : Mylar Tape

(f) Terminal : Tinned Copper Plate

(g) Adhesive : Epoxy

5. GENERAL SPECIFICATION :

a) Temp. rise : 40°C Max.

b) Rated current : Base on temp. rise & L/L0A = 25% Max.

c) Operating temp. : -20°C to +80°C

NOTE : Specifications subject to change without notice. Please check our website for latest information.

05.05.2008

SUPERWORLD ELECTRONICS (S) PTE LTD

PG. 1
