SMD POWER INDUCTORS
1. PART NO. EXPRESSION :
SDC0704 SERIES
SDC0704-101MF
(a)
(b)
(c) (d)(e)
(a) Series code
(b) Dimension code
(c) Inductance code : 101 = 100uH
(d) Tolerance code : M = ±20%
(e) F : Lead Free

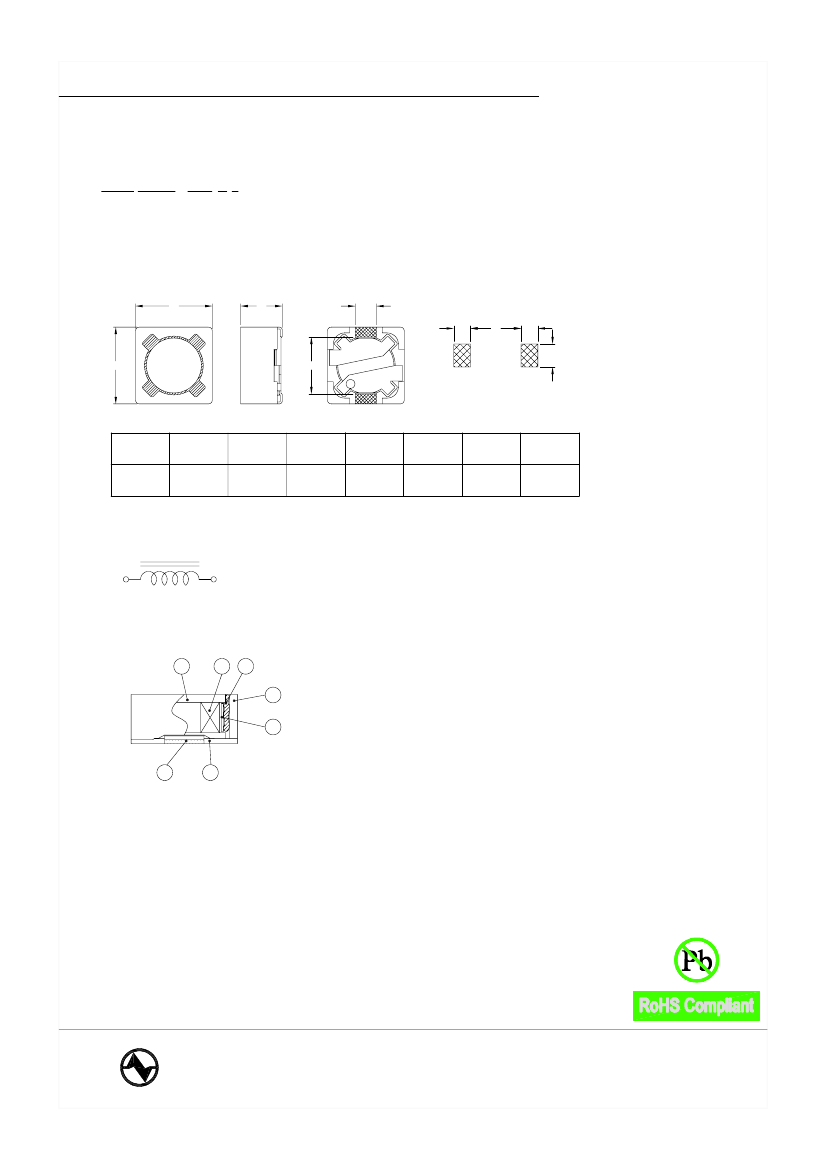

2. CONFIGURATION & DIMENSIONS :
A
C
D
I
G
I
H
F
101
B
PCB Pattern
Unit:m/m
A
B
C
D
1.80 Ref.
F
5.00 Ref.
G
4.8 Ref.
H
2.2 Ref.
I
1.6 Ref.
7.30±0.20 7.30±0.20 4.50 Max.
3. SCHEMATIC :
4. MATERIALS :
a
d
g
b
e
(a) Core : DR Ferrite Core
(b) Core : RI Ferrite Core
(c) Base : LCP
(d) Wire : Enamelled Copper Wire
(e) Tape : Mylar Tape
f
c
(f) Terminal : Tinned Copper Plate
(g) Adhesive : Epoxy
5. GENERAL SPECIFICATION :
a) Temp. rise : 40°C Max.
b) Rated current : Base on temp. rise & L/L0A = 25% Max.
c) Operating temp. : -40°C to +85°C
NOTE : Specifications subject to change without notice. Please check our website for latest information.
05.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
SMD POWER INDUCTORS
6. ELECTRICAL CHARACTERISTICS :
Part No.
SDC0704-3R3MF
SDC0704-100MF
SDC0704-120MF
SDC0704-150MF
SDC0704-180MF
SDC0704-220MF
SDC0704-270MF
SDC0704-330MF
SDC0704-390MF
SDC0704-470MF
SDC0704-560MF
SDC0704-680MF
SDC0704-820MF
SDC0704-101MF
SDC0704-121MF
SDC0704-151MF
SDC0704-181MF
SDC0704-221MF
SDC0704-271MF
SDC0704-331MF
SDC0704-391MF
SDC0704-471MF
SDC0704-561MF
SDC0704-681MF
SDC0704-821MF
SDC0704-102MF
Inductance
( µH )
3.396 ±20%
10 ±20%
12 ±20%
15 ±20%
18 ±20%
22 ±20%
27 ±20%
33 ±20%
39 ±20%
47 ±20%
56 ±20%
68 ±20%
82 ±20%
100 ±20%
120 ±20%
150 ±20%
180 ±20%
220 ±20%
270 ±20%
330 ±20%
390 ±20%
470 ±20%
560 ±20%
680 ±20%
820 ±20%
1000 ±20%
Test
Frequency
100KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
1KHz / 0.25V
SDC0704 SERIES
RDC
( )
Max.
0.0245
0.049
0.058
0.081
0.091
0.110
0.150
0.170
0.230
0.260
0.350
0.380
0.430
0.610
0.660
0.880
0.980
1.170
1.640
1.860
2.850
3.010
3.620
4.630
5.200
6.000
IDC
(A)
Max.
3.94
1.84
1.71
1.47
1.31
1.23
1.12
0.96
0.91
0.88
0.75
0.69
0.61
0.60
0.52
0.46
0.42
0.36
0.34
0.32
0.29
0.26
0.23
0.22
0.20
0.18
NOTE : Specifications subject to change without notice. Please check our website for latest information.
05.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
SMD POWER INDUCTORS

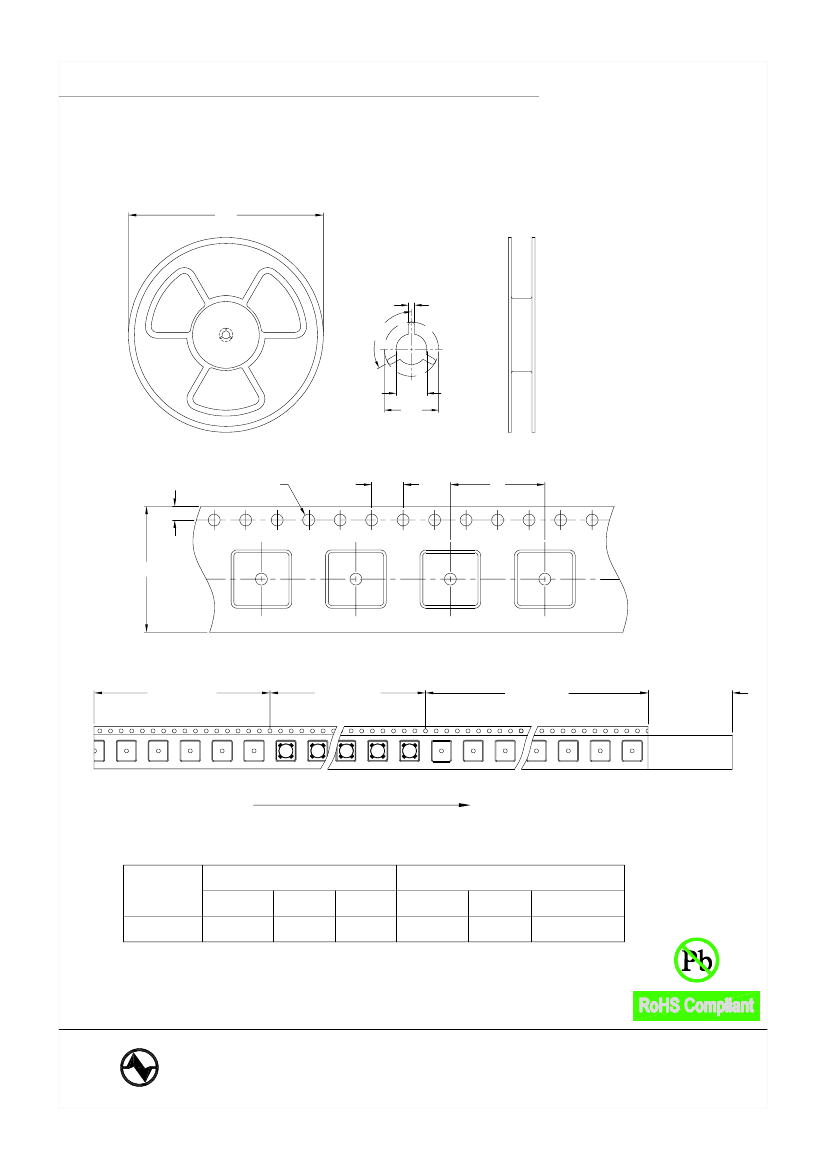

7. PACKAGING INFORMATION : ( Unit : mm )
7-1. Reel & Tape Dimension
330
SDC0704 SERIES
2.5±0.5
12
0°
13±1
23±1
1.50
+0.10
-0.00
4±0.1
12
Tape trailer
160mm Min.
1.75±0.1
16
Components
Tape leader
388mm Min.
Cover tape
250mm Min.
101
101
Direction of feed
101
101
101
7-2. Quantity & G.W. per package
INNER : REEL
SERIES
SDC0704
Q'TY (PCS)
1000
G.W. (Kg)
1.2
STYLE
13-16
OUTER : CARTON
Q'TY (PCS)
16000
G.W. (Kg)
24
SIZE (cm)
36 x 36 x 40
NOTE : Specifications subject to change without notice. Please check our website for latest information.
05.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
SMD POWER INDUCTORS
SDC0704 SERIES
7-3. Tearing Off Force
F
165° to 180°
Top cover tape
The force for tearing off cover tape is 10 to 60 grams
in the arrow direction.
Base tape
NOTE : Specifications subject to change without notice. Please check our website for latest information.
05.05.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
