Part Number

Search

OM60N06SAV

Description
Power Field-Effect Transistor, 60A I(D), 60V, 0.025ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA,
CategoryDiscrete semiconductor    The transistor
File Size282KB,6 Pages
ManufacturerOmnirel Corp.
Download Datasheet Parametric View All

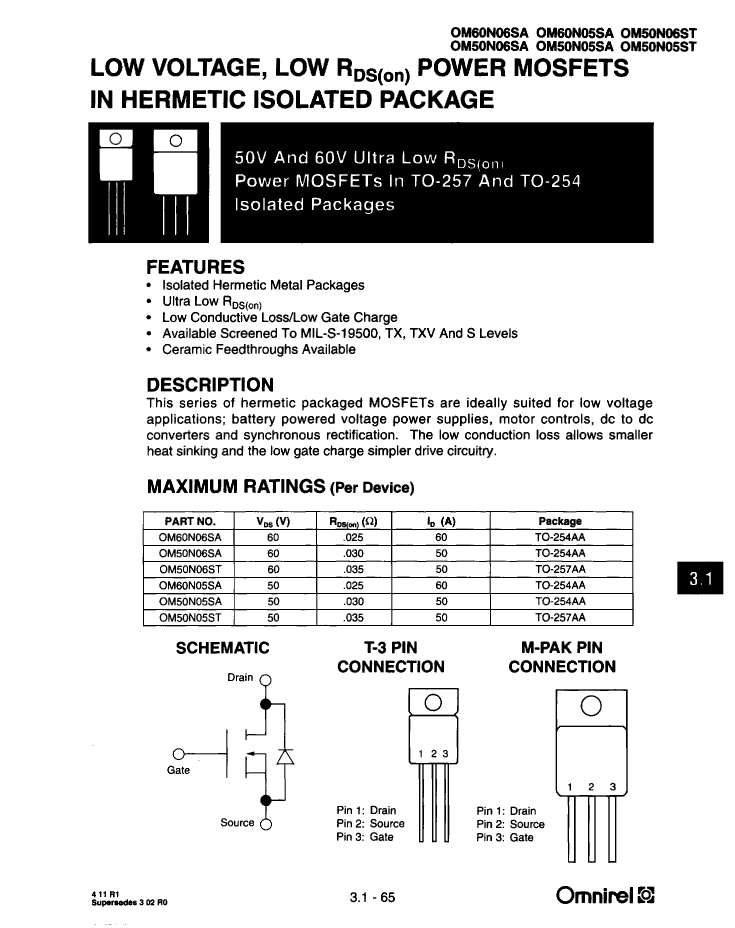

OM60N06SAV Overview

Power Field-Effect Transistor, 60A I(D), 60V, 0.025ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA,

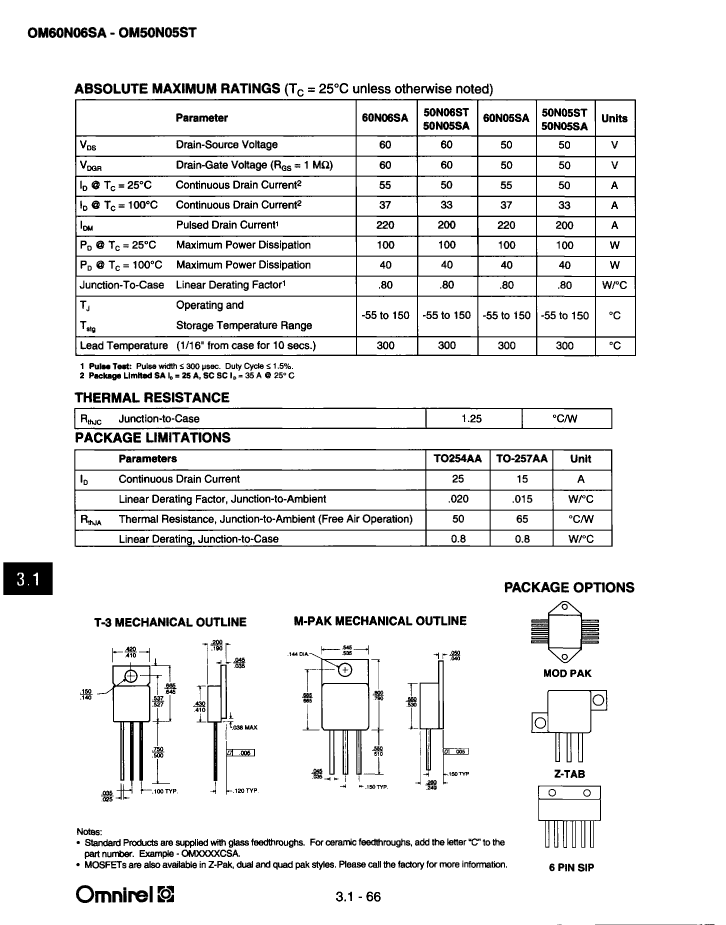

OM60N06SAV Parametric

Parameter NameAttribute value
MakerOmnirel Corp.
Reach Compliance Codeunknown
Avalanche Energy Efficiency Rating (Eas)520 mJ
Shell connectionISOLATED
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage60 V
Maximum drain current (ID)60 A
Maximum drain-source on-resistance0.025 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JEDEC-95 codeTO-254AA
JESD-30 codeS-MSFM-P3
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Package body materialMETAL
Package shapeSQUARE
Package formFLANGE MOUNT
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)220 A
Certification statusNot Qualified
surface mountNO
Terminal formPIN/PEG
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON
