LCE9.0AT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> LCE9.0AT

LCE9.0AT: DescriptionTrans Voltage Suppressor Diode, 1500W, 9V V(RWM), Unidirectional, 1 Element, Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC, CASE 1.5KE, DO-201, 2 PIN; CategoryDiscrete semiconductor diode; File Size121KB，4 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

LCE9.0AT Overview

Trans Voltage Suppressor Diode, 1500W, 9V V(RWM), Unidirectional, 1 Element, Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC, CASE 1.5KE, DO-201, 2 PIN

LCE9.0AT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Littelfuse
Parts packaging code	DO-201
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW CAPACITANCE
Maximum breakdown voltage	11.1 V
Minimum breakdown voltage	10 V
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	9 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

Silicon Avalanche Diodes

1500W Axial Leaded Transient Voltage Supressors

RoHS

LCE Series

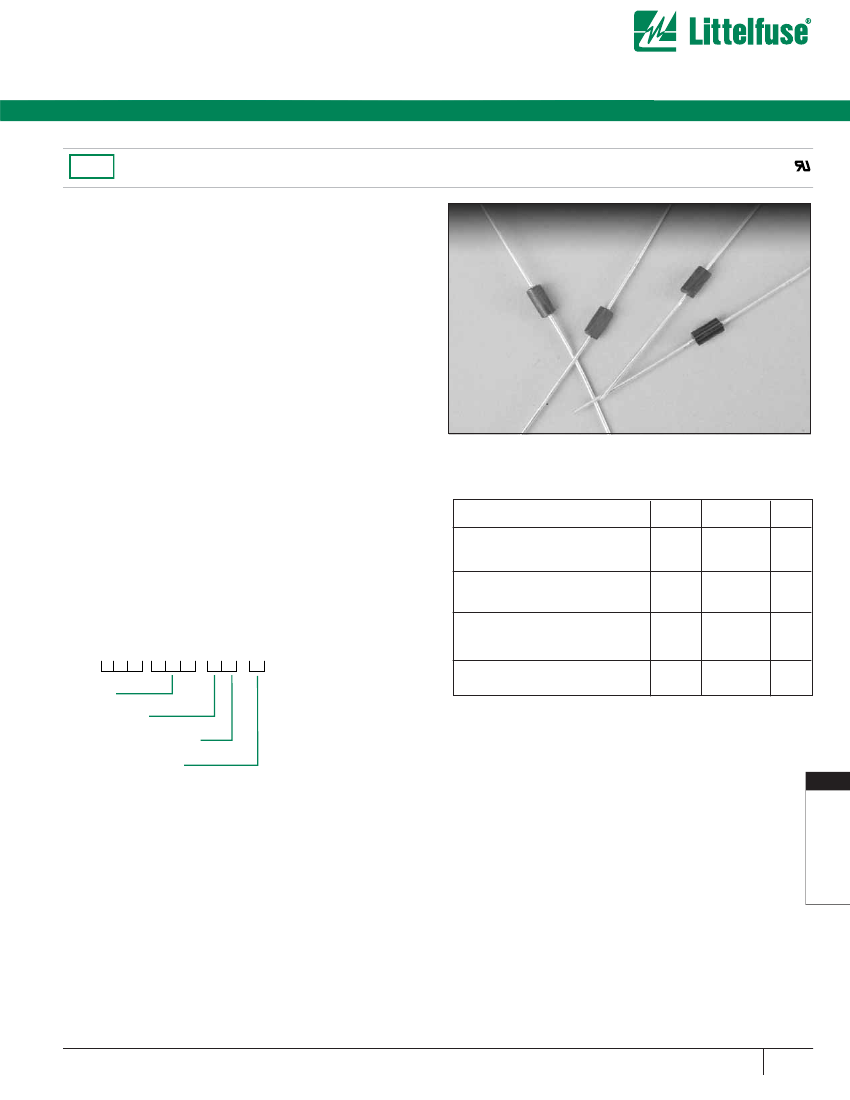

FEATURES

•

RoHS

compliant

•

Plastic package has Underwriters Laboratory Flammability

Classification 94V-O

•

Glass passivated junction

•

1500W Peak Pulse Power capability with a 10/1000µs

waveform, repetition rate (duty cycle):0.05%

•

Excellent clamping capability

•

Low incremental surge resistance

•

Fast response time: typically less than 5.0ns from 0 Volts to

V(BR)

•

Ideal for data line applications

•

Low capacitance

•

High temperature soldering guaranteed: 265˚C/10

seconds,0.375"(9.5mm) lead length, 5lbs., (2.3kg) tension

MAXIMUM RATINGS AND CHARACTERISTICS

@25˚C AMBIENT TEMPERATURE (unless otherwise noted)

PARAMETER

Peak pulse power Dissipation with a

10/1000µs waveform

(note 1,FIG.1)

Steady State Power Dissipation,

TL= 75 with at lead lengths 0.375”

(9.5mm)

SYMBOL

PPPM

VALUE

Min

1500

UNIT

Watts

Agency Approvals:

Recognized under the Components Program

of Underwriters Laboratories.

Agency File Number:

E128662

PM(AV)

Watts

ORDERING INFORMATION

L CE

Peak power pulse surge current

with a 10/1000µs waveform

(FIG.3, note 1)

Operating junction and Storage

Temperature Range

IPPM

See Table 1

Amps

Tj, TsTG -55 to +175

°C

Voltage

Bi-Directional

5% Voltage Tolerance

Packaging Options

B= Bulk (500 pcs)

T= Tape and reeled (1200 pcs)

Mechanical Specifications:

Weight:

Case:

Mounting Position:

Polarity:

Terminal:

Standard Packaging:

0.045 ounce, 1.2 grams

JEDEC DO-201 Molded Plastic over

passivated junction

Any

Color band denotes cathode except

Bidirectionals

Solder Plated, solderable per

MIL-STD-750, Method 2026

16mm tape (EIA STD RS-481)

Notes:

1. Non-repetitive current pulse, per Fig.3 and derated above TA=

25˚C per Fig.2

SILICON DIODE

ARRAYS

w w w. l i t t e l f u s e . c o m

311
