SJ1116
0.6A
Low Dropout
Positive
Elektronische Bauelemente
RoHS Compliant Product
Adjustable or
Fixed-Mode Regulator
Description
The SJ1116
is a low dropout at positive adjustable or fixed-mode
regulator with minimum of 0.6A output current capability. The product is
specifically designed to provide well-regulated supply for low voltage
IC applications such as high-speed bus termination and low current
3.3V logic supply. SJ1116 is also well suited for other applications
such as VGA cards. SJ1116 is guaranteed to have lower than 1.3V
dropout at full load current making it ideal to provide well regulated
outputs of 1.25V to 5.0V with up to 12V input supply.
TO-252
Features
*
1.3Vmaximum dropout full load current
*
3-Terminal Adjustable or Fixed 1.5V,1.8V,2.5V,3.3V,5.0V
*
Output current limiting
*
Good noise rejection
*
Fast transient response
*
Built-in thermal shutdown
REF.
A
B
C
D
E
F
S
Millmeter
Min.
Max.
6.40
6.80
5.20
5.50
6.80
7.20
2.20
2.80
2.30 REF.
0.70
0.90
0.60
0.90
REF.
G
H
J
K
L
M
R
Millmeter
Min.
Max.
0.50
0.70
2.20
2.40
0.45
0.55
0
0.15
0.90
1.50
5.40
5.80
0.80
1.20
Typical Circuit
3.3V /0.6A
2.5V/0.6A
http://www.SeCoSGmbH.com/
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 1 of
4
SJ1116
Elektronische Bauelemente
0.6A
Low Dropout
Positive
Adjustable or
Fixed-Mode Regulator
Block Diagram
is connected from this pin to ground to insure that the input voltage does not sag
s not sag below the minimum dropout voltage during the load
V higher than Vout in order for the
This pin
device to
Pin Descriptions
Name
Adj (GND)
Vout
Vin
O
I
I/O
Pin#
1
2
3
Function
A resistor divider from
this pin to the Vout pin and ground sets the output voltage
(Ground only for fixed mode)
The output of the regulator. A minimum of 10uF capacitor (0.15
ESR 20 )
must be connected from this pin to ground to insure stability.
The input pin of regulator. Typically a large storage capacitor (0.15
ESR 20 )
is connected from this pin to ground to insure that the input voltage does not sag
below the minimum dropout voltage during the load transient response.
This pin
must always be 1.3V higher than Vout in order for the device to regulate properly.
Absolute Maximum Ratings
Symbol
V
IN
P
D
T
ST
T
OP
Parameter
DC Supply Voltage
Power Dissipation
Storage Temperature
Operating Junction Temperature Range
Ratings
-0.3 to 12
Internally Limited
-65 ~ + 150
0 ~ + 150
Unit
V
:
:
http://www.SeCoSGmbH.com/
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page
2
of
4
SJ1116
Elektronische Bauelemente
0.6A
Low Dropout
Positive
Adjustable or
Fixed-Mode Regulator
Electrical Characteristics
Parameter
Reference Voltage
SJ1116ADJ
SJ1116-1.5
SJ1116-1.8
Output Voltage
SJ1116-2.5
SJ1116-3.3
SJ1116-5.0
Line Regulation
SJ1116-XXX
SJ1116ADJ
SJ1116-1.5
Load Regulation
SJ1116-1.8
SJ1116-2.5
SJ1116-3.3
SJ1116-5.0
Dropout Voltage
(V
IN
-V
OUT
)
Current Limit
Minimum Load Current
Adjust Pin Current
Quiescent Current
Thermal Regulation
Ripple Rejection
SJ1116-XXX
SJ1116-XXX
Adjustable model
Adjustable model
Conditions
Io=10mA, T
J
=25 : , (V
IN
-V
OUT
)=1.5V
Io=10mA, T
J
=25 : , 3.0V V
IN
12V
Io=10mA, T
J
=25 : , 3.3V V
IN
12V
Io=10mA, T
J
=25 : , 4.0V V
IN
12V
Io=10mA, T
J
=25 : , 4.8V V
IN
12V
Io=10mA, T
J
=25 : , 6.5V V
IN
12V
Io=10mA, V
OUT
+1.5V< V
IN
<12V, T
J
=25 :
V
IN
=3.3V, Vadj=0, 0mA< Io <0.6A, T
J
=25 :
V
IN
=3.0V, 0mA< Io <0.6A, T
J
=25 :
(Note 1,2)
V
IN
=3.3V, 0mA< Io <0.6A, T
J
=25 :
(Note 1,2)
V
IN
=4.0V, 0mA< Io <0.6A, T
J
=25 :
(Note 1,2)
V
IN
=5.0V, 0mA< Io <0.6A, T
J
=25 :
(Note 1,2)
V
IN
=8.0V, 0mA< Io <0.6A, T
J
=25 :
(Note 1,2)
Io=0.6A ( V
OUT
=0.1% V
OUT
)
V
IN
-V
OUT
=5V
Vin=5V
Vin=12V, Io=10mA
Vin=12V, Io=0mA
Min
Typ
Max Unit
V
V
V
V
V
V
%
%
mV
mV
mV
mV
mV
V
A
mA
uA
mA
1.225 1.250 1.275
1.470 1.500 1.530
1.764 1.800 1.836
2.450 2.500 2.550
3.235 3.300 3.365
4.900 5.000 5.100
-
-
-
-
-
-
-
-
0.7
-
-
-
-
-
-
-
12
15
20
26
40
1.1
-
5
50
-
0.2
1
15
18
25
33
50
1.3
-
10
100
12
(Note 1,2)
fixed model
T
A
=25 : ,30ms pulse
F=120Hz, C
OUT
=25uF Tantalum, I
OUT
=0.6A
SJ1116-XXX
V
IN
=V
OUT
+3V
0.008 0.04 %/W
60
70
dB
Temperature Stability
I
O
=10mA
-
0.5
-
%
JA
Thermal Resistance
Junction-to-Ambient(No
-
92
-
: /
W
heat sink ;No air flow)
JC
Thermal Resistance
Control Circuitry/Power Transistor
-
10
-
: /
W
Junction-to-Case
Note 1: See thermal regulation specifications for changes in output voltage due to heating effects. Line and load regulation
are measured at a constant junction temperature by low duty cycle pulse testing. Load regulation is measured at the
output lead =1/18” from the package.
Note 2: Line and load regulation are guaranteed up to the maximum power dissipation of 15W. Power dissipation is
determined by the difference between input and output and the output current. Guaranteed maximum power
dissipation will not be available over the full input/output range.
h tp://www.SeCoSGmbH.com/
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page
3
of
4
SJ1116
Elektronische Bauelemente
0.6A
Low Dropout
Positive
Adjustable or
Fixed-Mode Regulator

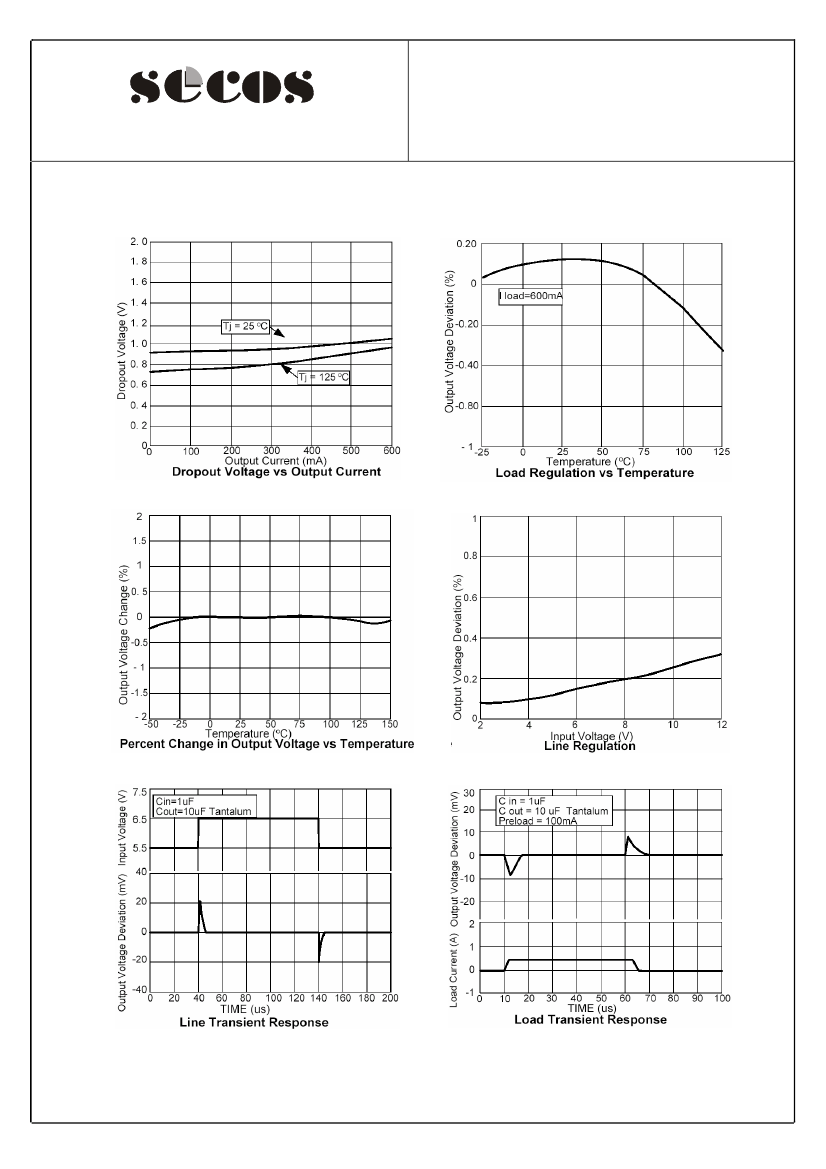

Typical Performance Characteristics
h tp://www.SeCoSGmbH.com/
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page
4
of
4
