PS2532L-2-E3-A: DescriptionDarlington Output Optocoupler, 2-Element, 5000V Isolation, ROHS COMPLIANT, SURFACE MOUNT, PLASTIC, DIP-8; CategoryLED optoelectronic/LED photoelectric; File Size533KB，18 Pages; ManufacturerNEC Electronics; Environmental Compliance

Download Datasheet Parametric View All

PS2532L-2-E3-A Overview

Darlington Output Optocoupler, 2-Element, 5000V Isolation, ROHS COMPLIANT, SURFACE MOUNT, PLASTIC, DIP-8

PS2532L-2-E3-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NEC Electronics
package instruction	ROHS COMPLIANT, SURFACE MOUNT, PLASTIC PACKAGE-8
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Min	300 V
Configuration	SEPARATE, 2 CHANNELS WITH BUILT-IN DIODE AND RESISTOR
Nominal current transfer ratio	4000%
Maximum dark power	400 nA
Maximum forward current	0.08 A
Maximum insulation voltage	5000 V
JESD-609 code	e6/e4
Number of components	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	DARLINGTON OUTPUT OPTOCOUPLER
Terminal surface	TIN BISMUTH/NICKEL PALLADIUM GOLD

Preview

Download Datasheet

View All

PHOTOCOUPLER

PS2532-1,-2,-4,PS2532L-1,-2,-4

HIGH COLLECTOR TO EMITTER VOLTATGE

HIGH ISOLATION VOLTAGE

MULTI PHOTOCOUPLER SERIES

DESCRIPTION

The PS2532-1, -2, -4 and PS2532L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode

and an NPN silicon darlington connected phototransistor.

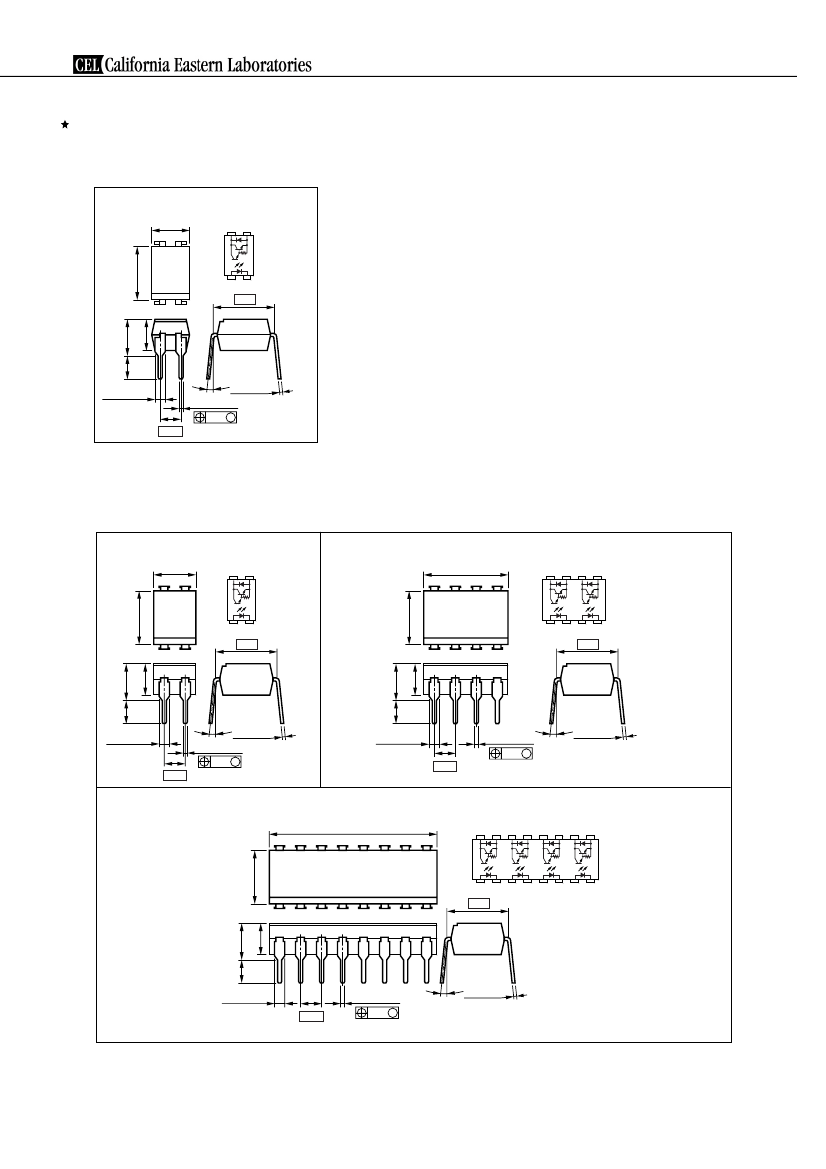

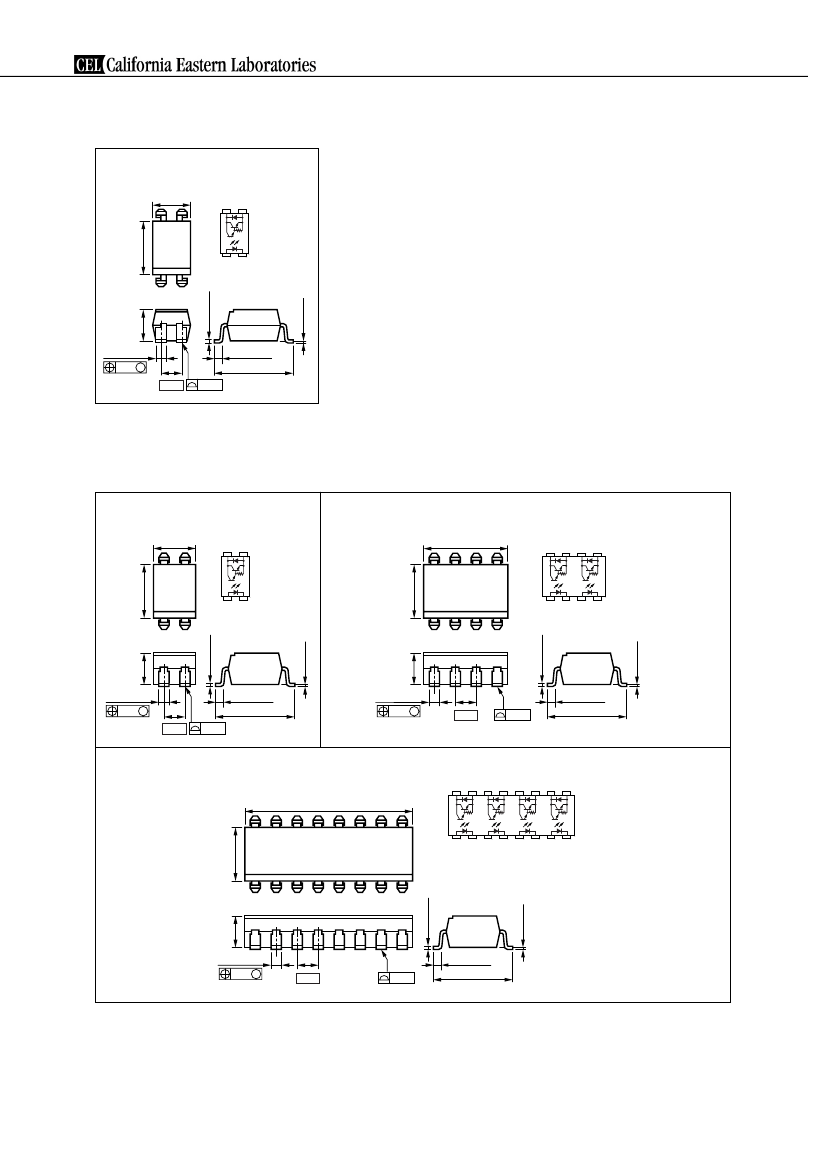

The PS2532-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2532L-1, -2, -4 are lead bending type

(Gull-wing) for surface mount.

−NEPOC

Series−

FEATURES

• High collector to emitter voltage (V

CEO

= 300 V)

• High Isolation voltage (BV = 5 000 Vr.m.s.)

• High current transfer ratio (CTR = 4 000 % TYP.)

• High-speed switching (t

= 100

s TYP.)

• Ordering number of tape product: PS2532L-1-E3, E4, F3, F4, PS2532L-2-E3, E4

• Safety standards

• UL approved: File No. E72422 (S)

• BSI approved: No. 8221/8222

• CSA approved: No. CA 101391

• NEMKO approved: No. P98101708

• SEMKO approved: No. 9824187/01-02

• DEMKO approved: No. 307863

• FIMKO approved: No. F1 11397

• VDE0884 approved (Option)

APPLICATIONS

• Telephone, Exchange equipment

• FAX/MODEM

Document No. PN10232EJ01V0DS (1st edition)

(Previous No. P11434EJ6V0DS00)

Date Published February 2003 CP(K)

The mark

shows major revised points.
