MC68HC05M4MFN datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MC68HC05M4MFN

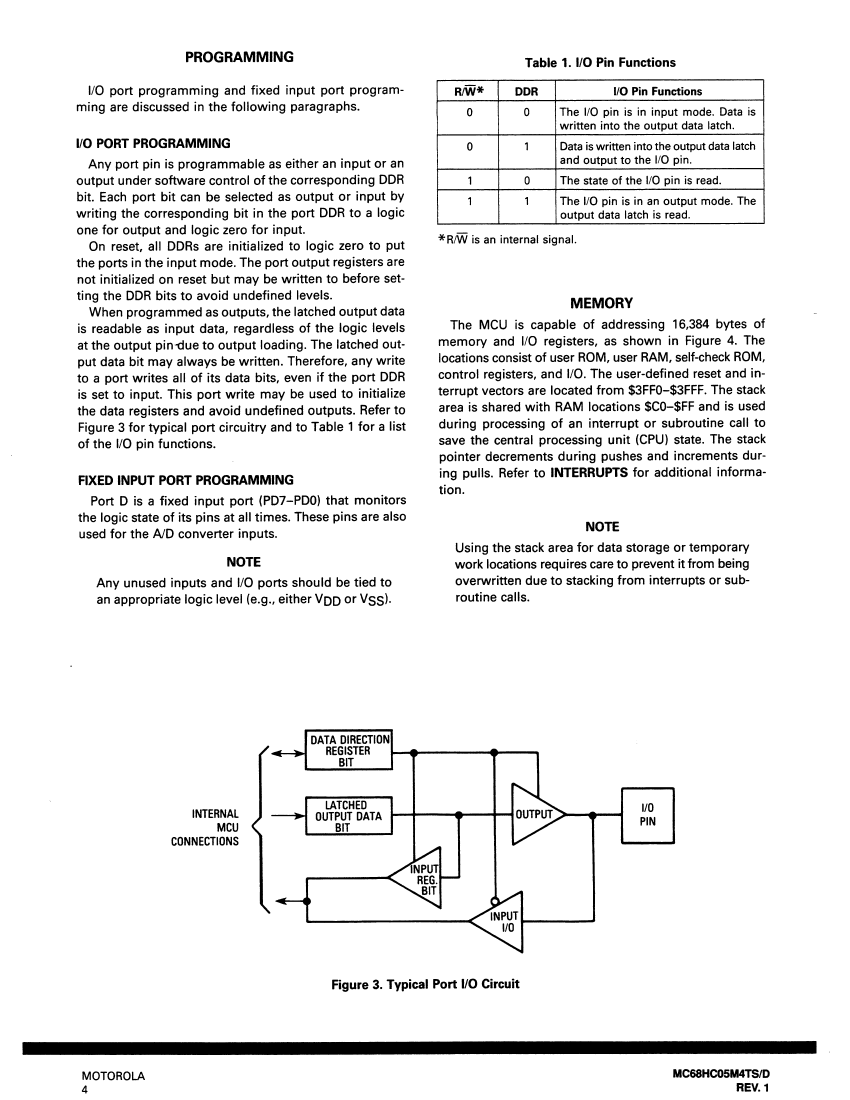

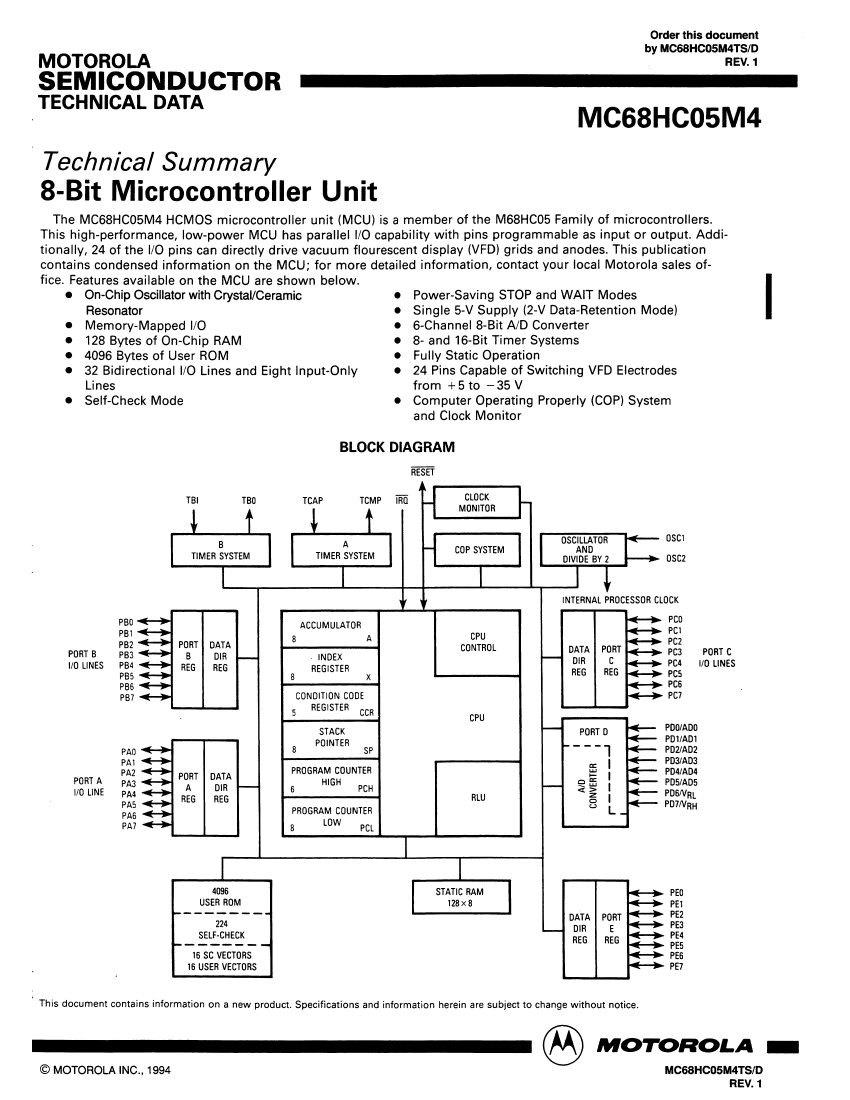

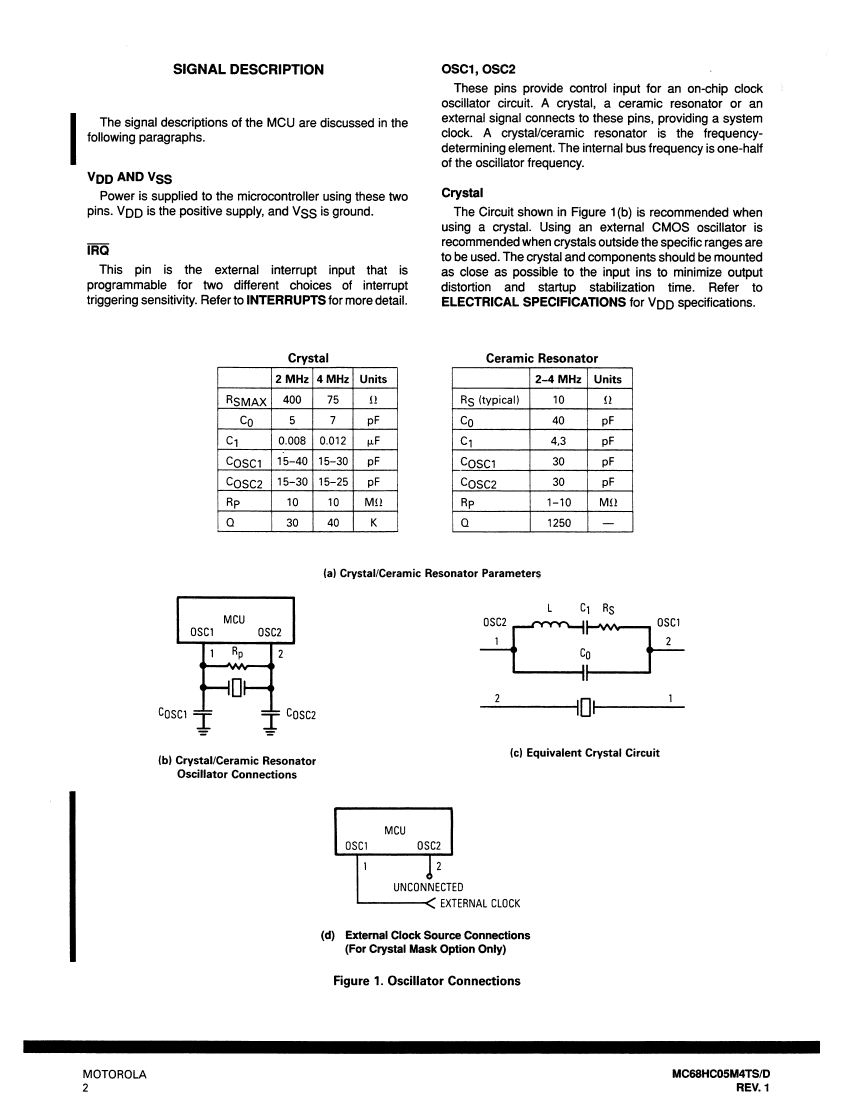

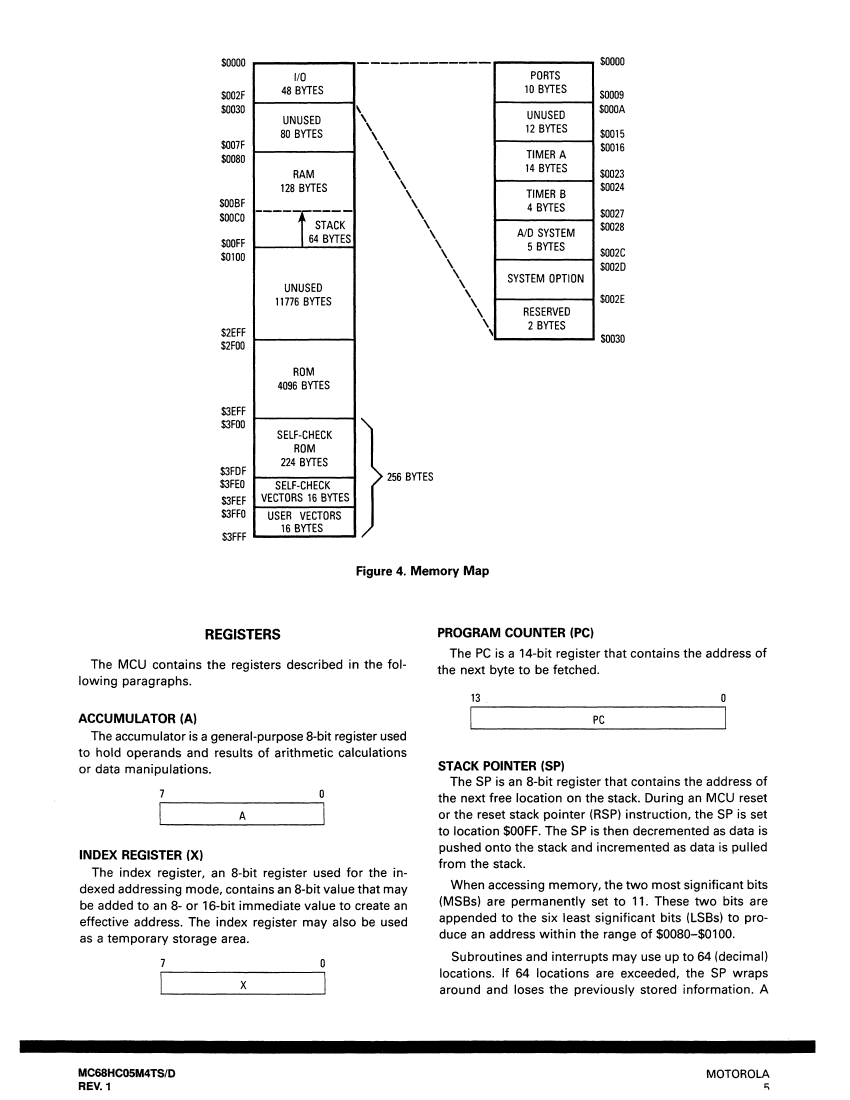

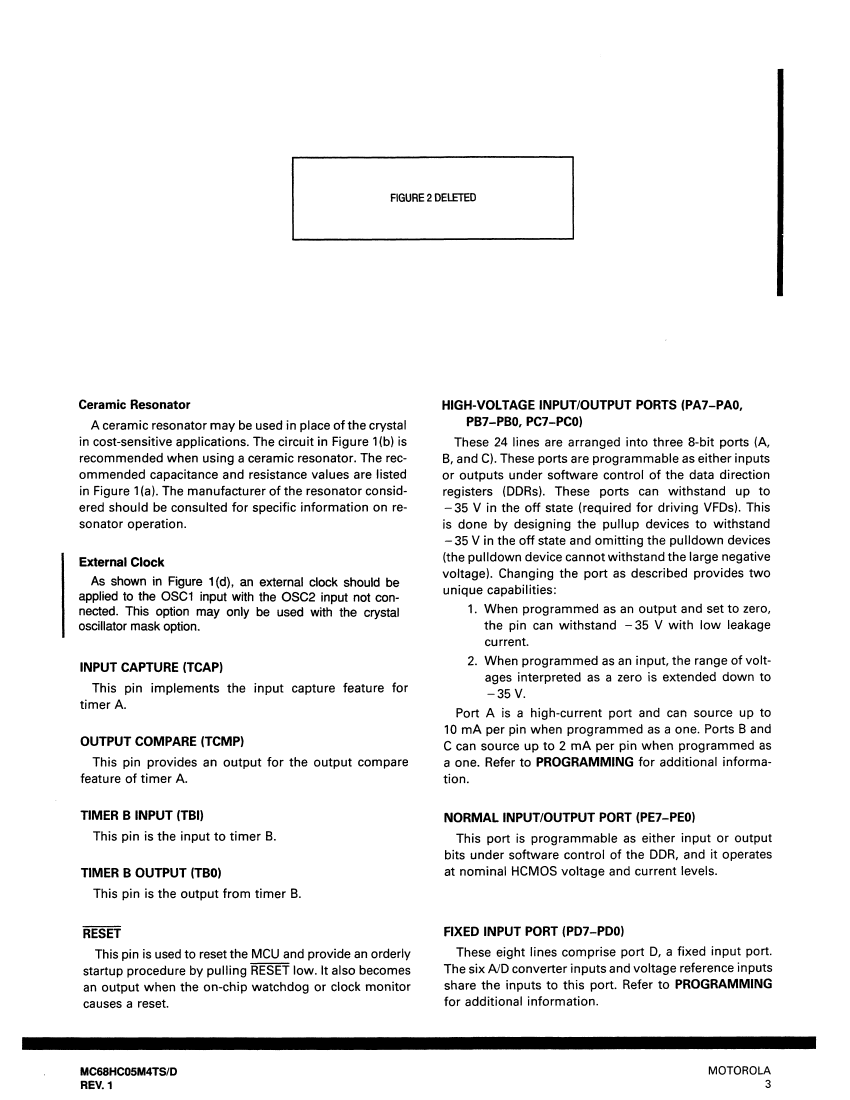

Preview

MC68HC05M4MFN: DescriptionMicrocontroller, 8-Bit, MROM, 6805 CPU, 2.1MHz, HCMOS, PQCC52, PLASTIC, LCC-52; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，36 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC68HC05M4MFN Overview

Microcontroller, 8-Bit, MROM, 6805 CPU, 2.1MHz, HCMOS, PQCC52, PLASTIC, LCC-52

MC68HC05M4MFN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	PLASTIC, LCC-52
Reach Compliance Code	unknown
Has ADC	YES
Address bus width
bit size	8
CPU series	6805
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQCC-J52
JESD-609 code	e0
length	19.1262 mm
Number of I/O lines	40
Number of terminals	52
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC52,.8SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	4096
ROM programmability	MROM
Maximum seat height	4.57 mm
speed	2.1 MHz
Maximum slew rate	9 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	HCMOS
Temperature level	AUTOMOTIVE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	19.1262 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

MC68HC05M4MFN Related Products

	MC68HC05M4MFN	MC68HC05M4CFN	MC68HC05M4FN
Description	Microcontroller, 8-Bit, MROM, 6805 CPU, 2.1MHz, HCMOS, PQCC52, PLASTIC, LCC-52	Microcontroller, 8-Bit, MROM, 6805 CPU, 2.1MHz, HCMOS, PQCC52, PLASTIC, LCC-52	Microcontroller, 8-Bit, MROM, 6805 CPU, 2.1MHz, HCMOS, PQCC52, PLASTIC, LCC-52
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	PLASTIC, LCC-52	PLASTIC, LCC-52	PLASTIC, LCC-52
Reach Compliance Code	unknown	unknown	unknown
Has ADC	YES	YES	YES
bit size	8	8	8
CPU series	6805	6805	6805
maximum clock frequency	4.2 MHz	4.2 MHz	4.2 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
JESD-30 code	S-PQCC-J52	S-PQCC-J52	S-PQCC-J52
JESD-609 code	e0	e0	e0
length	19.1262 mm	19.1262 mm	19.1262 mm
Number of I/O lines	40	40	40
Number of terminals	52	52	52
Maximum operating temperature	125 °C	85 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-
PWM channel	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ
Encapsulate equivalent code	LDCC52,.8SQ	LDCC52,.8SQ	LDCC52,.8SQ
Package shape	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	128	128	128
rom(word)	4096	4096	4096
ROM programmability	MROM	MROM	MROM
Maximum seat height	4.57 mm	4.57 mm	4.57 mm
speed	2.1 MHz	2.1 MHz	2.1 MHz
Maximum slew rate	9 mA	9 mA	9 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	HCMOS	HCMOS	HCMOS
Temperature level	AUTOMOTIVE	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	19.1262 mm	19.1262 mm	19.1262 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
